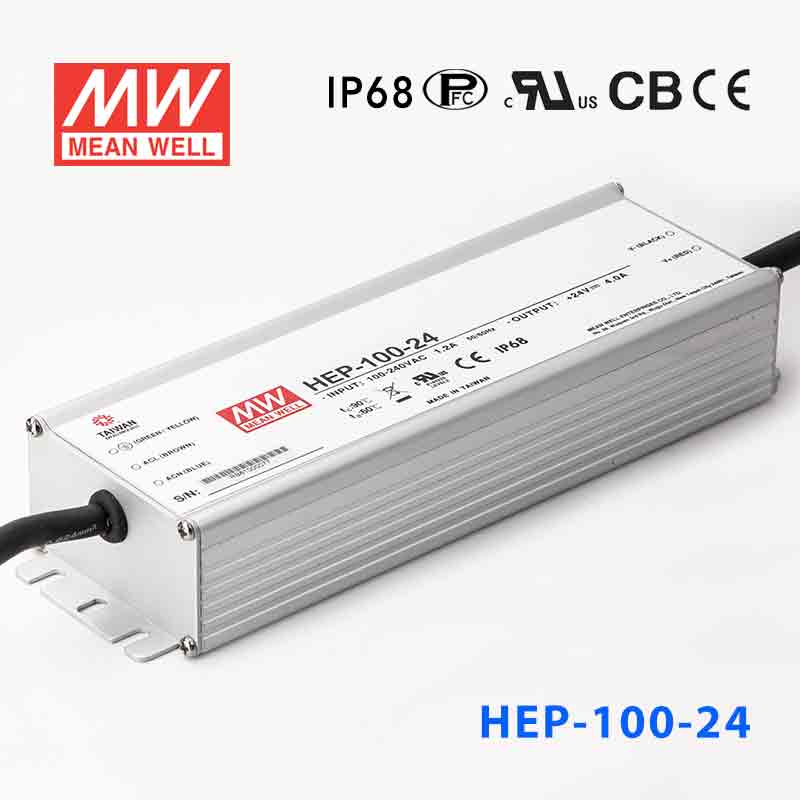

Mean Well HEP-100-24 Power Supply 96W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-100-24 Power Supply 96W 24V
The HEP-100 is a 100W Mean Well DIN rail power converter with a 220mm profile (input range: 90~305VAC, operating temperature: -55~+70℃).
Key Features
- ✓ 220mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -55~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.6,9 UL62368-1 , IEC/EN62368-1,IP65 (or IP68 for HEP-100 Blank type) , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating96 Watt
-
Output Voltage24 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~70°C
-
Warranty6 Year
-
Length8.66 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.47 lb
::specification::
Frequently Asked Questions
Can I use the HEP-100-24 for 24V PLC I/O, relays, and industrial sensors?
Yes, if the total 24V DC load stays within 4A and 96W. This is a constant-voltage 24V supply, which is a common requirement for PLC-related control loads and industrial sensing circuits.
Is this suitable for 24V building automation or control panels?
It can be used for 24V building automation controllers, relays, and field devices when the combined demand does not exceed 96W or 4A. The 90-305VAC input also supports a wide AC input range for facility power systems.
Can the HEP-100-24 power 24V embedded or edge-computing equipment in industrial environments?
Yes, if the equipment is designed for 24V DC input and draws no more than 4A total. The -55°C to +70°C operating range, fanless construction, and 10G vibration resistance support use in harsh industrial locations.
Is this model a fit for outdoor automation enclosures?
Yes, this version is rated IP68 and operates from -55°C to +70°C, which makes it suitable for harsh indoor areas and outdoor enclosures where stronger ingress protection is needed. It is intended for demanding environments rather than protected indoor-only spaces.
How does the HEP-100-24 compare with the other HEP-100 output options?
In the HEP-100 series, the 12V models are 100.08W and 8.34A, the 15V models are 100.05W and 6.67A, the 24V models are 96W and 4A, the 36V models are 95.4W and 2.65A, the 48V models are 96W and 2A, and the 54V models are 95.58W and 1.77A. The selection comes down to which output voltage your load requires and how much current it needs at that voltage.
