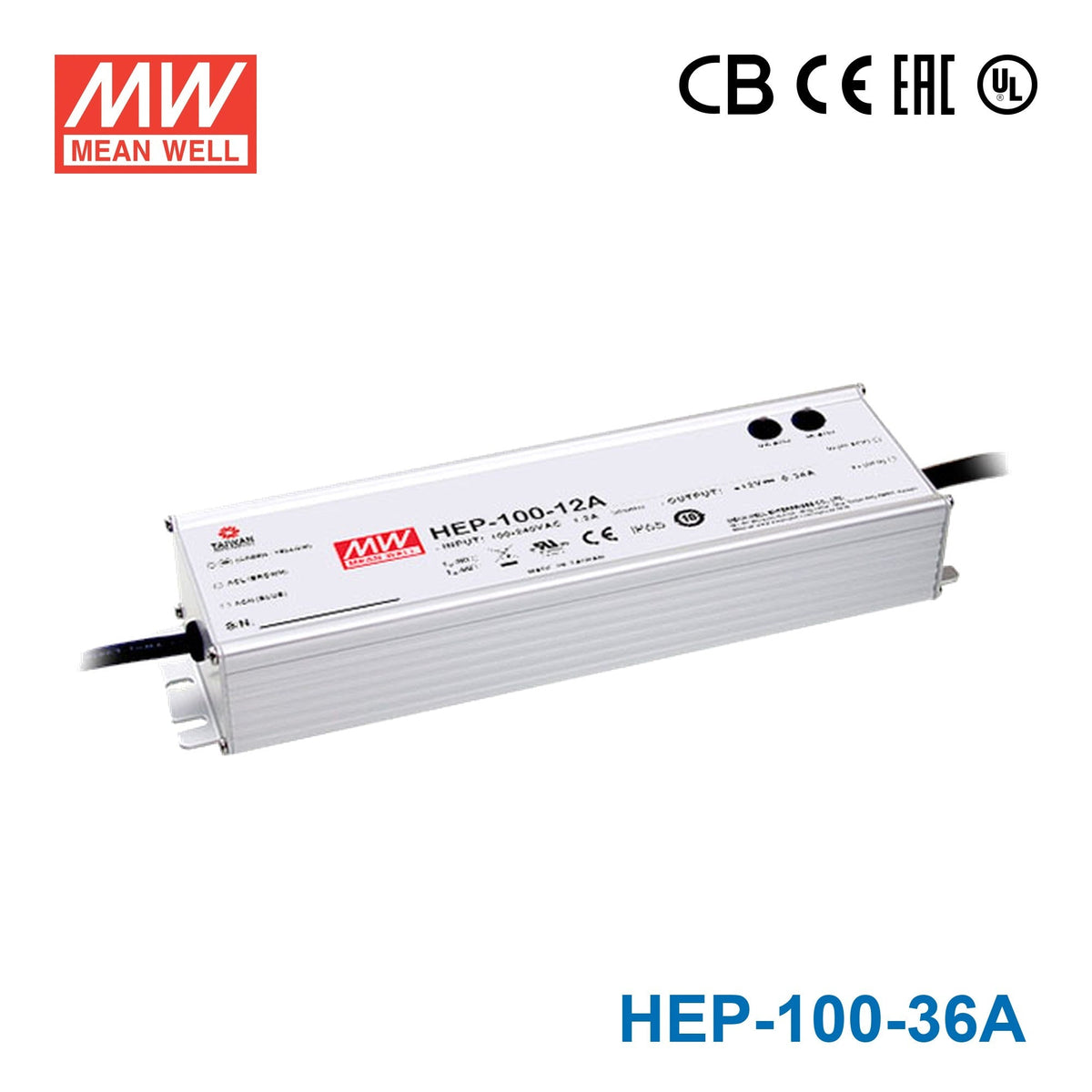

Mean Well HEP-100-36A Power Supply 95.4W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-100-36A Power Supply 95.4W 36V
The HEP-100 is a 100W Mean Well DIN rail power converter with a 220mm profile (input range: 90~305VAC, operating temperature: -55~+70℃).
Key Features
- ✓ 220mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -55~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.6,9 UL62368-1 , IEC/EN62368-1,IP65 (or IP68 for HEP-100 Blank type) , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating95.4 Watt
-
Output Voltage36 Volt
-
Rated Current2.65 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~70°C
-
Warranty6 Year
-
Length8.66 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.47 lb
::specification::
Frequently Asked Questions
Can the HEP-100-36A power a 36V embedded controller or industrial computer?
Yes, if the equipment is designed for 36V DC input and draws no more than 2.65A or 95.4W. This is a constant-voltage model, so it is intended for loads that expect a regulated 36V supply.
Is this a good fit for 36V motors or motion devices in automation equipment?
It may fit lower-power 36V DC motion hardware only if the total steady load remains within 95.4W and 2.65A. Buyers should match the device's required 36V input and confirm the current demand does not exceed the supply's output rating.
Can I use the HEP-100-36A for 36V communication or monitoring equipment in a plant?
Yes, if that equipment requires 36V constant voltage and stays under 95.4W. The fanless construction, 10G vibration tolerance, and operating range of -55°C to +70°C make it suitable for industrial environments.
Is the HEP-100-36A suitable for outdoor installations?
The HEP-100-36A is rated IP65 water-resistant, so it is better suited to indoor use or protected outdoor locations than the IP68 version. Its rugged case and -55°C to +70°C temperature range still make it appropriate for demanding environments.
What is the difference between the HEP-100-36A and other HEP-100 models?
The HEP-100 line includes 12V at 100.08W and 8.34A, 15V at 100.05W and 6.67A, 24V at 96W and 4A, 36V at 95.4W and 2.65A, 48V at 96W and 2A, and 54V at 95.58W and 1.77A. The HEP-100-36A matches the HEP-100-36 electrically at 95.4W, 36V, and 2.65A.
