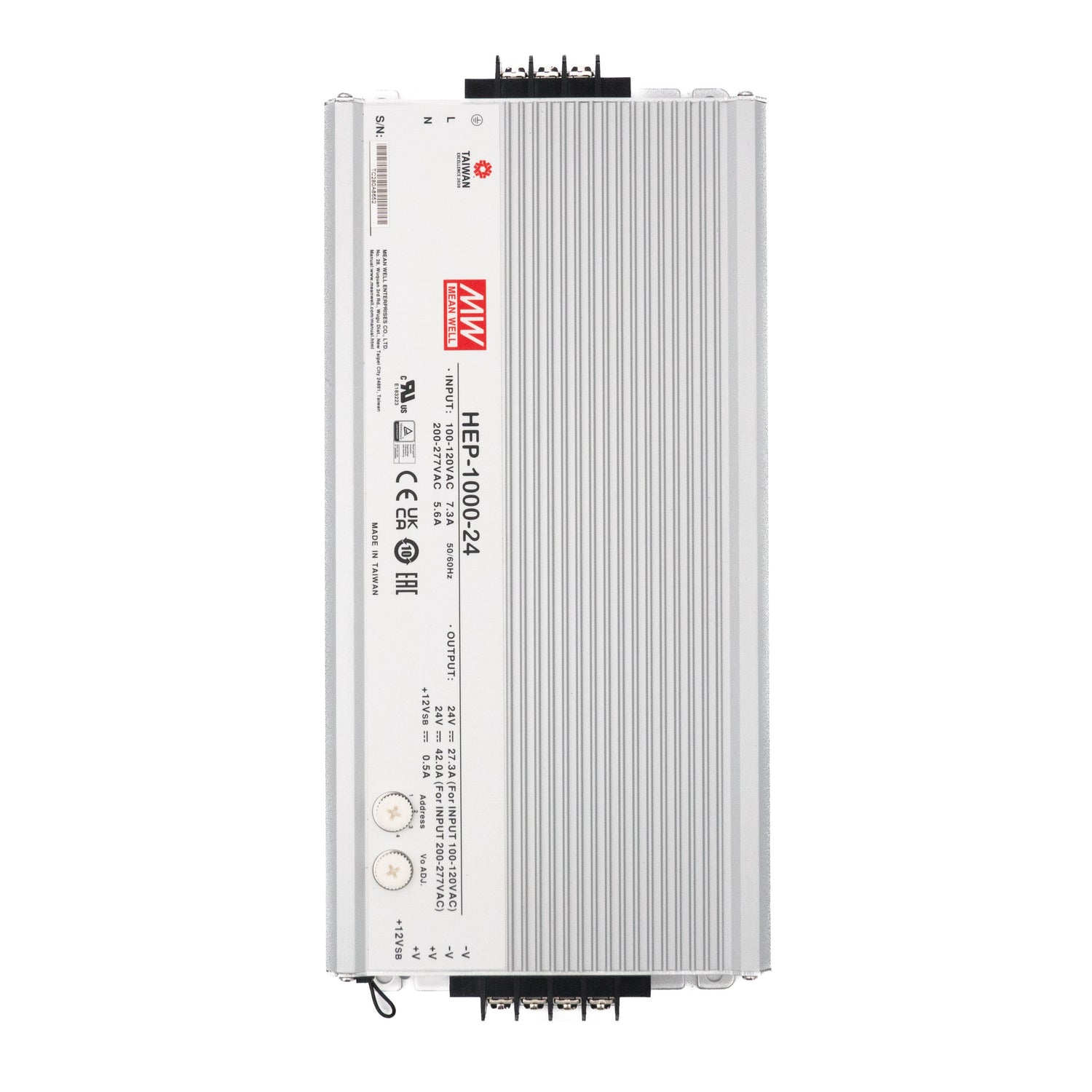

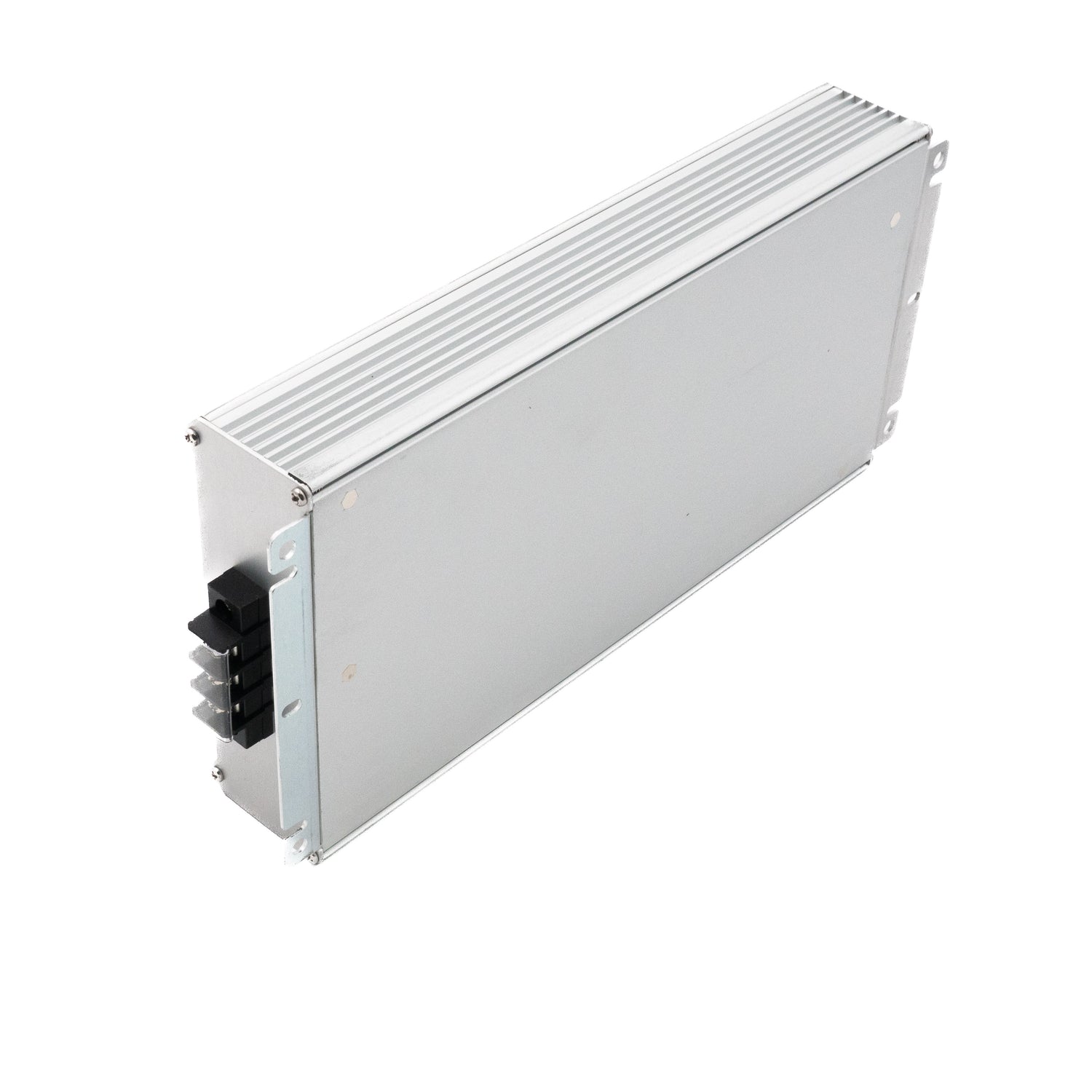

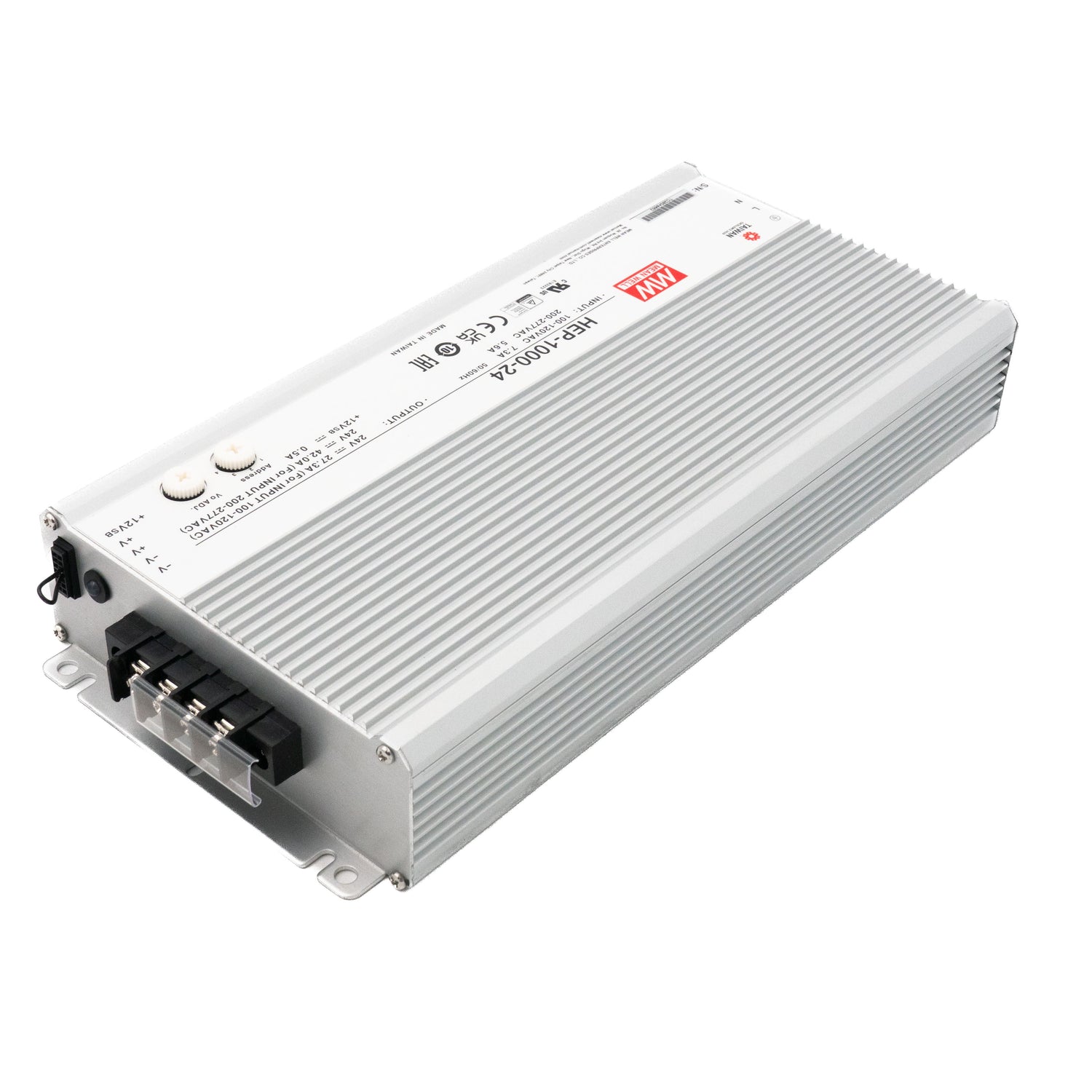

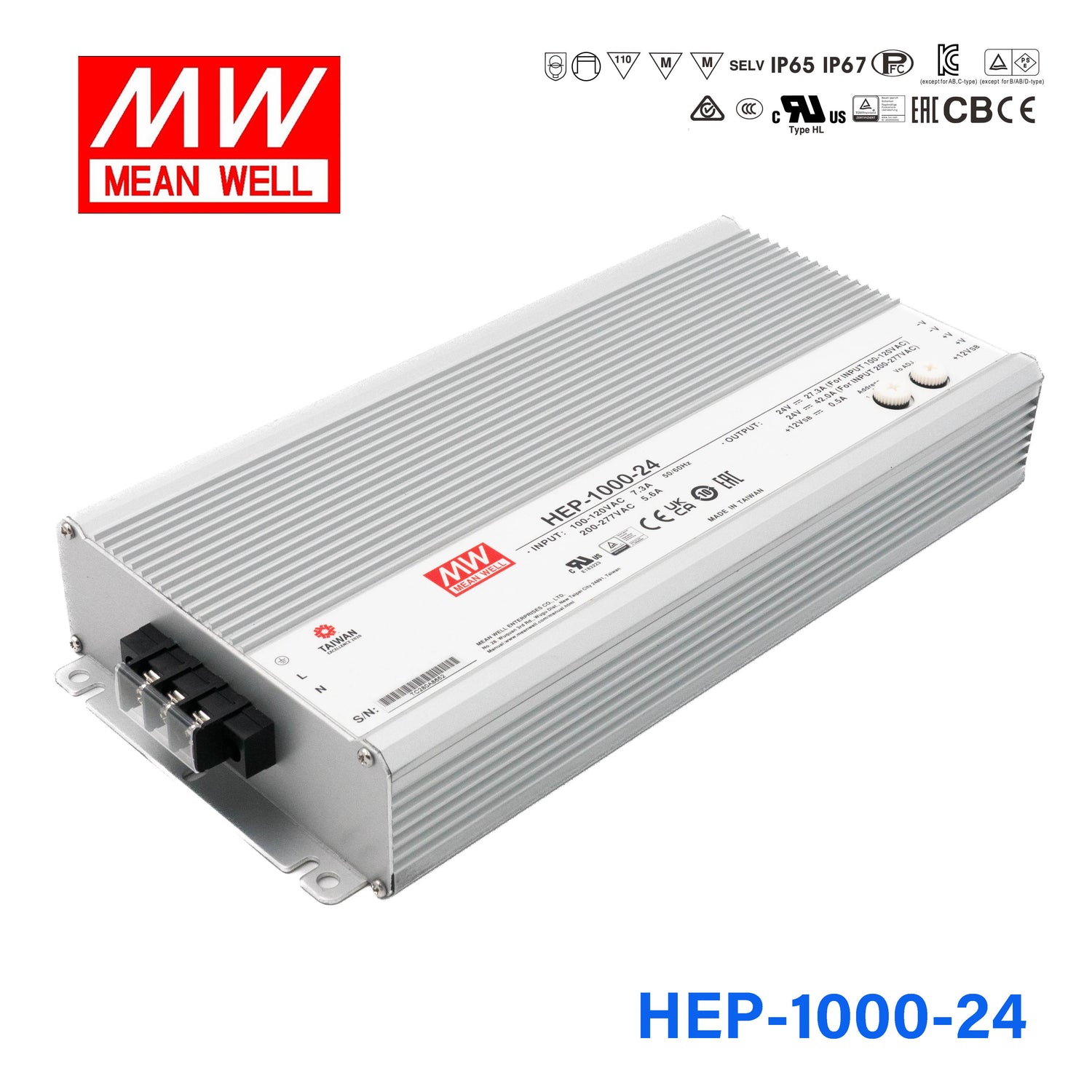

Mean Well HEP-1000-24 Power Supply 1008W 24V
fanless design, high efficiency up to 96%, rugged metal case with IP65 design(IP68 option available), withstand 10G vibration, suitable for harsh environment
$455.58 USD
Unit price /
Unavailable
Shipping calculated at checkout.
Notify me when it's back in stock
|
Your order will be processed within 24 hours
Mean Well HEP-1000-24 Power Supply 1008W 24V
$455.58 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| High efficiency up to 96% |
| Built-in active PFC function |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| IP67 design for indoor or outdoor installation |
| Cooling by free air convection |
| DC OK active signal and 12V Auxiliary power available |
| Aluminum case and filling with heat-conducted glue |
| Withstand 10G vibration test |
| Operating altitude up to 5000 meters |
| 6 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 250~431VDC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | -10%~+10% rated output voltage (A-Type only) |
| Current adjustment range | 50%~100% |
| Over current protection | 105%~125% constant current limiting, auto-recovery |
| Over voltage protection | 105%~135% rated output voltage |
| Setup, rise, hold up time | 1800ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection Input | 3+7P / 11mm pitch terminal block with cover |
| Connection Output | W-Type:SJTW 16AWGx2C (30cm)+ SJTW 14AWGx2C (30cm)+ AWM 24AWGx6C(35cm) |
| Dimension (LxWxH) (mm) | 310x 144x 48.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating1008 Watt
-
Output Voltage24 Volt
-
Rated Current42 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length12.2 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.82 lb
