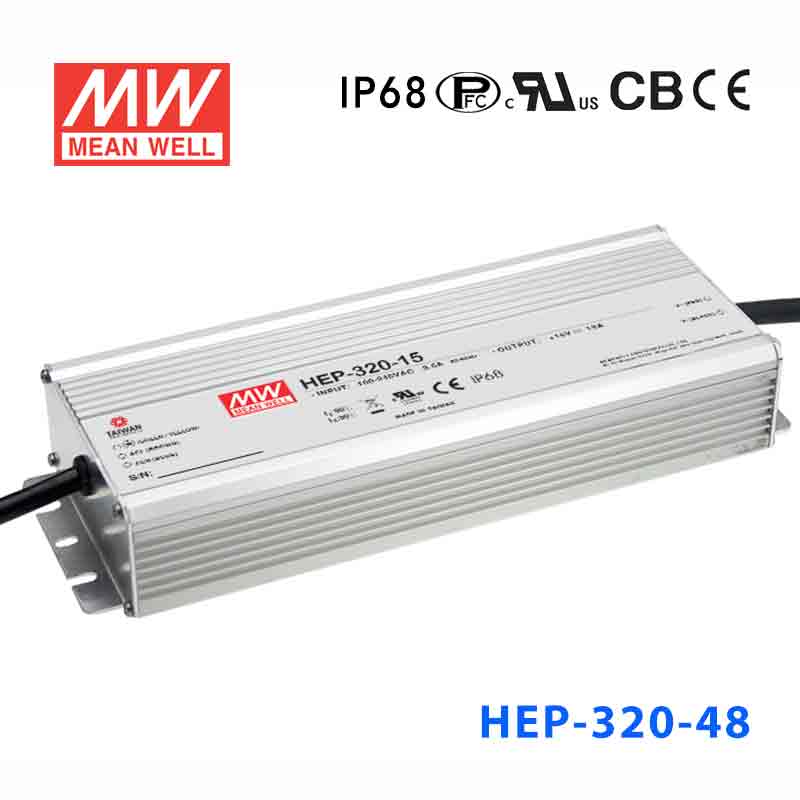

Mean Well HEP-320-48 Power Supply 321.6W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-320-48 Power Supply 321.6W 48V
Description
Description
The HEP-320 is a 320W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 UL62368-1 , IEC/EN62368-1, IP65 (or IP68 for HEP-320 Blank-Type) , EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating321.6 Watt
-
Output Voltage48 Volt
-
Rated Current6.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~70°C
-
Warranty6 Year
-
Length9.92 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.14 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HEP-320-48 for 48V telecom or industrial networking equipment?
Yes, it is a constant-voltage 48V supply rated for 321.6W and 6.7A, which suits 48V equipment that stays inside those limits. That makes it relevant for telecom, industrial networking, and control gear designed for a regulated 48VDC bus. The wide 90-305VAC input range supports deployment across different AC supply environments.
Is this model suitable for 48V embedded computing or communications systems in harsh locations?
It can be used for 48V embedded or communications equipment that requires fixed-voltage DC and draws no more than 6.7A or 321.6W. The fanless design, metal case, and 10G vibration resistance make it more appropriate for demanding field or industrial installations. Its certifications include CB, CE, EAC, and UL.
Can the HEP-320-48 be used for 48V automation loads in outdoor equipment housings?
This version is suited to harsh-environment 48V automation applications because it combines constant-voltage output with an IP68 rating. The operating temperature range of -55°C to +70°C also supports exposed or unconditioned installations. Load requirements still need to remain within 321.6W and 6.7A.
Is the HEP-320-48 appropriate for wet or fully exposed environments?
The unit is rated IP68, so it offers stronger environmental protection than the IP65 versions in the same series. That rating, together with the -55°C to +70°C operating range, makes it the better choice for exposed outdoor or washdown-prone conditions. It is built specifically for harsh-environment use.
How does the HEP-320-48 compare with the other HEP-320 voltage models?
The HEP-320 family includes 264W at 12V 22A for HEP-320-12 and HEP-320-12A, 285W at 15V 19A for HEP-320-15 and HEP-320-15A, 320.16W at 24V 13.34A for HEP-320-24 and HEP-320-24A, 320.4W at 36V 8.9A for HEP-320-36 and HEP-320-36A, 321.6W at 48V 6.7A for HEP-320-48 and HEP-320-48A, and 321.3W at 54V 5.95A for HEP-320-54 and HEP-320-54A. The 48V versions trade lower current for higher output voltage while staying in the same approximate 320W class.
Other HEP-320 Models
11 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HEP-320-54 Power Supply 321.3W 54V | 321.3W | 54V | 5.95A | IP68 | $147.94 | View |
| Mean Well HEP-320-15A Power Supply 285W 15V | 285W | 15V | 19A | IP65 | $147.99 | View |
| Mean Well HEP-320-54A Power Supply 321.3W 54V | 321.3W | 54V | 5.95A | IP65 | $147.94 | View |
| Mean Well HEP-320-48A Power Supply 321.6W 48V | 321.6W | 48V | 6.7A | IP65 | $147.95 | View |
| Mean Well HEP-320-36A Power Supply 320.4W 36V | 320.4W | 36V | 8.9A | IP65 | $147.95 | View |
| Mean Well HEP-320-36 Power Supply 320.4W 36V | 320.4W | 36V | 8.9A | IP68 | $152.08 | View |
| Mean Well HEP-320-24A Power Supply 320.16W 24V | 320.16W | 24V | 13.34A | IP65 | $147.95 | View |
| Mean Well HEP-320-24 Power Supply 320.16W 24V | 320.16W | 24V | 13.34A | IP68 | $152.08 | View |
| Mean Well HEP-320-15 Power Supply 285W 15V | 285W | 15V | 19A | IP68 | $152.08 | View |
| Mean Well HEP-320-12A Power Supply 264W 12V | 264W | 12V | 22A | IP65 | $147.95 | View |
| Mean Well HEP-320-12 Power Supply 264W 12V | 264W | 12V | 22A | IP68 | $152.08 | View |
