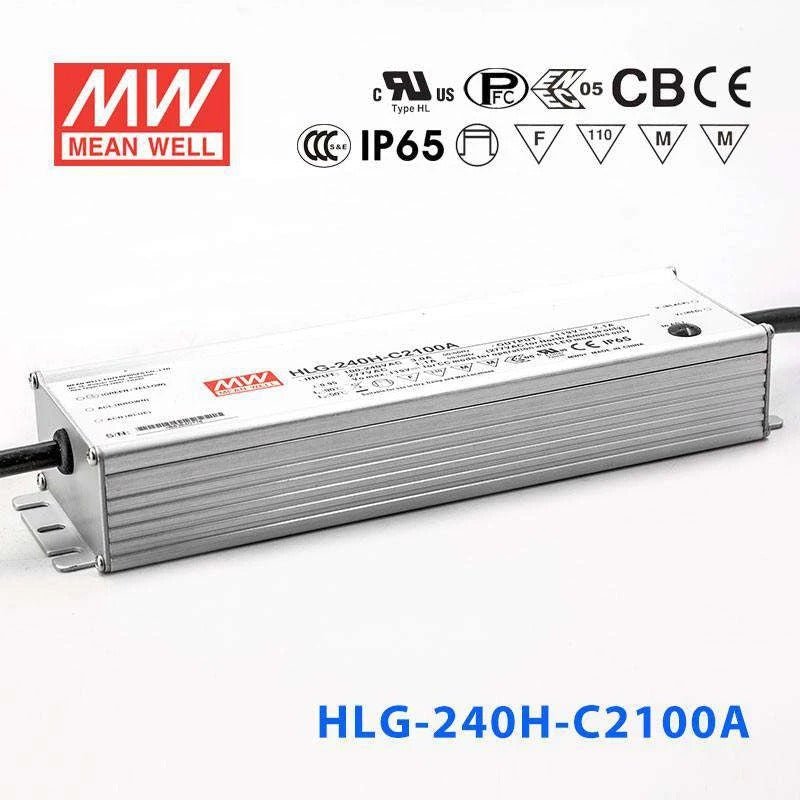

Mean Well HLG-240H-C2100AB Power Supply

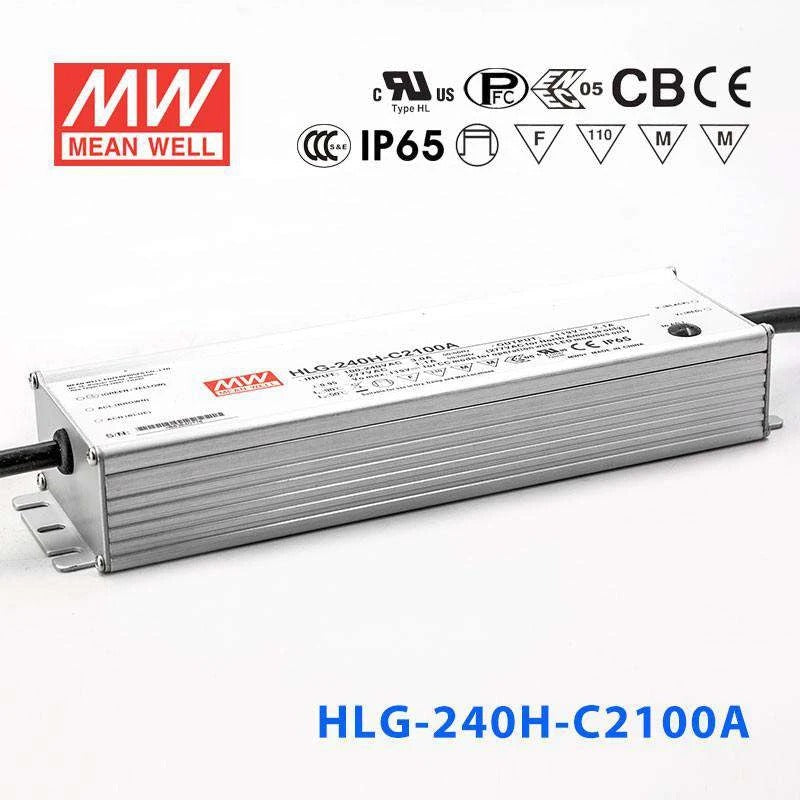

Name: Mean Well HLG-240H-C2100AB Power Supply 249.9W 2100mA - Adjustable and Dimmable
Brand: Mean Well
SKU: HLG-240H-C2100AB
Price: 73.63 USD
Availability: InStock

Overview

HLG-240H-C2100AB is the model of this series: rated current 2100mA, rated power 249.9W, typical efficiency 93.5%. Type AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) (IP65).

HLG-240H-C series is a 250W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-240H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-240H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifet ime>62000 hours
7 years warranty

Specifications

HLG-240H-C2100ABSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 2100mA
RATED POWER: 249.9W
CONSTANT CURRENT REGION^Note.2: 59 ~ 119V
OPEN CIRCUIT VOLTAGE (max.): 122V
CURRENT ADJ. RANGE: Can be adjusted by internal potentiometer (A/AB type only)
CURRENT ADJ. RANGE: 1050 ~ 2100mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC, or 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 93.5%
AC CURRENT (Typ.): 2.5A / 115VAC 1.3A / 230VAC 1.1A / 277VAC
INRUSH CURRENT(Typ.): COLD START 75A(twidth=700μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 125 ~ 137V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Refer to "Derating Curve")
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent; GB/T19510.1,GB/T19510.213; IP65, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 2513.7K hrs min. Telcordia SR-332 (Bellcore) ; 228.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244.2*68*38.8mm (L*W*H)
PACKING: 1.3Kg; 12pcs/16.6Kg/0.84CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A: Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB (this model): Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
DX: Built-in Smart timer dimming function by user request; IP67
D2: Built-in Smart timer dimming and programmable function; IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

HLG-240H-C2100AB BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-240H-C2100AB DIMMING OPERATION — DIMMING OPERATION

HLG-240H-C2100AB Illustration (page 5) — Illustration (page 5)

HLG-240H-C2100AB 250W Constant Current Mode LED Driver — 250W Constant Current Mode LED Driver

HLG-240H-C2100AB OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-240H-C2100AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-240H-C2100AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-240H-C2100AB LIFETIME(Kh) — LIFETIME(Kh)

HLG-240H-C2100AB MECHANICAL SPECIFICATION ※ AB-Type — MECHANICAL SPECIFICATION ※ AB-Type

Typical applications

LED street lighting
LED fishing lamp
LED harbor lighting
LED building architectural lighting
LED bay lighting
Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HLG-240H-C2100AB datasheetHLG-240H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates4

UL Certificate (HLG-240H-C)(EN) PDF Download

CB Certificate (HLG-240H-C)(EN) PDF Download

EMC Certificate (HLG-240H-C)(EN) PDF Download

ENEC Certificate (HLG-240H-C)(EN) PDF Download

Test reports1

Test Report(HLG-240H-C2100)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-240H-C2100AB for dimmable LED high-bay fixtures in a warehouse?

Yes. The HLG-240H-C2100AB outputs 2100mA constant current with a CC voltage range of 59-119V and up to 249.9W. The AB variant provides both a potentiometer for base current adjustment and a 1-10V/PWM dimming input for remote brightness control. This combination is ideal for warehouse high-bays connected to occupancy sensors or daylight harvesting systems.

Is the HLG-240H-C2100AB a good fit for a dimmable LED grow light with high-current COBs?

Yes. At 2100mA and 249.9W, it can drive high-current COB LEDs commonly used in horticultural lighting. The CC voltage range of 59-119V accommodates typical grow light series string voltages. The potentiometer sets maximum current, and the dimming input lets you vary intensity remotely for different growth stages.

Can the HLG-240H-C2100AB drive dimmable commercial LED downlights with building automation?

Yes, provided the downlight modules require approximately 2100mA and have a series forward voltage between 59V and 119V. The 3-in-1 dimming input accepts 1-10VDC, 10V PWM or resistance signals from building automation or lighting controllers. The adjustable potentiometer lets you set the peak current during commissioning to match the specific LED load.

What control options does the HLG-240H-C2100AB provide compared to the C2100A and C2100B?

The -C2100A includes only a potentiometer for manual output current adjustment. The -C2100B includes only a 1-10V/PWM dimming input for remote brightness control. The -C2100AB combines both: a potentiometer to set maximum current plus a dimming input for remote control. All three share the same 249.9W, 2100mA, 59-119V core specs and 244.2 x 68 x 38.8mm case.

Can the HLG-240H-C2100AB be installed outdoors under an awning?

Yes. The HLG-240H-C series is rated IP65 or IP67 depending on type, giving dust and water protection suitable for sheltered outdoor locations like awnings, covered walkways, or building overhangs. It operates over a case temperature (Tcase) range of -40°C to +90°C, with output derating at high ambient temperatures per the derating curve.
