Can I use the HLG-40H-12AB for dimmable 12V LED under-cabinet lighting in a kitchen?

Yes. The HLG-40H-12AB outputs 12V at up to 3.33A (40W) and supports 1-10V, PWM, and resistance dimming. This makes it ideal for under-cabinet strips where you want smooth brightness control from a wall dimmer or smart home controller.

Is the HLG-40H-12AB a good choice for dimmable 12V cove lighting in a home theater?

Yes. The built-in dimming input allows integration with common 1-10V or PWM dimmers for scene-setting in home theaters, media rooms, or architectural cove details. The adjustable output also lets you fine-tune the voltage to match your specific LED strip.

Can the HLG-40H-12AB power a 12V LED light box with dimming control?

Yes. At 40W and 12V, it can drive a compact 12V lightbox while providing dimming via 1-10V, PWM, or resistance signal. The adjustable potentiometer lets you set the base output to match the exact load of your lightbox modules.

How many meters of 12V LED strip can the HLG-40H-12AB power?

Divide 40W by the strip's rated wattage per meter. For instance, a 12V strip rated at 10W/m could run up to 4 meters (40W / 10W per meter = 4m). Always check your strip's rated power per meter and keep total load at or below 40W.

Can the HLG-40H-12AB be used in a semi-enclosed outdoor soffit?

Yes. Its IP65 water-resistant rating protects against dust ingress and low-pressure water jets, making it suitable for sheltered outdoor locations such as soffits, eaves, or covered walkways. For direct rain exposure, consider the IP67-rated HLG-40H-12B instead.

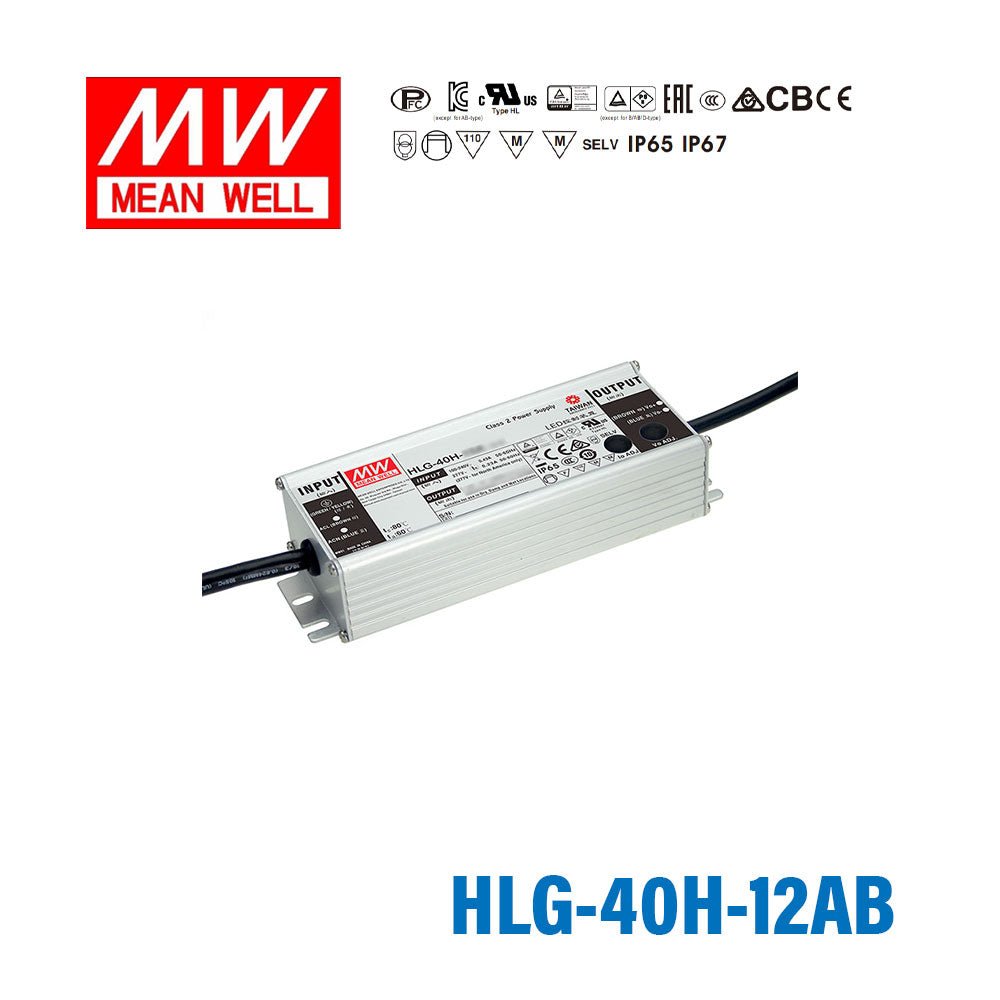

Mean Well HLG-40H-12AB Power Supply 40W 12V - Adjustable and Dimmable

Name: Mean Well HLG-40H-12AB Power Supply 40W 12V - Adjustable and Dimmable
Brand: Mean Well
SKU: HLG-40H-12AB
Price: 36.31 USD
Availability: InStock

The HLG-40H is a 40W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.8 SAFETY & EMC
✓ 3 years warranty

Brand

Mean Well
Series

HLG Series
Power Rating

40 Watt
Output Voltage

12 Volt
Rated Current

3.33 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

10V PWM,1-10V,Built-in Potentiometer,Resistance
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

7 Year
Length

6.73 in
Width

2.42 in
Height

1.45 in
Weight

1.61 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well HLG-40H-12B Power Supply 40W 12V - Dimmable	40W	12V	3.33A	IP67	$38.39	View
Mean Well HLG-40H-24B Power Supply 40W 24V - Dimmable	40W	24V	1.67A	IP67	$33.90	View
Mean Well HLG-40H-24A Power Supply 40W 24V - Adjustable	40W	24V	1.67A	IP65	$37.32	View
Mean Well HLG-40H-12 Power Supply 40W 12V	40W	12V	3.33A	IP67	$34.41	View
Mean Well HLG-40H-15B Power Supply 40W 15V - Dimmable	40.5W	15V	2.67A	IP67	$35.33	View
Mean Well HLG-40H-15A Power Supply 40W 15V - Adjustable	40W	15V	2.67A	IP65	$37.32	View
