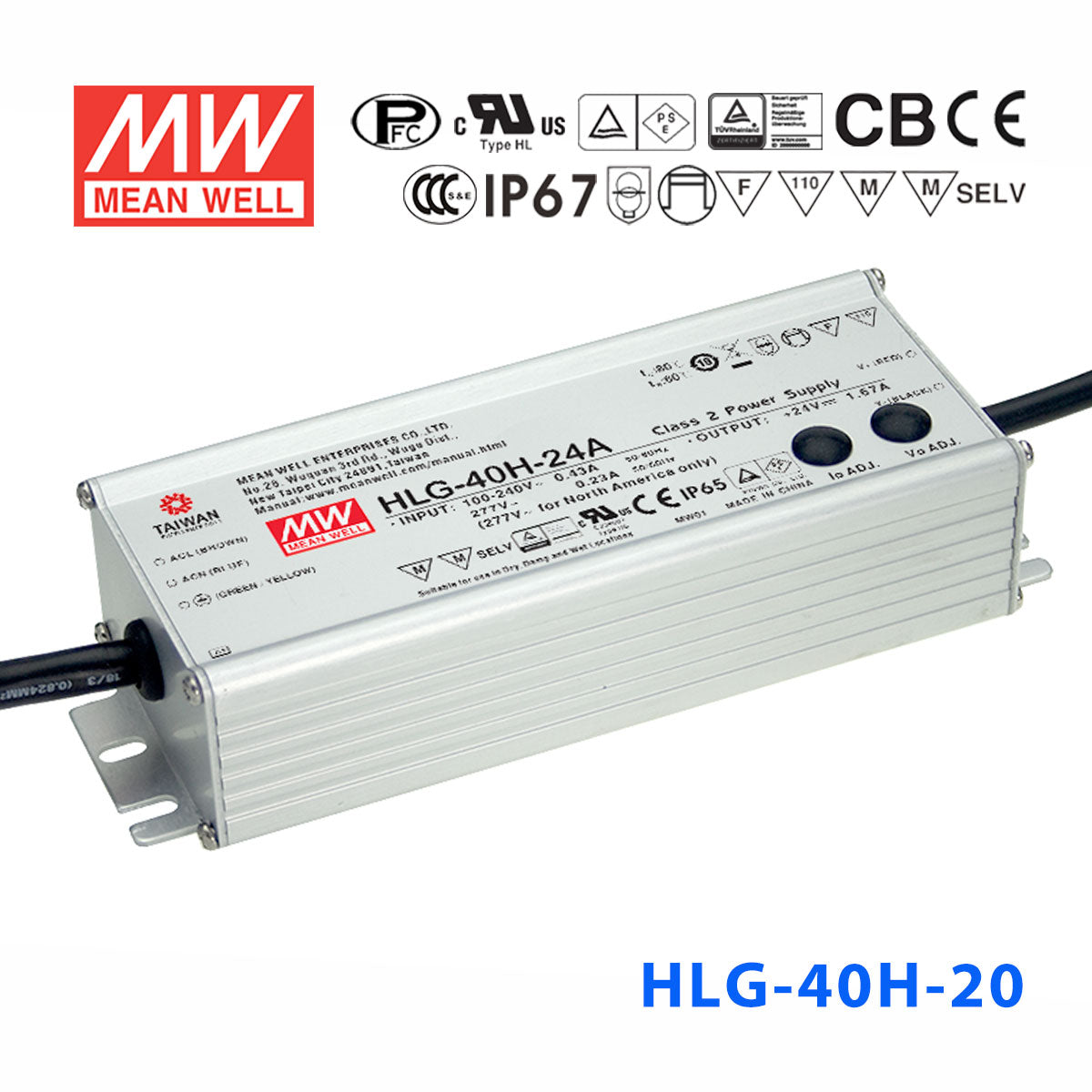

Mean Well HLG-40H-20AB Power Supply 40W 20V

Name: Mean Well HLG-40H-20AB Power Supply 40W 20V - Adjustable and Dimmable 2A
Brand: Mean Well
SKU: HLG-40H-20AB
Price: 36.31 USD
Availability: InStock
Rating: 5.0 (4 reviews)

Overview

HLG-40H-20AB is the 20V output model of this series: rated current 2A, rated power 40W, typical efficiency 88%. Type AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) (IP65).

HLG-40H series is a 40W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-40H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 89.5%, with the fanless design, the entire series is able to operate for -40 ~ +80 case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-40H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
Built-in active PFC function
Class 2 power unit
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-40H-20ABSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

DC VOLTAGE: 20V
CONSTANT CURRENT REGION^Note.4: 12 ~ 20V
RATED CURRENT: 2A
RATED POWER: 40W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
VOLTAGE ADJ. RANGE: 17 ~ 22V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 1.2 ~ 2A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.6: 500ms,80ms/115VAC 500ms,80ms/230VAC
HOLD UP TIME (Typ.): 16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.): 88%
AC CURRENT (Typ.): 0.43A / 115VAC 0.24A / 230VAC 0.23A / 277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=210μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 23 ~ 30V
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750(type”HL”), CSA C22.2 No. 250.0-08 , BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent , GB/T19510.1,GB/T19510.213,EAC TP TC 004,KC61347-1,KC61347-2-13 , IP65 approved ; J61347-1 , J61347-2-13 ; design refer to BS EN/EN60335-1(by request)
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, KS C 9815, KS C 9547, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), KS C 9815, KS C 9547, EAC TP TC 020

OTHERS

MTBF: 3395.8K hrs min. Telcordia SR-332 (Bellcore) ; 345.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 171*61.5*36.8mm (L*W*H)
PACKING: 0.73Kg; 20pcs/15.6Kg/0.9CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

Blank: Io and Vo fixed; IP67
A: Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
AB (this model): Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. For A/AB type need to consider build in using to comply with Type HL application.
14. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-40H-20AB BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-40H-20AB DIMMING OPERATION — DIMMING OPERATION

HLG-40H-20AB Illustration (page 5) — Illustration (page 5)

HLG-40H-20AB OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

HLG-40H-20AB STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-40H-20AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-40H-20AB ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

HLG-40H-20AB WATERPROOF CONNECTION — WATERPROOF CONNECTION

HLG-40H-20AB WATERPROOF CONNECTION (2) — WATERPROOF CONNECTION (2)

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HLG-40H-20AB datasheetHLG-40H-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates5

TUV Certificate (HLG-40H)(EN) PDF Download

UL Certificate(HLG-40H)(EN) PDF Download

CB Certificate(HLG-40H)(EN) PDF Download

EMC Certificate(HLG-40H)(EN) PDF Download

PSE Certificate(HLG-40H)(EN) PDF Download

Test reports1

Test Report(HLG-40H-20)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-40H-20AB with a 0-10V dimmer to control 20V LED strip brightness?

The HLG-40H-20AB supports dimming via 1-10VDC, 10V PWM, and resistance signals between DIM+ and DIM-; the sheet specifies a 1-10V range, not 0-10V, so check that your dimmer works in that range. This lets you control brightness on 20V LED strips or modules up to a total load of 40W.

Is the HLG-40H-20AB suitable for dimmable 20V LED retail showcase lighting?

It is a strong choice for showcase lighting where both adjustable output and dimming are needed. The built-in potentiometer sets the baseline output, while the dimming input allows scene-based brightness control. At 40W and 20V output, it handles small to medium showcase LED arrays.

Can I power a dimmable 20V LED backlit menu board with the HLG-40H-20AB?

Yes, provided the menu board's LEDs draw 40W or less. The HLG-40H-20AB delivers 20V at up to 2A in constant-current mode and accepts dimming signals, letting you lower brightness during quieter hours or adjust to ambient light conditions. The 90-305VAC universal input simplifies installation.

How many meters of 20V LED strip can the HLG-40H-20AB support?

The HLG-40H-20AB provides 40W at 20V. Divide 40W by your LED strip's rated wattage per meter. For example, a strip rated at 10W per meter could run up to 4 meters (40W / 10W per meter = 4m). Always check your strip's rated power per meter and keep total load at or below 40W.

Is the HLG-40H-20AB suitable for a semi-exposed outdoor canopy installation?

The HLG-40H-20AB is rated IP65 water-resistant, protecting against dust and low-pressure water jets. It works well under canopies, awnings, or in weatherproof enclosures. It should not be placed where it could be submerged or hit by pressurized water. For fully exposed wet locations, the IP67-rated HLG-40H-20B with dimming is a better option.
