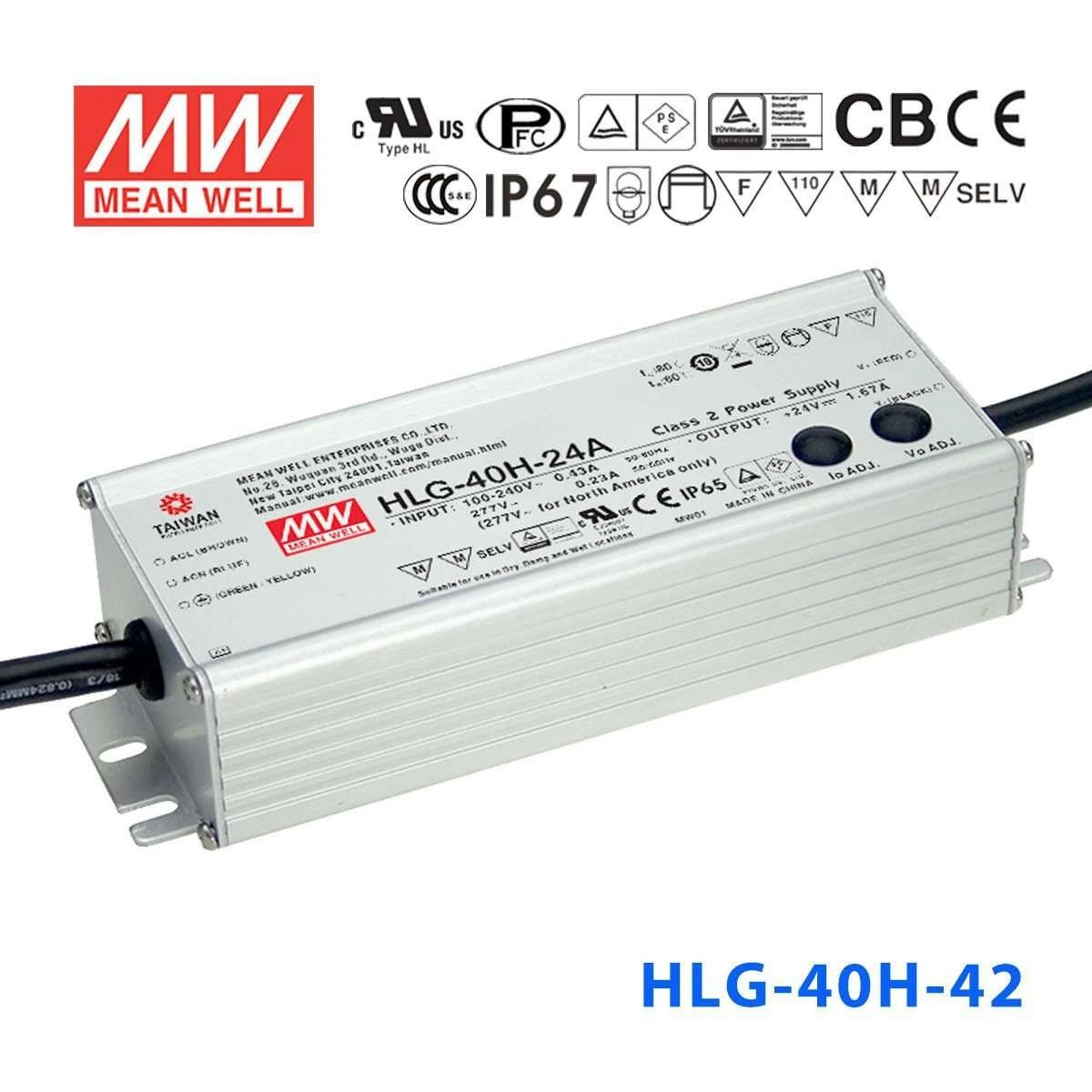

Mean Well HLG-40H-42 Power Supply 40W 42V 960mA

Name: Mean Well HLG-40H-42 Power Supply 40W 42V 960mA
Brand: Mean Well
SKU: HLG-40H-42
Price: 34.36 USD
Availability: InStock
Rating: 5.0 (4 reviews)

Overview

HLG-40H-42 is the 42V output model of this series: rated current 0.96A, rated power 40.32W, typical efficiency 88.5%. Type Blank: Io and Vo fixed (IP67).

HLG-40H series is a 40W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-40H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 89.5%, with the fanless design, the entire series is able to operate for -40 ~ +80 case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
Built-in active PFC function
Class 2 power unit
IP67 rating for indoor or outdoor installations
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-40H-42Specifications from the official datasheet (2026-02-04 edition)

OUTPUT

DC VOLTAGE: 42V
CONSTANT CURRENT REGION^Note.4: 25.2 ~ 42V
RATED CURRENT: 0.96A
RATED POWER: 40.32W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: 40 ~ 46V
CURRENT ADJ. RANGE: 0.58 ~ 0.96A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms,80ms/115VAC 500ms,80ms/230VAC
HOLD UP TIME (Typ.): 16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.): 88.5%
AC CURRENT (Typ.): 0.43A / 115VAC 0.24A / 230VAC 0.23A / 277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=210μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 48 ~ 58V
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750(type”HL”), CSA C22.2 No. 250.0-08 , BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent , GB/T19510.1,GB/T19510.213,EAC TP TC 004,KC61347-1,KC61347-2-13, IP67 approved ; J61347-1 , J61347-2-13 ; design refer to BS EN/EN60335-1(by request)
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, KS C 9815, KS C 9547, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), KS C 9815, KS C 9547, EAC TP TC 020

OTHERS

MTBF: 3395.8K hrs min. Telcordia SR-332 (Bellcore) ; 345.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 171*61.5*36.8mm (L*W*H)
PACKING: 0.73Kg; 20pcs/15.6Kg/0.9CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

Blank (this model): Io and Vo fixed; IP67
A: Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
14. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-40H-42 BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-40H-42 Illustration (page 5) — Illustration (page 5)

HLG-40H-42 OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

HLG-40H-42 STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-40H-42 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-40H-42 MECHANICAL SPECIFICATION ※Blank/D-Type — MECHANICAL SPECIFICATION ※Blank/D-Type

HLG-40H-42 ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

HLG-40H-42 WATERPROOF CONNECTION — WATERPROOF CONNECTION

HLG-40H-42 WATERPROOF CONNECTION (2) — WATERPROOF CONNECTION (2)

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HLG-40H-42 datasheetHLG-40H-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates5

TUV Certificate (HLG-40H)(EN) PDF Download

UL Certificate(HLG-40H)(EN) PDF Download

CB Certificate(HLG-40H)(EN) PDF Download

EMC Certificate(HLG-40H)(EN) PDF Download

PSE Certificate(HLG-40H)(EN) PDF Download

Test reports1

Test Report(HLG-40H-42)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-40H-42 to power 42V LED panel lights?

Yes. The HLG-40H-42 delivers 40W at 42V in constant-current mode, which suits 42V LED panels commonly used in commercial and architectural lighting. Its CC voltage range of 25.2-42V also accommodates panels with somewhat lower forward voltages.

Is the HLG-40H-42 a good choice for outdoor 42V LED landscape lighting?

Yes. With an IP67 waterproof rating it can handle direct rain, sprinkler exposure, and ground-level moisture. The 40W output at 42V is well-suited for small landscape accent fixtures or path lights that run on a 42V bus.

Can the HLG-40H-42 drive 42V LED modules in a small light box or sign?

Yes, provided the total load does not exceed 40W. At 42V and 0.96A, it matches standard 42V LED module strings. The wide 90-305VAC input range accommodates most mains voltages worldwide, which is useful for commercial signage installations.

How many meters of 42V LED strip can the HLG-40H-42 support?

That depends on the strip's power consumption per meter. The HLG-40H-42 supplies up to 40W at 42V. For a strip rated at 8W/m you could run up to 5 meters (40W / 8W per meter = 5m). Always verify your strip's rated power per meter and keep total draw at or below 40W.

Can the HLG-40H-42 be left exposed to rain without an additional enclosure?

Yes. Its IP67 rating means the unit is sealed against dust and protected against temporary submersion in water up to 1 meter. It can be mounted outdoors without a secondary enclosure, even in heavy rain or sprinkler zones.
