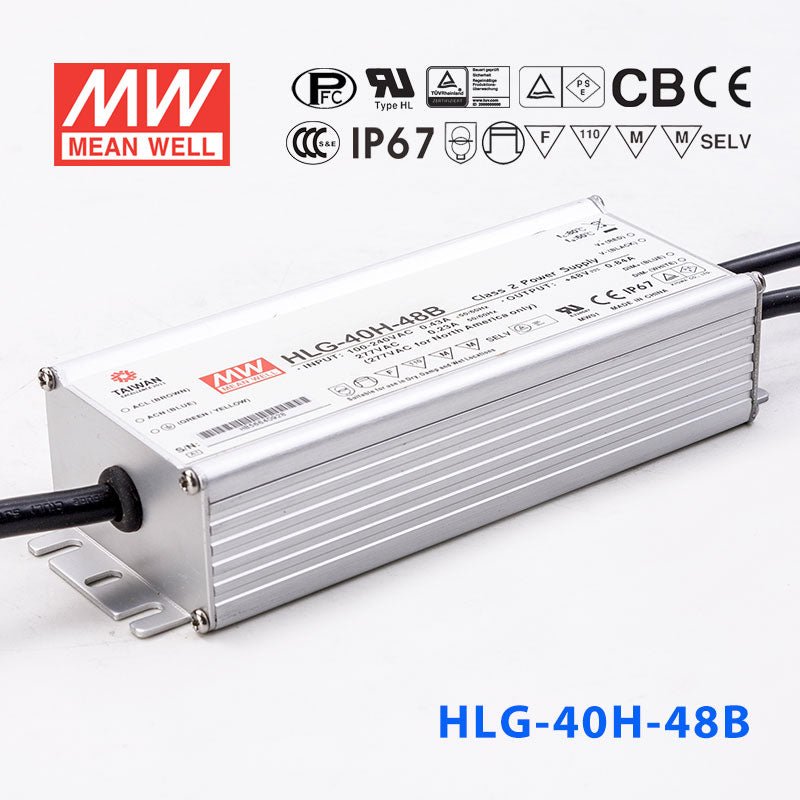

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well HLG-40H-48AB Power Supply 40W 48V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-40H-48AB Power Supply 40W 48V - Adjustable and Dimmable
The HLG-40H is a 40W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating40 Watt
-
Output Voltage48 Volt
-
Rated Current0.84 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
::specification::
Frequently Asked Questions
Can I use the HLG-40H-48AB to power 48V LED strip lighting in covered outdoor areas?
Yes. The HLG-40H-48AB outputs 48V at up to 0.84A (40W) and carries an IP65 water-resistant rating, making it suitable for covered patios, canopies, and soffits where splashing water or dust may be present. For fully rain-exposed locations, consider the IP67-rated HLG-40H-48B instead.
Is the HLG-40H-48AB a good driver for small 48V LED signage projects?
Yes. With 40W at 48V, it can power compact 48V LED sign modules or channel letters with low total wattage. The built-in dimming input lets you adjust brightness for day/night cycles, and the adjustable output helps fine-tune voltage to match specific module requirements.
Can I dim the HLG-40H-48AB using a 1-10V or PWM signal?
Yes. The AB suffix means it supports both output voltage/current adjustment via built-in potentiometer and external dimming via 1-10V, PWM, or resistance input. This makes it well suited for applications where you need both precise output trimming and remote brightness control.
How many meters of 48V LED strip can the HLG-40H-48AB drive?
Divide 40W by your strip's power per meter. For example, a 48V strip rated at 8W/m would allow up to 5 meters (40W / 8W per meter = 5m). Always check your strip's rated power per meter and keep the total load at or below 40W.
What is the difference between the HLG-40H-48, 48A, 48AB, and 48B models?
All four share the same 40W / 48V / 0.84A core specs. The base HLG-40H-48 has no adjustment or dimming and is IP67 waterproof. The -48A adds output voltage/current adjustment via potentiometer (IP65). The -48AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -48B adds dimming input only and retains IP67.
Is the HLG-40H-48AB suitable for installation in a dusty warehouse or workshop?
Yes. Its IP65 rating provides complete protection against dust ingress and low-pressure water jets. The aluminium casing and -40°C to +80°C operating temperature range also make it durable in environments with temperature fluctuations and airborne particulates.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-40H Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-40H-12B Power Supply 40W 12V - Dimmable | 40W | 12V | 3.33A | IP67 | $38.39 | View |
| Mean Well HLG-40H-24B Power Supply 40W 24V - Dimmable | 40W | 24V | 1.67A | IP67 | $33.90 | View |
| Mean Well HLG-40H-24A Power Supply 40W 24V - Adjustable | 40W | 24V | 1.67A | IP65 | $37.32 | View |
| Mean Well HLG-40H-12 Power Supply 40W 12V | 40W | 12V | 3.33A | IP67 | $34.41 | View |
| Mean Well HLG-40H-15B Power Supply 40W 15V - Dimmable | 40.5W | 15V | 2.67A | IP67 | $35.33 | View |
| Mean Well HLG-40H-15A Power Supply 40W 15V - Adjustable | 40W | 15V | 2.67A | IP65 | $37.32 | View |
