Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

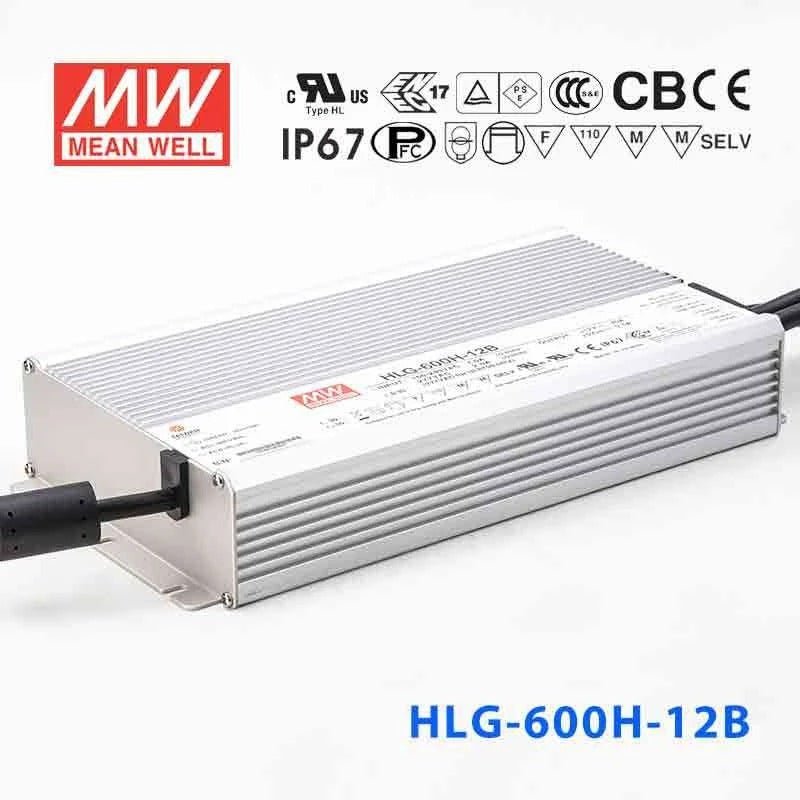

Mean Well HLG-600H-12B Power Supply 480W 12V - Dimmable
premium quality, 7 years warranty, aluminium casing, high efficiency
4% off
SKU:
HLG-600H-12B
$190.57 USD
$197.89
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-600H-12B Power Supply 480W 12V - Dimmable
$190.57 USD
$197.89
Unit price /
Unavailable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Protections: Short circuit / Over current / Over voltage / Over temp. |
| Built-in active PFC function |
| High efficiency up to 96% |
| IP67 / IP65 design for indoor or outdoor installations (except for HLG-320H C-Type) |
| Output current adjustable through output cable or internal potentiometer |
| Cooling by free air convection |
| Suitable for LED lighting and street lighting applications |
| Meet 4kV surge immunity level (IEC61000-4-5) |
| No load power consumption <0.5W at remote off (HLG-600H) |
| Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires |
| LED indicator for power on (HLG-600H A-Type only) |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) C-Type: Terminal block for I/O connection (HLG-320H only) Blank-Type: IP67 rated. Cable for I/O connection (HLG-320H only) D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (HLG-320H only) |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| DC adjustment range | -15%~+5% rated output voltage (A-Type only) |
| Over voltage protection | 110%~140% rated output voltage |
| Over current protection | 95%~108% constant current limiting, auto- recovery |
| Current adjustment range | 50%~100% rated output current adjustable by internal potentiometer (for A-Type & HLG-320H C-Type) |
| Setup, rise, hold up time | 500ms, 80ms, 15ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL60950-1, UL8750, ENEC EN61347-1/2-13, EN62384 approved |
| EMC standards | EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11,EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm) |
| Connection Output | A-Type: SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm) + UL2517 22AWGx3C(30cm) B-Type: SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm) + UL2517 22AWGx3C(30cm)+ UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 280x 144x 48.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating480 Watt
-
Output Voltage12 Volt
-
Rated Current40 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
