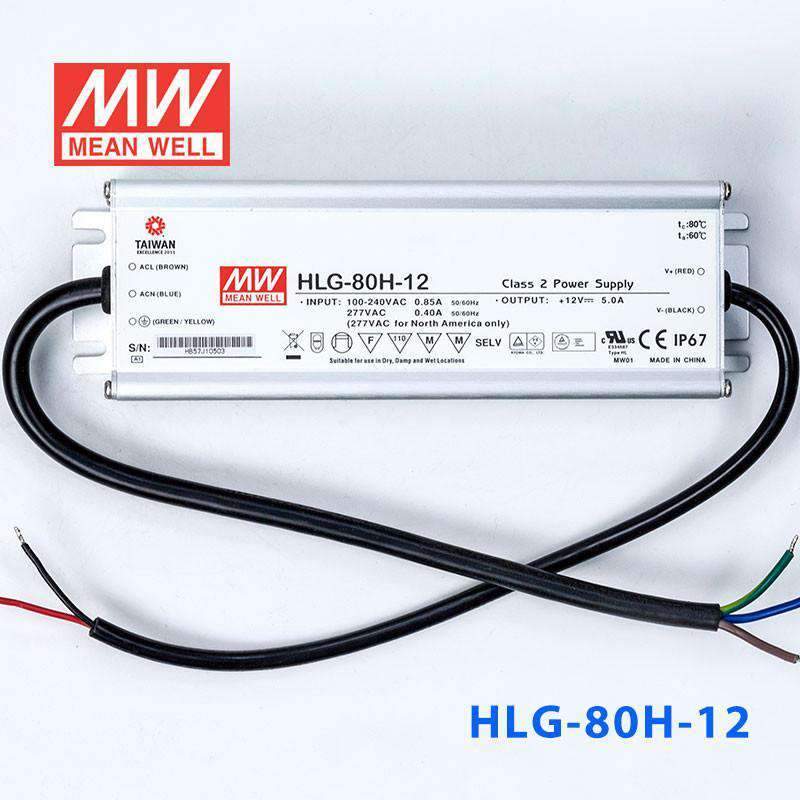

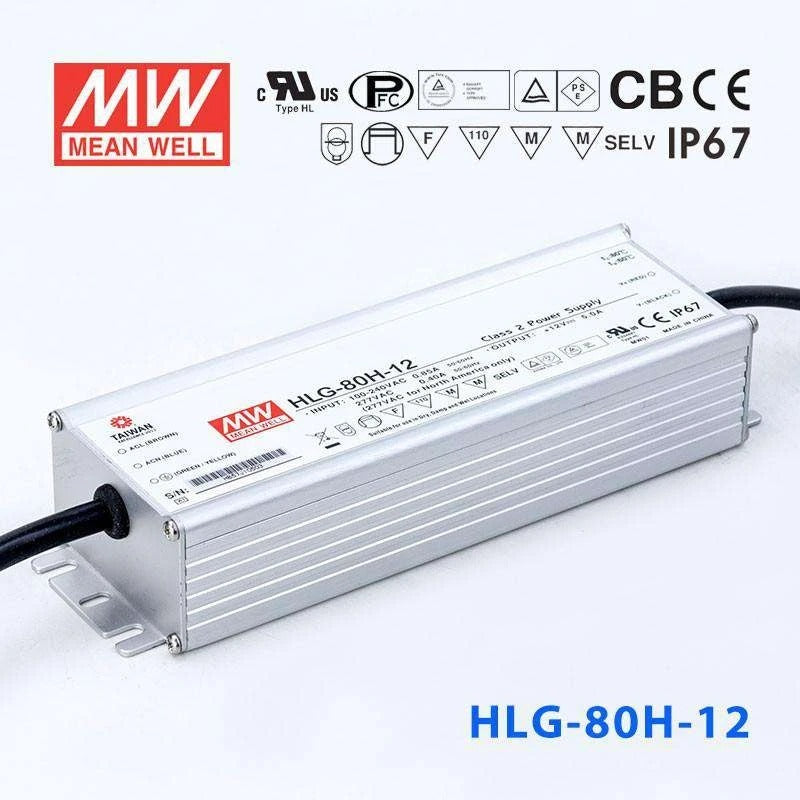

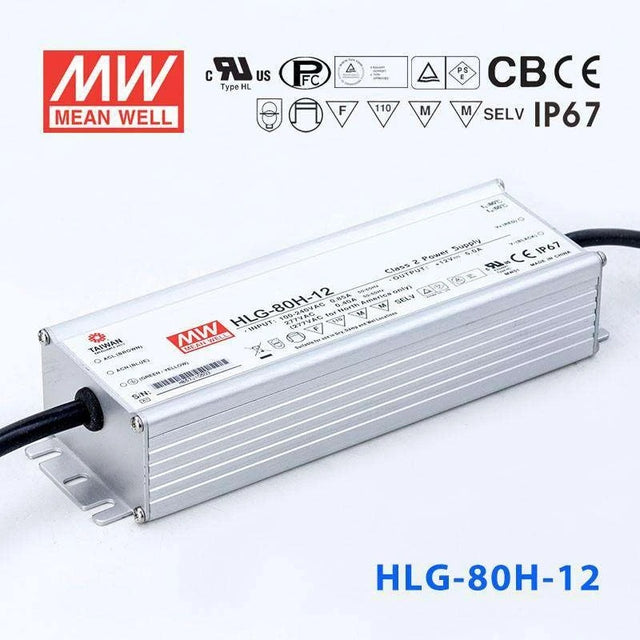

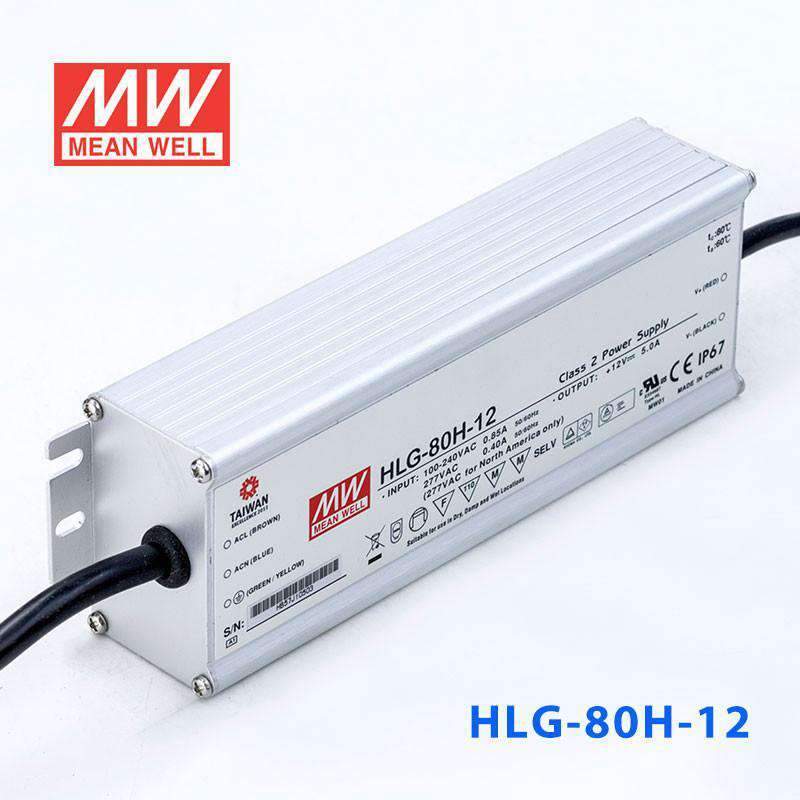

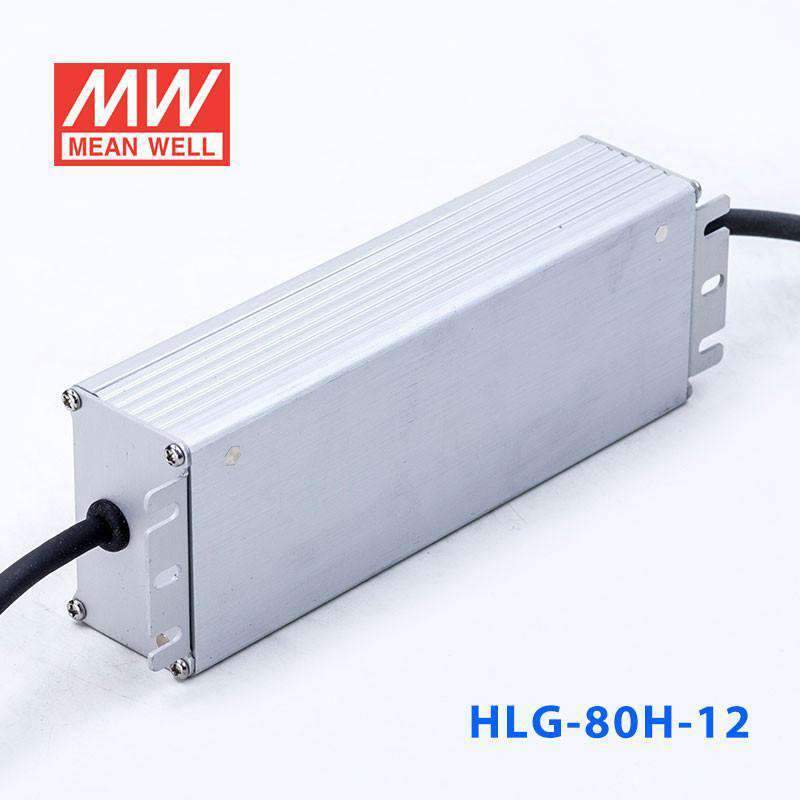

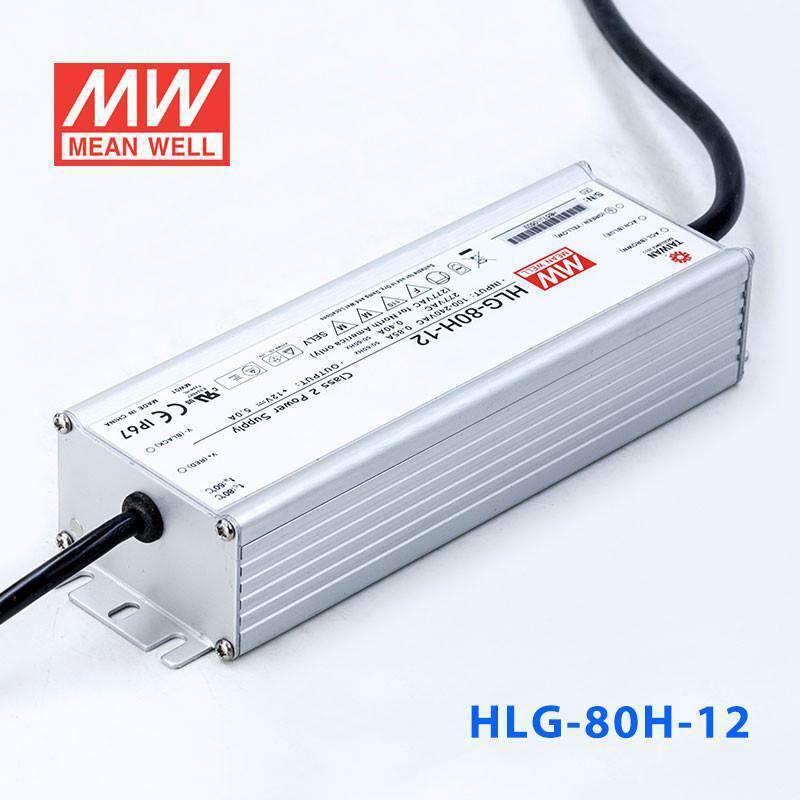

Mean Well HLG-80H-12 Power Supply 60W 12V
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Constant current output with high output voltage>60VDC |
| Built-in active PFC function |
| Protections: Short circuit / Over voltage / Over temperature |
| High efficiency up to 94% |
| Cooling by free air convection |
| Output current adjustable through output cable or internal potentiometer |
| IP67 / IP65 design for indoor or outdoor installations |
| Suitable for dry, damp and wet location |
| Suitable for LED lighting and street lighting applications |
| 2Multiple models for choice: A-Type: IP65 rated. Constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) D-Type (option): IP67 rated. Timer dimming function, contact MEAN WELL for details |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127VDC~431VDC |
| AC inrush current (typ.) | Cold start, 60A at 230VAC |
| Current adjustment range | 60%~100% |
| Short circuit protection | Hiccup mode, auto-recovery |
| Over temp. protection | 85OC±10OC(RTH2), shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:3.75kVAC, I/P-FG:2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+70ºC |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 16AWGx3C(30cm) |
| Connection Output | A&D-Type: SJTW 16AWGx2C(30cm) B-Type: SJTW 16AWGx2C(30cm) + SJTW 16AWGx2C(30cm) |
| Dimension (LxWxH) (mm) | 195.6x 61.5x 38.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length7.7 in
-
Width2.42 in
-
Height1.53 in
-
Weight1.85 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-80H-12 to power 12V LED strip lighting outdoors?
Yes. The HLG-80H-12 outputs 12V at up to 5A (60W) and carries an IP67 waterproof rating, making it suitable for outdoor 12V LED strip runs exposed to rain or moisture. Its aluminium casing and -40°C to +80°C operating range handle harsh weather conditions.
Is the HLG-80H-12 a good choice for powering 12V LED channel-letter signage?
Yes. With 60W of output at 12V, the HLG-80H-12 can drive 12V LED sign modules used in channel letters or cabinet signs. Its IP67 rating and universal 90-305VAC input make it well-suited for outdoor signage installations with varying mains voltages.
Can I power a 12V LED under-cabinet or cove lighting system with the HLG-80H-12?
Yes. The HLG-80H-12 provides 60W at 12V, which is enough for moderate runs of 12V LED tape in kitchens, display cases, or cove details. Since it has no dimming input, you would need a separate inline 12V dimmer if brightness control is required.
How many meters of 12V LED strip can the HLG-80H-12 power?
Divide 60W by your strip's rated power per meter. For example, a 12V strip drawing 10W/m would allow up to 6 meters (60W / 10W per meter = 6m). A higher-density strip at 14.4W/m would allow about 4.1 meters. Always check your strip's rated power per meter and keep total load at or below 60W.
Can the HLG-80H-12 be mounted in an outdoor junction box exposed to rain?
Yes. Its IP67 waterproof rating means the enclosure is protected against temporary submersion up to 1 meter. Direct rain exposure, wet-location junction boxes, and damp environments are all within its protection level, with no additional weatherproofing needed.
What are the differences between the HLG-80H-12, 12A, 12AB, and 12B variants?
All four share the same 60W / 12V / 5A core specs with constant-current operation. The base HLG-80H-12 has no output adjustment or dimming and is IP67 waterproof. The -12A adds a potentiometer for output adjustment (IP65). The -12AB adds both adjustment and 1-10V/PWM dimming (IP65). The -12B adds dimming input only and retains IP67.
