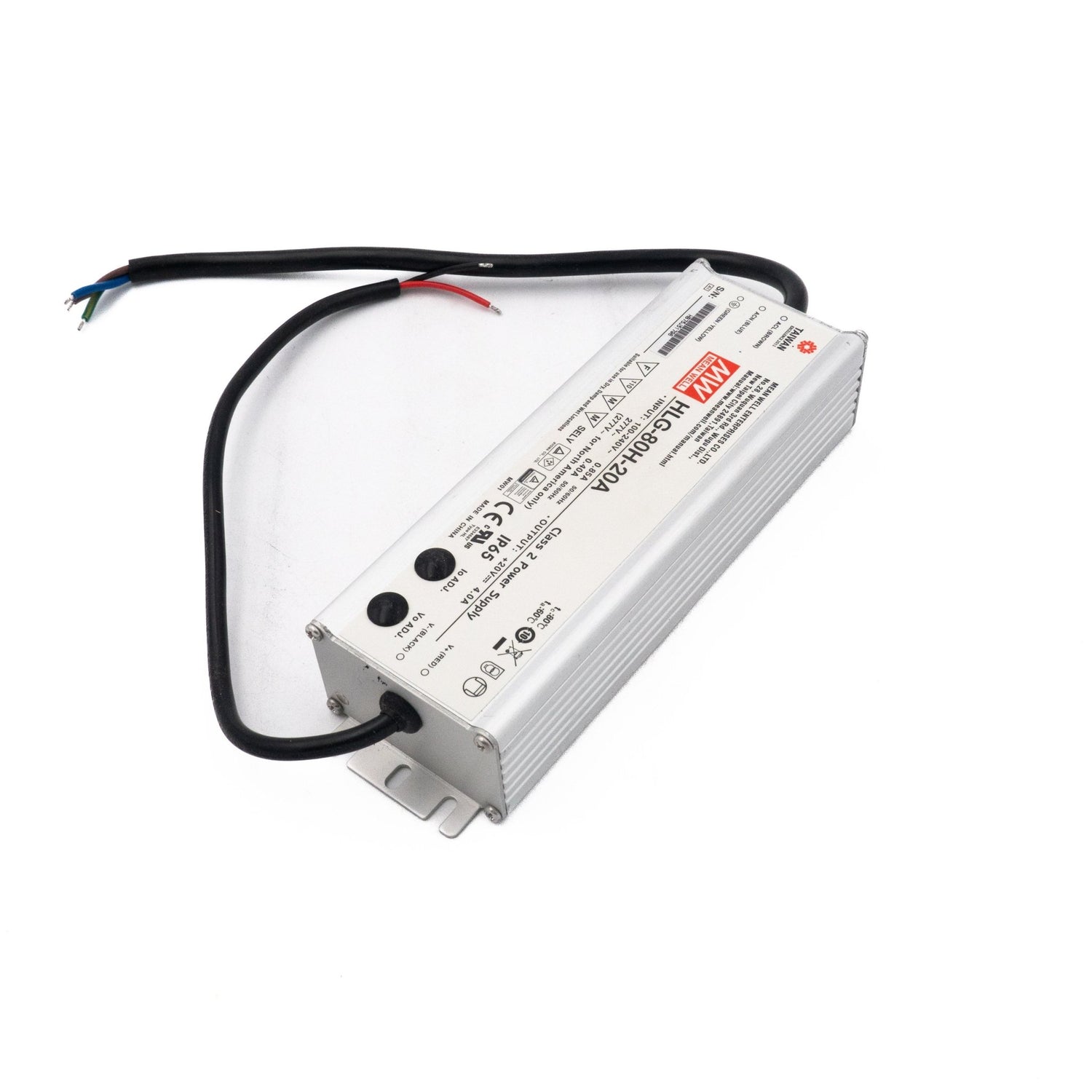

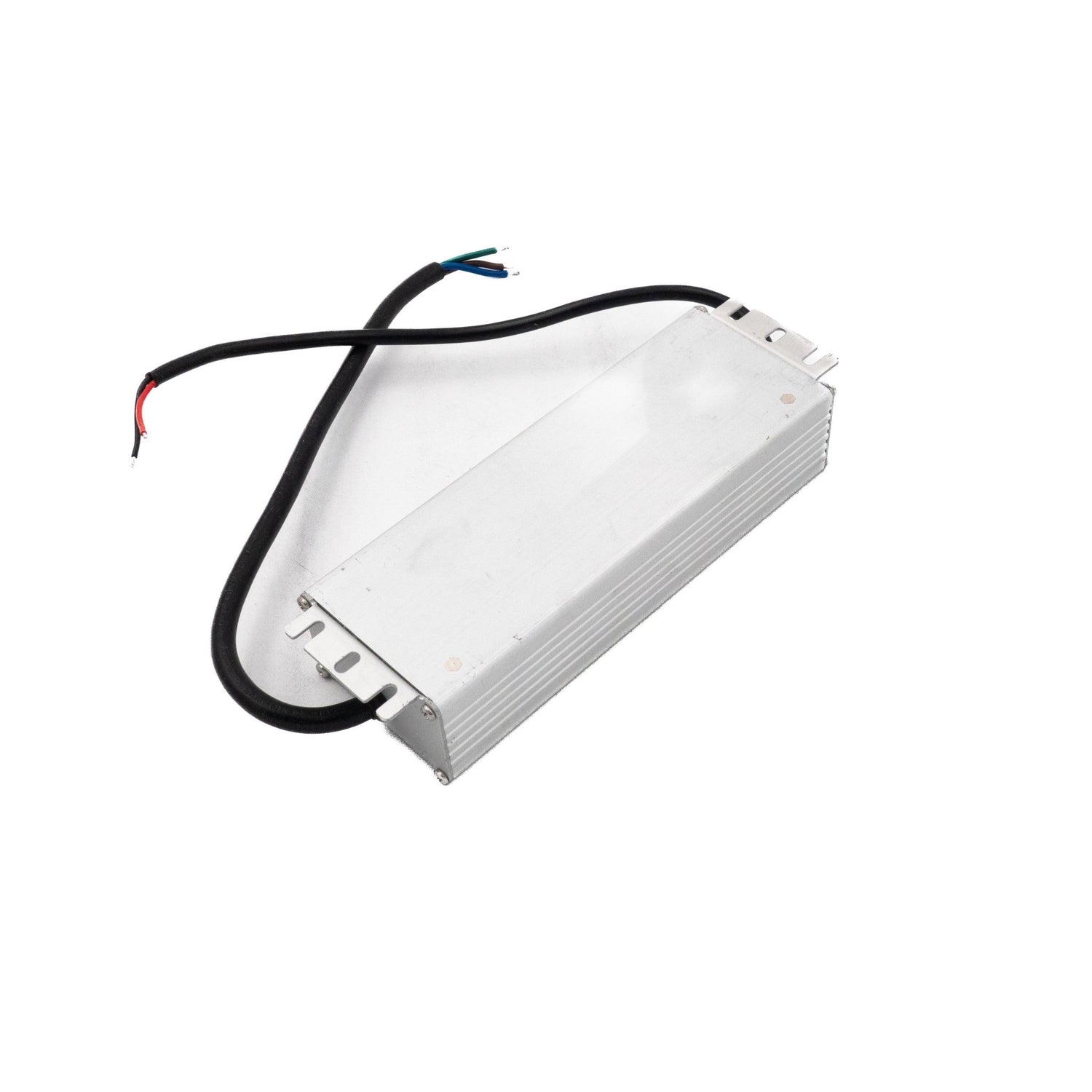

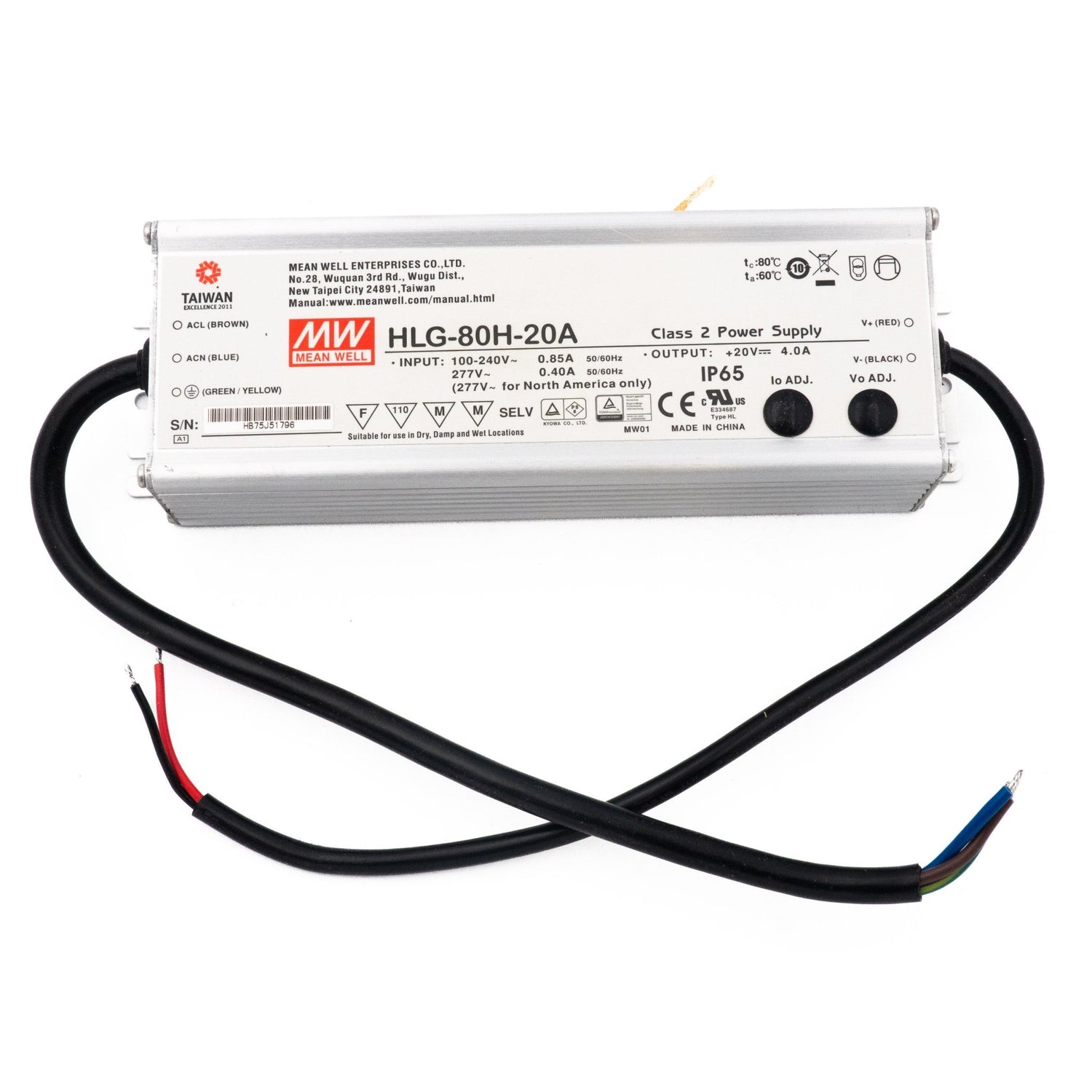

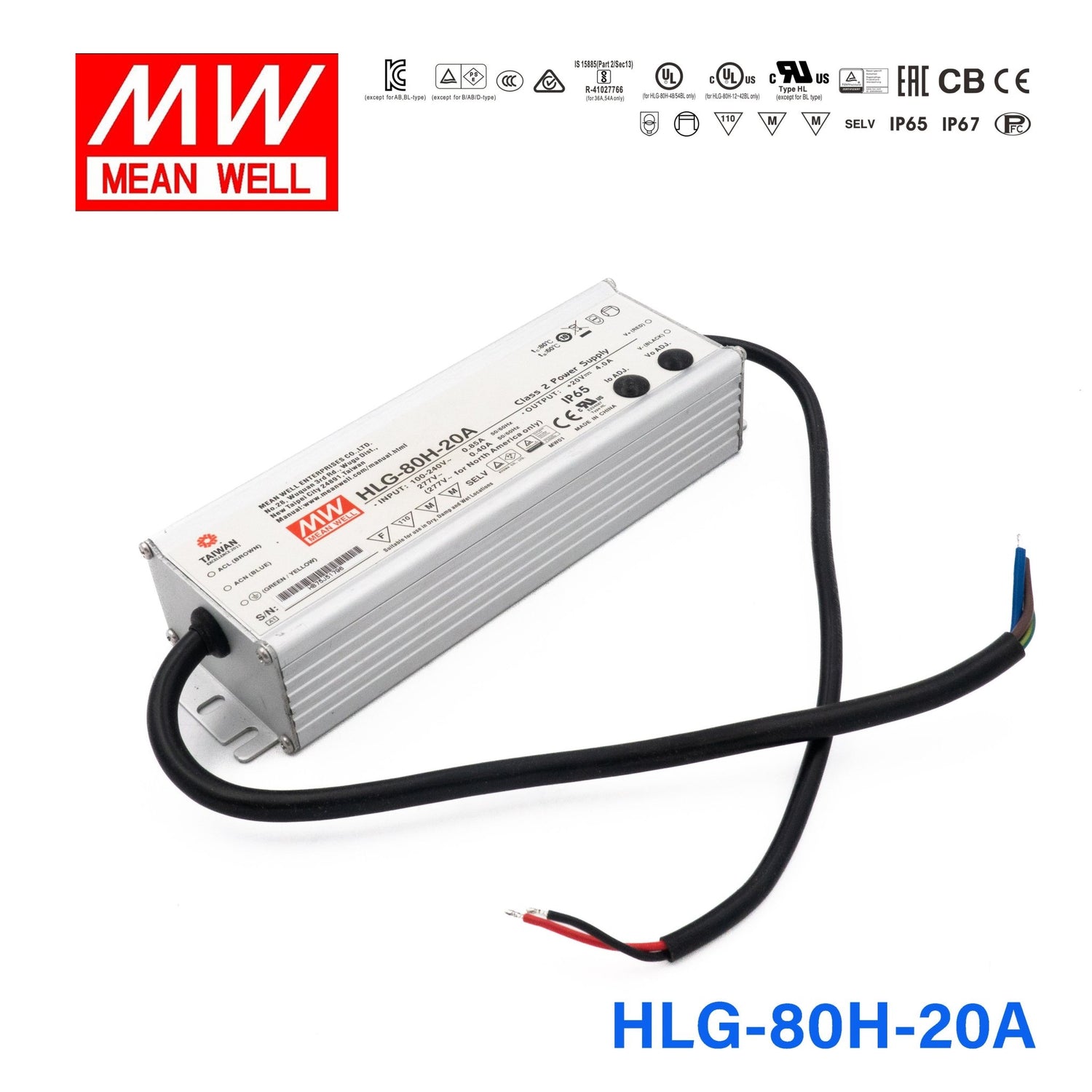

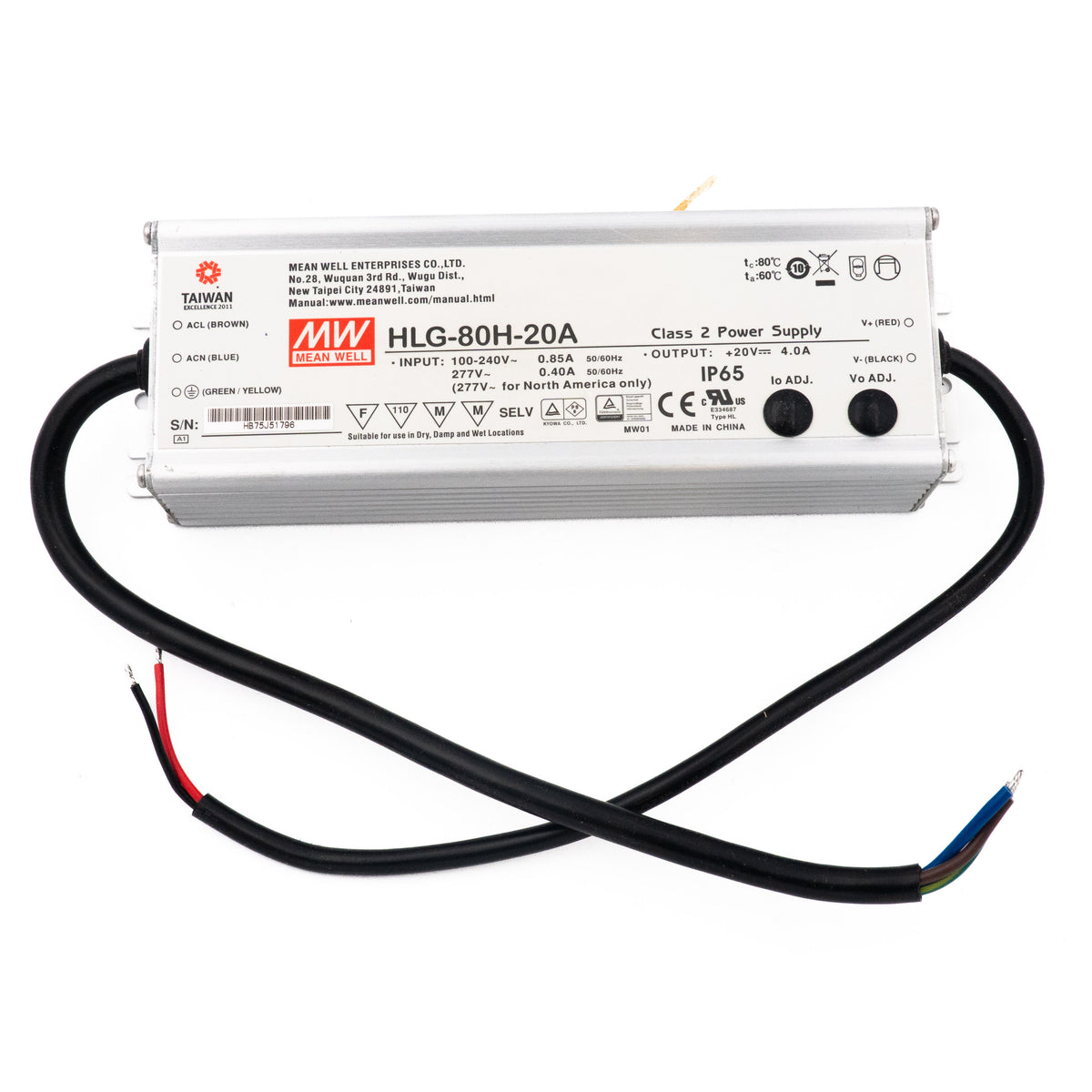

Mean Well HLG-80H-20A Power Supply 80W 20V

Name: Mean Well HLG-80H-20A Power Supply 80W 20V - Adjustable 4A
Brand: Mean Well
SKU: HLG-80H-20A
Price: 41.54 USD
Availability: InStock
Rating: 5.0 (4 reviews)

Overview

HLG-80H-20A is the 20V output model of this series: rated current 4A, rated power 80W, typical efficiency 90%. Type A: Io and Vo adjustable through built-in potentiometer (IP65).

HLG-80H series is a 80W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-80H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-80H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
Built-in active PFC function
Class 2 power unit
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-80H-20ASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

DC VOLTAGE: 20V
CONSTANT CURRENT REGION^Note.4: 12 ~ 20V
RATED CURRENT: 4A
RATED POWER: 80W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A-Type only (via built-in potentiometer) 17 ~ 22V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 2.4 ~ 4A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.6: 1200ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME (Typ.): 16ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.96/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 0.85A / 115VAC 0.425A / 230VAC 0.4A / 277VAC
INRUSH CURRENT (Typ.): COLD START 70A(twidth=485μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 23 ~ 30V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750(type"HL"), CSA C22.2 No. 250.0-08, UL8750 LISTED for HLG-80H-□BL;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 J61347-1, J61347-2-13(except for BL-type), GB/T19510.1,independent, GB/T19510.213,EAC TP TC 004, BIS IS15885(for 36A,54A only), IP65 or IP67,KC61347-1,KC61347-2-13(except for AB,BL-type) approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%); BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, KS C 9815, KS C 9547 (except for BL type), EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), KS C 9815, KS C 9547 (except for BL type),EAC TP TC 020

OTHERS

MTBF: 2992.9K hrs min. Telcordia SR-332 (Bellcore) ; 289.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 195.6*61.5*38.8mm (L*W*H)
PACKING: 0.84Kg; 16pcs/14.4Kg/0.54CUFT

MODEL ENCODING

Blank: Io and Vo fixed; IP67
A (this model): Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
BL: B-Type with junction box. UL8750 LISTED. Contact MEAN WELL for details; IP66
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. For A/AB type need to consider build in using to comply with Type HL application.
14. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-80H-20A BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-80H-20A Illustration (page 5) — Illustration (page 5)

HLG-80H-20A OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

HLG-80H-20A STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-80H-20A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-80H-20A MECHANICAL SPECIFICATION ※A-Type — MECHANICAL SPECIFICATION ※A-Type

HLG-80H-20A Dimensions (mm) — Dimensions (mm)

HLG-80H-20A WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HLG-80H-20A datasheetHLG-80H-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates3

UL Certificate (HLG-80H)(EN) PDF Download

TUV Certificate (HLG-80H)(EN) PDF Download

EMC Certificate (HLG-80H)(EN) PDF Download

Test reports1

Test Report (HLG-80H-20)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-80H-20A for 20V LED strip lighting in a covered outdoor area?

Yes. The HLG-80H-20A delivers 20V at up to 4A (80W) with an IP65-rated metal housing designed for indoor and outdoor applications, making it suitable for covered patios, soffits, and canopies. For fully exposed rain locations, the IP67-rated HLG-80H-20 or HLG-80H-20B would be a better fit.

How does the adjustable output on the HLG-80H-20A help with LED brightness control?

The built-in potentiometers let you trim the output voltage (17-22V) and current (2.4-4A) without needing an external dimmer. This is useful when your 20V LED load draws slightly less than the full rated output and you want to fine-tune brightness or reduce power consumption. The CC voltage range is 12-20V.

Is the HLG-80H-20A a good driver for 20V LED signage modules?

Yes. With 80W at 20V, it can power 20V channel letters or light-box modules. The adjustable output potentiometers let you match the driver precisely to the module string. Its wide 90-305VAC input handles most commercial mains supplies.

How many meters of 20V LED strip can I run from the HLG-80H-20A?

That depends on the strip's wattage per meter. The HLG-80H-20A supplies up to 80W at 20V. For a strip rated at 10W/m, you could run up to 8 meters (80W / 10W per meter = 8m). Always check your strip's rated power per meter and keep the total load at or below 80W.

Is the HLG-80H-20A suitable for damp locations like a bathroom soffit or covered car wash?

Its IP65-rated metal housing and 20-95% RH non-condensing working humidity rating suit damp locations like bathroom soffits. For a car wash or other locations with direct water exposure, step up to the IP67-rated HLG-80H-20 or 20B.

What are the differences between the HLG-80H-20, 20A, 20AB, and 20B models?

All four share the same 80W / 20V / 4A core specs and 195.6 x 61.5 x 38.8 mm dimensions. The base HLG-80H-20 has no output adjustment and is IP67. The -20A adds output voltage/current adjustment via built-in potentiometers and is IP65. The -20AB adds output current adjustment and a 3-in-1 dimming input (IP65). The -20B adds the dimming input only and retains IP67.
