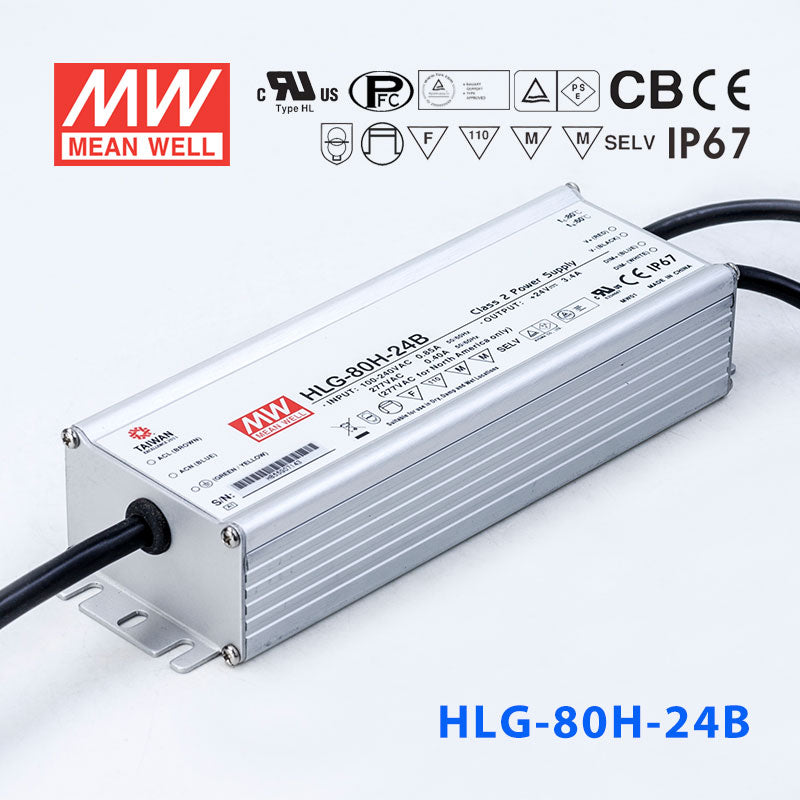

Mean Well HLG-80H-24AB Power Supply 80W 24V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-80H-24AB Power Supply 80W 24V - Adjustable and Dimmable
The HLG-80H is a 80W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating80 Watt
-
Output Voltage24 Volt
-
Rated Current3.4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length7.7 in
-
Width2.42 in
-
Height1.53 in
-
Weight1.85 lb
::specification::
Frequently Asked Questions
Can I use the HLG-80H-24AB to power 24V LED strip lighting in a covered outdoor patio?
Yes. The HLG-80H-24AB delivers 24V at up to 3.4A (80W) and carries an IP65 water-resistant rating, so it can handle splashing water and dust in sheltered outdoor locations like covered patios, pergolas, and soffits. For fully rain-exposed installations, consider the IP67-rated HLG-80H-24B instead.
Is the HLG-80H-24AB a good fit for dimmable 24V LED signage?
Yes. It provides 80W at 24V with built-in 1-10V/PWM dimming input, so you can use an external dimmer to adjust sign brightness throughout the day. The adjustable output also lets you fine-tune voltage and current via the built-in potentiometer to match your specific LED module string.
Can the HLG-80H-24AB power 24V under-cabinet LED strips with a dimmer?
Yes. The built-in dimming input accepts 1-10V or PWM signals, letting you adjust brightness for under-cabinet or task lighting. At 80W and 24V, it can drive a reasonable run of 24V LED strip as long as the total load stays at or below 80W. The adjustable potentiometer provides additional fine-tuning of output level.
How many meters of 24V LED strip can the HLG-80H-24AB drive?
That depends on your strip's rated power per meter. The HLG-80H-24AB supplies up to 80W at 24V. For example, if your strip draws 14.4W/m, you could run up to about 5.5 meters (80W / 14.4W per meter ≈ 5.5m). Always check your strip's rated power per meter and keep total load at or below 80W.
Can I install the HLG-80H-24AB outdoors where it may get splashed but not submerged?
Yes. Its IP65 rating means the enclosure is protected against low-pressure water jets from any direction and is dust-tight. This covers rain-sheltered outdoor areas, covered walkways, and locations with occasional splashing. It is not rated for submersion — for that, use an IP67 model like the HLG-80H-24B.
What are the differences between the HLG-80H-24, 24A, 24AB, and 24B models?
All four share the same 80W / 24V / 3.4A core specs. The base HLG-80H-24 has fixed output and IP67 waterproof rating. The -24A adds a potentiometer for output voltage/current adjustment (IP65). The -24AB combines adjustment and 1-10V/PWM dimming input (IP65). The -24B offers dimming input only and retains IP67 waterproof rating.
