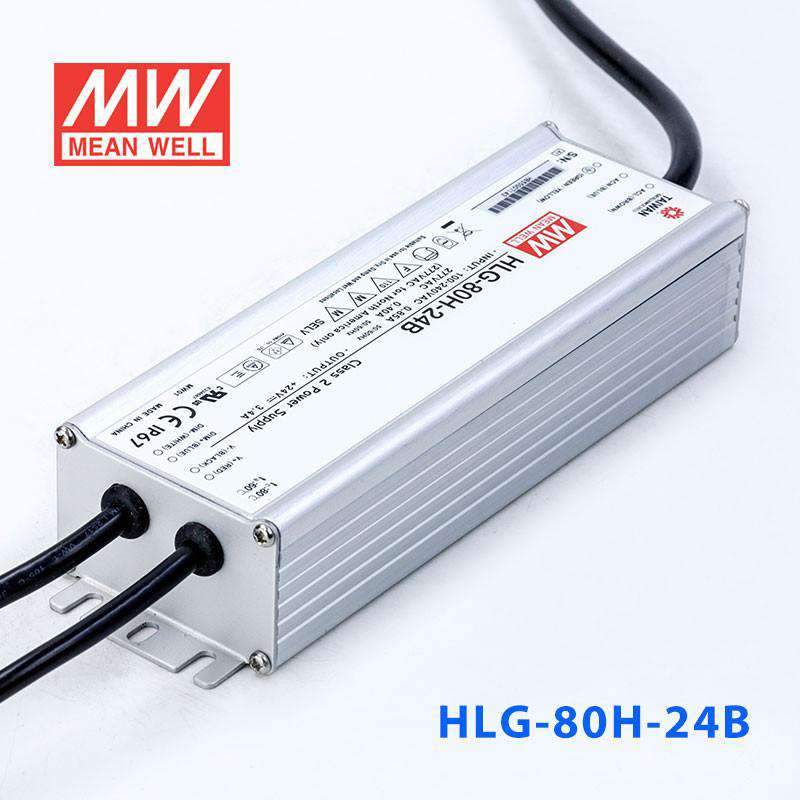

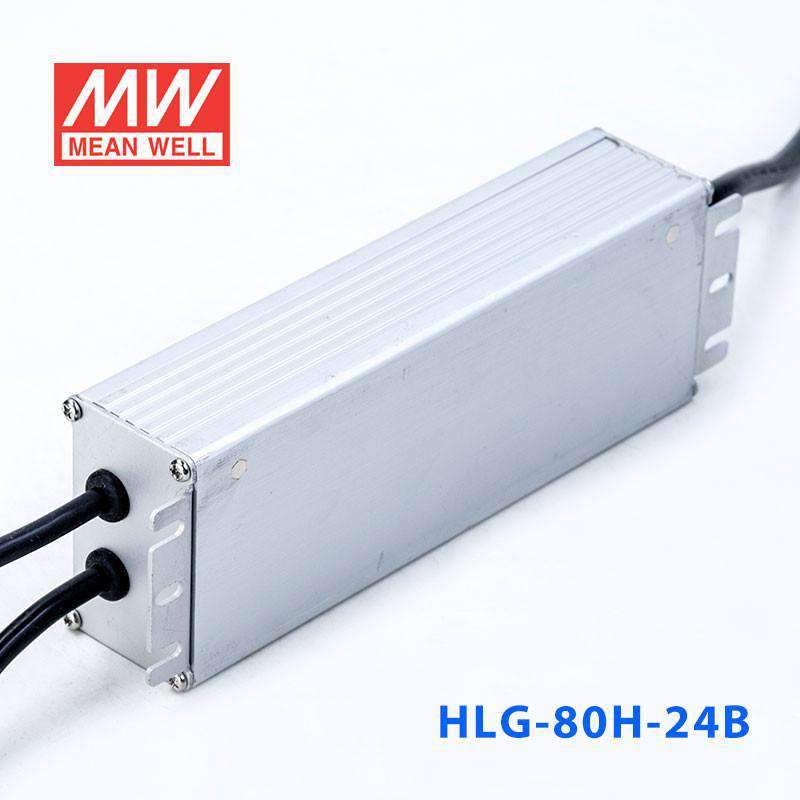

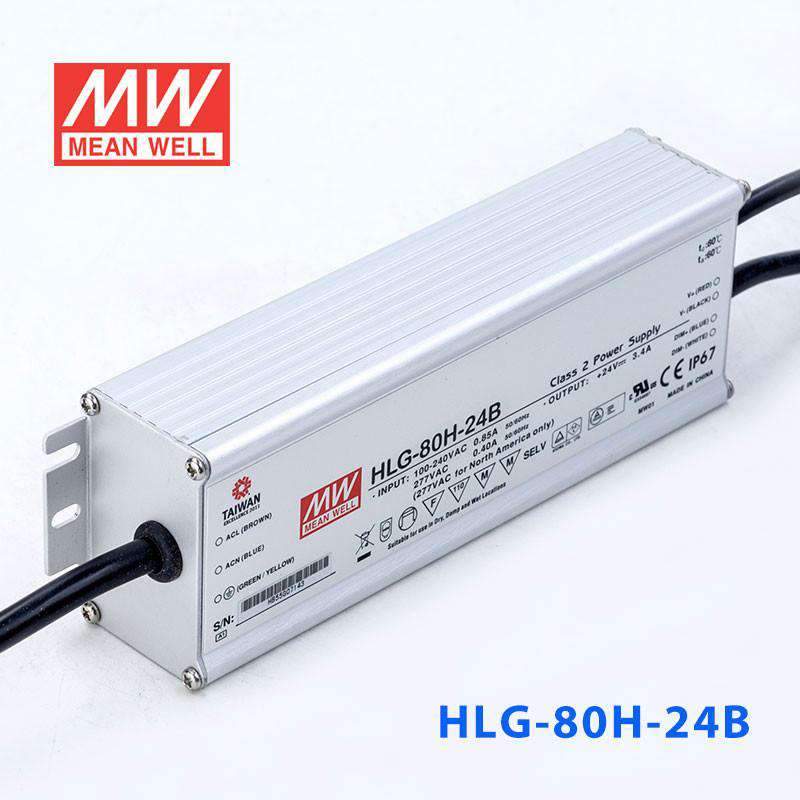

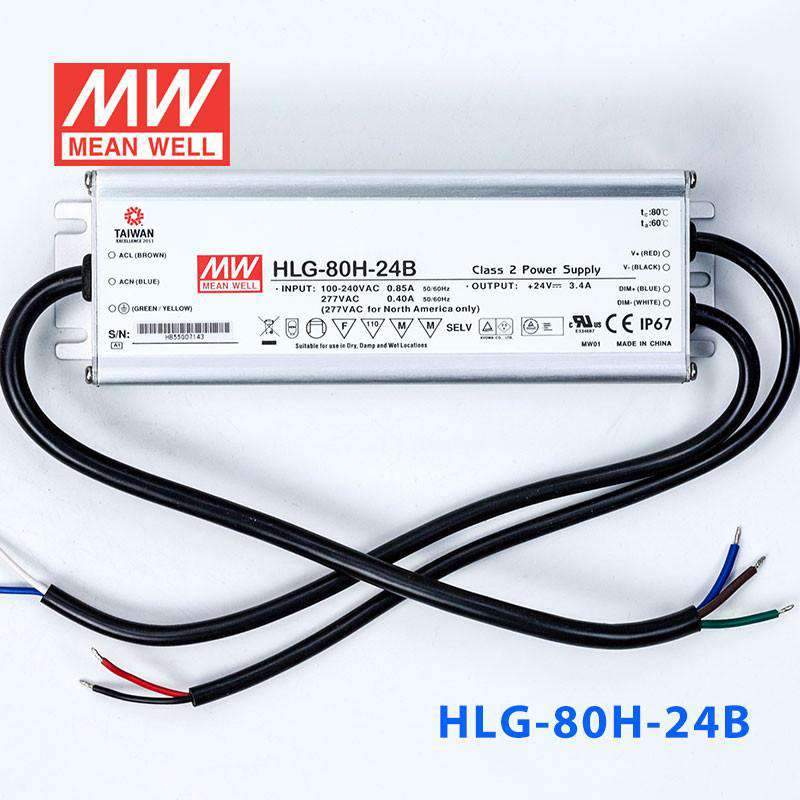

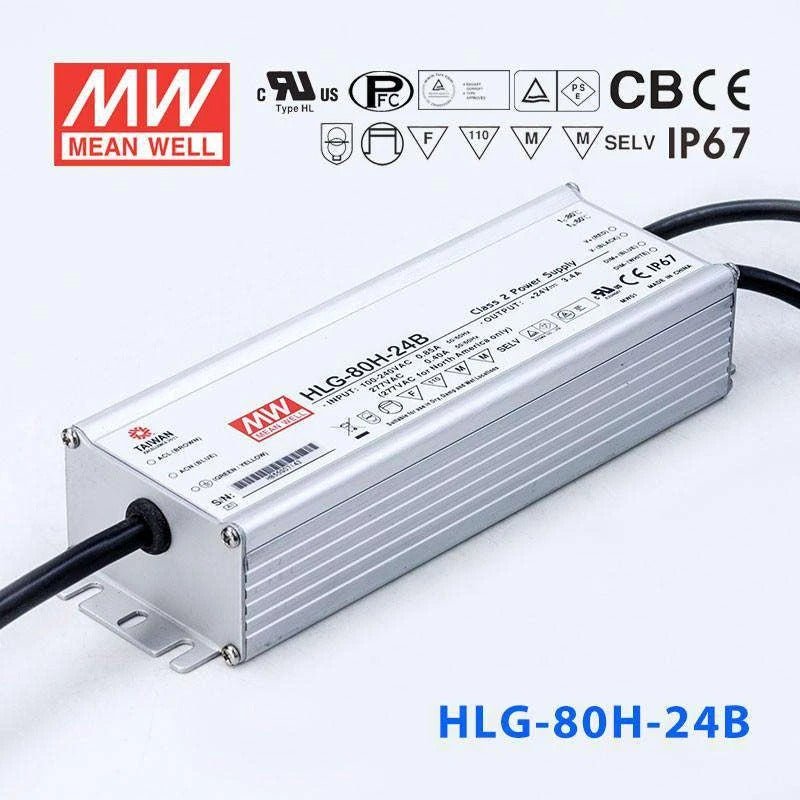

Mean Well HLG-80H-24B Power Supply 80W 24V - Dimmable

Description

Features

Universal AC input (up to 305VAC) / Full range

Constant current output with high output voltage>60VDC

Built-in active PFC function

Protections: Short circuit / Over voltage / Over temperature

High efficiency up to 94%

Cooling by free air convection

Output current adjustable through output cable or internal potentiometer

IP67 / IP65 design for indoor or outdoor installations

Suitable for dry, damp and wet location

Suitable for LED lighting and street lighting applications

2Multiple models for choice: A-Type: IP65 rated. Constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) D-Type (option): IP67 rated. Timer dimming function, contact MEAN WELL for details

7 years warranty

General Specification

AC input voltage range	90~305VAC; 127VDC~431VDC
AC inrush current (typ.)	Cold start, 60A at 230VAC
Current adjustment range	60%~100%
Short circuit protection	Hiccup mode, auto-recovery
Over temp. protection	85OC±10OC(RTH2), shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P:3.75kVAC, I/P-FG:2kVAC, O/P-FG:0.5kVAC
Working temperature	-40~+70ºC
Safety standards	UL8750, TUV EN61347-1, EN61347-2-13 approved
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection Input	UL rated, SJTW 16AWGx3C(30cm)
Connection Output	A&D-Type: SJTW 16AWGx2C(30cm) B-Type: SJTW 16AWGx2C(30cm) + SJTW 16AWGx2C(30cm)
Dimension (LxWxH) (mm)	195.6x 61.5x 38.8

Specifications

Brand

Mean Well
Series

HLG Series
Power Rating

80 Watt
Output Voltage

24 Volt
Rated Current

3.4 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

10V PWM,1-10V,Resistance
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

7 Year
Length

7.7 in
Width

2.42 in
Height

1.53 in
Weight

1.85 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HLG-80H-24B to power 24V LED strips in a fully exposed outdoor location?

Yes. The HLG-80H-24B outputs 24V at up to 3.4A (80W) and carries an IP67 waterproof rating, meaning it can withstand temporary submersion up to 1 meter. It is well suited for outdoor LED strip installations exposed to rain, snow, or washdown environments.

Is the HLG-80H-24B suitable for dimmable 24V landscape lighting?

Yes. It includes a dimming input (1-10V/PWM) that lets you adjust brightness externally, which is ideal for landscape accent lighting or pathway illumination. Its IP67 waterproof rating and -40°C to +80°C operating range make it reliable for in-ground or exposed outdoor installations year-round.

Can the HLG-80H-24B drive 24V LED channel letter signs outdoors?

Yes. With 80W at 24V, it can power 24V channel-letter or lightbox sign modules as long as the total load stays within 80W. The IP67 rating protects the driver when mounted inside or behind outdoor sign enclosures where moisture ingress is a concern.

How many meters of 24V LED strip can the HLG-80H-24B handle?

It depends on your strip's rated wattage per meter. The HLG-80H-24B provides up to 80W at 24V. For a strip rated at 10W/m, that allows up to 8 meters (80W / 10W per meter = 8m). Always verify your strip's rated power per meter and keep the total load at or below 80W.

Can the HLG-80H-24B be mounted in a location where it may be temporarily submerged?

Yes. Its IP67 rating certifies protection against temporary immersion in water up to 1 meter deep. This makes it suitable for in-ground light wells, below-deck marine installations, or any location subject to occasional flooding. The aluminium casing and -40°C to +80°C operating range add further durability.

What operating temperature range does the HLG-80H-24B support for cold-climate outdoor use?

The HLG-80H-24B is rated for -40°C to +80°C ambient temperature. This means it can start and operate reliably in extreme winter cold as well as summer heat. Combined with its IP67 waterproof housing, it is well suited for year-round outdoor installations in virtually any climate.
