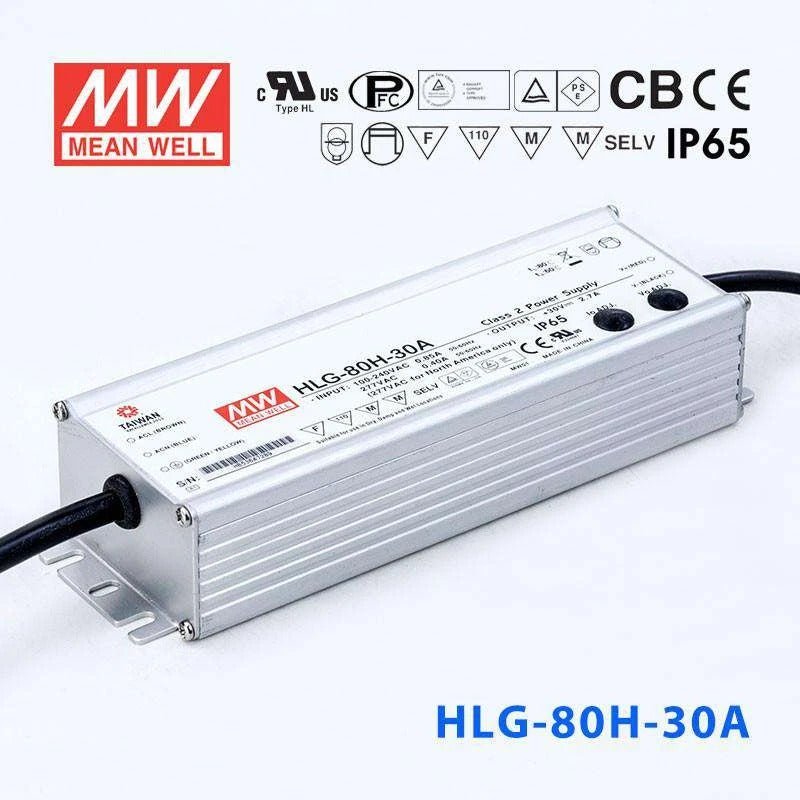

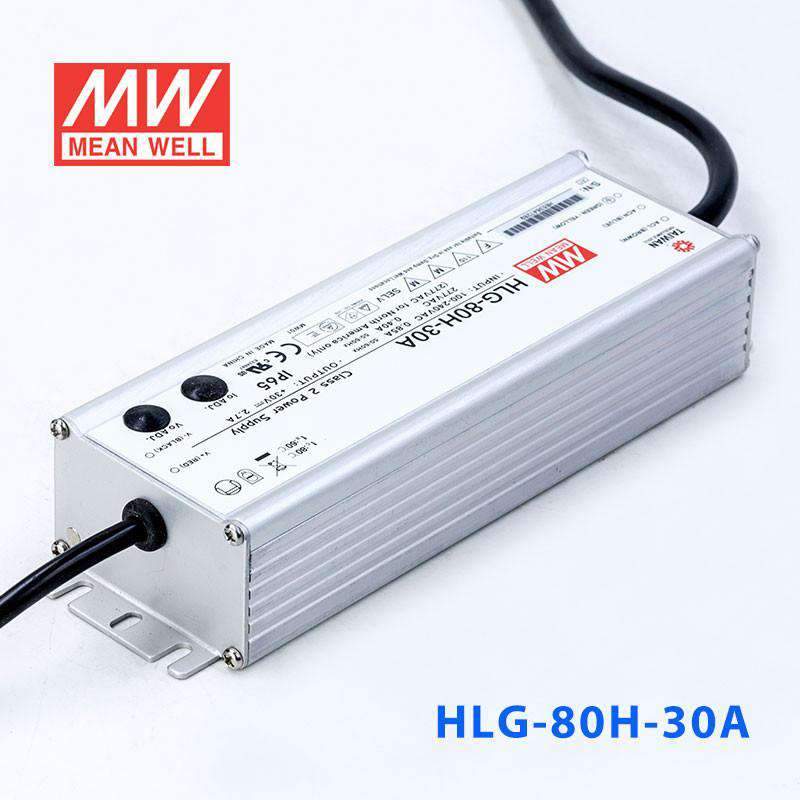

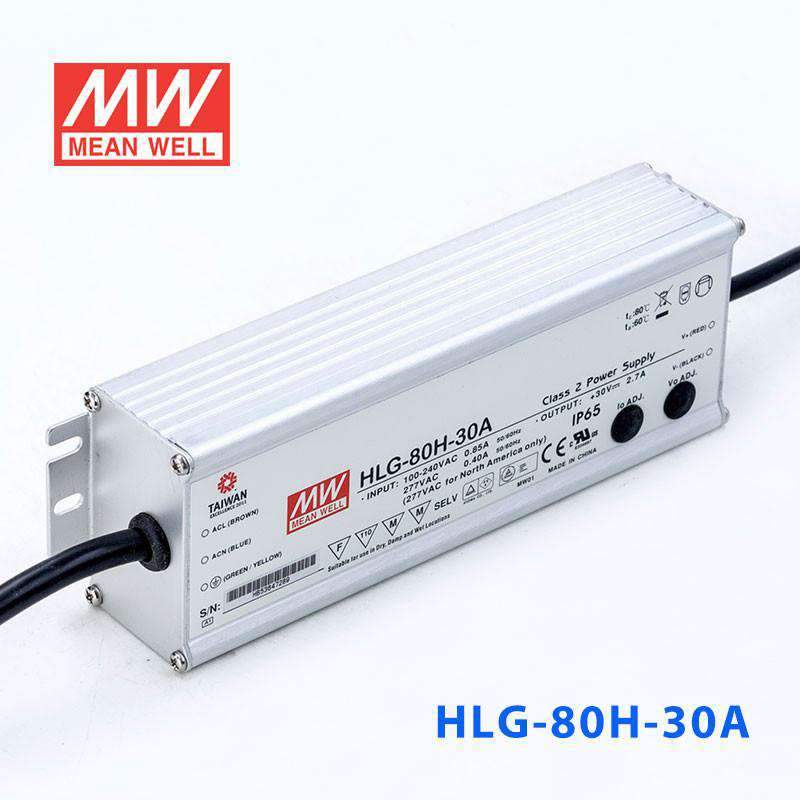

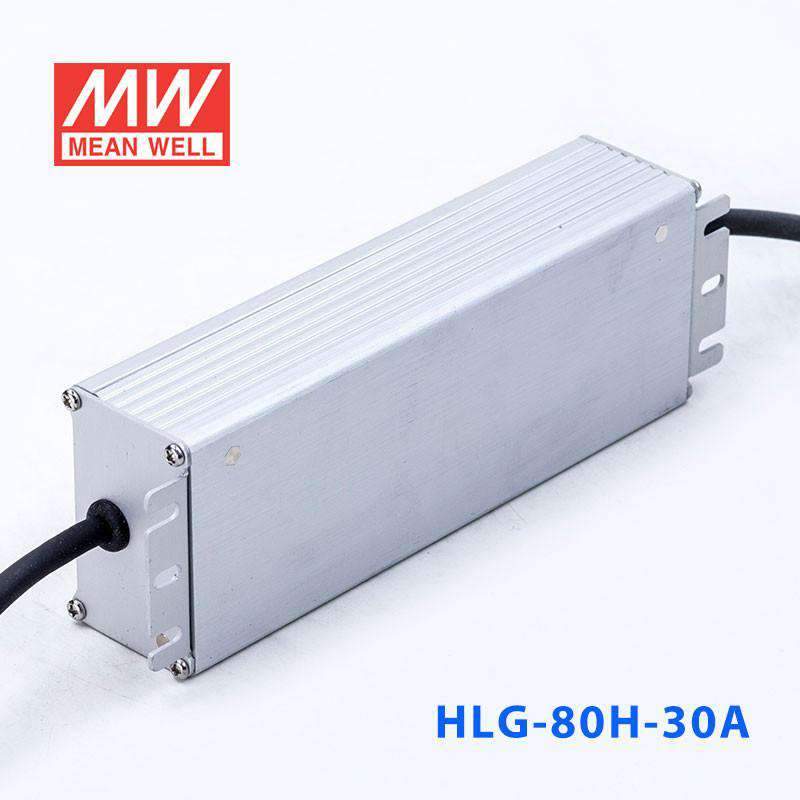

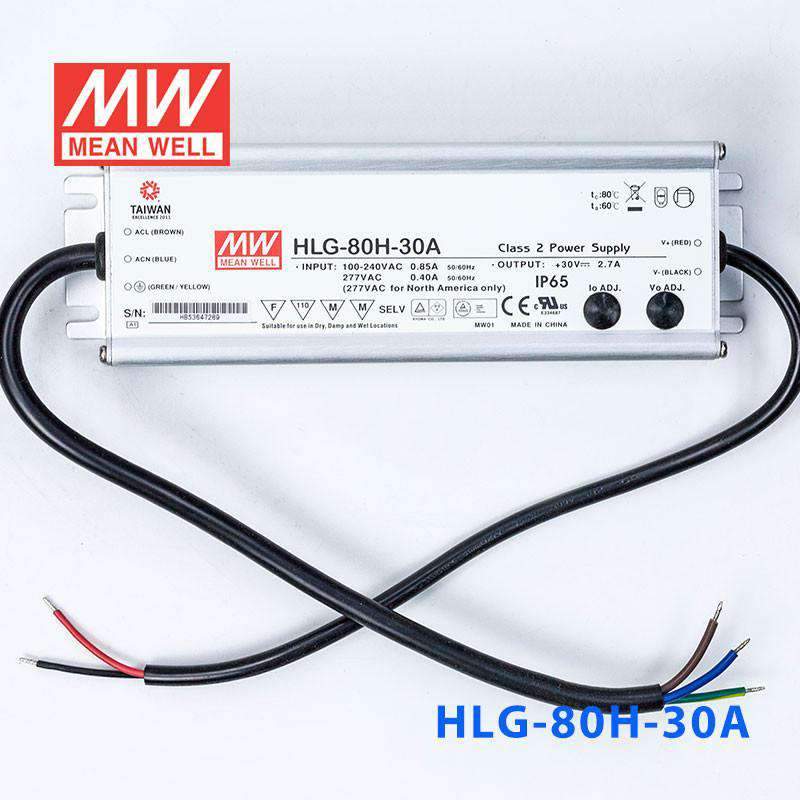

Mean Well HLG-80H-30A Power Supply

Description

Features

Universal AC input (up to 305VAC) / Full range

Constant current output with high output voltage>60VDC

Built-in active PFC function

Protections: Short circuit / Over voltage / Over temperature

High efficiency up to 94%

Cooling by free air convection

Output current adjustable through output cable or internal potentiometer

IP67 / IP65 design for indoor or outdoor installations

Suitable for dry, damp and wet location

Suitable for LED lighting and street lighting applications

2Multiple models for choice: A-Type: IP65 rated. Constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) D-Type (option): IP67 rated. Timer dimming function, contact MEAN WELL for details

7 years warranty

General Specification

AC input voltage range	90~305VAC; 127VDC~431VDC
AC inrush current (typ.)	Cold start, 60A at 230VAC
Current adjustment range	60%~100%
Short circuit protection	Hiccup mode, auto-recovery
Over temp. protection	85OC±10OC(RTH2), shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P:3.75kVAC, I/P-FG:2kVAC, O/P-FG:0.5kVAC
Working temperature	-40~+70ºC
Safety standards	UL8750, TUV EN61347-1, EN61347-2-13 approved
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection Input	UL rated, SJTW 16AWGx3C(30cm)
Connection Output	A&D-Type: SJTW 16AWGx2C(30cm) B-Type: SJTW 16AWGx2C(30cm) + SJTW 16AWGx2C(30cm)
Dimension (LxWxH) (mm)	195.6x 61.5x 38.8

Specifications

Brand

Mean Well
Series

HLG Series
Power Rating

80 Watt
Output Voltage

30 Volt
Rated Current

2.7 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

7 Year
Length

7.7 in
Width

2.42 in
Height

1.53 in
Weight

1.85 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HLG-80H-30A to power 30V LED strips in a sheltered outdoor area?

Yes. The HLG-80H-30A outputs 30V at up to 2.7A (80W) with an IP65 water-resistant rating, which protects against dust and low-pressure water jets. It is well suited for covered patios, awnings, or soffits. For fully rain-exposed locations, consider the IP67-rated HLG-80H-30 or HLG-80H-30B.

Is the adjustable output on the HLG-80H-30A useful for tuning LED panel brightness?

Yes. The built-in potentiometer lets you trim the output voltage and current without needing an external dimmer. This is helpful when your 30V LED panels or fixtures need a slightly lower drive level for the desired brightness or to extend LED lifespan. The CC voltage range is 18-30V.

Can the HLG-80H-30A drive 30V LED modules in commercial light boxes?

Yes. At 80W and 30V output, it can power 30V LED module chains used in light boxes and menu boards. The adjustable output is an added benefit for matching the driver precisely to the module forward voltage. Its 90-305VAC universal input works with most commercial mains supplies.

How many meters of 30V LED strip can the HLG-80H-30A power?

It depends on the strip's rated wattage per meter. The HLG-80H-30A delivers up to 80W at 30V. If your strip draws 10W/m, you can run up to 8 meters (80W / 10W per meter = 8m). Always check your strip's rated power per meter and keep total load at or below 80W.

Is the IP65 rating on the HLG-80H-30A sufficient for a bathroom or wet-area installation?

IP65 provides protection against low-pressure water jets from any direction and is dust-tight, so it is suitable for bathrooms, laundry rooms, or covered wet areas where direct water spray is possible. However, it is not rated for submersion — if the driver could be submerged, use an IP67 model instead.
