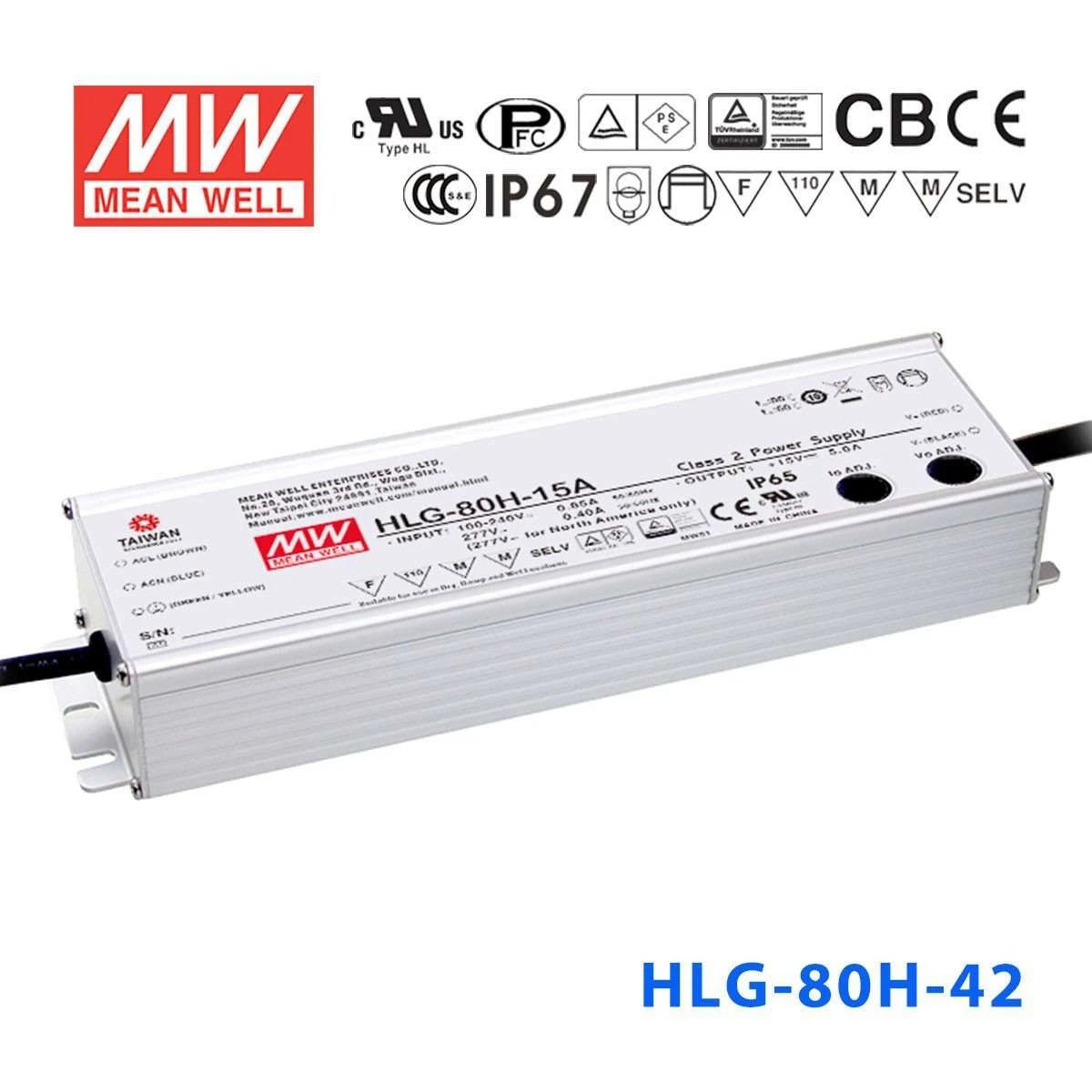

Mean Well HLG-80H-42 Power Supply 80W 42V 1.95A

Name: Mean Well HLG-80H-42 Power Supply 80W 42V 1.95A
Brand: Mean Well
SKU: HLG-80H-42
Price: 41.54 USD
Availability: InStock
Rating: 5.0 (4 reviews)

Overview

HLG-80H-42 is the 42V output model of this series: rated current 1.95A, rated power 81.9W, typical efficiency 91%. Type Blank: Io and Vo fixed (IP67).

HLG-80H series is a 80W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-80H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
Built-in active PFC function
Class 2 power unit
IP67 rating for indoor or outdoor installations
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-80H-42Specifications from the official datasheet (2026-02-04 edition)

OUTPUT

DC VOLTAGE: 42V
CONSTANT CURRENT REGION^Note.4: 25.2 ~ 42V
RATED CURRENT: 1.95A
RATED POWER: 81.9W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 1200ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME (Typ.): 16ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.96/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 0.85A / 115VAC 0.425A / 230VAC 0.4A / 277VAC
INRUSH CURRENT (Typ.): COLD START 70A(twidth=485μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 48 ~ 58V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750(type"HL"), CSA C22.2 No. 250.0-08, UL8750 LISTED for HLG-80H-□BL;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 J61347-1, J61347-2-13(except for BL-type), GB/T19510.1,independent, GB/T19510.213,EAC TP TC 004, BIS IS15885(for 36A,54A only), IP65 or IP67,KC61347-1,KC61347-2-13(except for AB,BL-type) approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%); BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, KS C 9815, KS C 9547 (except for BL type), EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), KS C 9815, KS C 9547 (except for BL type),EAC TP TC 020

OTHERS

MTBF: 2992.9K hrs min. Telcordia SR-332 (Bellcore) ; 289.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 195.6*61.5*38.8mm (L*W*H)
PACKING: 0.84Kg; 16pcs/14.4Kg/0.54CUFT

MODEL ENCODING

Blank (this model): Io and Vo fixed; IP67
A: Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
BL: B-Type with junction box. UL8750 LISTED. Contact MEAN WELL for details; IP66
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
14. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-80H-42 BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-80H-42 Illustration (page 5) — Illustration (page 5)

HLG-80H-42 OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

HLG-80H-42 STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-80H-42 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-80H-42 MECHANICAL SPECIFICATION ※Blank/D-Type — MECHANICAL SPECIFICATION ※Blank/D-Type

HLG-80H-42 Dimensions (mm) — Dimensions (mm)

HLG-80H-42 WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HLG-80H-42 datasheetHLG-80H-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates3

UL Certificate (HLG-80H)(EN) PDF Download

TUV Certificate (HLG-80H)(EN) PDF Download

EMC Certificate (HLG-80H)(EN) PDF Download

Test reports1

Test Report (HLG-80H-42)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-80H-42 to power 42V LED modules for outdoor signage?

Yes. The HLG-80H-42 outputs 42V at up to 1.95A (80W) with an IP67 waterproof rating, making it suitable for outdoor channel letters, cabinet signs, and light boxes that use 42V LED modules. Its wide 90-305VAC input works with most commercial mains voltages worldwide.

Is the HLG-80H-42 suitable for powering 42V LED grow lights?

Yes, provided the grow light operates at 42V and draws no more than 80W. The HLG-80H-42 runs in constant-current mode with a CC region of 25.2-42V, which suits many horticultural LED boards. It is IP67 rated, with a working humidity rating of 20-95% RH non-condensing.

Can I run 42V LED panel lights from the HLG-80H-42 in a warehouse?

Yes. At 80W and 42V output, the HLG-80H-42 can drive 42V panel lights as long as their combined load stays within 80W. Its IP67-rated metal housing suits the dust and moisture common in warehouse environments.

How many meters of 42V LED strip can the HLG-80H-42 support?

Divide 80W by your strip's rated power per meter. For example, if your 42V strip draws 12W/m, you can run about 6.6 meters (80W / 12W per meter = 6.67m). Always check your strip's rated power per meter and keep total load at or below 80W.

Can the HLG-80H-42 be mounted outdoors in freezing winter conditions?

Yes. Its rated case temperature (Tcase) range is -40°C to +80°C, so it can operate in extreme cold. Combined with its IP67-rated metal housing, designed for indoor and outdoor applications, it suits year-round outdoor installations, including winter conditions.
