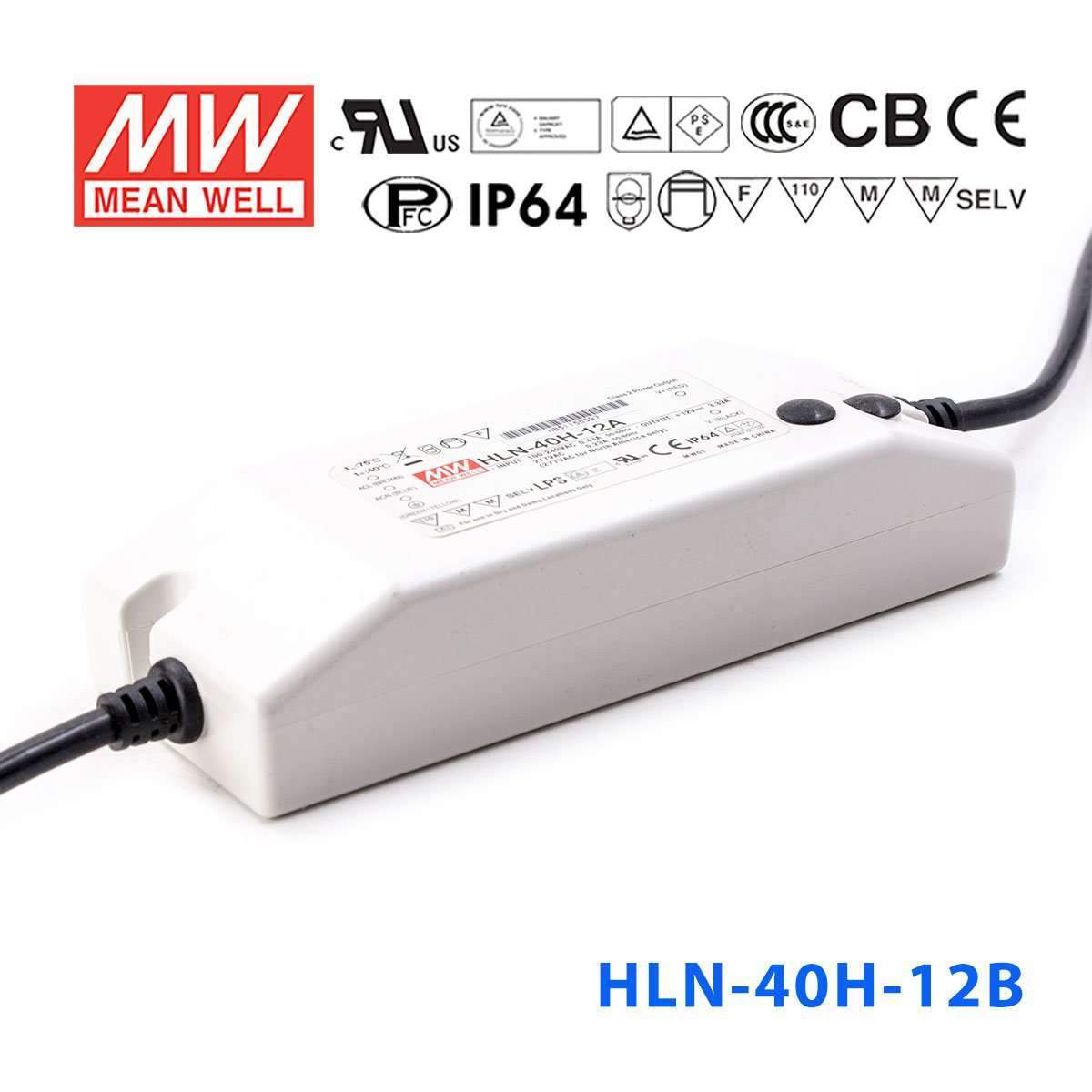

Mean Well HLN-40H-12B Power Supply 40W 12V - IP64, Dimmable

fully isolated plastic case, IP64, suitable for signage applications, Class 2 power unit
$36.63 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 305VAC) / Full range
Fully isolated plastic case with IP64 level
Built-in active PFC function, PF> 0.9 for 60% of load or higher
Protections: Short circuit / Over current / Over voltage / Over temperature
Built-in constant current limiting circuit (C.V.+C.C. mode)
Class 2 power unit / Pass LPS
High efficiency up to 91%
Cooling by free air convection
Suitable for dry, damp location
Suitable for LED lighting and moving sign applications
Multiple models for choice: A-Type: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP64 rated and built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance)
3 years warranty

General Specification

AC input voltage range 90~305VAC; 127~431VDC
AC inrush current (max.) Cold start, 50A at 230VAC
DC adjustment range ±10% rated output voltage (A-Type only)
Current adjustment range 60%~100%
Over current protection 95%~108% constant current limiting, auto-recovery
Over voltage protection 109%~150% rated output voltage
Setup, rise, hold up time 1000ms, 80ms, 16ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC
Working temperature -40~+50ºC (refer to output derating curve)
Safety standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1for
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input UL rated, SVT 18AWGx3C (30cm)
Connection Output A-Type: UL rated, SVT 18AWGx2C (30cm) ; B-Type: UL rated, SVT 18AWGx4C (30cm)
Dimension (LxWxH) (mm) 161x 61.5x 35

Specifications

  • Brand
    Mean Well
  • Series
    HLN Series
  • Power Rating
    40 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    3.33 Ampere
  • Input Voltage
    90V~305V
  • No of Output
    1
  • Dimming Control
    10V PWM,1-10V,Resistance
  • Standards Met
    CB,CCC,CE,EAC,PSE,TUV,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -40°C~50°C
  • Warranty
    3 Year
  • Length
    6.34 in
  • Width
    2.42 in
  • Height
    1.38 in
  • Weight
    0.77 lb

File Downloads

::specification::
