Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

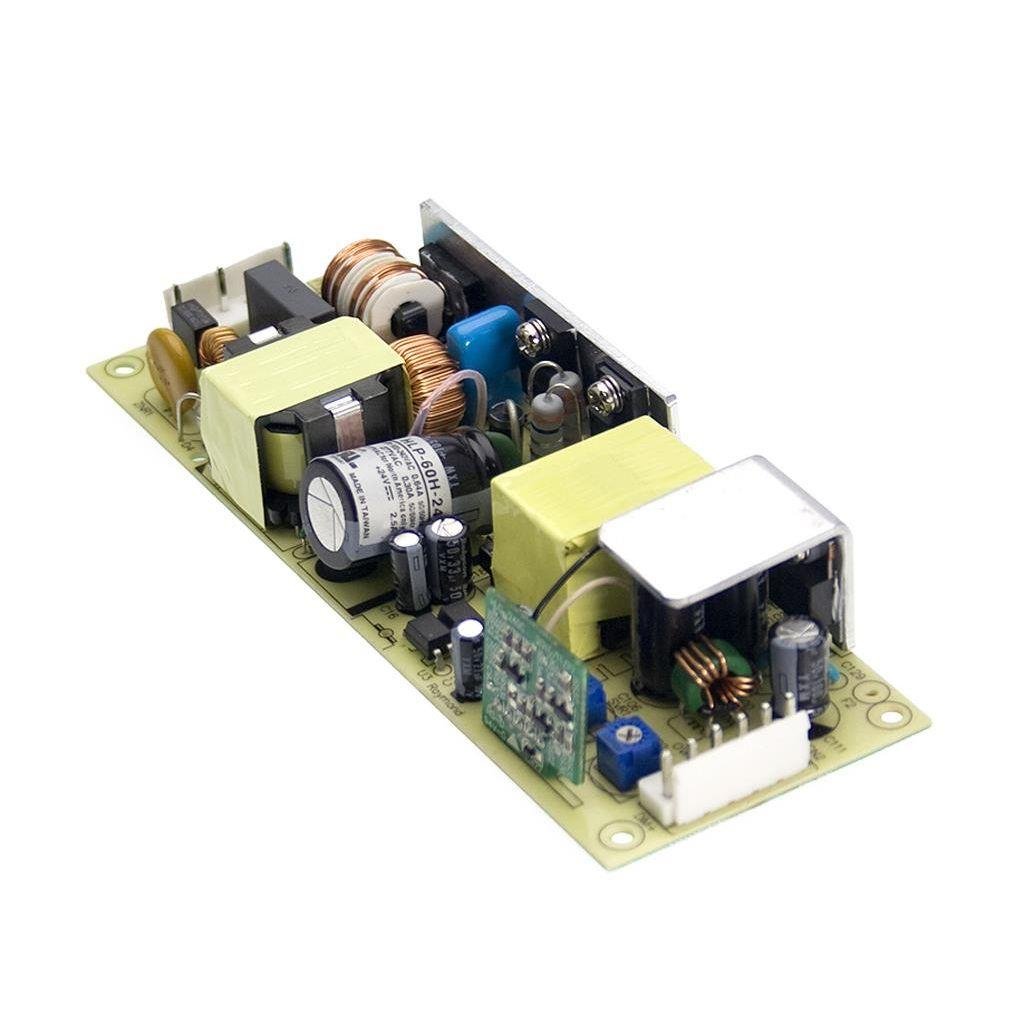

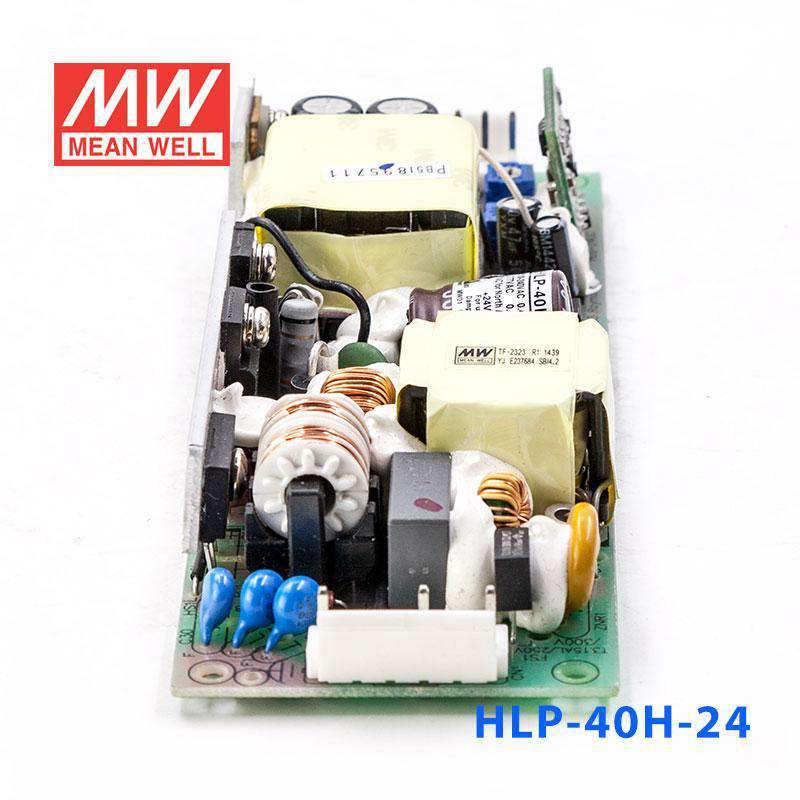

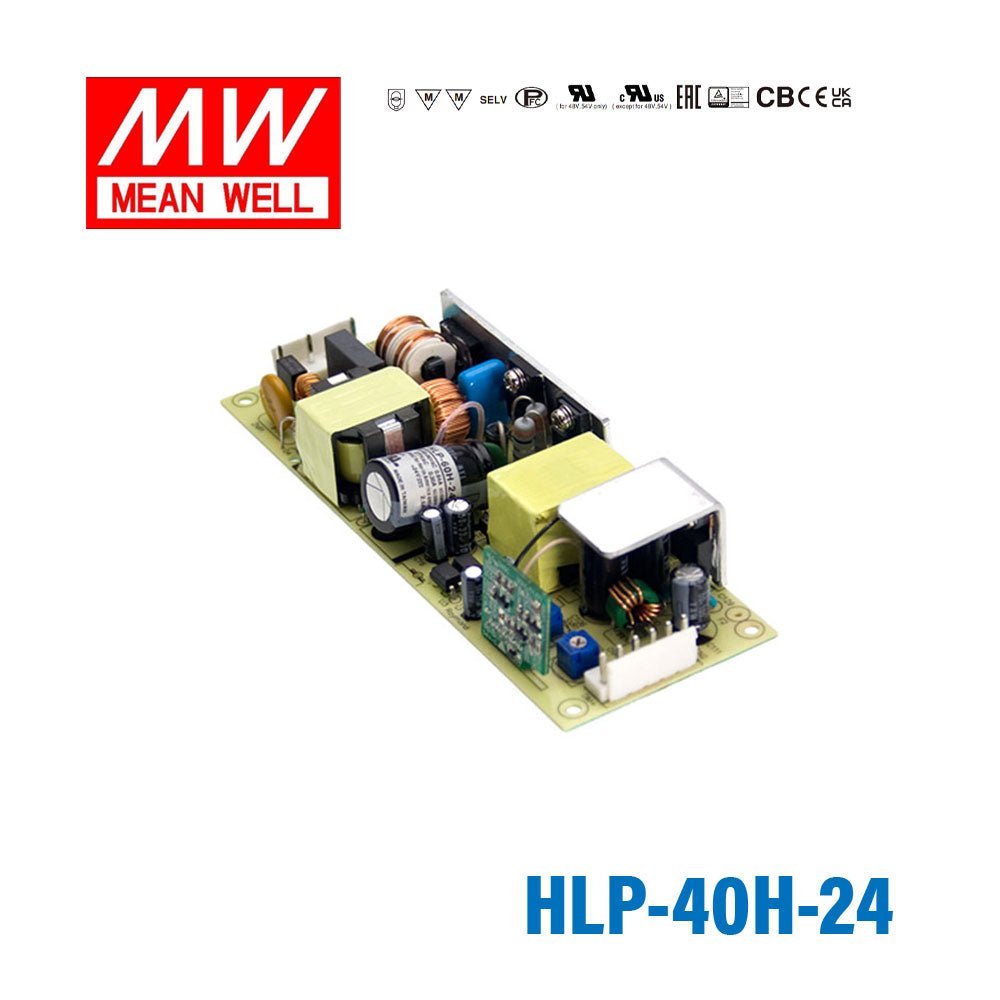

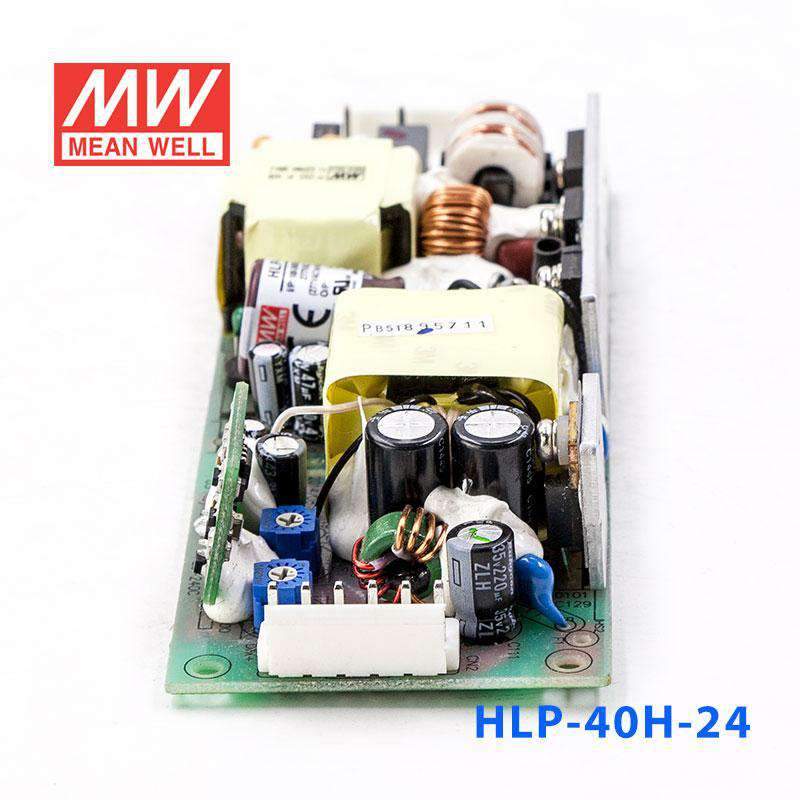

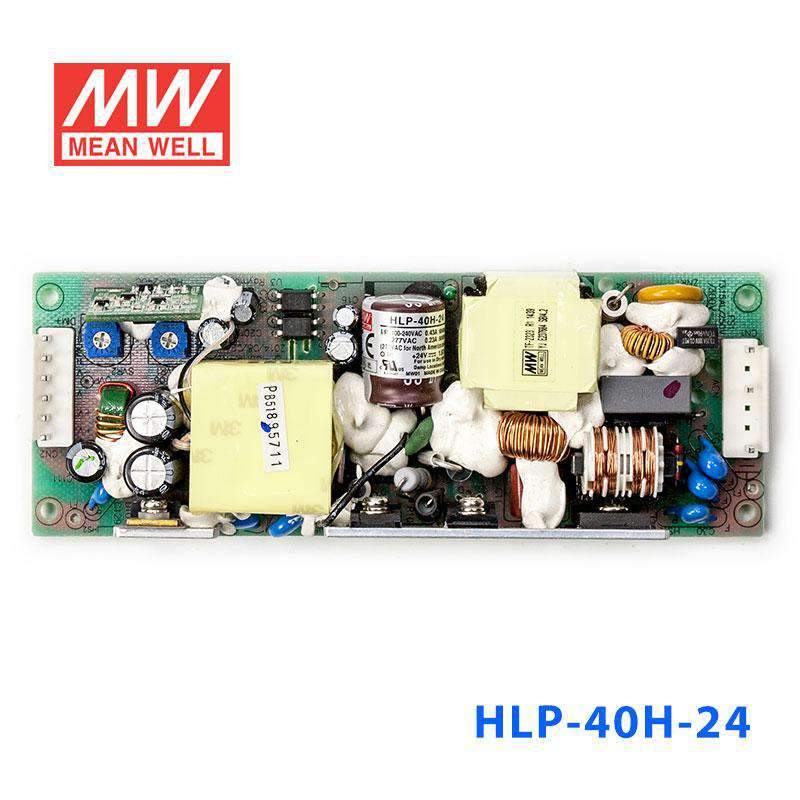

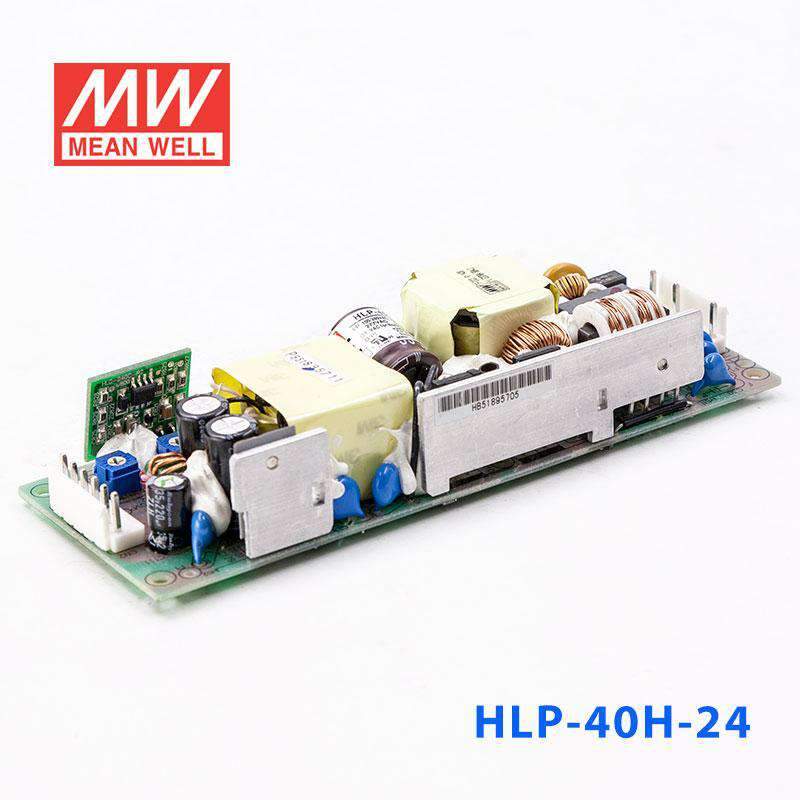

Mean Well HLP-40H-24 AC-DC Single output LED driver 40W
PCB type, Class 2 power unit, output current adjustable, 3 in 1 dimming, suitable for built-in applications
SKU:
HLP-40H-24
$33.07 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLP-40H-24 AC-DC Single output LED driver 40W
$33.07 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC, PF>0.95 |
| Output constant current level adjustable |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Built-in constant current limiting circuit (C.V.+C.C. mode) |
| Class 2 power unit / Pass LPS |
| Suitable for built-in LED lighting system |
| Cooling by free air convection |
| Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) |
| 3 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~145% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to EN60335-1, UL60950-1, EN60950-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | 6+6P/3.96mm pitch, JST P/N: B6P-VH |
| Connection Output | 6+6P/3.96mm pitch, JST P/N: B6P-VH |
| Dimension (LxWxH) (mm) | 147x 53x 27 |
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well HLP Series
-
Power Rating40 Watt
-
Output Voltage24 Volt
-
Rated Current1.67 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length5.79 in
-
Width2.09 in
-
Height1.06 in
-
Weight0.44 lb
