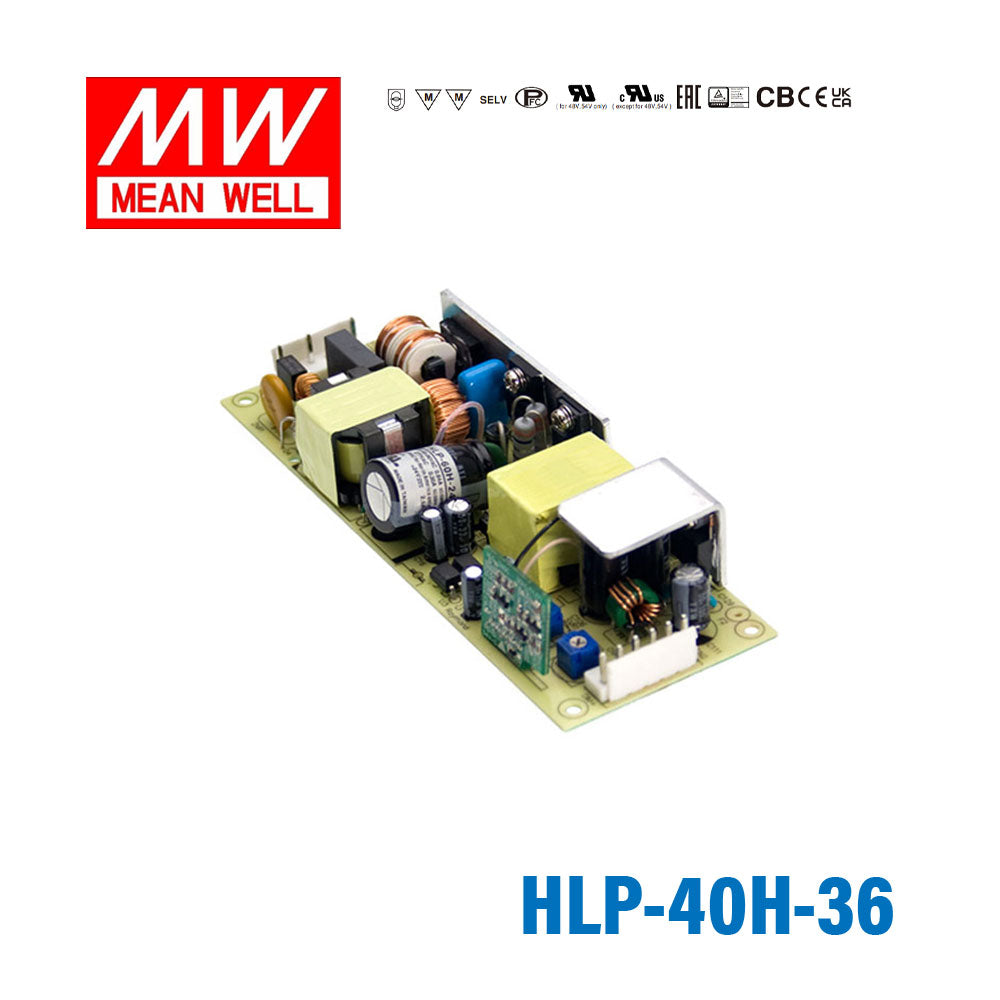

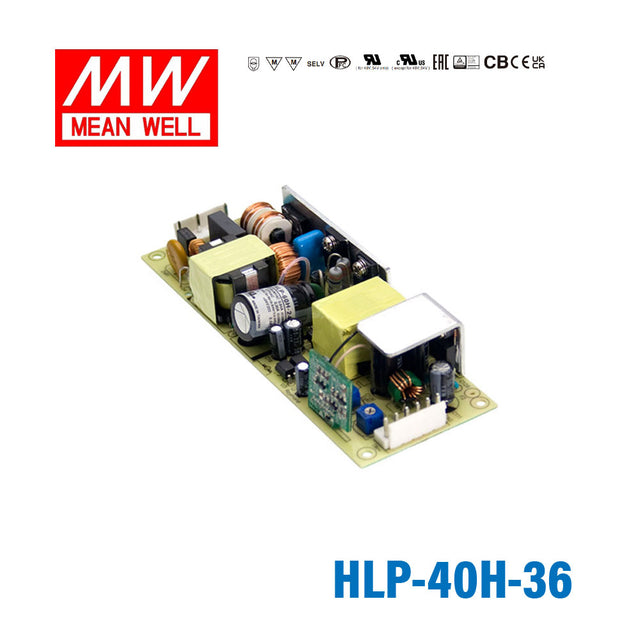

Mean Well HLP-40H-36 AC-DC Single output LED driver 40W

PCB type, Class 2 power unit, output current adjustable, 3 in 1 dimming, suitable for built-in applications
$56.03 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range (up to 305VAC)
Built-in active function
Protection: Short circuit / Over current / Over Voltage / Over temperature
Cooling by free air convection
Output constant current level adjustable
Class 2 power unit
Three in one dimming function (1~10Vdc or PWM signal or resistance)
Suitable for built-in LED lighting systems
Suitable for dry / damp locations
100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 90 ~ 305VAC | 127 ~ 431VDC
AC inrush current COLD START 50A(twidth=210μs measured at 50% Ipeak) at 230VAC
Over voltage protection

Protection type : Shut down o/p voltage, re-power on to recover

Setup, rise, hold up time 500ms, 80ms at full load 230VAC / 115VAC
Withstand voltage I/P-O/P:3.75KVAC | I/P-FG:2KVAC | O/P-FG:0.5KVAC
Working temperature -40 ~ +70℃ (Refer to "Derating Curve")
Safety standards

UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.14, GB19510.1, EAC TP TC 004 approved ; design refer to UL60950-1, BS EN/EN60335-1

EMC standards EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1
Dimension (LxWxH) 147 x 53 x 27mm
Packing 0.2Kg; 72pcs / 15.4Kg / 1.09CUFT

Specifications

  • Brand
    Mean Well
  • Series
    Mean Well HLP Series
  • Power Rating
    40.3 Watt
  • Output Voltage
    36 Volt
  • Rated Current
    1.12 Ampere
  • Input Voltage
    127V~431V
  • No of Output
    1
  • Dimming Control
    Dimmable
  • Standards Met
    CCC,CE,EAC,FCC,RCM,TUV,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~70°C
  • Warranty
    3 Year
  • Length
    5.79 in
  • Width
    2.09 in
  • Height
    1.06 in
  • Weight
    0.44 lb
