Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

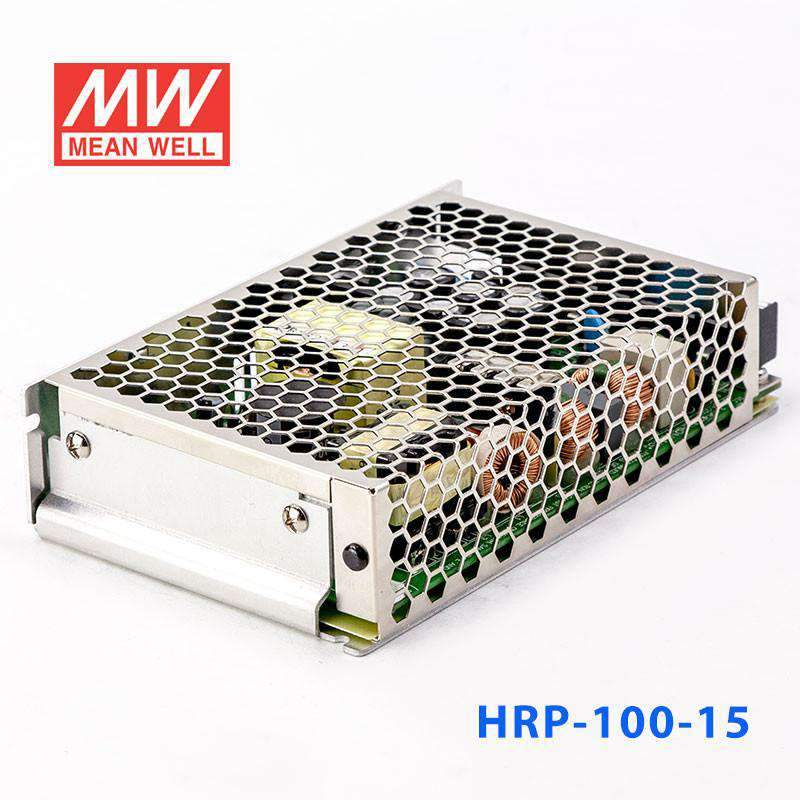

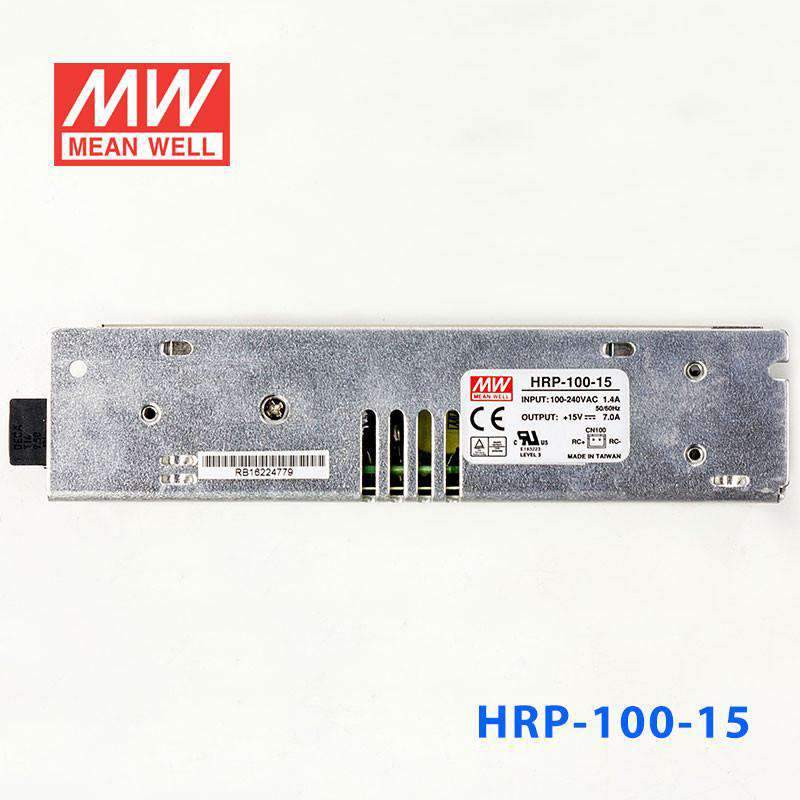

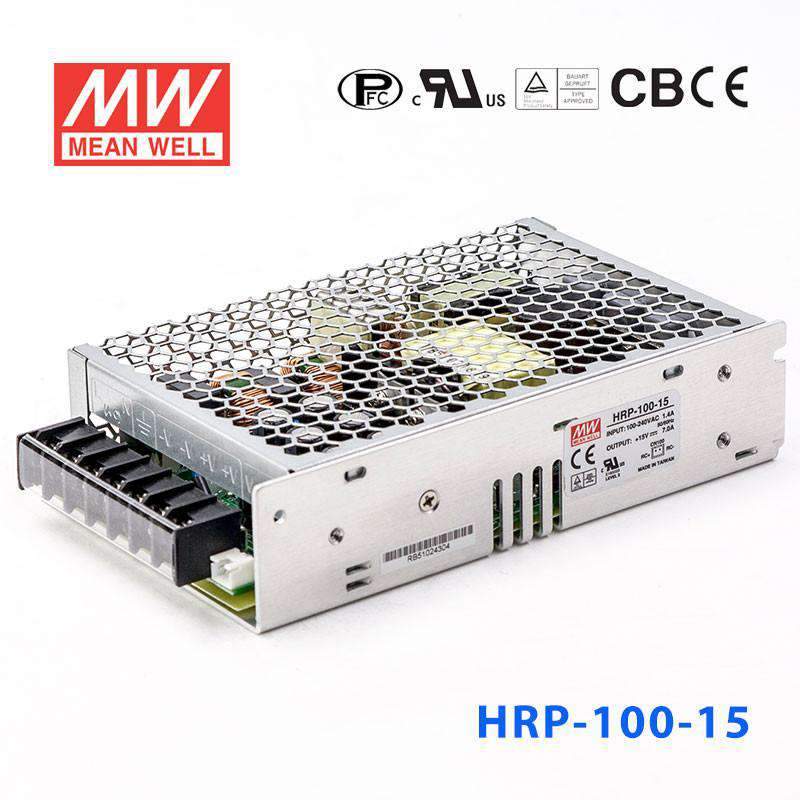

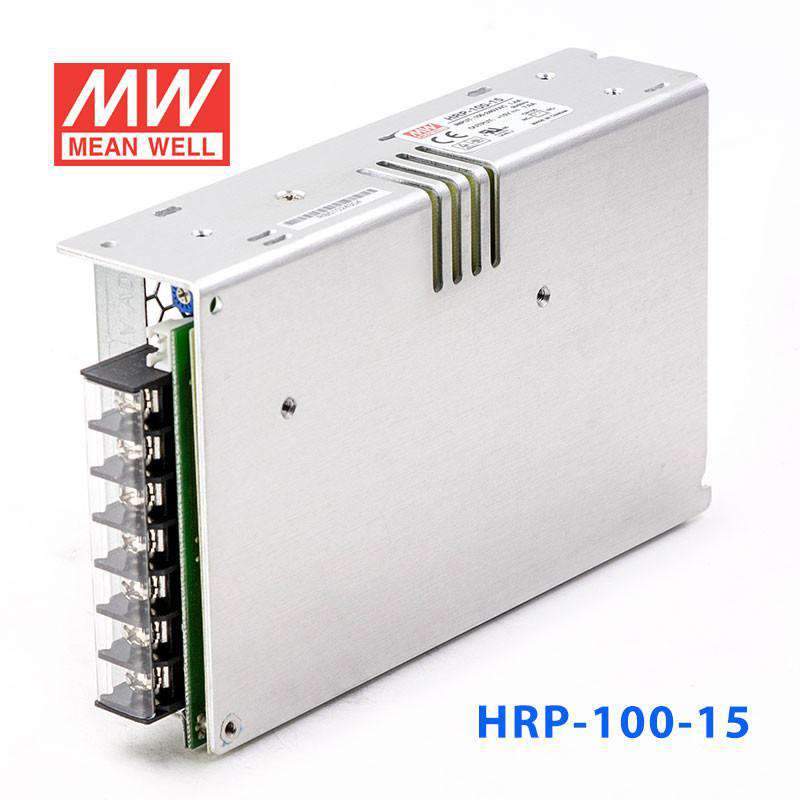

Mean Well HRP-100-15 Power Supply 105W 15V
$49.72 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Withstand 300VAC surge input for 5 seconds |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage / Over temperature (optional for HRP-75 / HRP-100) |
| Built-in constant current limiting circuit |
| Cooling by free air convection |
| 1U low profile |
| LED indicator for power on |
| 100% full load burn-in test |
| 5 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current (max.) | Cold start, 65A at 230VAC |
| DC adjustment range | -5%~+10% rated output voltage |
| Overload protection Range | 105%~135% |
| Overload protection Type | Constant current limiting, auto-recovery |
| Over voltage protection | 115%~145% |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC, 1 minute |
| Working temperature | -40~+60°C |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2 heavy industry level |

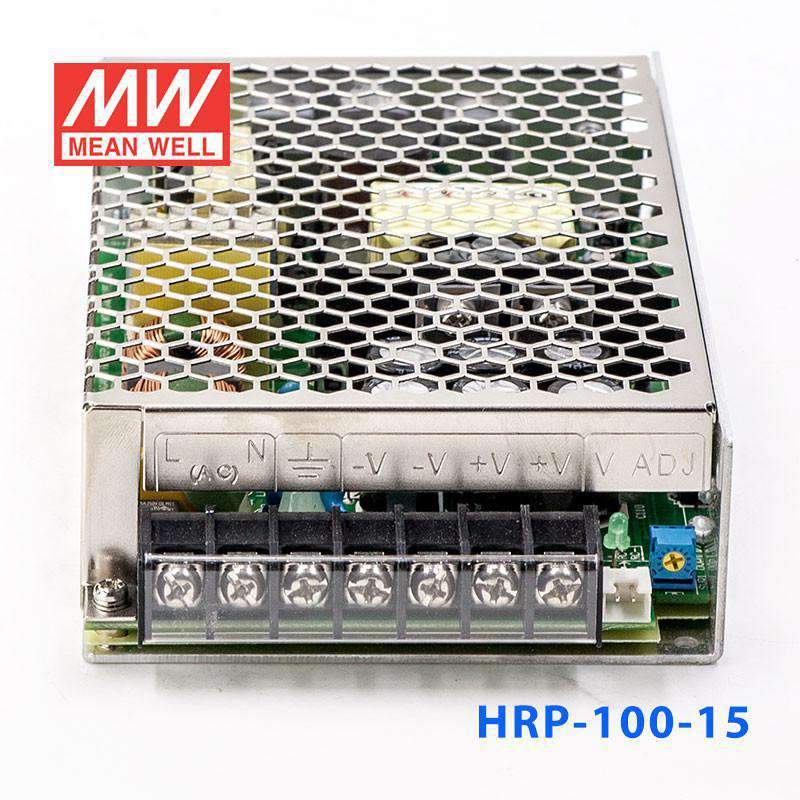

| Connection | 7P/9.5mm pitch terminal block with cover |
| Dimension (LxWxH) | 159x97x38 |
| Case No. | 901I |
Specifications
Specifications
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating105 Watt
-
Output Voltage15 Volt
-
Rated Current7 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~60°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.23 lb
