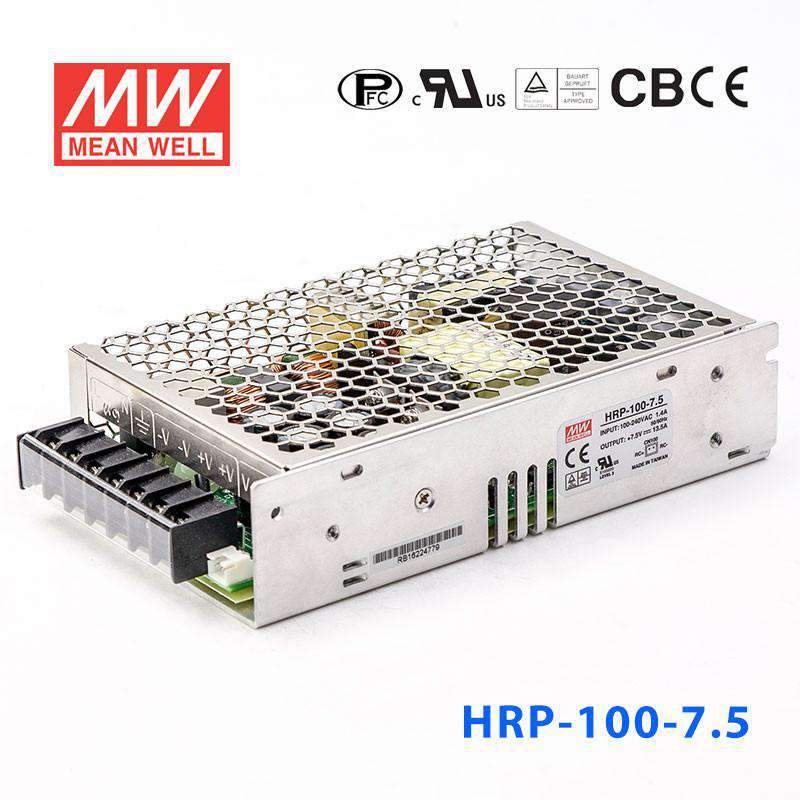

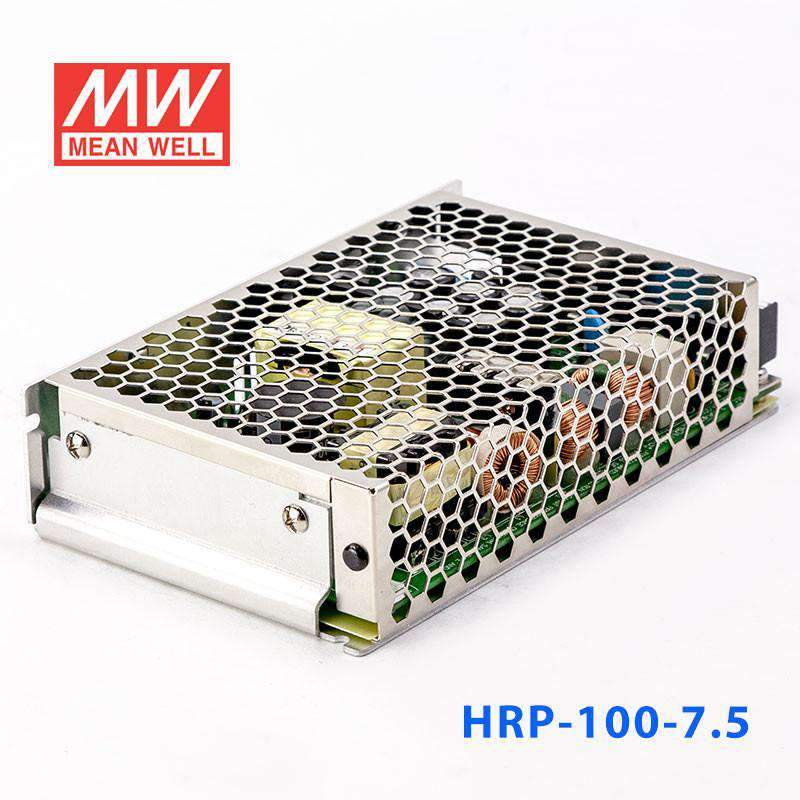

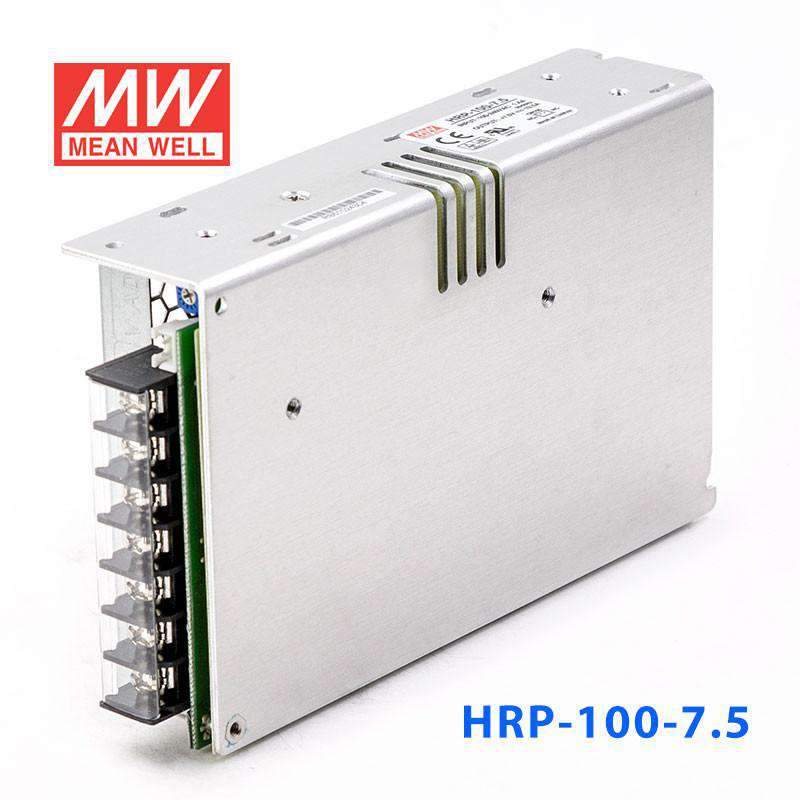

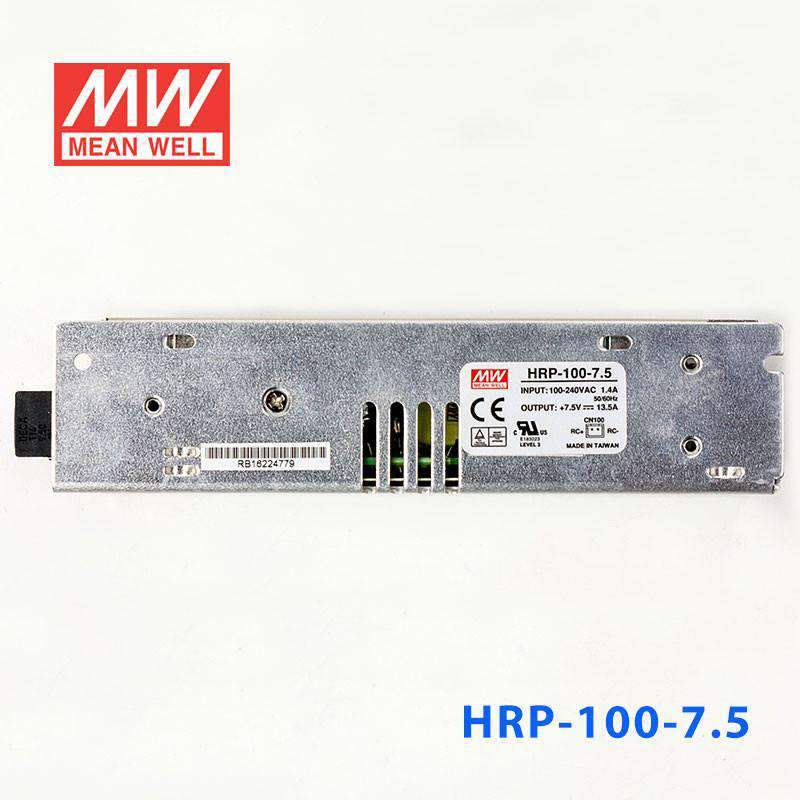

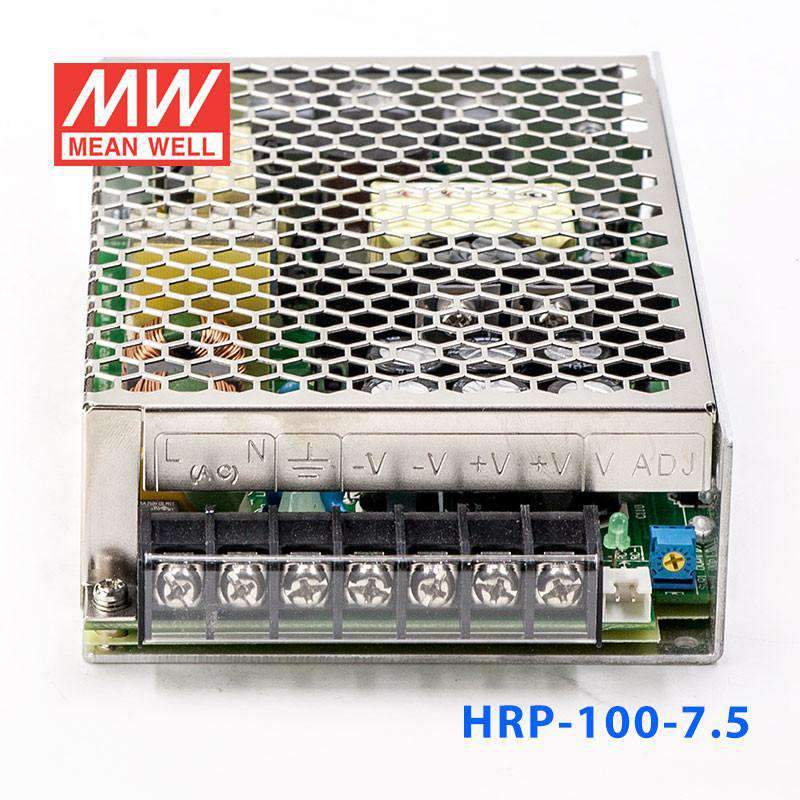

Mean Well HRP-100-7.5 Power Supply 101.3W 7.5V
The HRP-100 is a 100W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating101.3 Watt
-
Output Voltage7.5 Volt
-
Rated Current13.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~60°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.23 lb
::specification::
Frequently Asked Questions
Can I use the HRP-100-7.5 for equipment that specifically needs 7.5V DC?
Yes, if the load is designed for constant 7.5V input and remains within 13.5A and 101.3W. It should only be used where the equipment's required voltage matches 7.5V DC.
Is the HRP-100-7.5 suitable for embedded or industrial electronics with a 7.5V power rail?
It is appropriate for 7.5V electronics that need a regulated constant-voltage source up to 13.5A. That makes it useful for embedded assemblies, controller subsystems, or specialty industrial electronics built around 7.5V input.
Can this power supply support a moderate-power 7.5V automation device from AC mains?
Yes. The unit takes 85-264VAC input and delivers 7.5V DC output, with up to 13.5A available and 101.3W total rated power.
Would the HRP-100-7.5 fit a 7.5V production fixture or test station?
It can be a good fit where the fixture needs a stable 7.5V source and the total draw stays within 101.3W. Its constant-voltage output is intended for loads that are specified around a fixed 7.5V DC supply.
What are the output choices in the HRP-100 series if I am comparing voltage versions?
The listed HRP-100 models are 3.3V at 20A and 66W, 5V at 17A and 85W, 7.5V at 13.5A and 101.3W, 12V at 8.5A and 102W, 15V at 7A and 105W, 24V at 4.5A and 108W, 36V at 2.9A and 104.4W, and 48V at 2.2A and 105.6W. The HRP-100-7.5 is the 7.5V option in that lineup.
Can the HRP-100-7.5 be used in cold or warm industrial locations?
The specified operating temperature range is -40°C to +60°C, so it is intended for wide indoor ambient conditions. No IP rating is given in the provided specs, so dust-tight or weather-exposed use should not be assumed.
