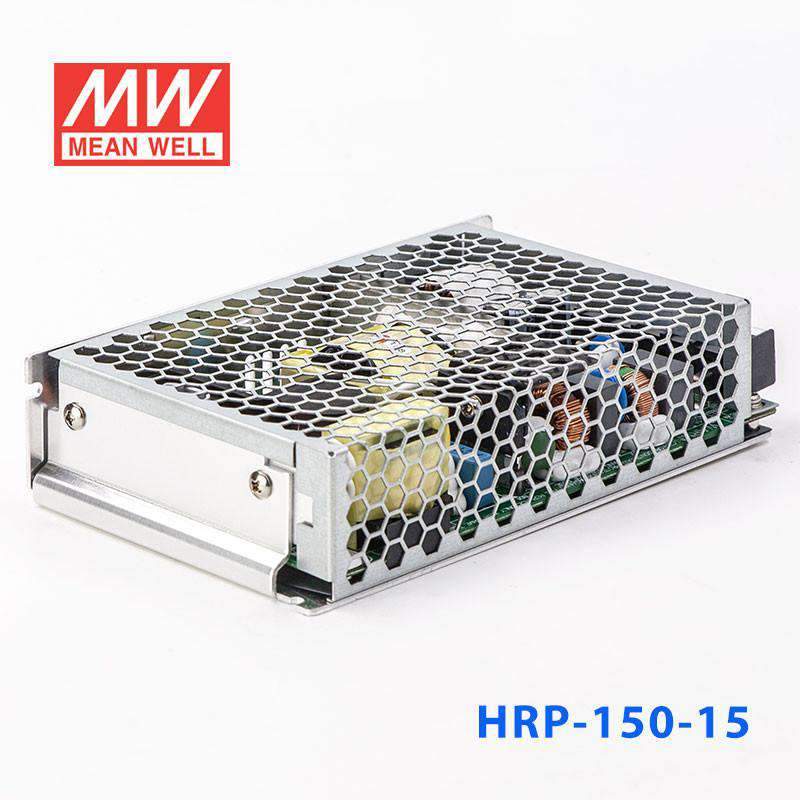

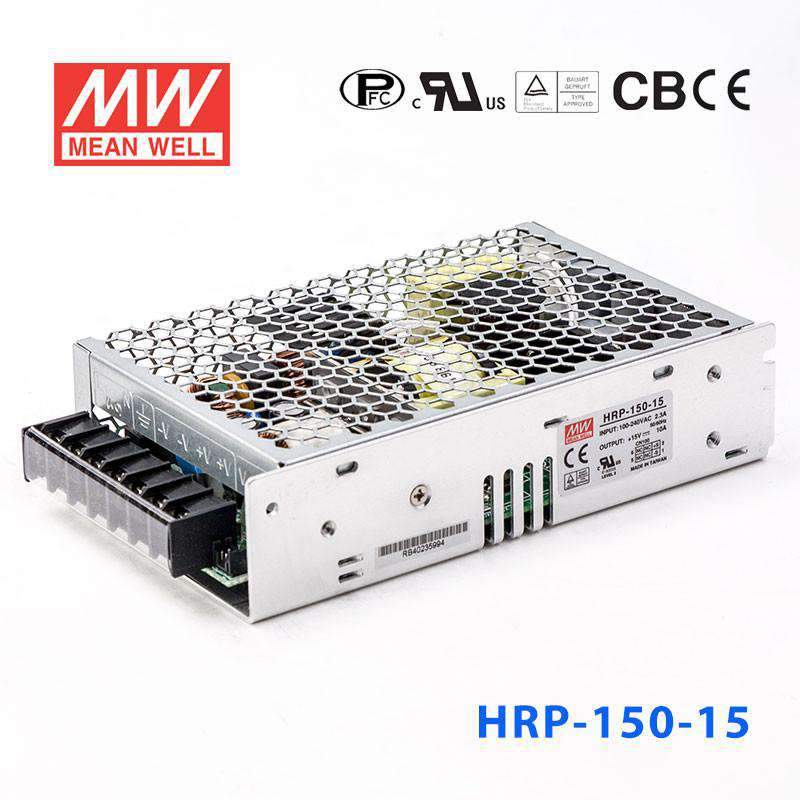

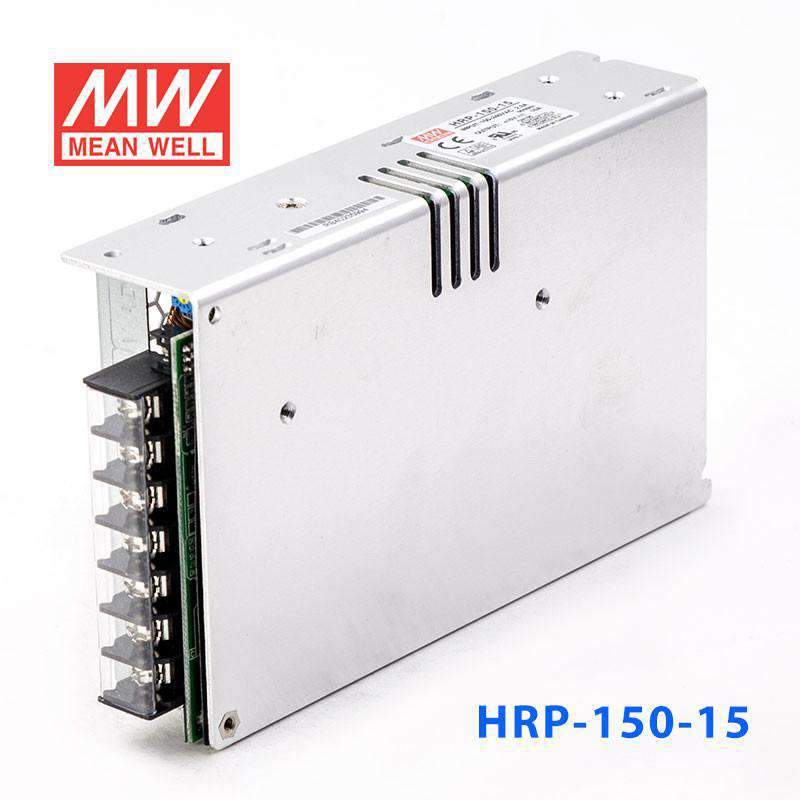

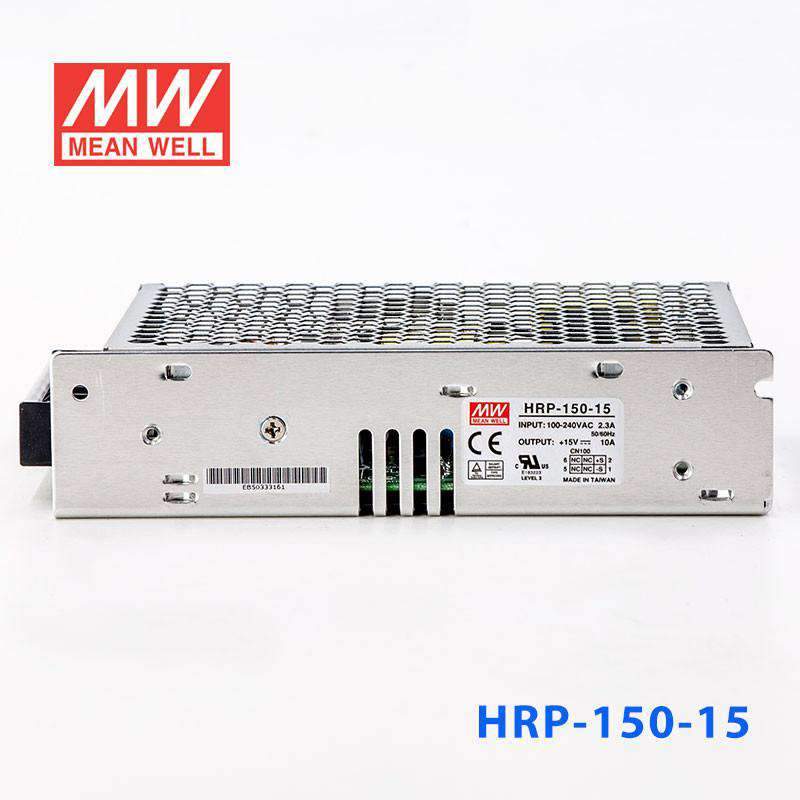

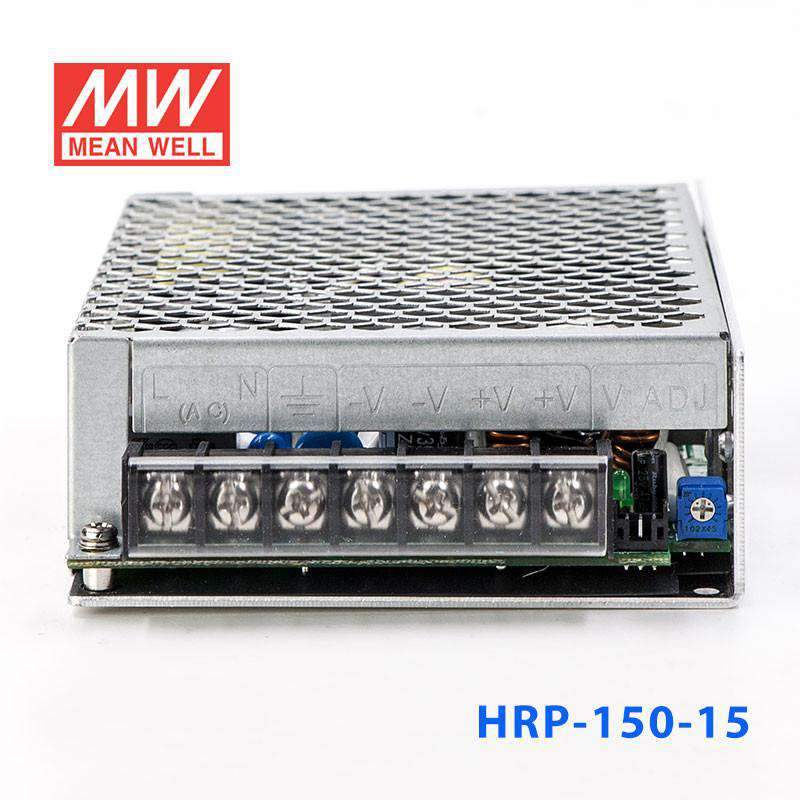

Mean Well HRP-150-15 Power Supply 150W 15V
The HRP-150 is a 150W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC (Note 4)
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating150 Watt
-
Output Voltage15 Volt
-
Rated Current10 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.34 lb
::specification::
Frequently Asked Questions
Can I use the HRP-150-15 for a 15V industrial control panel?
Yes, this model is a constant voltage 15V power supply rated for 150W and 10A. It fits 15V industrial control or automation loads that stay within that output range.
Is the HRP-150-15 suitable for 15V embedded test benches or lab fixtures?
It can be a fit for embedded benches or production fixtures that require a regulated 15V DC source. The unit provides up to 10A at 15V with universal 85-264VAC input.
Can this 15V power supply run multiple 15V automation devices from one source?
It is intended for 15V constant voltage loads with a total power draw up to 150W and total current up to 10A. For grouped automation devices, the combined demand needs to remain within those limits.
Is HRP-150-15 a good choice for 15V industrial electronics cabinets?
Yes, its 159.0 x 97.0 x 38.0 mm size and 0.61 kg weight make it suitable where a compact enclosed AC-DC supply is needed. The 15V, 10A output is aimed at industrial or embedded electronics that use a 15V DC bus.
Can the HRP-150-15 be used outdoors or in harsh temperature conditions?
Its operating temperature range is -40C to +70C, so it is designed for demanding temperature conditions. However, no IP rating is listed, so it is better suited to protected indoor enclosures or other installations where environmental sealing is handled separately.
How does HRP-150-15 compare with the other HRP-150 output options?
Within the HRP-150 family, the output options are 3.3V at 99W and 30A, 5V at 130W and 26A, 7.5V at 150W and 20A, 12V at 156W and 13A, 15V at 150W and 10A, 24V at 156W and 6.5A, 36V at 154.8W and 4.3A, and 48V at 158.4W and 3.3A. The main difference is the DC output voltage and corresponding current rating.
