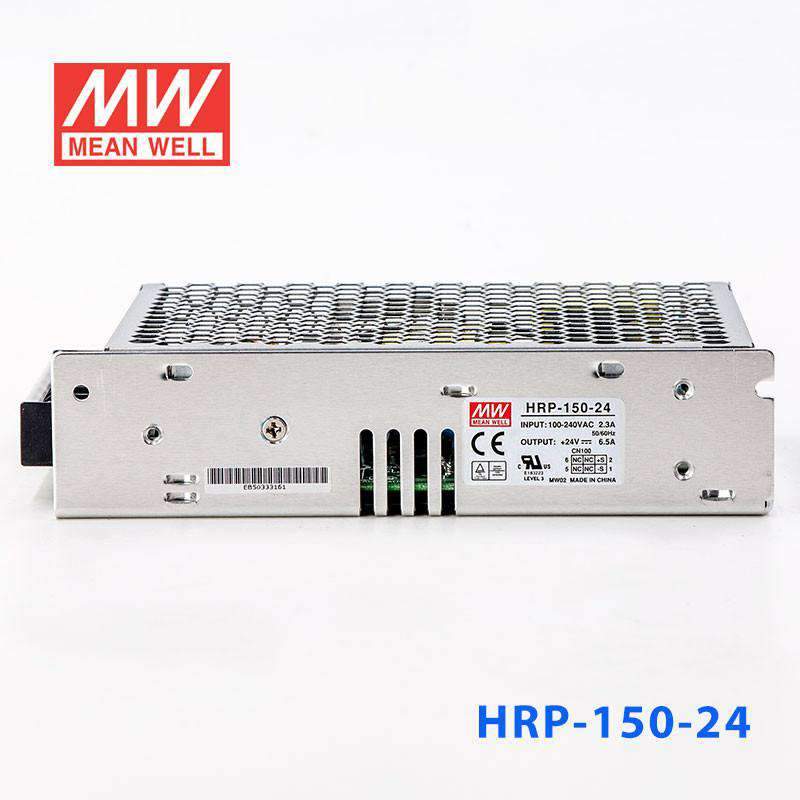

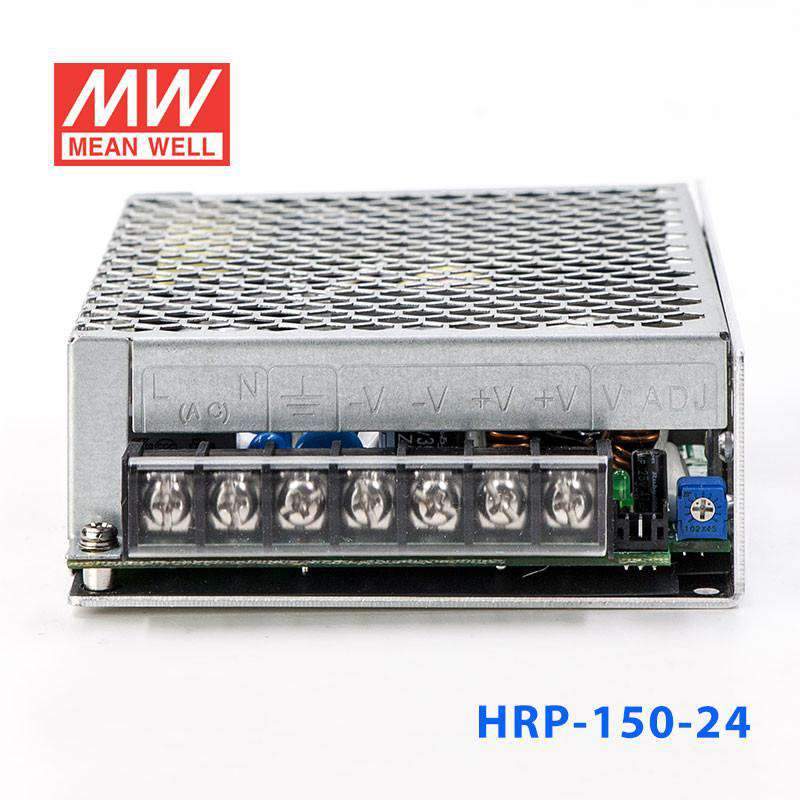

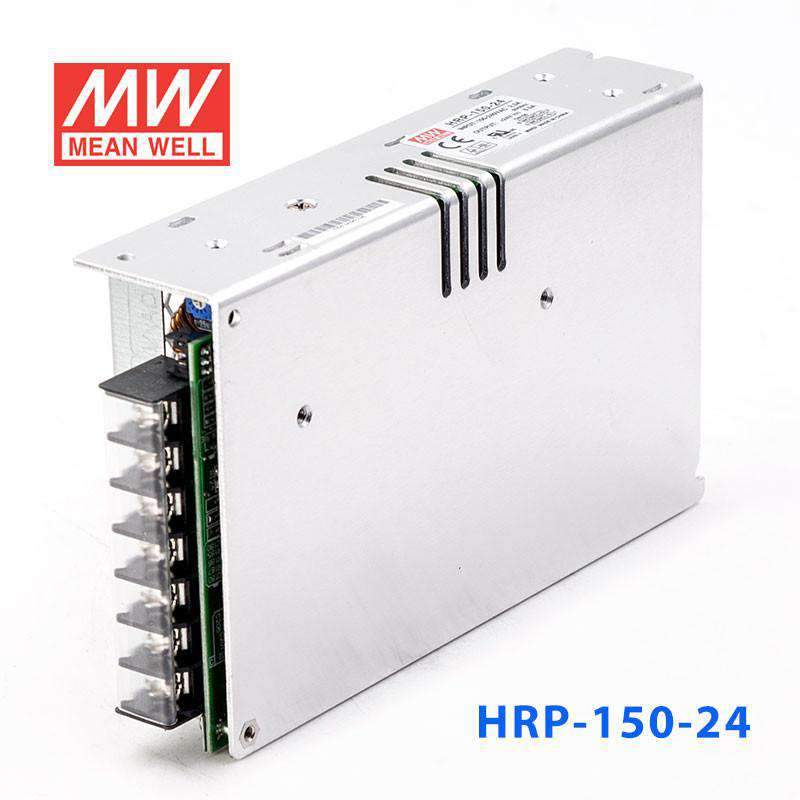

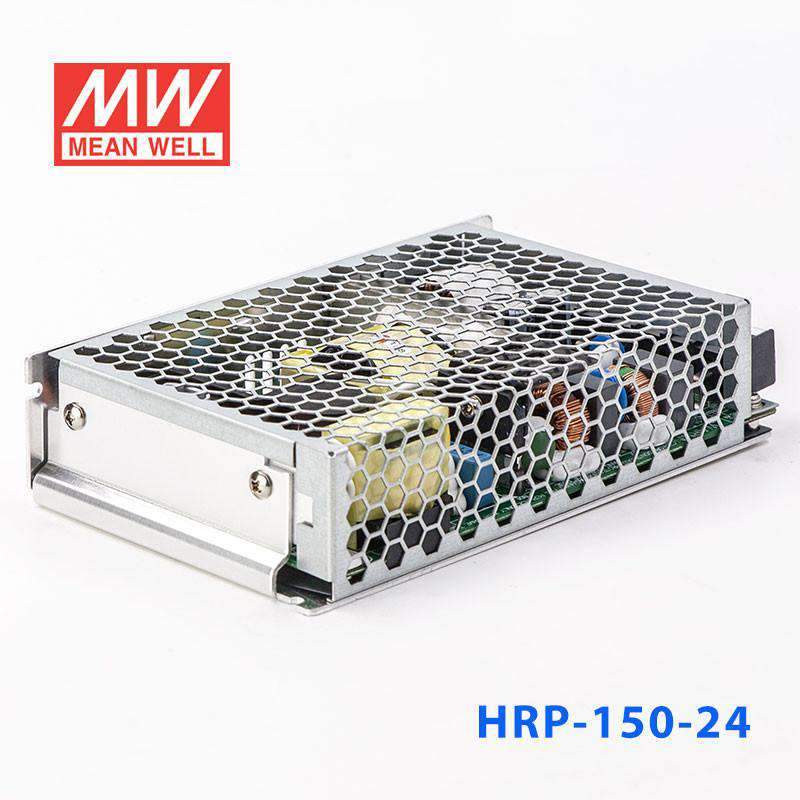

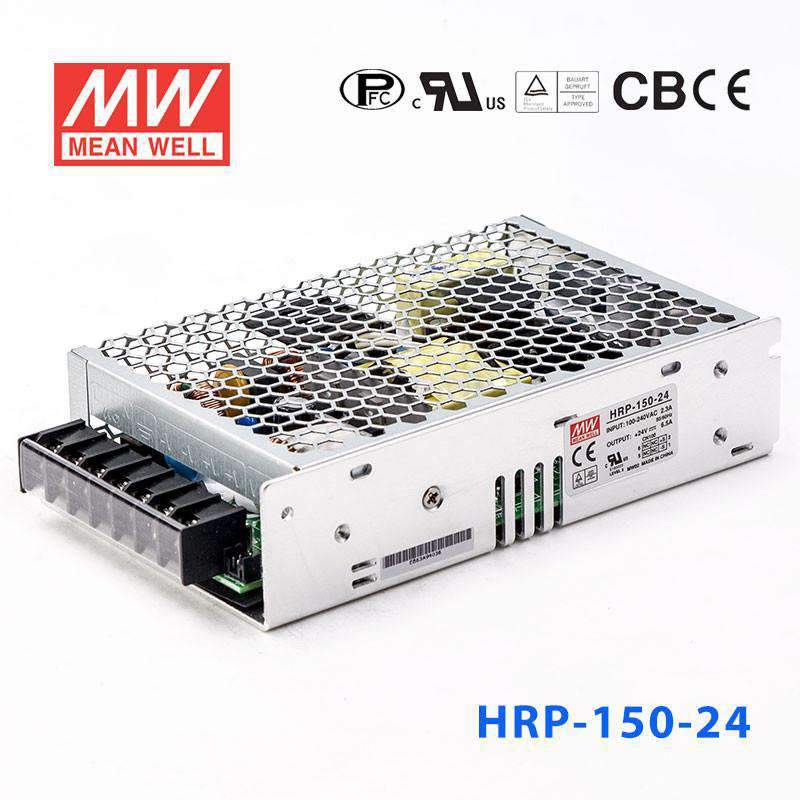

Mean Well HRP-150-24 Power Supply 156W 24V
The HRP-150 is a 150W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC (Note 4)
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating156 Watt
-
Output Voltage24 Volt
-
Rated Current6.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.34 lb
::specification::
Frequently Asked Questions
Can I use the HRP-150-24 for a 24V PLC or automation control system?
Yes, this unit provides a constant 24V DC output rated for 156W and 6.5A. It is appropriate for industrial control and automation equipment that requires 24V and stays within that capacity.
Is this power supply suitable for 24V industrial sensors, relays, and control devices on one DC bus?
It can support multiple 24V control loads as long as the combined draw does not exceed 6.5A or 156W. That makes it suitable for centralized 24V distribution in control cabinets and machine panels.
Can the HRP-150-24 power 24V embedded or industrial networking hardware?
It is designed for constant voltage 24V applications and can deliver up to 6.5A. That makes it a fit for embedded or industrial electronics that are specified for a 24V DC input.
Is the HRP-150-24 appropriate for 24V HMI and control panel applications?
Yes, the 24V output matches common industrial panel power requirements, and the supply is rated for 156W total output. Its 159.0 x 97.0 x 38.0 mm housing also helps when space is limited inside an enclosure.
Can this 24V power supply be used in cold or hot industrial environments?
The specified operating temperature range is -40C to +70C, which supports both low-temperature and high-temperature environments. Since no IP rating is provided, it is best used in protected indoor enclosures rather than exposed outdoor locations.
What are the other HRP-150 models if I need a different DC output?
The HRP-150 range includes 3.3V at 99W and 30A, 5V at 130W and 26A, 7.5V at 150W and 20A, 12V at 156W and 13A, 15V at 150W and 10A, 24V at 156W and 6.5A, 36V at 154.8W and 4.3A, and 48V at 158.4W and 3.3A. The series keeps a similar form factor while changing output voltage and current.
