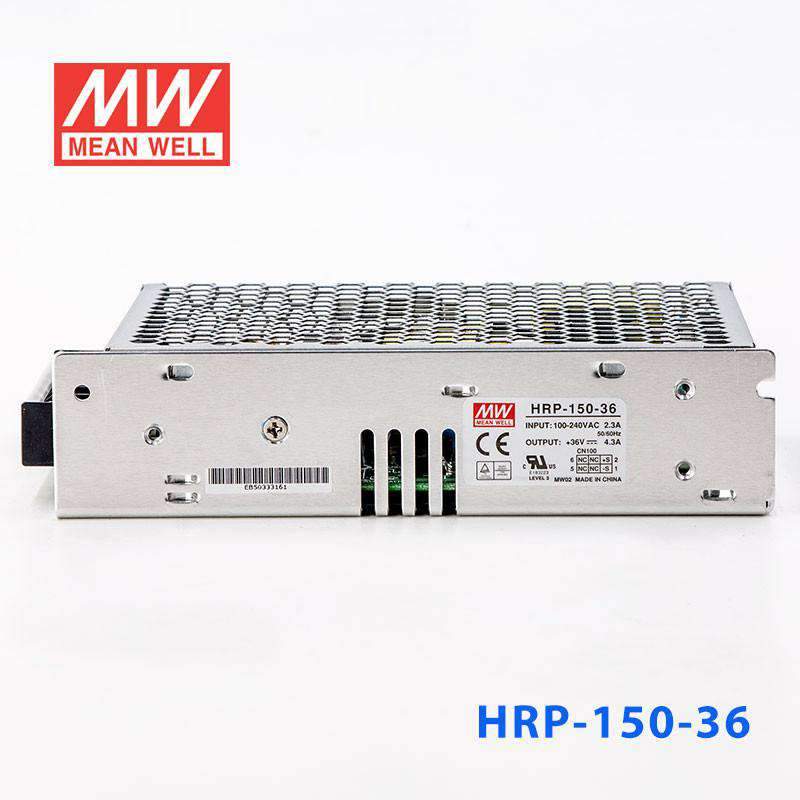

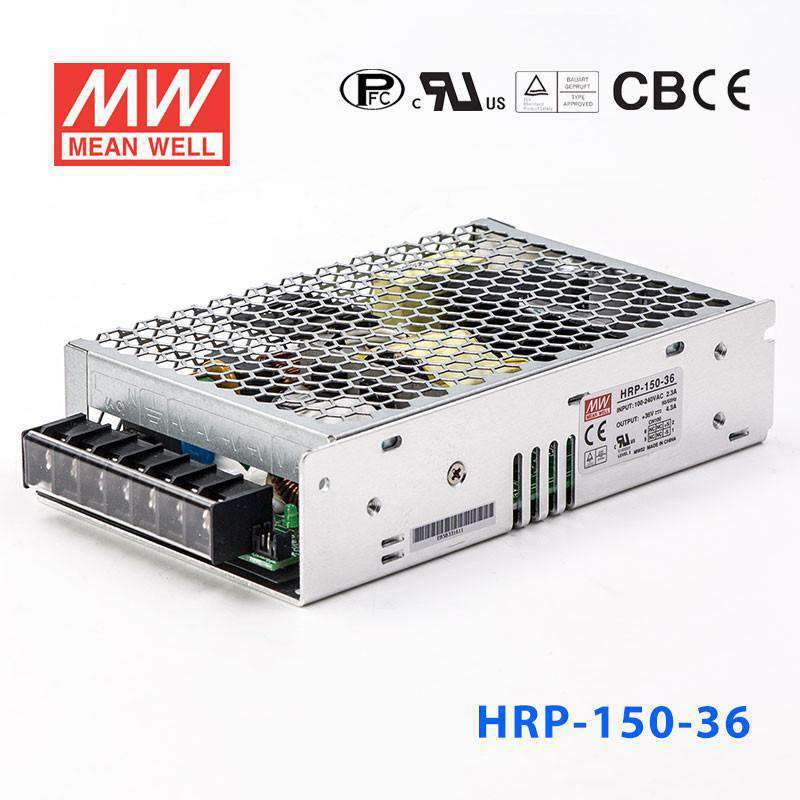

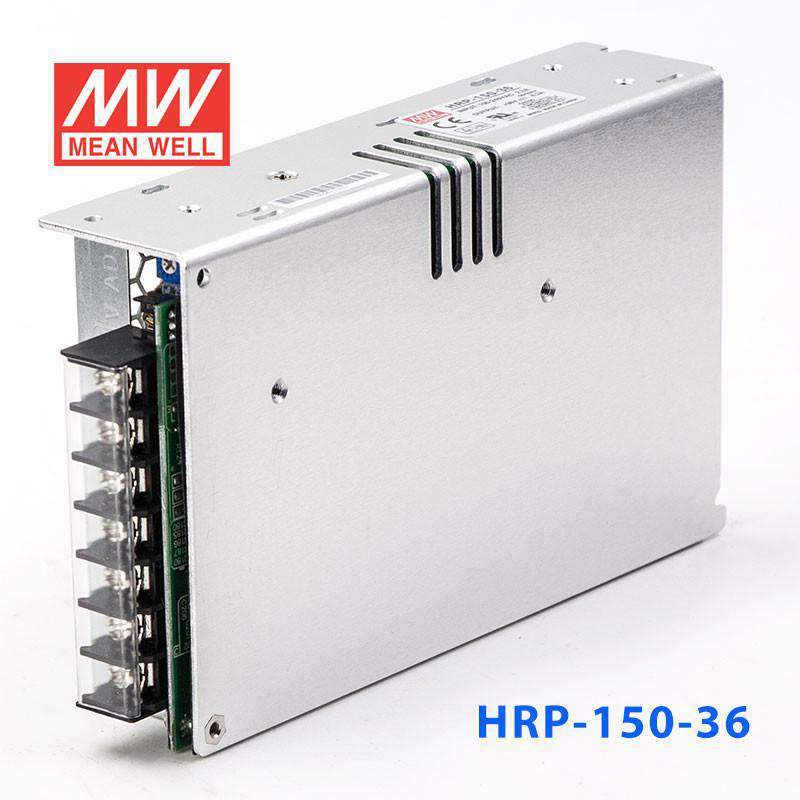

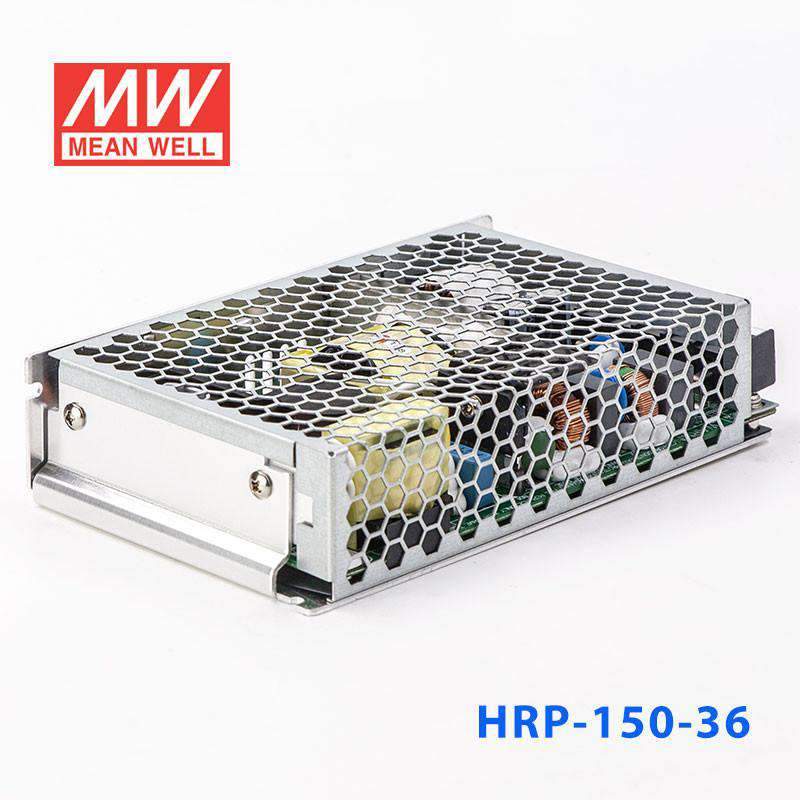

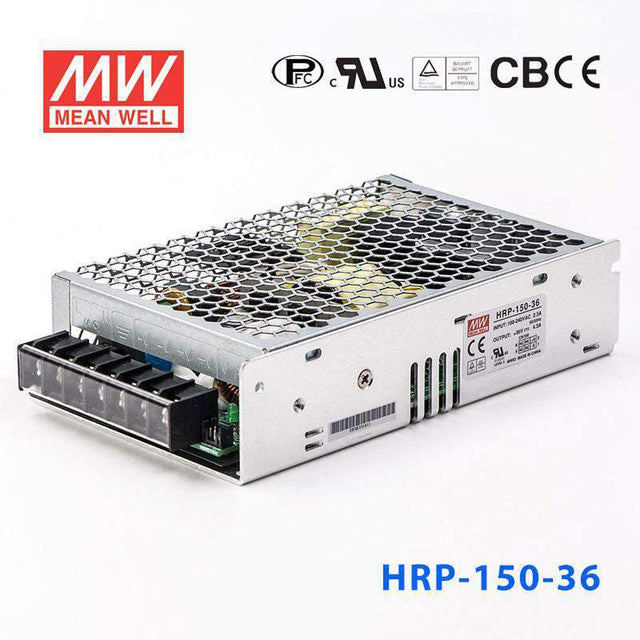

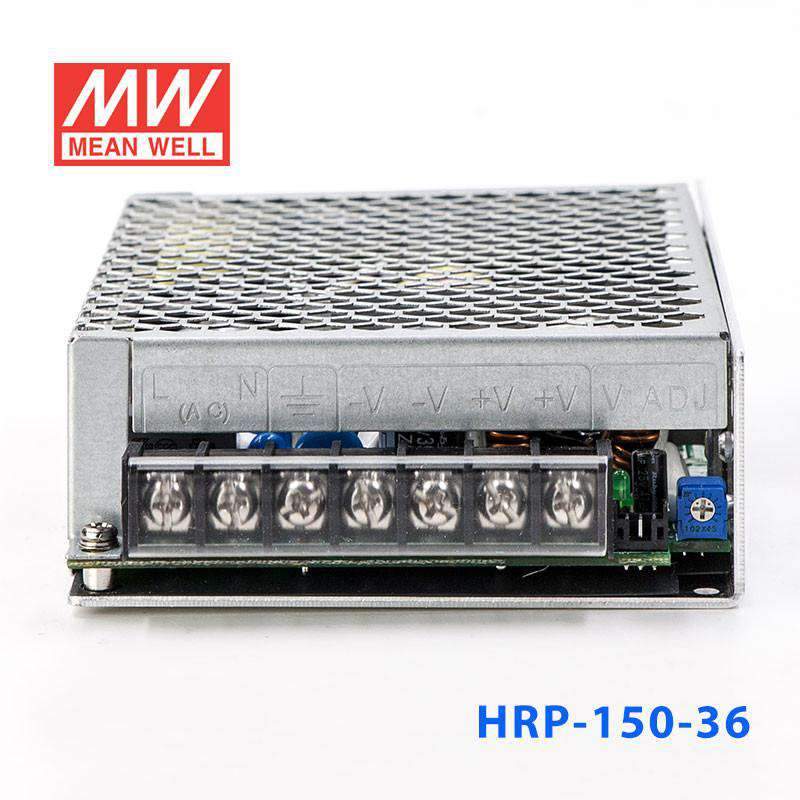

Mean Well HRP-150-36 Power Supply 154.8W 36V
The HRP-150 is a 150W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC (Note 4)
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating154.8 Watt
-
Output Voltage36 Volt
-
Rated Current4.3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.34 lb
::specification::
Frequently Asked Questions
Can I use the HRP-150-36 for a 36V industrial control or motion system?
Yes, this model provides a constant 36V DC output rated for 154.8W and 4.3A. It fits 36V industrial or automation equipment that operates within those output limits.
Is the HRP-150-36 suitable for 36V embedded or test equipment?
It can be used where a regulated 36V constant voltage source is needed for embedded or production test equipment. The supply delivers up to 4.3A at 36V from an 85-264VAC input.
Can this 36V supply run several 36V devices from one power source?
It can support multiple 36V loads if their combined draw stays at or below 154.8W and 4.3A. That makes it suitable for centralized 36V distribution in industrial electronics assemblies.
Is HRP-150-36 appropriate for 36V automation cabinets with limited space?
Yes, the unit measures 159.0 x 97.0 x 38.0 mm and weighs 0.61 kg, which suits compact panel layouts. Its output is intended for constant voltage 36V applications rather than lower-voltage control rails.
Can the HRP-150-36 handle demanding ambient temperatures?
The specified operating range is -40C to +70C, which supports use across a wide temperature span. No IP rating is provided, so it is better suited to protected indoor enclosures than directly exposed outdoor environments.
What other HRP-150 voltage versions are available besides 36V?
The HRP-150 family includes 3.3V at 99W and 30A, 5V at 130W and 26A, 7.5V at 150W and 20A, 12V at 156W and 13A, 15V at 150W and 10A, 24V at 156W and 6.5A, 36V at 154.8W and 4.3A, and 48V at 158.4W and 3.3A. The 36V version sits near the upper end of the series voltage range.
