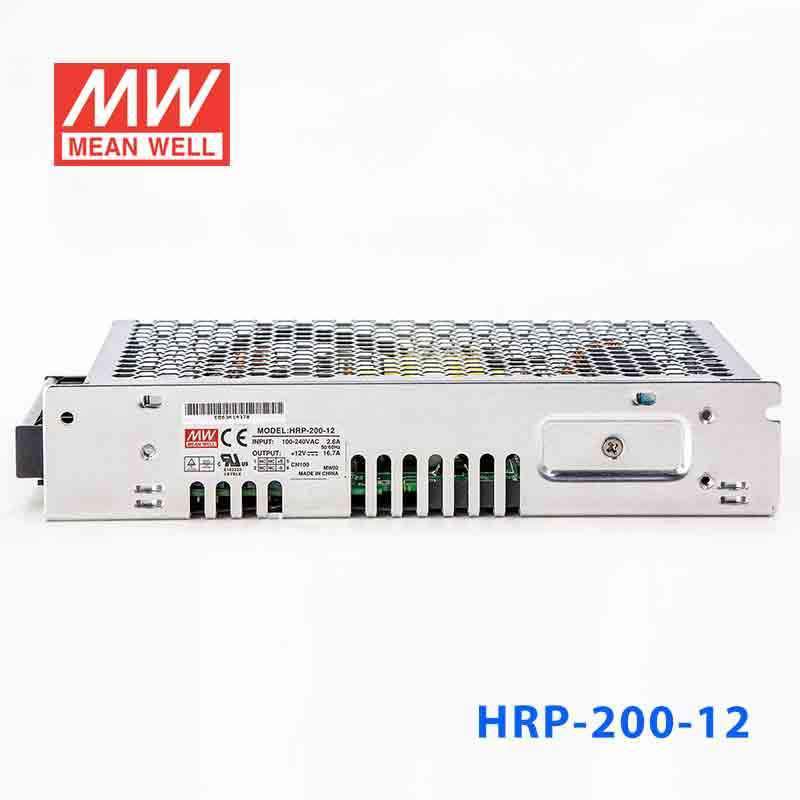

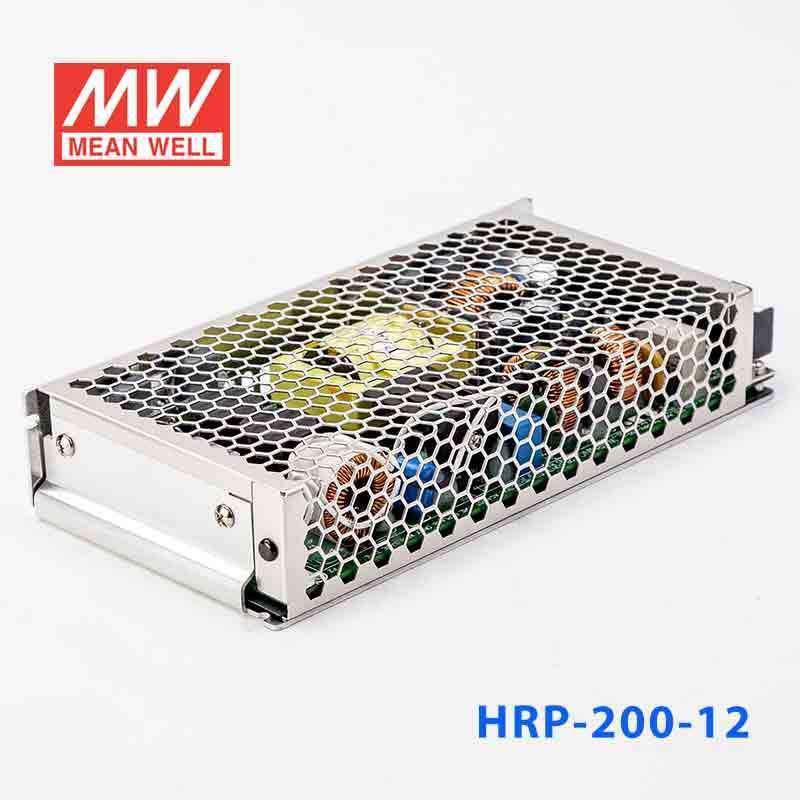

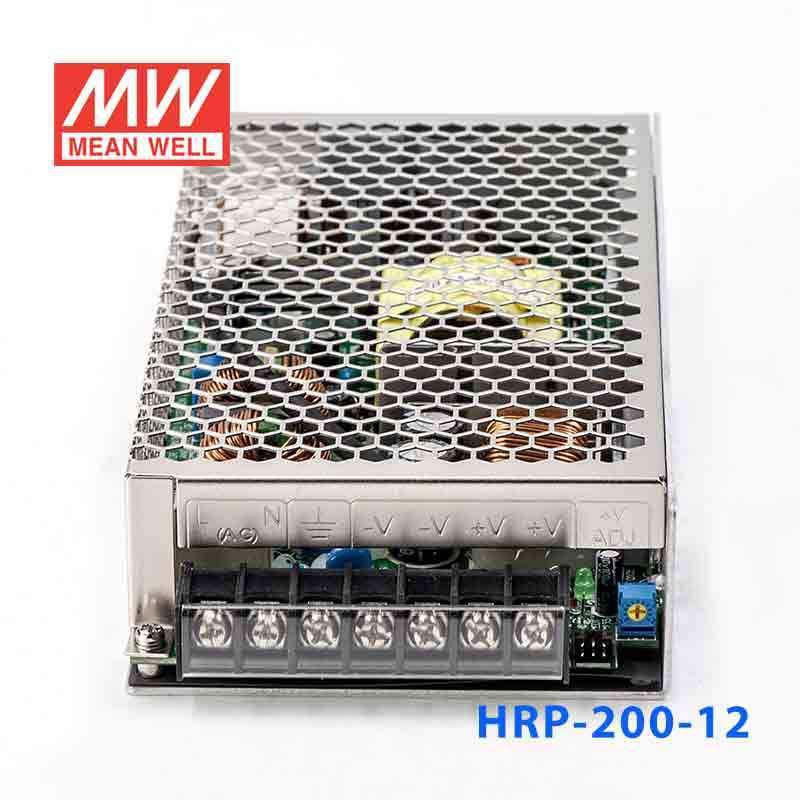

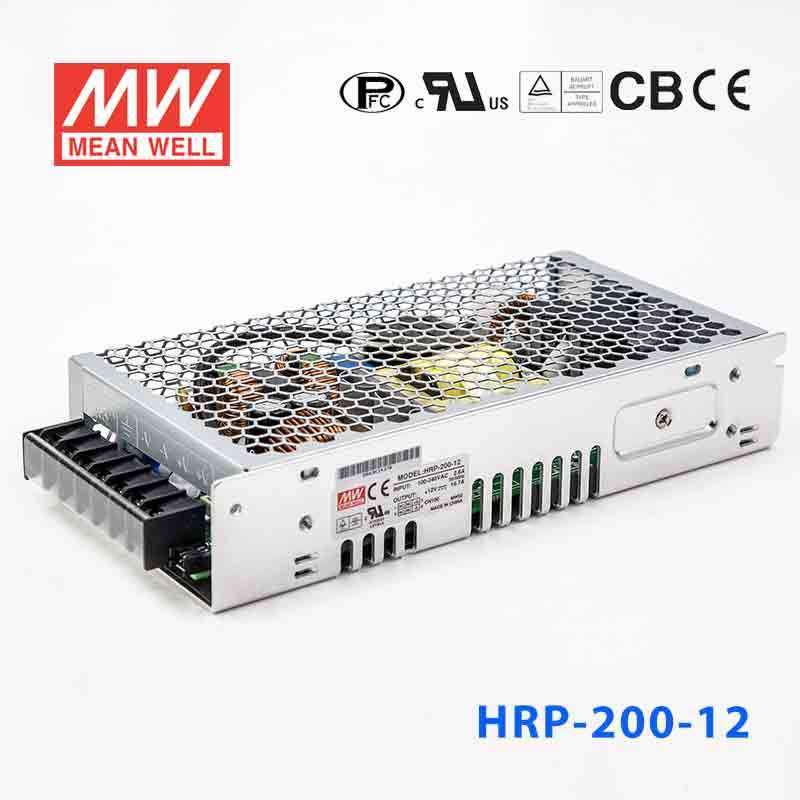

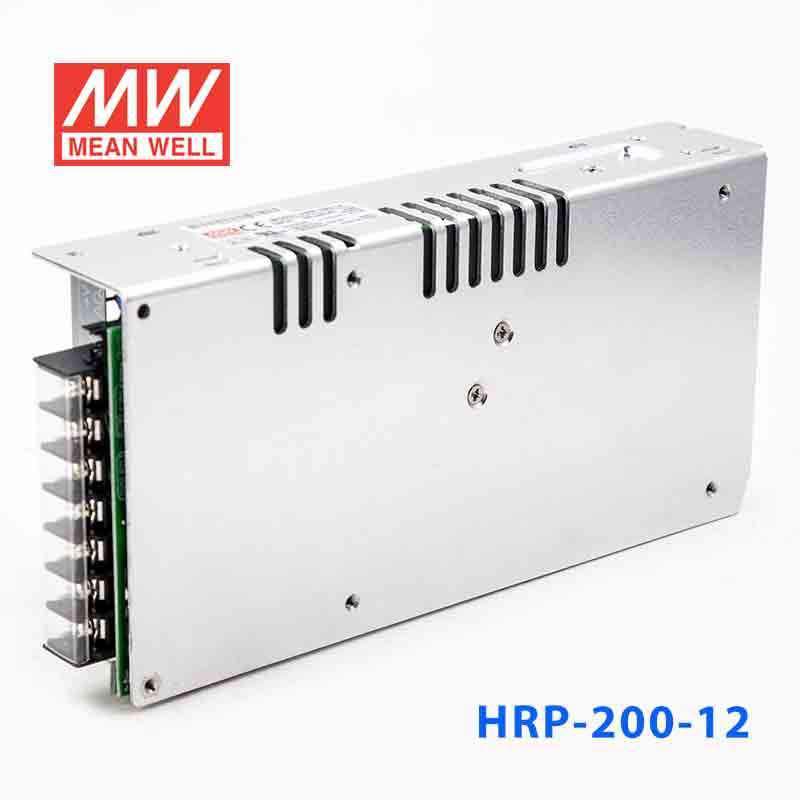

Mean Well HRP-200-12 Power Supply 200.4W 12V
The HRP-200 is a 200W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF UL62368-1,TUV EN62368-1, AS/NZS62368.1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating200.4 Watt
-
Output Voltage12 Volt
-
Rated Current16.7 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
Can I use the HRP-200-12 for a 12V industrial automation system?
Yes, if the automation load needs a constant 12V output and stays within 200.4W and 16.7A. That makes it relevant for 12V control, monitoring, and support loads in industrial equipment. The 85-264VAC input is also useful where site AC power may vary.
Is the HRP-200-12 suitable for 12V CCTV or low-voltage security hardware?
It can be used for 12V security hardware when the combined load does not exceed 16.7A or 200.4W. This model is constant voltage, so it is intended for equipment that specifically expects a 12V DC supply. It is better suited to higher-current 12V systems than lighter-duty 12V models in the same family.
Can this model power a 12V embedded or mobile-style computing platform?
It can fit embedded computing, edge processing, or IT hardware that is designed for a 12V DC input and remains within 200.4W. The built-in active PFC and efficiency up to 90% can be useful where power quality and heat matter. Its size of 199.0 x 98.0 x 38.0 mm also helps define whether it fits the equipment envelope.
How does the HRP-200-12 compare with other 200-series HRP models?
The 200-series options are 3.3V 132W 40A, 5V 175W 35A, 7.5V 200.3W 26.7A, 12V 200.4W 16.7A, 15V 201W 13.4A, 24V 201.6W 8.4A, 36V 205.2W 5.7A, and 48V 206.4W 4.3A. The main differences are output voltage, available current, and total wattage. This model is the 12V version and provides 16.7A.
Can the HRP-200-12 be used in cold or hot equipment environments?
The specified operating temperature range is -40°C to +70°C, which supports use in very cold or hot equipment locations. No IP rating is listed in the provided specs, so environmental sealing is not defined here. That means indoor or protected-enclosure use is the safer assumption unless the final system provides the needed protection.
