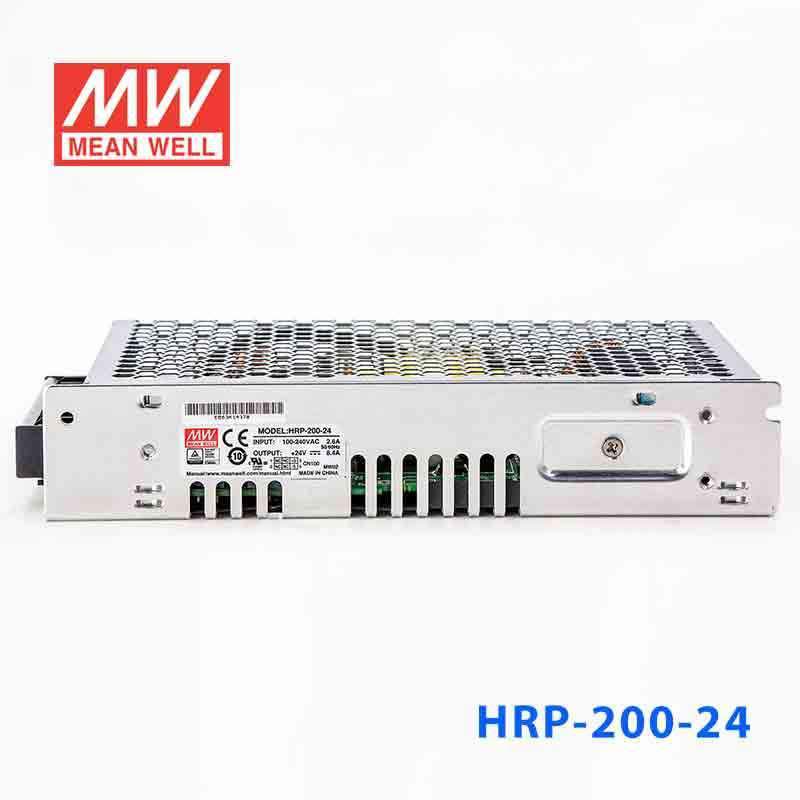

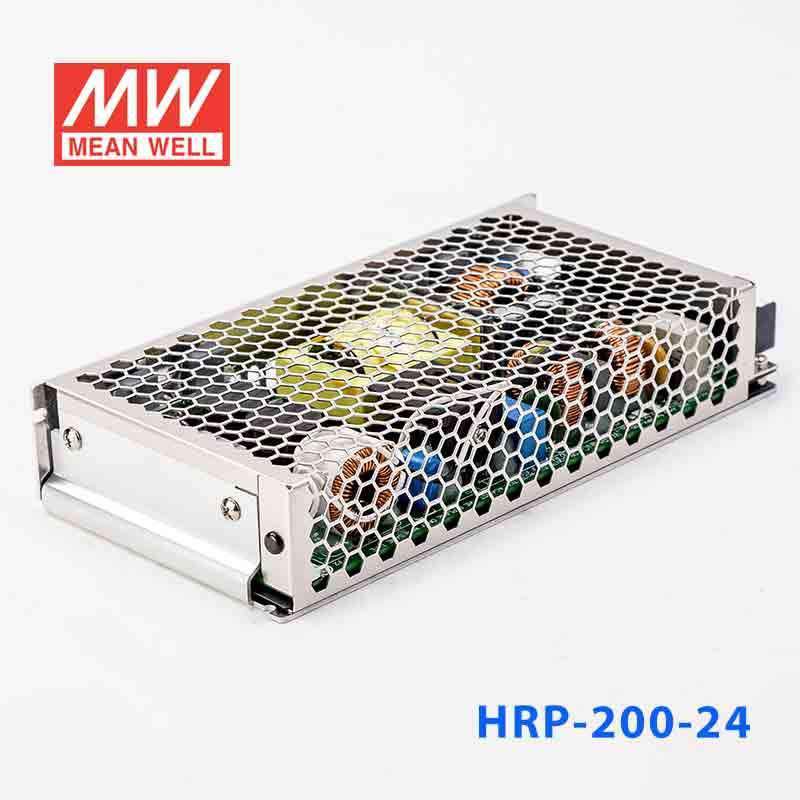

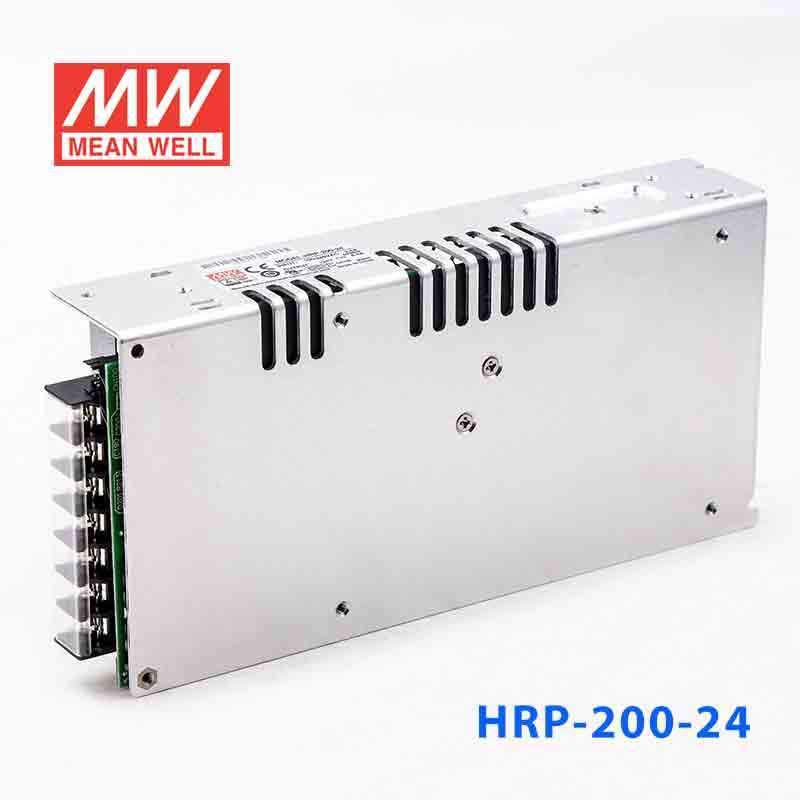

Mean Well HRP-200-24 Power Supply 201.6W 24V

built-in active PFC, high efficiency up to 90%, no load power consumption
SKU:
HRP-200-24

Model
$76.82 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature (optional for HRP-75 / HRP-100)
Built-in constant current limiting circuit
Built-in remote sense function
No load power consumption<0.5W
Built-in remote ON/OFF control
Cooling by free air convection
1U low profile
LED indicator for power on
100% full load burn-in test
5 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current (max.) Cold start; 70A at 230VAC
DC adjustment range ±15% rated output voltage
Overload protection Range 105%~135%
Overload protection Type Constant current limiting, auto-recovery
Over voltage protection 115%~145%
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature -40~+70°C
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2 heavy industry level

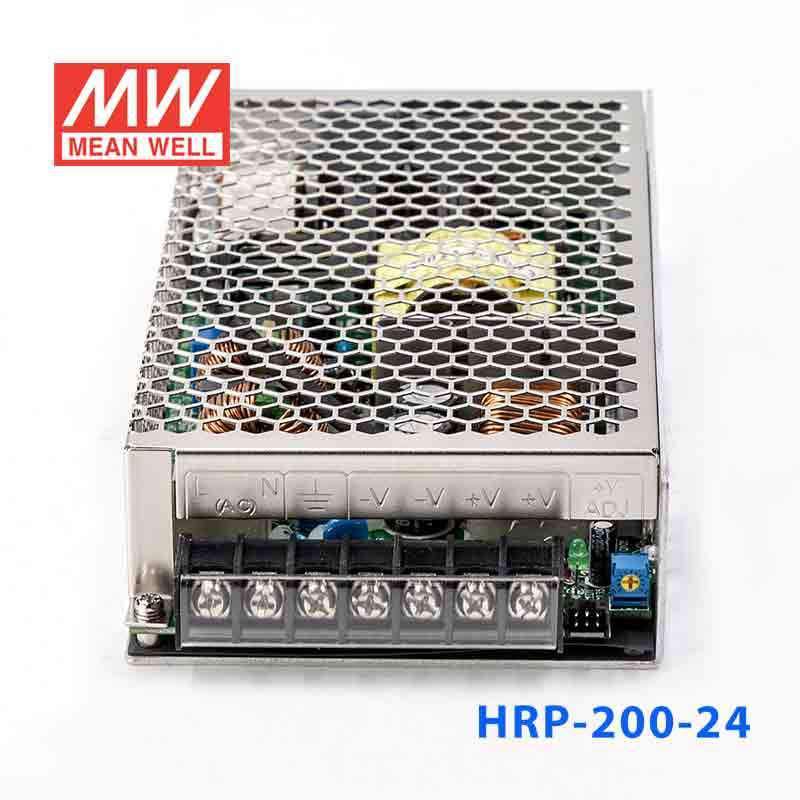

Connection 7P/9.5mm pitch terminal block with cover
Dimension (LxWxH) 199x 98x 38
Case No. 902E

Specifications

  • Brand
    Mean Well
  • Series
    HRP Series
  • Power Rating
    201.6 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    8.4 Ampere
  • Input Voltage
    85V~264V
  • No of Output
    1
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~70°C
  • Warranty
    5 Year
  • Length
    7.83 in
  • Width
    3.86 in
  • Height
    1.5 in
  • Weight
    1.7 lb

File Downloads

::specification::

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

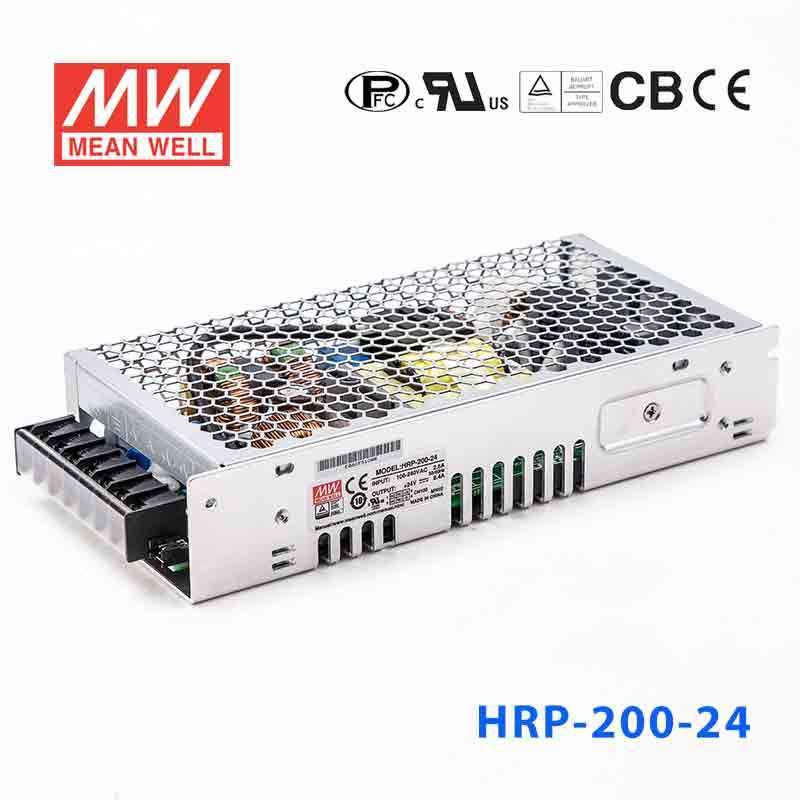

Mean Well HRP-200-24  Power Supply 201.6W 24V
