Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

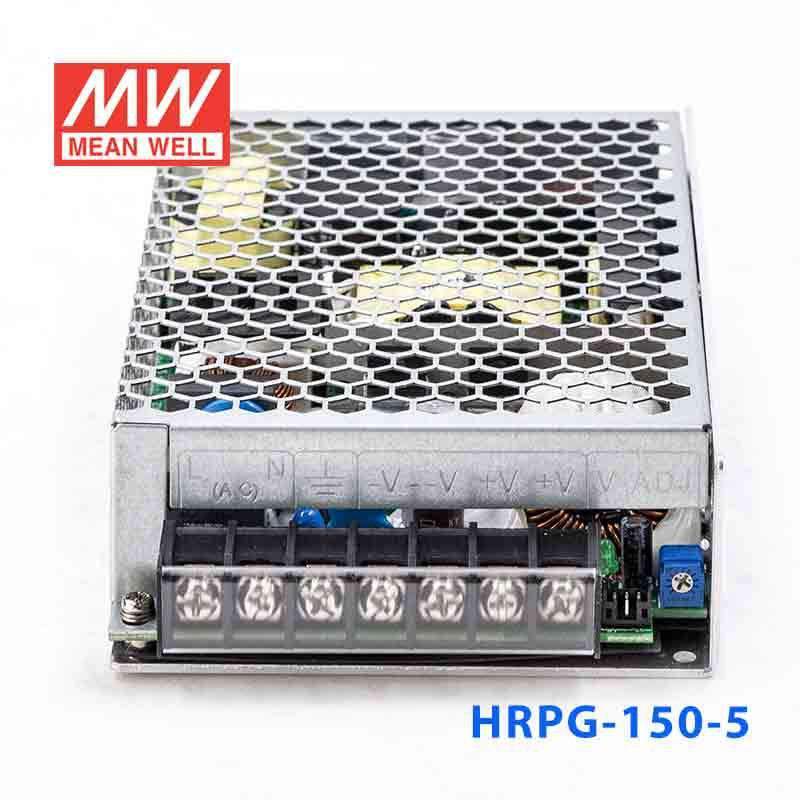

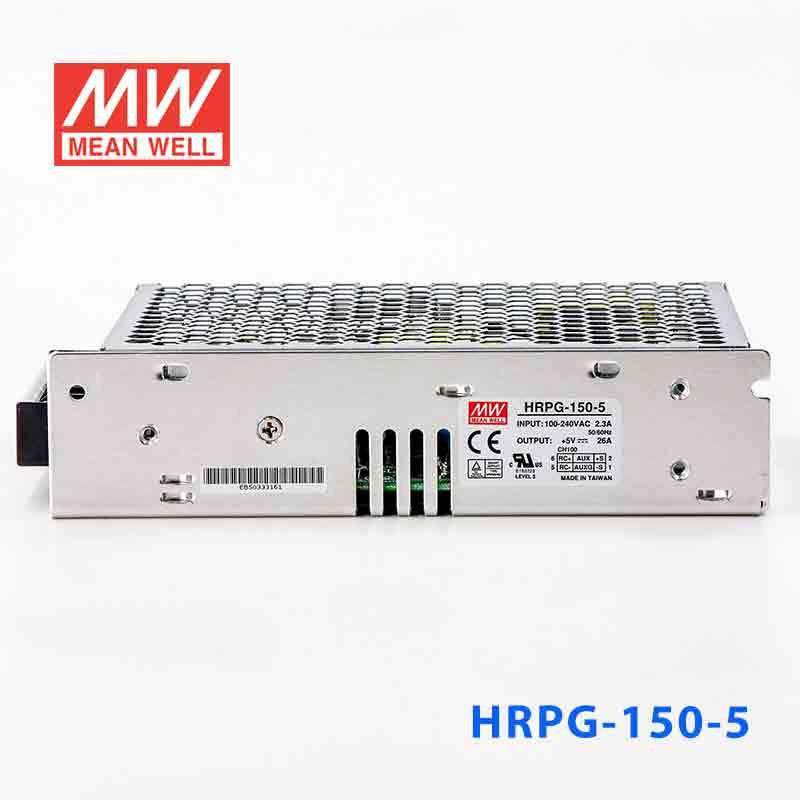

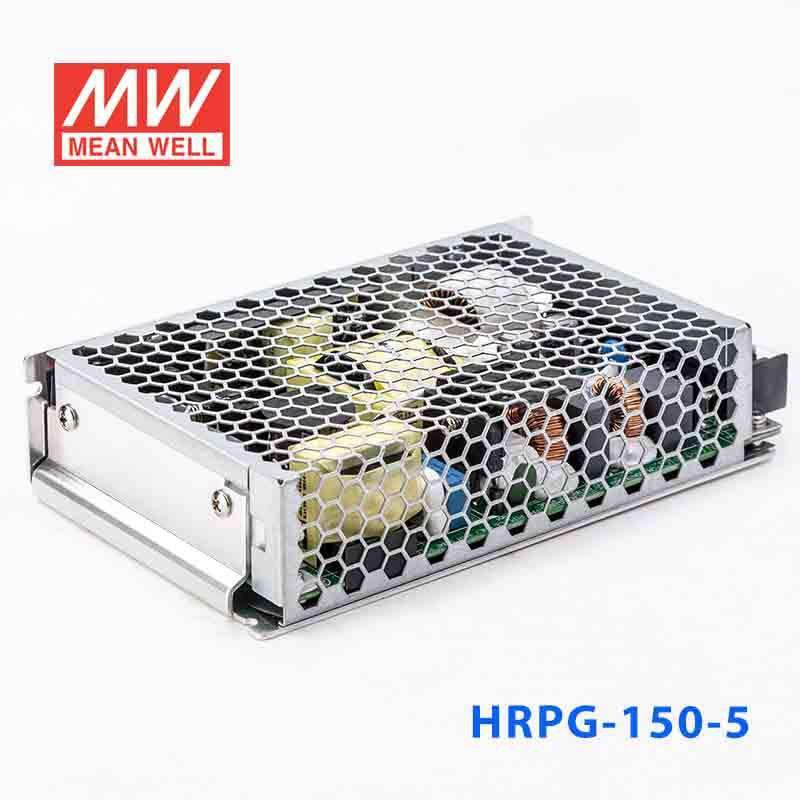

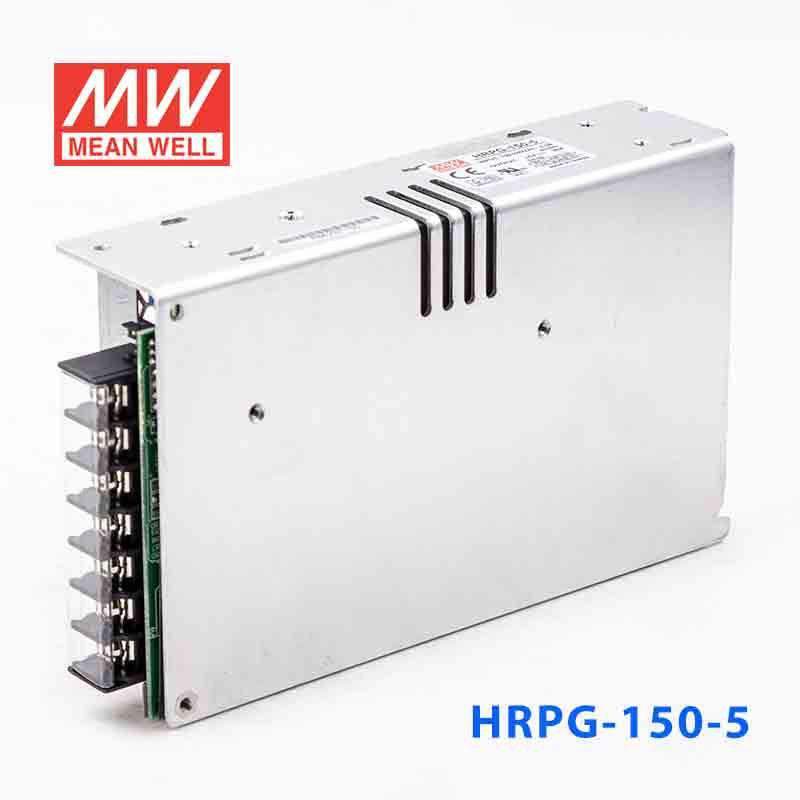

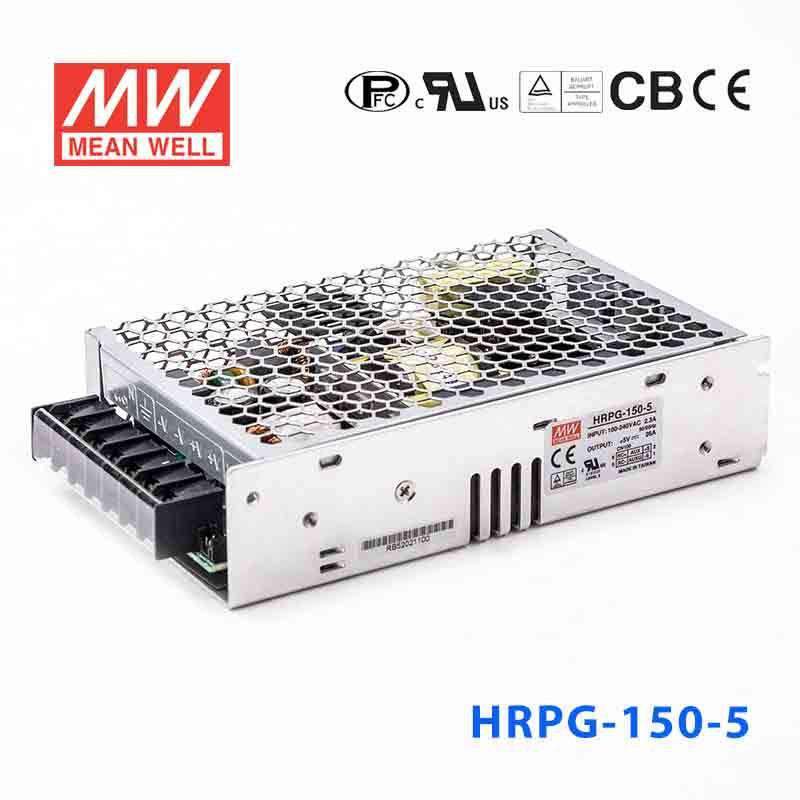

Mean Well HRPG-150-5 Power Supply 130W 5V
$69.23 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Withstand 300VAC surge input for 5 seconds |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage / Over temperature (optional for HRP-75 / HRP-100) |
| Built-in constant current limiting circuit |
| Built-in remote sense function |
| Built-in 5V / 0.3A standby output |
| Cooling by free air convection |
| 1U low profile |
| LED indicator for power on |
| 100% full load burn-in test |
| 5 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current (max.) | Cold start; 70A at 230VAC |
| DC adjustment range | ±15% rated output voltage |
| Overload protection Range | 105%~135% |
| Overload protection Type | Constant current limiting, auto-recovery |
| Over voltage protection | 115%~145% |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC, 1 minute |
| Working temperature | -40~+70°C |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2 heavy industry level |
| Connection | 7P/9.5mm pitch terminal block with cover |
| Dimension (LxWxH) | 159x97x38 |
| Case No. | 901I |
Specifications
Specifications
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating130 Watt
-
Output Voltage5 Volt
-
Rated Current26 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.39 lb
