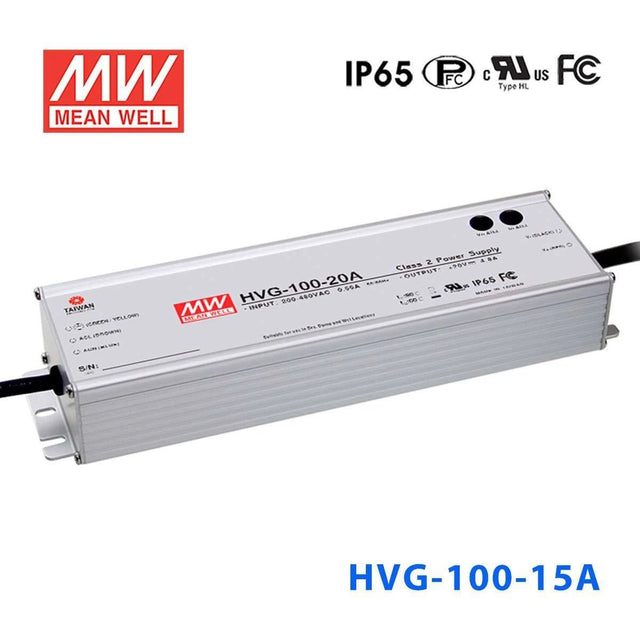

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well HVG-100-15AB Power Supply 75W 15V - Adjustable and Dimmable 5A

Name: Mean Well HVG-100-15AB Power Supply 75W 15V - Adjustable and Dimmable 5A
Brand: Mean Well
SKU: HVG-100-15AB
Price: 77.79 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU HVG-100-15AB

$77.79 USD

Shipping calculated at checkout.

Select model — 9 in this family

HVG-100-15AB

HVG-100-15A Adjustable Backorder $75.83 USD

HVG-100-15AB Adjustable and Dimmable Backorder $77.79 USD

HVG-100-15B Dimmable Backorder $77.72 USD

HVG-150-15A Adjustable Backorder $78.72 USD

HVG-150-15AB Adjustable and Dimmable Backorder $81.81 USD

HVG-150-15B Dimmable Backorder $80.73 USD

HVG-65-15A Adjustable Low stock $59.16 USD

HVG-65-15AB Adjustable and Dimmable Backorder $61.98 USD

HVG-65-15B Dimmable Backorder $61.05 USD

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

HVG-100-15AB is the 15V output model of this series: rated current 5A, rated power 75W, typical efficiency 89%. Type AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP65).

HVG-100 series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HVG-100 operates from 180~528 VAC and offers models with different rated voltage ranging between 15V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Voltage + Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
Class 2 power unit
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off)
Typical lifetime>50000 hours
5 years warranty

Specifications

HVG-100-15ABSpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE: 15V
CONSTANT CURRENT REGION^Note.4: 9~15V
RATED CURRENT: 5A
RATED POWER: 75W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 13.5 ~ 17V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 2.75 ~ 5A
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.5%
SETUP, RISE TIME^Note.6: 500ms, 80ms /230VAC, 347VAC, 480VAC
HOLD UP TIME (Typ.): 30ms/347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.5: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.98/277VAC, PF≧0.97/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC [@ load≧60% only for 15V model]; @ load≧75%/480VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 0.38A / 347VAC 0.28A / 480VAC
INRUSH CURRENT (Typ.): COLD START 25A(twidth=900μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 18 ~ 21V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type"HL"), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 Class C (@ load≧50% load,@ load≧60% only for 15V model) ; EN61000-3-3, FCC Part 15 Subpart B,EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1810.5K hrs min. Telcordia SR-332 (Bellcore) ; 174.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 236*68*38.8mm (L*W*H)
PACKING: 1.18Kg; 12pcs/15.2Kg/0.74CUFT

MODEL ENCODING

A: Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB (this model): Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
D: Built-in Smart timer dimming function by user request; IP67

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. For A/AB type need to consider build in using to comply with Type HL application.
13. This product is intended for North America lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

HVG-100-15AB Block Diagram — Block Diagram

HVG-100-15AB DIMMING OPERATION — DIMMING OPERATION

HVG-100-15AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVG-100-15AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HVG-100-15AB ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

HVG-100-15AB WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HVG-100-15AB datasheetHVG-100-SPEC.PDF · 2025-10-10 edition PDF Download

Certificates3

EMC Certificate(HVG-100)(EN) PDF Download

FCC Certificate(HVG-100)(EN) PDF Download

UL Certificate(HVG-100)(EN) PDF Download

Test reports1

Test Report(HVG-100-15)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVG-100-15AB for a 15V LED strip installation that needs dimming?

This version is the 75W, 15V, 5A adjustable and dimmable model in the HVG-100-15 group. It can fit a 15V LED strip load if the total demand stays within 75W, and you should check your strip rated power per meter before sizing.

Is the HVG-100-15AB a good fit for dimmable 15V sign lighting?

It can be used for 15V sign or display lighting where you need the adjustable and dimmable version and the load does not exceed 75W or 5A. The series' IP65/IP67 approval also makes it a better match for signage exposed to weather than a non-sealed unit.

Can the HVG-100-15AB be used for exterior 15V landscape or facade lighting?

For 15V lighting applications, this model is suited to demanding conditions because the series is IP65 or IP67 approved and it is rated for a case temperature (Tcase) of -40°C to +90°C. Keep the connected lighting load within the 75W output limit and match it to the 15V output.

Would the HVG-100-15AB work for enclosed lighting in hot or cold industrial areas?

It is designed for a wide environmental range, with a case temperature (Tcase) rating of -40°C to +90°C. As long as the 15V lighting load stays within 75W and 5A, it can fit enclosed industrial lighting applications where temperature exposure is a concern.

What LED strip length can the HVG-100-15AB support at 15V?

The sizing limit is 75W total at 15V, with output current up to 5A. To estimate strip length, use 75W ÷ your strip watts per meter = maximum theoretical meters, and check your strip rated power per meter before deciding.

What is the difference between the HVG-100-15AB and nearby HVG options?

The HVG-100-15A, HVG-100-15AB, HVG-100-15B and HVG-100-15D all share the same 75W, 15V, 5A rating on the sheet; they differ in adjustment and dimming. Other HVG-100 outputs step through 20V 96W 4.8A, 24V 96W 4A, 30V 96W 3.2A, 36V 95.4W 2.65A, 42V 95.76W 2.28A, 48V 96W 2A, and 54V 95.58W 1.77A.
