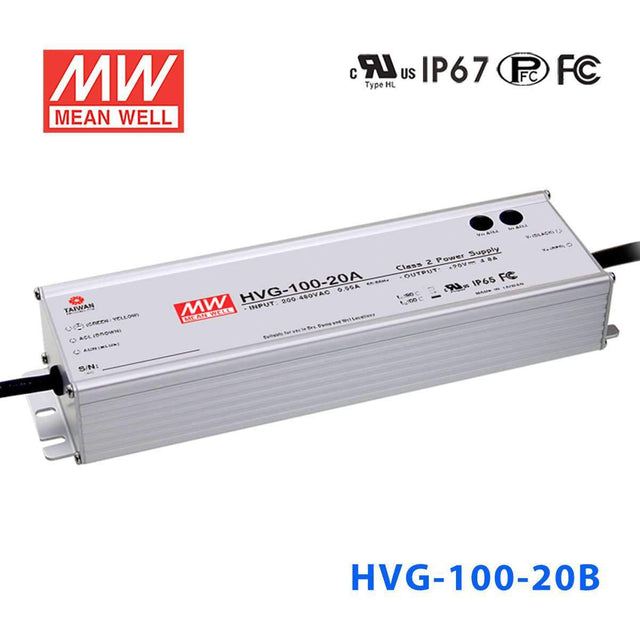

Mean Well HVG-100-20B Power Supply 100W 20V - Dimmable
The HVG-100 is a 100W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating96 Watt
-
Output Voltage20 Volt
-
Rated Current4.8 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.29 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.6 lb
::specification::
Frequently Asked Questions
Can I use the HVG-100-20B for 20V LED strip lighting outdoors?
Yes, if the 20V strip load stays within 96W and 4.8A. Its IP67 waterproof rating makes it better suited to exposed outdoor lighting than the IP65 versions in the same output class.
Is the HVG-100-20B suitable for illuminated signage in wet conditions?
It is a good fit for 20V sign lighting loads that require up to 96W and 4.8A. The IP67 waterproof enclosure is useful when the driver will be installed in wet or weather-exposed locations.
Can this model run 20V architectural or landscape lighting loads?
It can support 20V lighting products that fit within the 10-20V constant current range and do not exceed 96W or 4.8A. The -40°C to +90°C operating temperature range also suits demanding indoor or outdoor environments.
How do I calculate the LED strip length this 20V driver can handle?
Use maximum length = 96W ÷ strip watts per meter. You also need to keep the total load within 4.8A, so check your strip rated power per meter and total current draw before sizing the run.
Is the HVG-100-20B better for outdoor exposure than the 20A or 20AB versions?
The HVG-100-20B has the same 96W, 20V, and 4.8A output as HVG-100-20A and HVG-100-20AB, but it is rated IP67 waterproof. By comparison, the 20A and 20AB versions are IP65 water-resistant.
