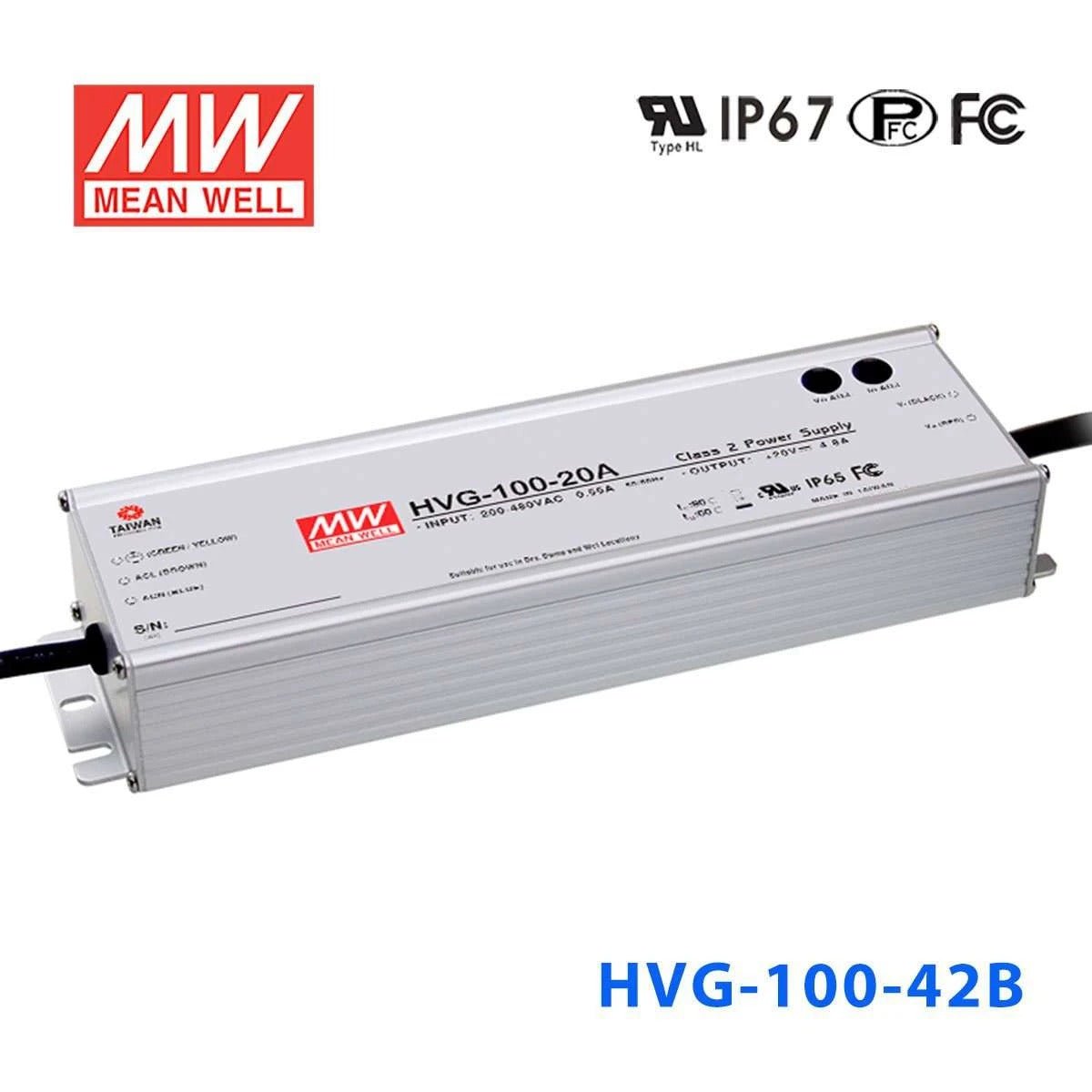

Mean Well HVG-100-42AB Power Supply 100W 42V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVG-100-42AB Power Supply 100W 42V - Adjustable and Dimmable
Description
Description
Features
| 180~528VAC wide input range |
| IP67 / IP65 design |
| Built-in active PFC |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| C.V. +C.C. mode design |
| Class 2 power unit / Pass LPS |
| High efficiency up to 91.5% |
| Cooling by free air convection |
| Suitable for dry, damp. and wet location |
| Suitable for LED lighting and street lighting applications |
| Output current adjustable through output cable or internal potentiometer |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance) D-Type (option): IP67 rated. Timer dimming function, contact MEAN WELL for details |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC (single phase); 254~747VDC |
| AC inrush current (max.) | Cold start, 25A at 440VAC |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SVT 18AWGx2C (30cm) |
| Connection Output B-Type | SVT 18AWGx2C (30cm)+UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 236x 68x 38.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating95.76 Watt
-
Output Voltage42 Volt
-
Rated Current2.28 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.29 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.6 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-100-42AB for dimmable 42V LED lighting?
Yes, this model is intended for 42V lighting applications where adjustable and dimmable operation is required. It provides up to 95.76W at 42V and 2.28A, and the lighting load must fit within its 21-42V constant-current range.
Is the HVG-100-42AB a fit for 42V sign cabinets or display lighting?
It can fit 42V constant-current sign cabinet or display lighting loads that stay within 95.76W and 2.28A. The driver is designed for loads operating between 21V and 42V in constant-current mode.
Can this model be used for 42V lighting projects that need output control?
Yes, the product is described as adjustable and dimmable, so it is aimed at 42V lighting applications where controllable light output is needed. The connected load still has to match the 42V output, 2.28A current, and 95.76W maximum power.
How do I calculate LED strip length for the HVG-100-42AB?
The driver can provide up to 95.76W total. For a strip-length estimate, divide 95.76W by the strip's power per meter; check your strip rated power per meter and verify it is compatible with a 42V constant-current driver.
Is the HVG-100-42AB suitable for damp or weather-exposed locations?
It carries an IP65 water-resistant rating, so it is appropriate for outdoor or damp environments where basic weather resistance is needed. The operating temperature range is -40°C to +90°C, which supports use in both cold and hot conditions.
