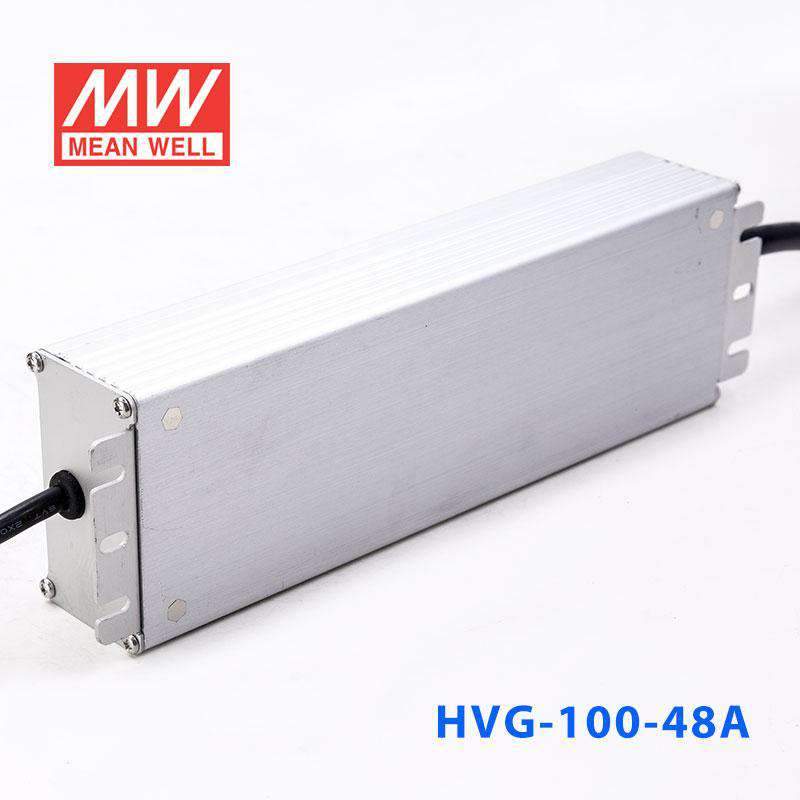

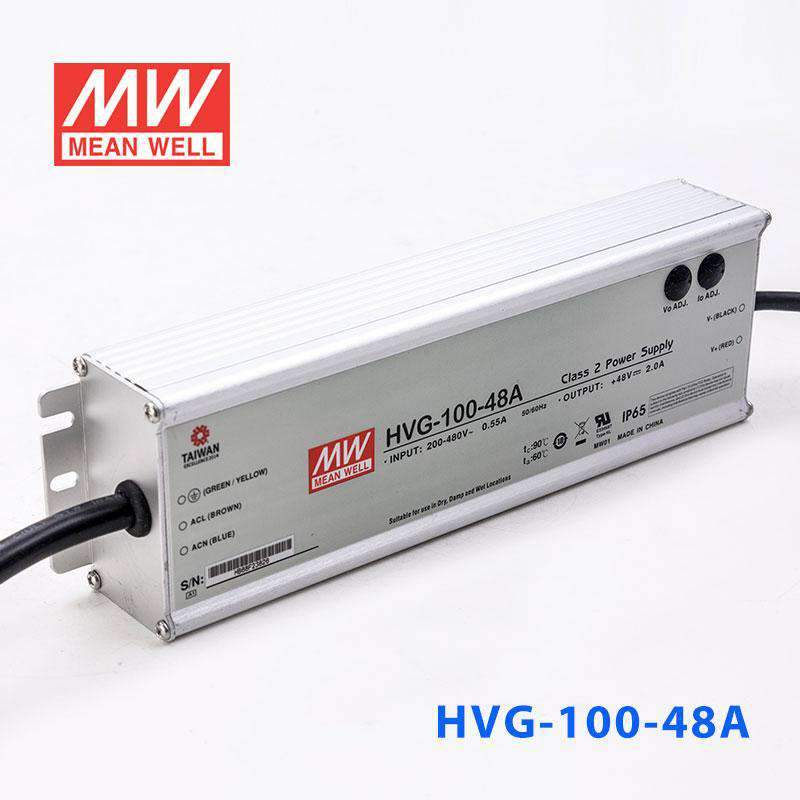

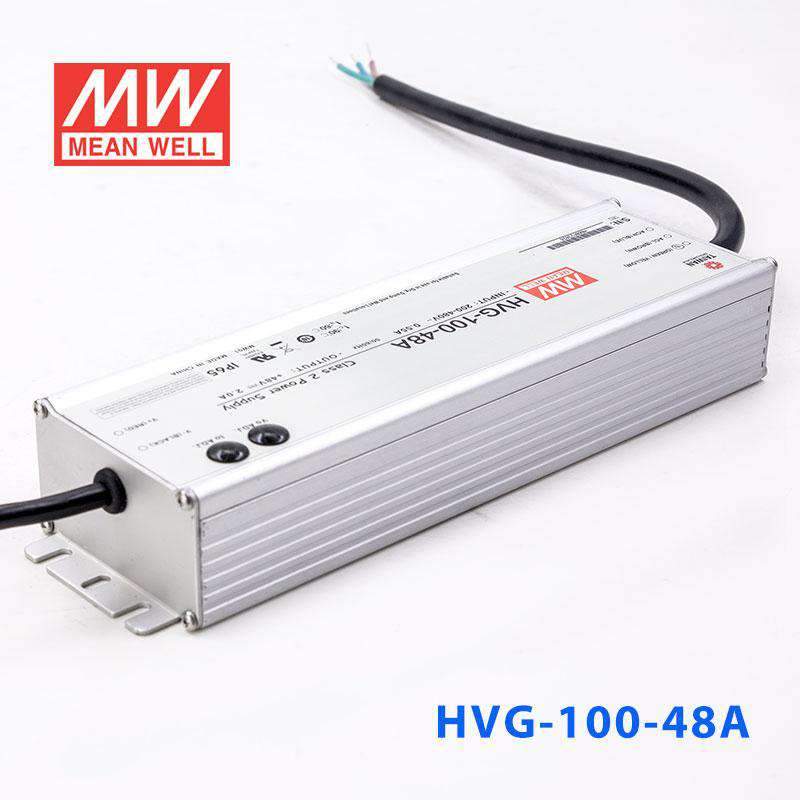

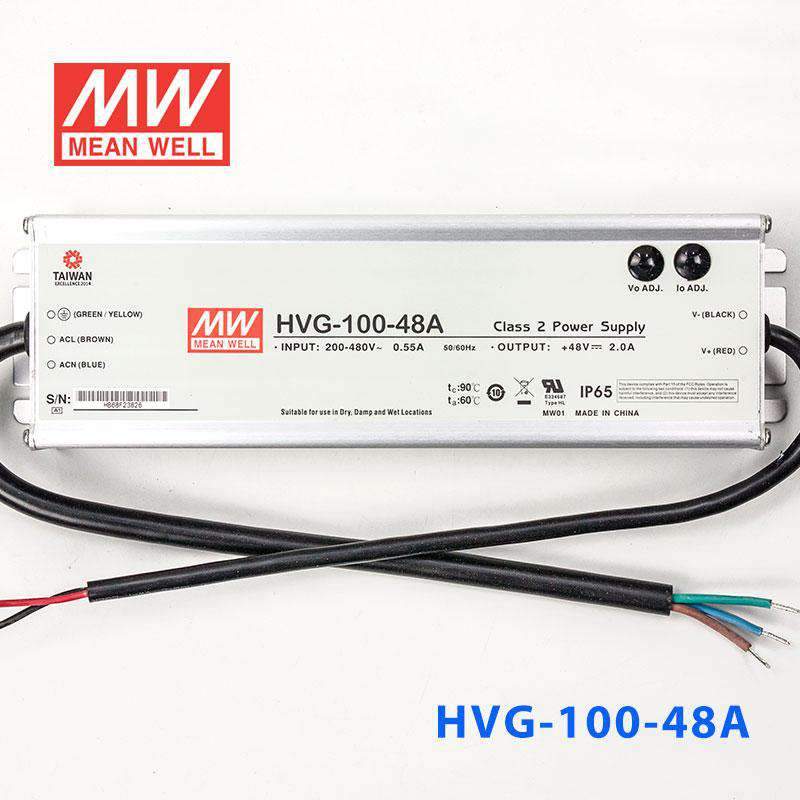

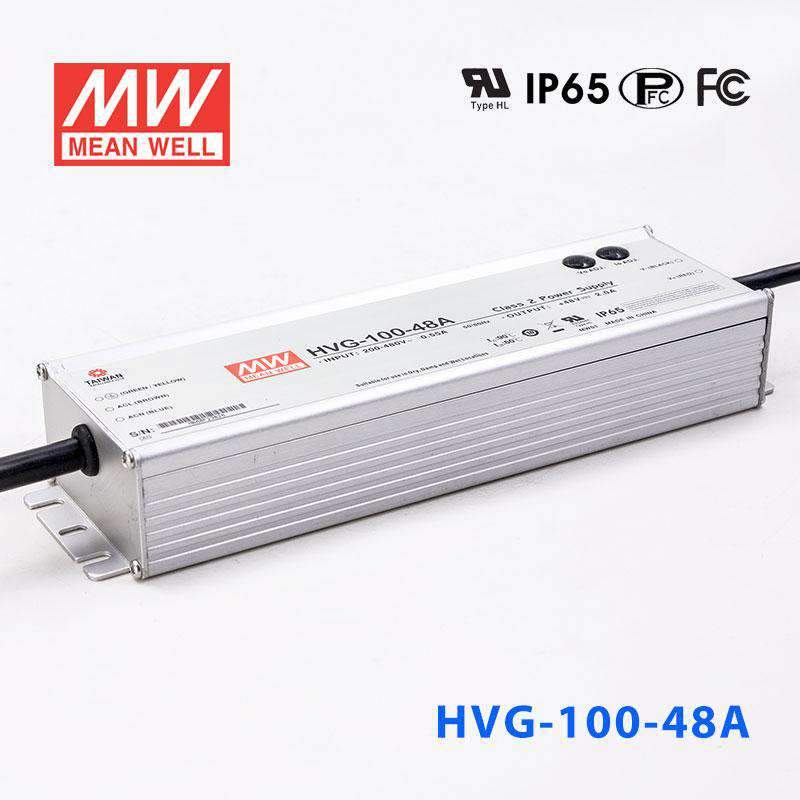

Mean Well HVG-100-48A Power Supply 100W 48V

Name: Mean Well HVG-100-48A Power Supply 100W 48V - Adjustable 2A
Brand: Mean Well
SKU: HVG-100-48A
Price: 75.83 USD
Availability: InStock

Overview

HVG-100-48A is the 48V output model of this series: rated current 2A, rated power 96W, typical efficiency 91%. Type A: Io and Vo adjustable through built-in potentiometer (IP65).

HVG-100 series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HVG-100 operates from 180~528 VAC and offers models with different rated voltage ranging between 15V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Voltage + Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
Class 2 power unit
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer
Typical lifetime>50000 hours
5 years warranty

Specifications

HVG-100-48ASpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE: 48V
CONSTANT CURRENT REGION^Note.4: 24~48V
RATED CURRENT: 2A
RATED POWER: 96W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 43 ~ 53V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 1.1 ~ 2A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms, 80ms /230VAC, 347VAC, 480VAC
HOLD UP TIME (Typ.): 30ms/347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.5: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.98/277VAC, PF≧0.97/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC [@ load≧60% only for 15V model]; @ load≧75%/480VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 0.38A / 347VAC 0.28A / 480VAC
INRUSH CURRENT (Typ.): COLD START 25A(twidth=900μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 54 ~ 60V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type"HL"), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 Class C (@ load≧50% load,@ load≧60% only for 15V model) ; EN61000-3-3, FCC Part 15 Subpart B,EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1810.5K hrs min. Telcordia SR-332 (Bellcore) ; 174.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 236*68*38.8mm (L*W*H)
PACKING: 1.18Kg; 12pcs/15.2Kg/0.74CUFT

MODEL ENCODING

A (this model): Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
D: Built-in Smart timer dimming function by user request; IP67

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. For A/AB type need to consider build in using to comply with Type HL application.
13. This product is intended for North America lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

HVG-100-48A Block Diagram — Block Diagram

HVG-100-48A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVG-100-48A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HVG-100-48A MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

HVG-100-48A ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

HVG-100-48A WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HVG-100-48A datasheetHVG-100-SPEC.PDF · 2025-10-10 edition PDF Download

Certificates3

EMC Certificate(HVG-100)(EN) PDF Download

FCC Certificate(HVG-100)(EN) PDF Download

UL Certificate(HVG-100)(EN) PDF Download

Test reports1

Test Report(HVG-100-48)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVG-100-48A for a 48V LED lighting system?

Yes, if the lighting load is designed for constant current operation within the 24-48V CC range. This model delivers up to 96W at 48V and 2A, so the fixture or module must match those output limits.

Is this driver a good fit for 48V linear lighting in commercial spaces?

It can be used for 48V constant current linear lighting loads that operate within 24-48V. Its wide 180-528VAC input range also suits sites with varied AC input conditions.

Can the HVG-100-48A be used for sign lighting with a 48V constant current load?

Yes, for sign or display lighting where the LED load is specified for constant current and falls inside the 24-48V range. The driver's available output is 96W maximum with 2A output current.

Would this work for covered outdoor lighting applications?

It suits water-resistant environments because the HVG-100 series is IP65 or IP67 approved. With a waterproof connector on the output cable, the sheet says it can operate in damp or outdoor environments such as covered outdoor lighting.

How do I estimate the maximum 48V LED strip length for this driver?

Use the driver's 96W maximum output for the calculation. The formula is 96W ÷ strip watts per meter = maximum meters, and you should check your strip rated power per meter and confirm the strip is compatible with a 48V constant current driver.

How does the HVG-100-48A compare with other HVG-100 voltage versions?

In the HVG-100 family, the output choices are 15V 75W 5A, 20V 96W 4.8A, 24V 96W 4A, 30V 96W 3.2A, 36V 95.4W 2.65A, 42V 95.76W 2.28A, 48V 96W 2A, and 54V 95.58W 1.77A. The 48A version keeps the 96W class output while shifting to a higher voltage and lower current than the 20V, 24V, 30V, 36V, and 42V models.
