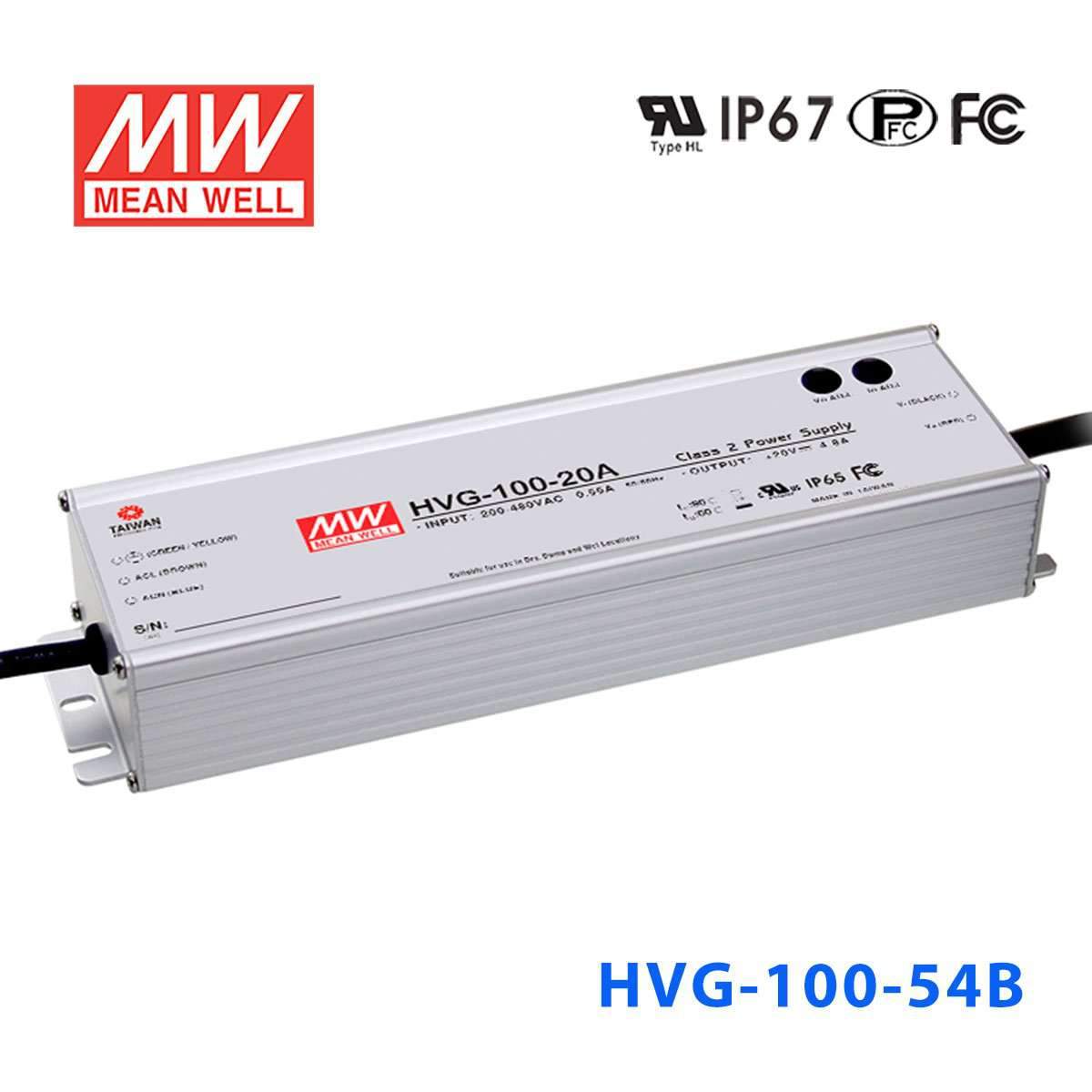

Mean Well HVG-100-54B Power Supply 100W 54V

Name: Mean Well HVG-100-54B Power Supply 100W 54V - Dimmable 1.77A
Brand: Mean Well
SKU: HVG-100-54B
Price: 77.72 USD
Availability: InStock

Overview

HVG-100-54B is the 54V output model of this series: rated current 1.77A, rated power 95.58W, typical efficiency 91%. Type B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP67).

HVG-100 series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HVG-100 operates from 180~528 VAC and offers models with different rated voltage ranging between 15V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Voltage + Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
Class 2 power unit
IP67 rating for indoor or outdoor installations
Function options: 3 in 1 dimming (dim-to-off)
Typical lifetime>50000 hours
5 years warranty

Specifications

HVG-100-54BSpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE: 54V
CONSTANT CURRENT REGION^Note.4: 27~54V
RATED CURRENT: 1.77A
RATED POWER: 95.58W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms, 80ms /230VAC, 347VAC, 480VAC
HOLD UP TIME (Typ.): 30ms/347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.5: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.98/277VAC, PF≧0.97/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC [@ load≧60% only for 15V model]; @ load≧75%/480VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 0.38A / 347VAC 0.28A / 480VAC
INRUSH CURRENT (Typ.): COLD START 25A(twidth=900μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 59 ~ 65V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type"HL"), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 Class C (@ load≧50% load,@ load≧60% only for 15V model) ; EN61000-3-3, FCC Part 15 Subpart B,EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1810.5K hrs min. Telcordia SR-332 (Bellcore) ; 174.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 236*68*38.8mm (L*W*H)
PACKING: 1.18Kg; 12pcs/15.2Kg/0.74CUFT

MODEL ENCODING

A: Io and Vo adjustable through built-in potentiometer; IP65
B (this model): 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
D: Built-in Smart timer dimming function by user request; IP67

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. This product is intended for North America lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

HVG-100-54B Block Diagram — Block Diagram

HVG-100-54B DIMMING OPERATION — DIMMING OPERATION

HVG-100-54B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVG-100-54B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

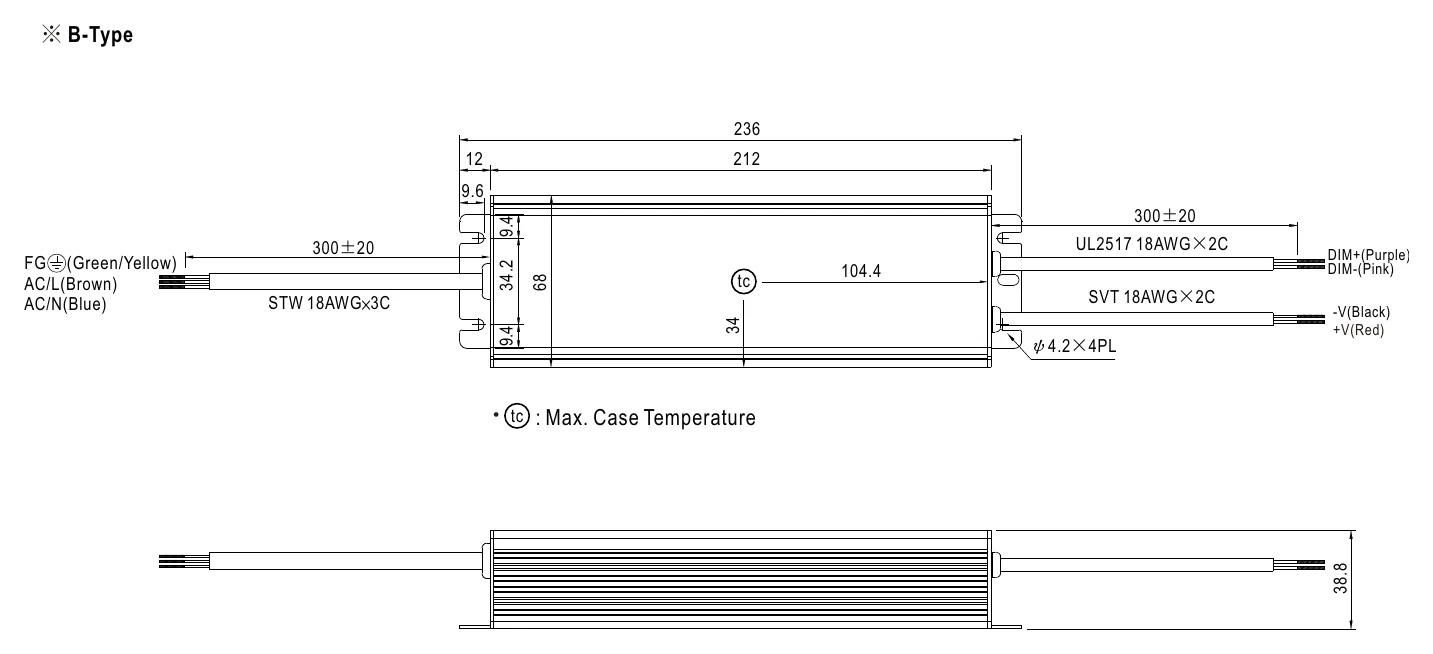

HVG-100-54B MECHANICAL SPECIFICATION ※ B-Type — MECHANICAL SPECIFICATION ※ B-Type

HVG-100-54B ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

HVG-100-54B WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HVG-100-54B datasheetHVG-100-SPEC.PDF · 2025-10-10 edition PDF Download

Certificates3

EMC Certificate(HVG-100)(EN) PDF Download

FCC Certificate(HVG-100)(EN) PDF Download

UL Certificate(HVG-100)(EN) PDF Download

Test reports1

Test Report(HVG-100-54)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVG-100-54B for exposed outdoor signage lighting?

Yes, when the lighting load is a 54V system that operates within the 27-54V constant current range and no more than 1.77A. Its 95.58W output and the series' IP65/IP67 approval, with a waterproof connector on the output cable, make it a practical choice for exposed exterior signage and other wet-location lighting.

Is this a good driver for dimmable 54V facade or accent lighting?

It is suitable for dimmable 54V LED lighting loads that stay within the 27-54V CC range and 1.77A maximum output. With 95.58W available, it fits medium-power facade or accent lighting systems that need a sealed outdoor driver.

Can this power a 54V LED strip system for long-run lighting?

It can, as long as the strip system is designed as a 54V constant-current load and does not exceed 95.58W or 1.77A. That makes it relevant for longer-run lighting layouts where 54V is chosen to reduce current compared with lower-voltage systems.

What strip length can I estimate from this 54V driver?

Estimate the maximum length by dividing 95.58W by the strip's watts-per-meter rating. The strip also needs to be compatible with 54V output and stay under 1.77A. Check your strip rated power per meter before choosing the final run length.

Is the HVG-100-54B better for wet locations than the IP65 version?

The sheet lists the HVG-100 series as IP65 or IP67 approved but does not assign a rating to each version, so confirm the IP rating marked on the HVG-100-54B and HVG-100-54AB. IP67 is the higher ingress-protection class of the two. Both are matched to a 54V, 95.58W, 1.77A lighting load.

What are the other 54V choices in the HVG series around this power level?

At the 100-series level, HVG-100-54A, HVG-100-54AB, HVG-100-54B and HVG-100-54D all share the 95.58W, 54V, 1.77A rating on the sheet. Higher-power HVG models are not covered by this datasheet, so check their own spec sheets if you need more output at 54V.
