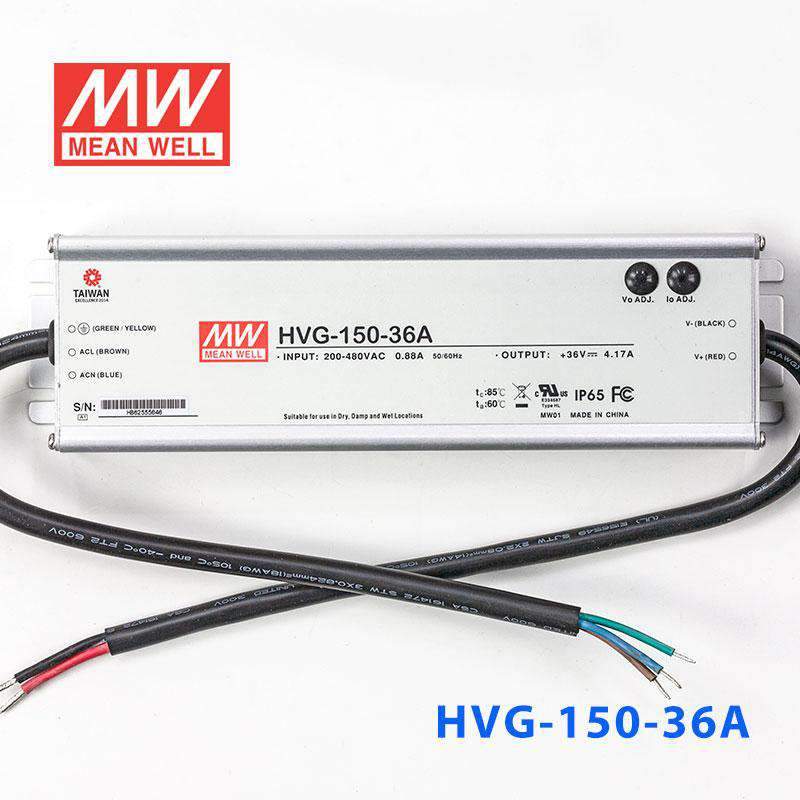

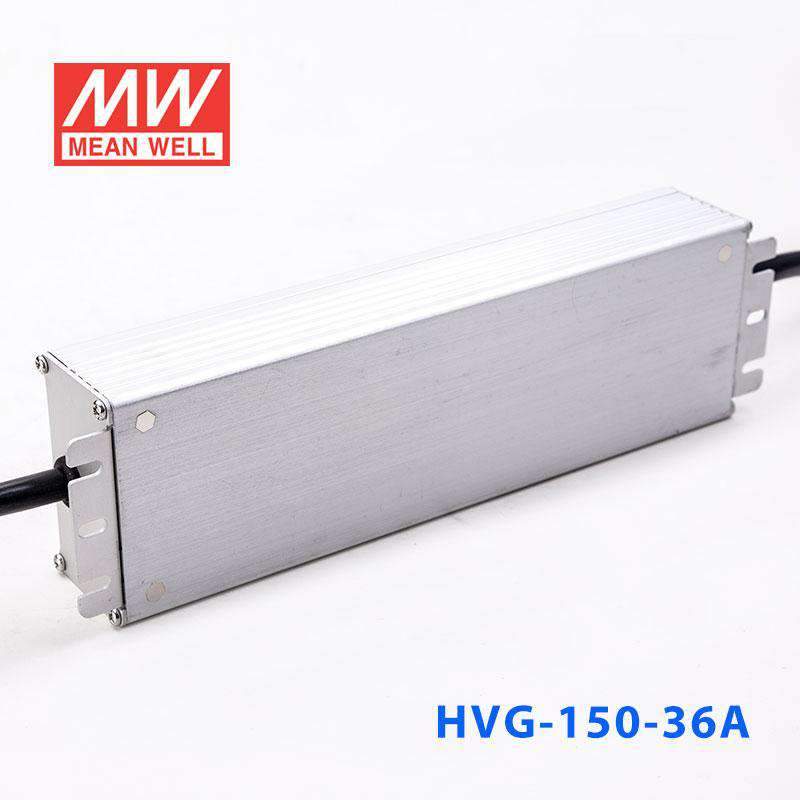

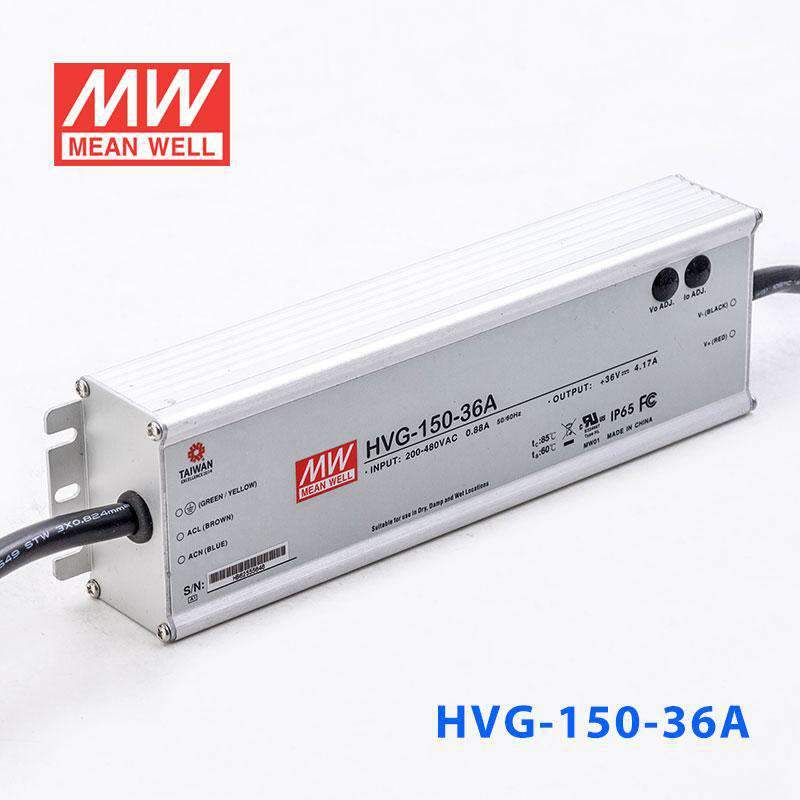

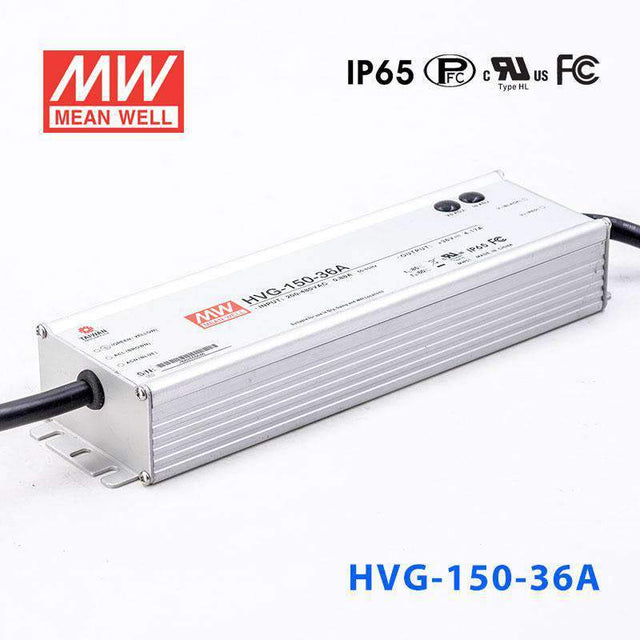

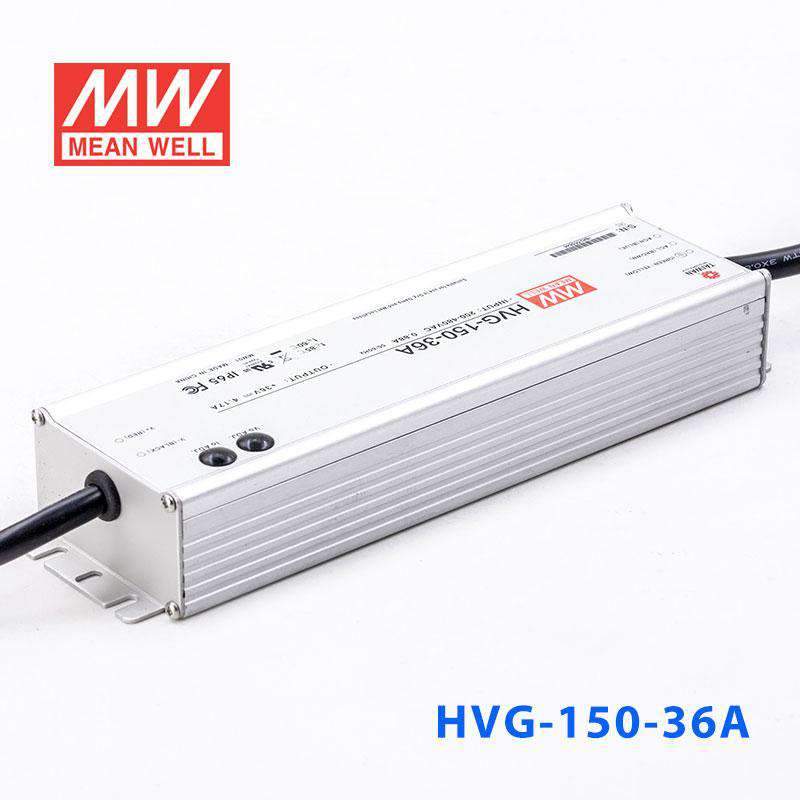

Mean Well HVG-150-36A Power Supply 150W 36V - Adjustable

Name: Mean Well HVG-150-36A Power Supply 150W 36V - Adjustable
Brand: Mean Well
SKU: HVG-150-36A
Price: 75.25 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU:

HVG-150-36A

$75.25 USD ~~$295.50~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The HVG-150 is a 150W Mean Well power converter (input range: 180~528VAC, operating temperature: -40~+85℃).

Key Features

✓ Input voltage range: 180~528VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -40~+85℃
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
✓ 3 years warranty

Brand

Mean Well
Series

HVG Series
Power Rating

150.12 Watt
Output Voltage

36 Volt
Rated Current

4.17 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

9.65 in
Width

2.68 in
Height

1.53 in
Weight

2.73 lb

Frequently Asked Questions

Can I use the HVG-150-36A for a 36V LED strip lighting run?

Yes, if the strip is designed for 36V operation and the total load does not exceed 150.12W. This driver provides 4.17A output with a constant current range of 19-36V, so the lighting load needs to stay within that range.

Is this driver suitable for 36V signage or display lighting?

It can be suitable for 36V LED signage or display loads that fit within 19-36V constant current and stay under 150.12W. The IP65 water-resistant enclosure also supports use in locations where the driver may be exposed to dust or rain.

Can the HVG-150-36A be used for commercial linear lighting?

Yes, for 36V linear LED loads that stay within the 4.17A and 150.12W limits. Its operating temperature range of -40°C to +85°C is also useful for commercial environments with wide temperature swings.

Can I use this for adjustable 36V architectural lighting?

Yes, this is the adjustable version in the 150.12W 36V group. It is intended for 36V LED lighting loads operating within the 19-36V constant current range.

How do I size LED strip length for the HVG-150-36A?

Use this formula: maximum strip length = 150.12W divided by the strip's rated watts per meter. That calculation gives the length limit, and you should also confirm the strip is a 36V load within the 19-36V constant current range.

Is the HVG-150-36A suitable for outdoor or damp installations?

It has an IP65 water-resistant rating, so it is suitable for environments with dust and water spray exposure. It is a better fit for outdoor or damp locations than indoor-only drivers, but IP65 does not indicate full waterproof immersion protection.

How does the HVG-150-36A compare with other 36V HVG models?

Within the listed 36V HVG range, the siblings are 65.2W 1.81A, 95.4W 2.65A, 150.12W 4.17A, 241.2W 6.7A, 320.4W 8.9A, and 478.8W 13.3A versions. At the 150.12W level, the related models are HVG-150-36A, HVG-150-36AB, HVG-150-36B, and HVG-150-36D, with the A model sharing the same 36V and 4.17A output rating.
