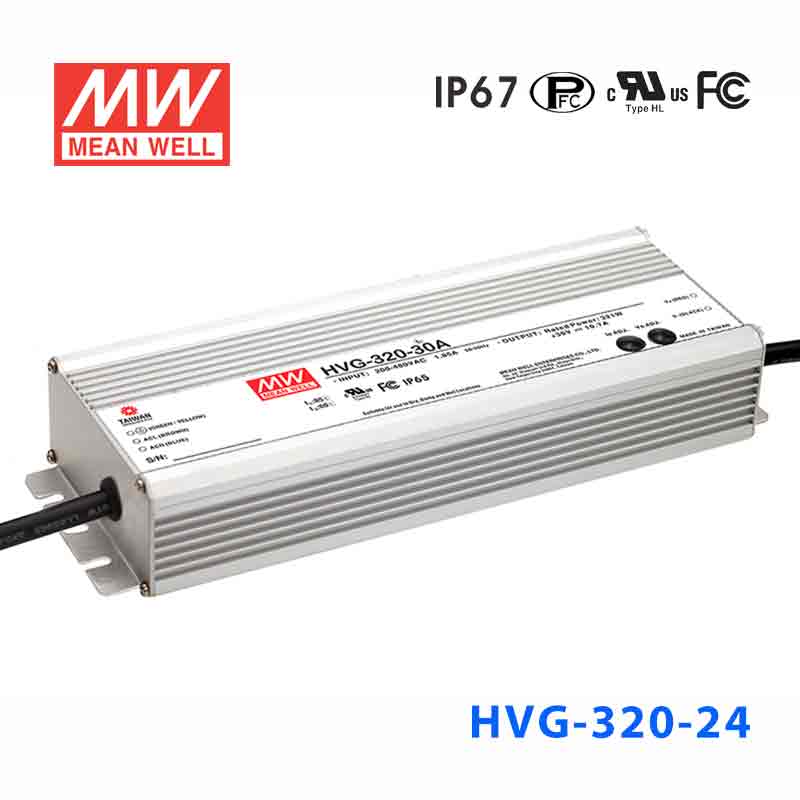

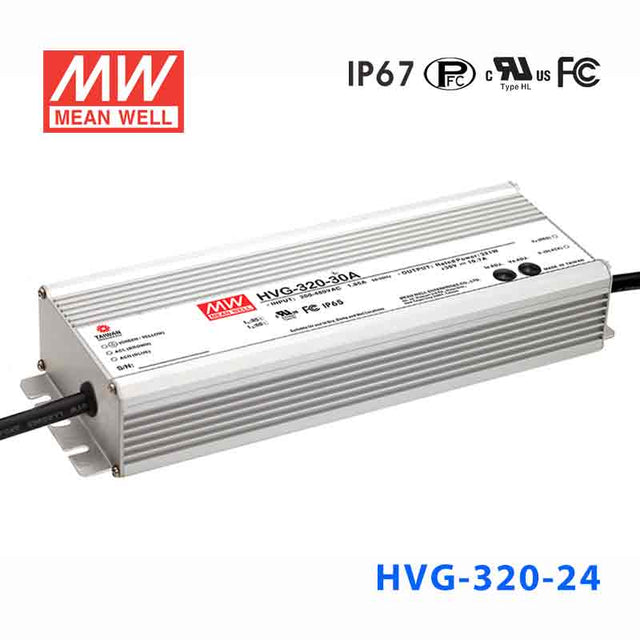

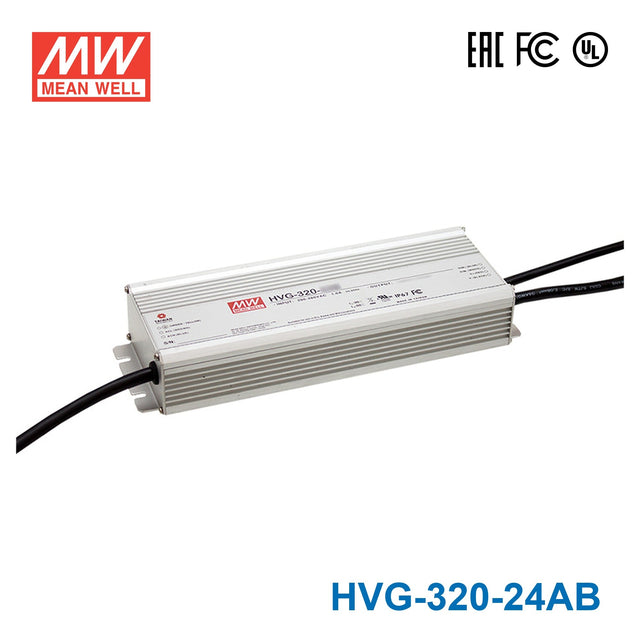

Mean Well HVG-320-24AB Power Supply 320W 24V - Adjustable and Dimmable

Name: Mean Well HVG-320-24AB Power Supply 320W 24V - Adjustable and Dimmable
Brand: Mean Well
SKU: HVG-320-24AB
Price: 129.69 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU:

HVG-320-24AB

$129.69 USD ~~$466.50~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The HVG-320 is a 320W Mean Well power converter (input range: 180~528VAC).

Key Features

✓ Input voltage range: 180~528VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004 IP65 or IP67
✓ 3 years warranty

Brand

Mean Well
Series

HVG Series
Power Rating

321.6 Watt
Output Voltage

24 Volt
Rated Current

13.4 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

10V PWM,1-10V,Built-in Potentiometer,Resistance
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

10.32 in
Width

3.54 in
Height

1.72 in
Weight

4.41 lb

Frequently Asked Questions

Can I use the HVG-320-24AB for a high-output 24V LED strip project?

Yes, if the 24V strip load stays within the driver's 321.6W maximum output and 13.4A output current. The unit operates in constant current mode across a 12-24V range, so the load needs to match that range.

Is this driver suitable for 24V sign cabinet or display lighting?

Yes, it can support 24V signage lighting loads up to 321.6W. The IP65 water-resistant enclosure also makes it appropriate for signs installed in outdoor or washdown-prone areas.

Can the HVG-320-24AB be used for 24V facade or accent lighting?

Yes, for 24V lighting loads that fit within 321.6W total power and 13.4A maximum current. Its -40°C to +85°C operating range supports use in challenging outdoor temperatures.

Will this work with a 24V lighting load that needs dimming capability?

Yes, if the 24V lighting load falls within the 12-24V constant current range and remains under 321.6W. This AB version is listed as adjustable and dimmable.

How do I size LED strip length with the HVG-320-24AB?

Use the power formula: 321.6W divided by the strip watts per meter gives the estimated maximum meters of strip. The math is 321.6W / strip W per meter = maximum meters, and you should check your strip rated power per meter before sizing.

Is the HVG-320-24AB okay for outdoor lighting environments?

Yes, it has an IP65 water-resistant rating, which suits outdoor and wet-area use where rain or splashing water may occur. It is also rated to operate from -40°C to +85°C.

What is the difference between the 24V HVG-320 A, AB, B, and D2 versions?

HVG-320-24A, HVG-320-24AB, and HVG-320-24B are each rated at 321.6W, 24V, and 13.4A. HVG-320-24D2 is listed at 321.6W.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well HVG-320-54B Power Supply 320W 54V - Dimmable	324W	54V	6A	IP67	$127.02	View
Mean Well HVG-320-54AB Power Supply 320W 54V - Adjustable and Dimmable	324W	54V	6A	IP65	$129.69	View
Mean Well HVG-320-54A Power Supply 320W 54V - Adjustable	324W	54V	6A	IP65	$123.23	View
