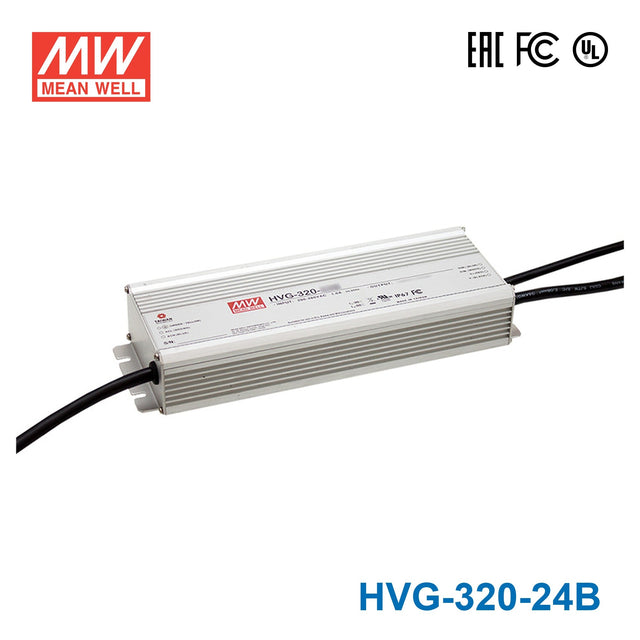

Mean Well HVG-320-24B Power Supply 320W 24V - Dimmable

Name: Mean Well HVG-320-24B Power Supply 320W 24V - Dimmable
Brand: Mean Well
SKU: HVG-320-24B
Price: 128.74 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU:

HVG-320-24B

$128.74 USD ~~$462.75~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The HVG-320 is a 320W Mean Well power converter (input range: 180~528VAC).

Key Features

✓ Input voltage range: 180~528VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004 IP65 or IP67
✓ 3 years warranty

Brand

Mean Well
Series

HVG Series
Power Rating

321.6 Watt
Output Voltage

24 Volt
Rated Current

13.4 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

10V PWM,1-10V,Resistance
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

10.32 in
Width

3.54 in
Height

1.72 in
Weight

4.41 lb

Frequently Asked Questions

Can I use the HVG-320-24B for outdoor 24V LED strip lighting?

Yes, if the 24V strip load stays within 321.6W and 13.4A. This model also has an IP67 waterproof housing, which makes it well suited to exposed outdoor lighting locations.

Is this power supply suitable for 24V signage in wet conditions?

Yes, for 24V sign lighting loads that fit within the driver's 321.6W maximum output. The IP67 waterproof rating is helpful for wet or weather-exposed signage applications.

Can the HVG-320-24B run 24V architectural or landscape lighting?

It can, as long as the 24V lighting load falls within the 12-24V constant current range and does not exceed 321.6W or 13.4A. The -40°C to +85°C operating range also supports outdoor temperature swings.

Is the HVG-320-24B a fit for large 24V linear lighting fixtures?

Yes, if the fixture is a 24V load and its electrical demand stays within 321.6W total output and 13.4A maximum current. The driver is designed for constant current operation from 12V to 24V.

How much 24V LED strip can I estimate from this driver?

Calculate estimated strip length by dividing 321.6W by the strip watts per meter. The formula is 321.6W / strip W per meter = maximum meters, but check your strip rated power per meter before sizing.

Is this model better suited to harsh outdoor conditions than the IP65 versions?

This model is rated IP67 waterproof, while the A and AB versions in the same 24V 320W group are IP65 water-resistant. It is also rated for -40°C to +85°C operation.

What are the 24V models in the HVG-320 family and their ratings?

HVG-320-24A, HVG-320-24AB, and HVG-320-24B are all rated at 321.6W, 24V, and 13.4A. HVG-320-24D2 is listed at 321.6W.
