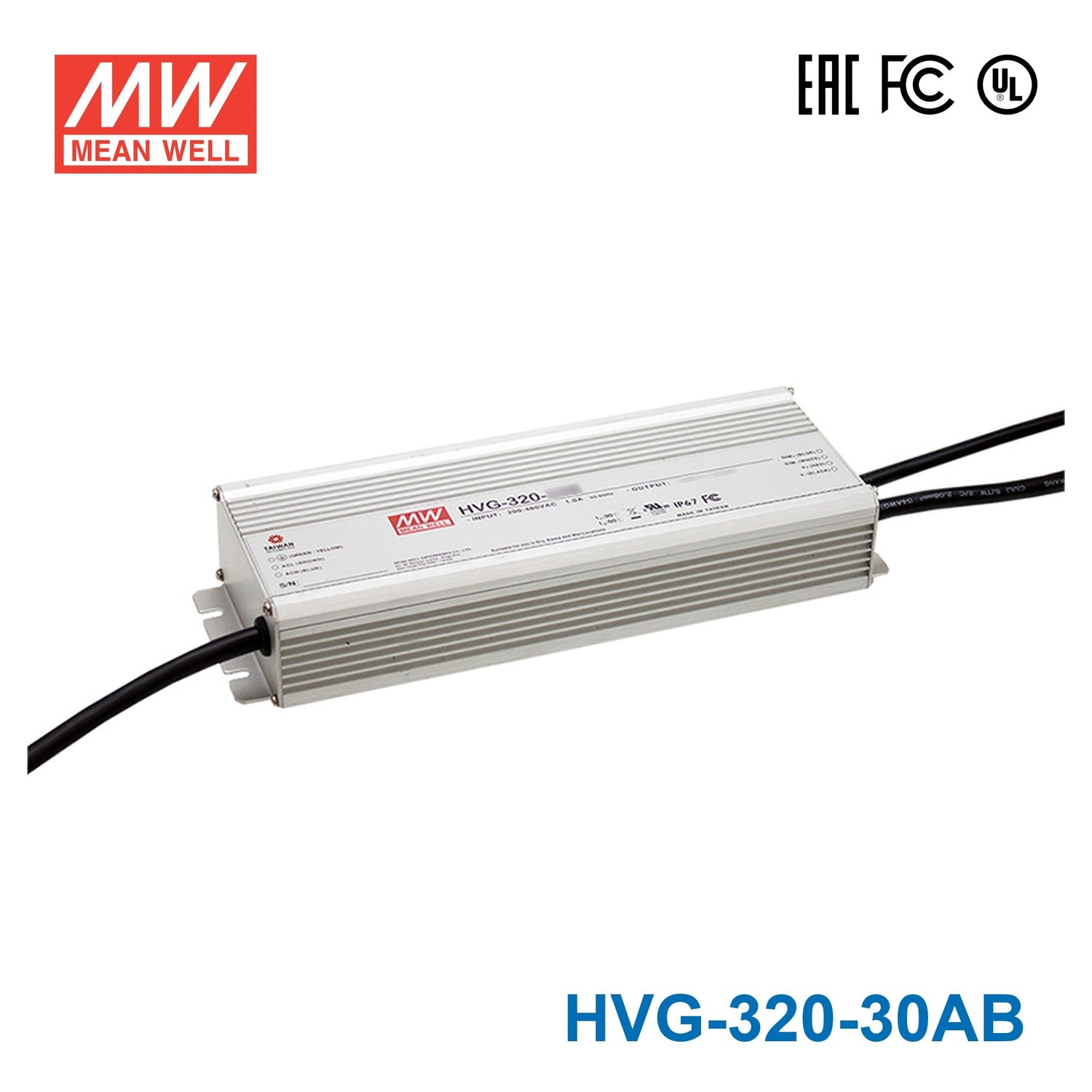

Mean Well HVG-320-30AB Power Supply 320W 30V - Adjustable and Dimmable

wide input range 180~528VAC, aluminium casing

SKU:

HVG-320-30AB

$129.69 USD ~~$466.50~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The HVG-320 is a 320W Mean Well power converter (input range: 180~528VAC).

Key Features

✓ Input voltage range: 180~528VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004 IP65 or IP67
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

HVG Series
Power Rating

321 Watt
Output Voltage

30 Volt
Rated Current

10.7 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

10V PWM,1-10V,Built-in Potentiometer,Resistance
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

10.32 in
Width

3.54 in
Height

1.72 in
Weight

4.41 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HVG-320-30AB for a 30V constant-current LED fixture that needs adjustable output?

Yes, this model is rated for 30V output with a 15-30V constant-current range and up to 10.7A. It is intended for constant-current LED fixtures that need to stay within those electrical limits.

Is the HVG-320-30AB a good fit for outdoor sign lighting?

It can be used for outdoor sign and lighting applications where an IP65 water-resistant driver is appropriate. Its -40°C to +85°C operating temperature range also supports use in harsh ambient conditions if the connected lighting load is rated accordingly.

Can this driver power larger 30V architectural or facade LED loads?

Yes, provided the load is a constant-current LED system that operates within 15-30V. With 321W maximum power and 10.7A output current, it suits higher-power 30V LED lighting loads better than smaller drivers in the series.

What LED strip length can I estimate from the HVG-320-30AB?

The sizing math is 321W divided by the strip's rated watts per meter. That gives a theoretical maximum length, but you should only use that estimate for LED strip systems built for a 30V constant-current driver and check your strip rated power per meter before sizing.

What are the main differences between the HVG-320-30A, 30AB, and 30B?

All three listed 30V versions share the same electrical output in the series data: 321W, 30V, and 10.7A. The direct sibling specs are HVG-320-30A at 321W 30V 10.7A, HVG-320-30AB at 321W 30V 10.7A, and HVG-320-30B at 321W 30V 10.7A.
