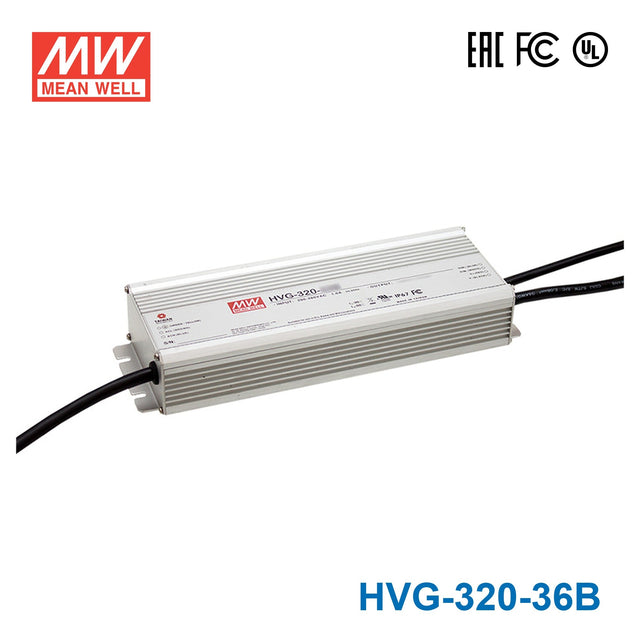

Mean Well HVG-320-36B Power Supply 320W 36V - Dimmable
The HVG-320 is a 320W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating320.4 Watt
-
Output Voltage36 Volt
-
Rated Current8.9 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length10.32 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.41 lb
::specification::
Frequently Asked Questions
Can I use the HVG-320-36B for outdoor 36V LED signage?
Yes, it can be used for 36V LED signage where the load matches a constant-current driver and stays within 320.4W and 8.9A. Its IP67 waterproof rating and -40°C to +85°C operating range make it suitable for exposed outdoor lighting environments.
Is the HVG-320-36B suitable for wet-location architectural lighting?
It is suited to wet-location lighting applications because the housing is rated IP67 waterproof. The aluminium casing and -40°C to +85°C operating temperature range also fit demanding indoor or outdoor lighting conditions.
Can this driver run a 36V constant-current LED strip system for long linear lighting runs?
It can support a 36V constant-current LED strip or linear lighting system if the total load does not exceed 320.4W or 8.9A. The constant-current operating mode and 18-36V CC range mean the strip or fixture needs to be designed for that electrical range.
How much 36V LED strip can the HVG-320-36B support?
Use the power formula: 320.4W ÷ your strip's rated watts per meter = maximum estimated length. Also confirm the strip is a 36V constant-current type and check your strip rated power per meter before sizing.
How does the HVG-320-36B compare with other 320-series 36V models?
Within the 320-series 36V group, HVG-320-36A, HVG-320-36AB, and HVG-320-36B are all rated 320.4W, 36V, and 8.9A. The HVG-320-36D2 is listed at 321.6W in the same series.
