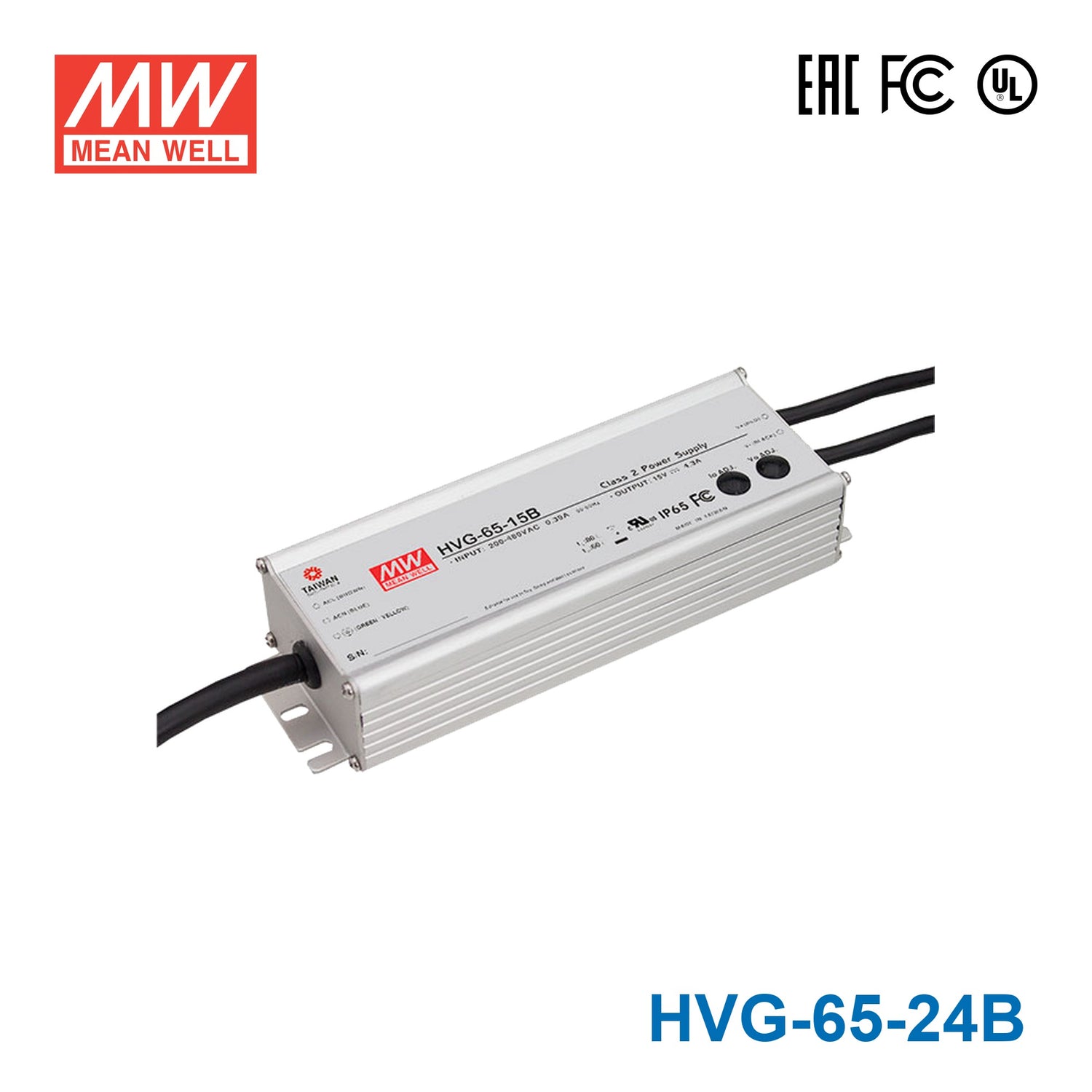

Mean Well HVG-65-24B Power Supply 65W 24V - Dimmable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating65 Watt
-
Output Voltage24 Volt
-
Rated Current2.71 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-24B for exposed outdoor 24V strip lighting?
Yes, if the 24V strip system is compatible with the driver's constant current output and stays within 65W and 2.71A. This model is rated IP67 waterproof, so it is better suited to exposed outdoor use than an IP65 water-resistant version. The load still needs to fit the 14-24V CC range.
Is this driver suitable for outdoor signage or illuminated letters?
It can be used for 24V signage and illuminated letter lighting loads that stay below 65W total. The IP67 housing and aluminium casing make it appropriate for demanding outdoor environments, and the operating temperature range is -40°C to +80°C. Output is 24V at up to 2.71A.
Can the HVG-65-24B power 24V landscape or facade accent lighting?
Yes, for 24V accent or facade lighting systems that match the driver's constant current operation and remain within 65W. The 180-528VAC input range supports a wide mains range, and the IP67 enclosure fits wet-location use better than IP65. The connected load must stay within the 14-24V CC range.
How much 24V LED strip can this 65W driver support?
Maximum strip length is calculated as 65W divided by the strip's rated power per meter. Total load must stay within 65W and within the driver's 2.71A output at 24V. Check your strip rated power per meter before sizing the run.
Is the HVG-65-24B better for wet areas than the 24A or 24AB versions?
For environmental protection, yes: this model is IP67 waterproof, while the 24A and 24AB versions are IP65 water-resistant. All three are 24V, 65W, and 2.71A models, but the B version is the one positioned for more exposed wet outdoor conditions. Electrical output stays the same at 24V and 2.71A.
