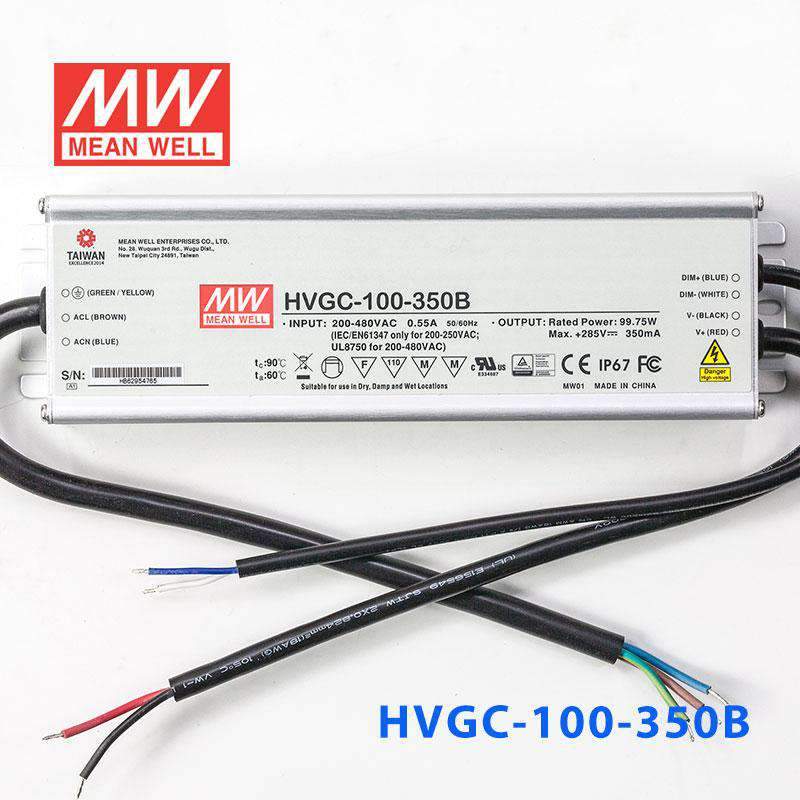

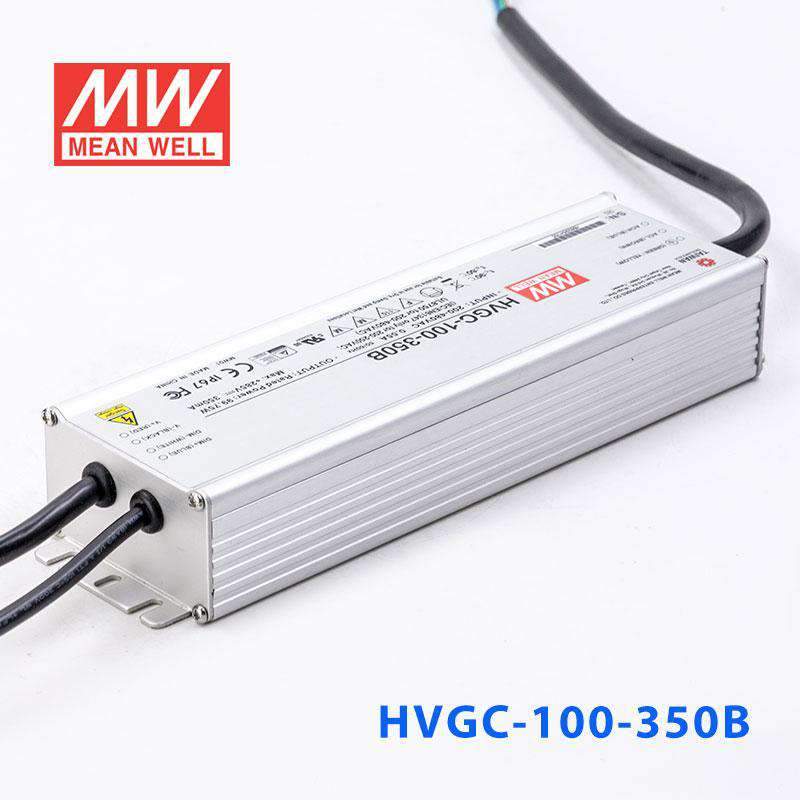

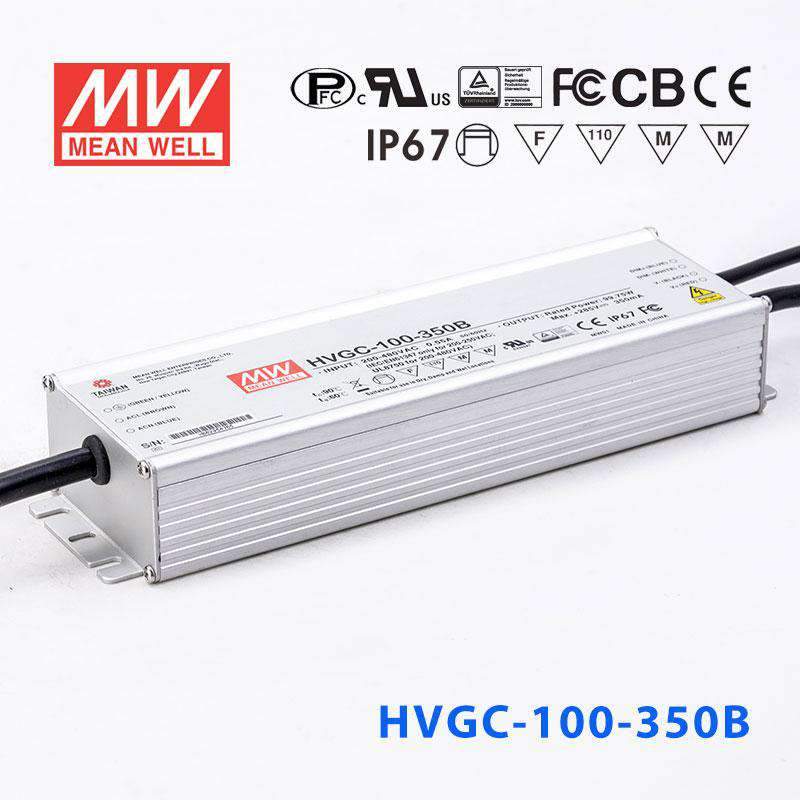

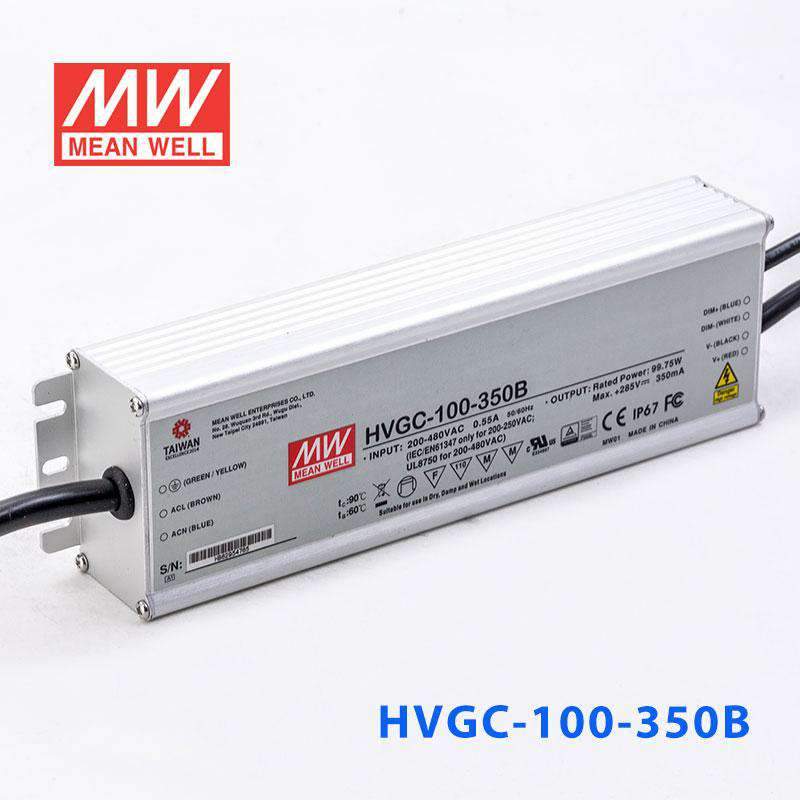

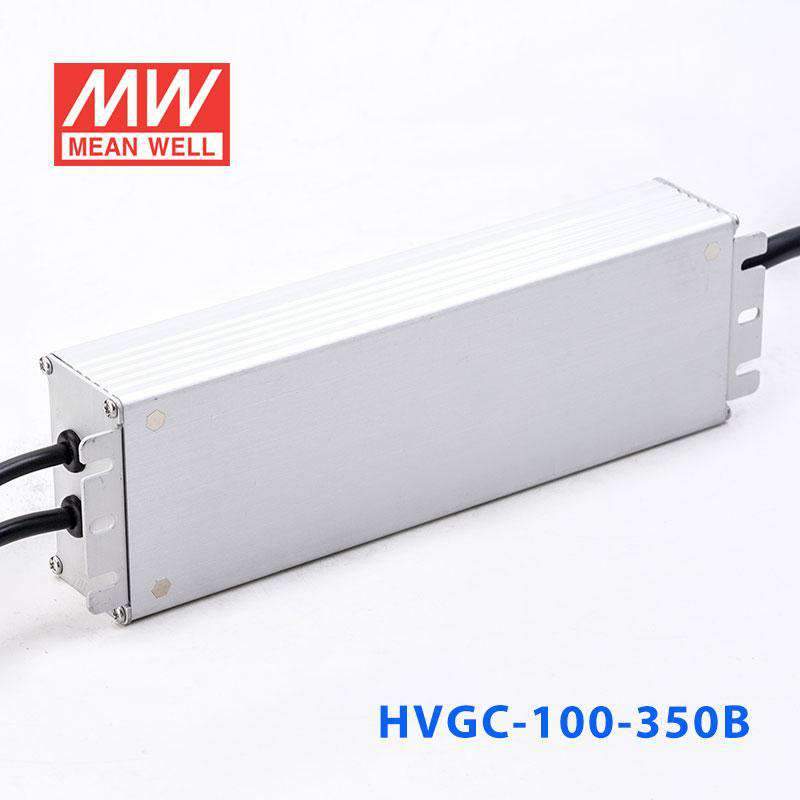

Mean Well HVGC-100-350B Power Supply 75W 350mA - Dimmable

wide input range 180~528VAC, aluminium casing

SKU:

HVGC-100-350B

$77.72 USD ~~$288.00~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

180~528VAC wide input range

IP67 / IP65 design

Built-in active PFC

Protections: Short circuit / Over voltage / Over temperature

High efficiency up to 91%

Cooling by free air convection

Suitable for dry, damp. and wet location

Suitable for LED lighting and street lighting applications

Output current adjustable through output cable or internal potentiometer

Constant current design (C.C. mode)

Multiple models for choice: A-Type: IP65 rated. Constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance) D-Type (option): IP67 rated. Timer dimming function, contact MEAN WELL for details

5 years warranty

General Specification

AC input voltage range	180~528VAC (single phase); 254~747VDC
AC inrush current (max.)	Cold start, 25A at 440VAC
Current adjustment range	60%~100%
Over voltage protection	105%~115% rated output voltage
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	Design refer to UL8750, ENEC EN61347-1, EN61347-2-13, EN62384
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B
Connection Input	UL rated, STW 18AWGx3C (30cm)
Connection Output A&D-Type	SJTW 18AWGx2C (30cm)
Connection Output B-Type	SJTW 18AWGx2C (30cm) + UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	236x 68x 38.8

Specifications

Brand

Mean Well
Series

HVGC Series
Power Rating

99.75 Watt
Output Voltage

285 Volt
Rated Current

0.35 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

0-10V,10V PWM,Resistance
Standards Met

CB,CE,EAC,FCC,TUV,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

9.29 in
Width

2.68 in
Height

1.53 in
Weight

2.6 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HVGC-100-350B for outdoor LED downlights or façade lighting?

Yes, this version is better suited to wet locations because it carries an IP67 waterproof rating. Electrically, it provides 350mA constant current with a 29-285V operating range and up to 99.75W, so the LED load must fit within those limits. It is for constant current fixtures rather than constant voltage products.

Is the HVGC-100-350B suitable for weather-exposed signage modules?

It can be suitable where the LED signage modules are designed for 350mA constant current operation and the full load falls within 29-285V. The IP67 housing makes this B version the most protected of the listed 350mA HVGC-100 variants for outdoor exposure. The exact number of LEDs still depends on each LED's forward voltage.

Would this driver work for a small LED array installed in a demanding industrial environment?

It is designed for harsh conditions, with IP67 protection and an operating temperature range of -40°C to +90°C. For the electrical side, the array must require 350mA constant current and have a total forward voltage within 29-285V, with total power within 99.75W. That combination makes it relevant for rugged small-array applications.

How many LEDs can the HVGC-100-350B drive in series?

That cannot be stated as a fixed LED count because the number of LEDs depends on the forward voltage of each LED. The driver's constant current range is 29-285V at 350mA, so the total series forward voltage has to stay inside that range. This is why matching by forward voltage is more accurate than matching by LED count.

How does the HVGC-100-350B compare with the A and AB versions?

All three 350mA HVGC-100 versions share the same core electrical ratings: 99.75W output and a 29-285V constant current range. The listed enclosure difference is that the A and AB versions are IP65, while the B version is IP67. That makes the B version the stronger choice when higher ingress protection is required.
