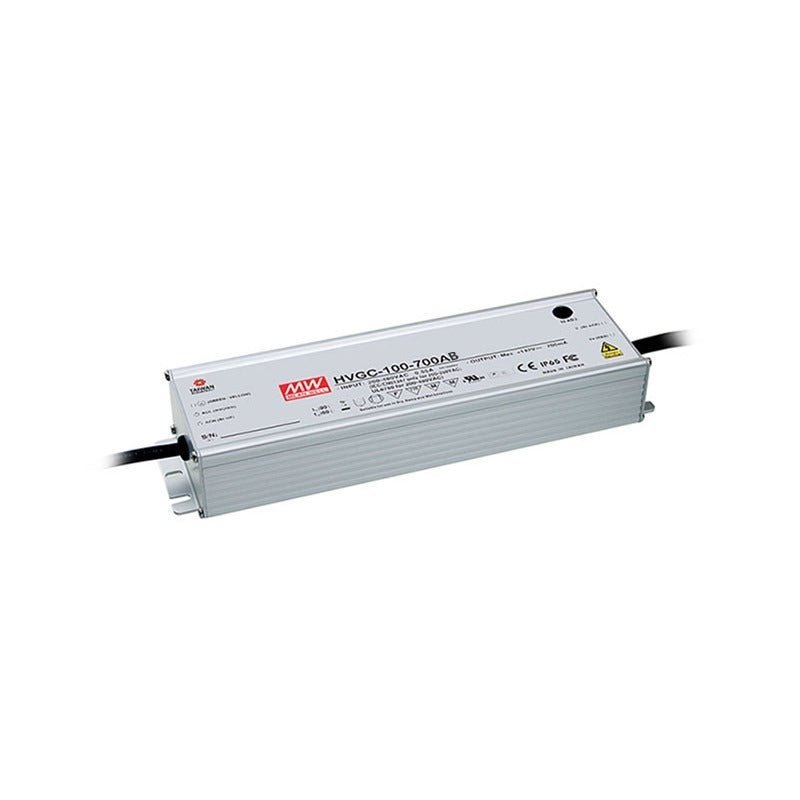

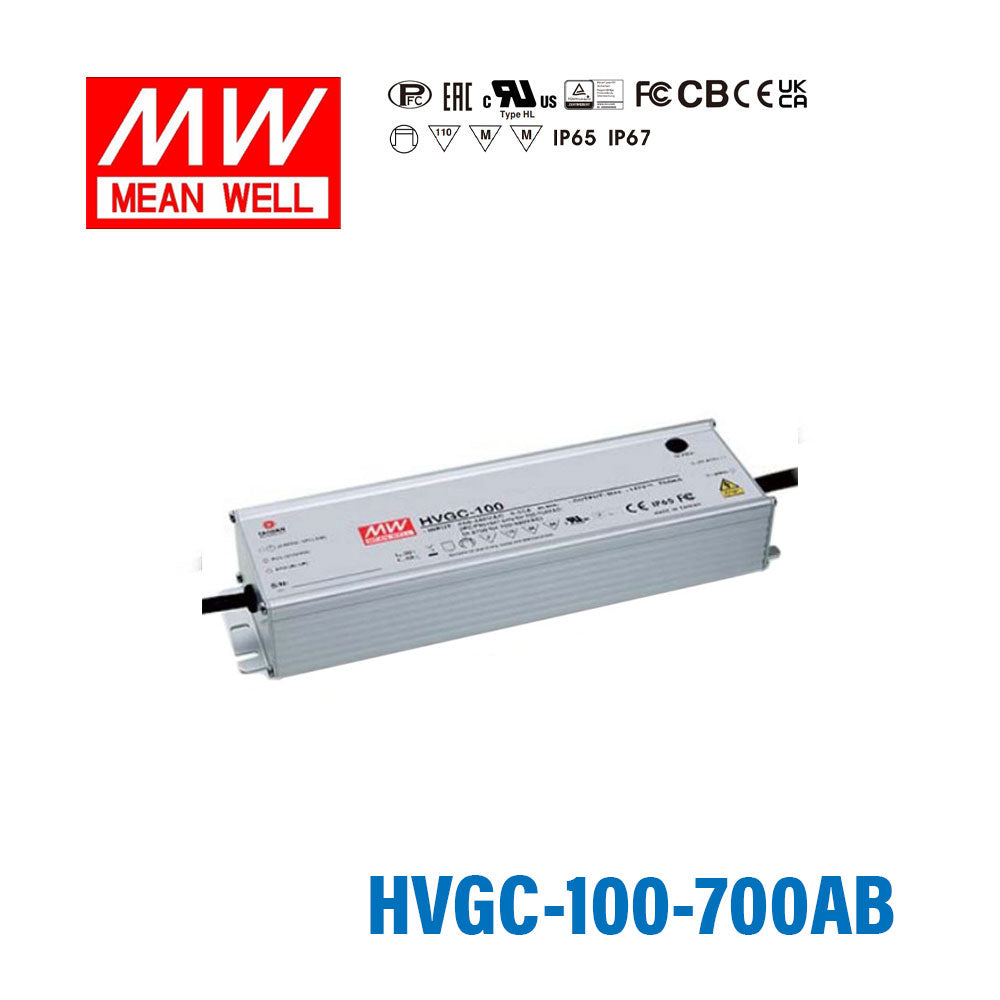

Mean Well HVGC-100-700AB Power Supply 100W 700mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-100-700AB Power Supply 100W 700mA - Adjustable and D...
The HVGC-100 is a 99.4W Mean Well AC-DC constant current LED driver (input: 180~528VAC, output: 142V, operating temperature: -40~+90°C).
Key Features
- ✓ Input voltage: 180~528VAC
- ✓ Output voltage (max): 142V
- ✓ Rated output current: 700mA
- ✓ Ingress protection: IP65
- ✓ Operating temperature: -40~+90°C
- ✓ Safety certifications: CB, CE, EAC, FCC, TÜV, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating99.4 Watt
-
Output Voltage142 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.29 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.6 lb
::specification::
Frequently Asked Questions
Can the HVGC-100-700AB power 700mA LED downlights in commercial lighting projects?
Yes, it is designed for constant current operation at 700mA. The LED load must have a combined forward voltage within 15-142V and remain within the driver's 99.4W rating. It should be used with constant current downlights rather than constant voltage products.
Is this driver suitable for signage modules that need more current than a 350mA model provides?
Yes, this model outputs 700mA, while the 350mA HVGC-100 versions output half that current. It is intended for constant current signage modules or small LED arrays whose total forward voltage falls within 15-142V and whose total load stays within 99.4W. The actual LED quantity depends on each LED's forward voltage.
Can I use the HVGC-100-700AB for compact LED arrays with a lower total voltage than the 350mA versions support?
Yes, this 700mA version operates across a 15-142V constant current range, which is lower than the 29-285V range of the 350mA versions. That makes it appropriate for 700mA arrays whose total forward voltage fits inside 15-142V. It remains a constant current driver, not a constant voltage unit.
How do I check compatibility between this driver and my LEDs?
Start by confirming the LEDs are meant for 700mA constant current operation. Then make sure the total LED forward voltage stays within 15-142V; the number of LEDs depends on the forward voltage of each LED, so there is no single fixed count. The full load must also stay within 99.4W.
What are the main differences between the HVGC-100-700AB and the other HVGC-100 current variants?
The 700mA HVGC-100 versions are rated at 99.4W and operate over a 15-142V constant current range. The 350mA HVGC-100 versions are rated at 99.75W and operate over a 29-285V constant current range. Within the 700mA group, the A, AB, and B versions keep the same core electrical ratings.
