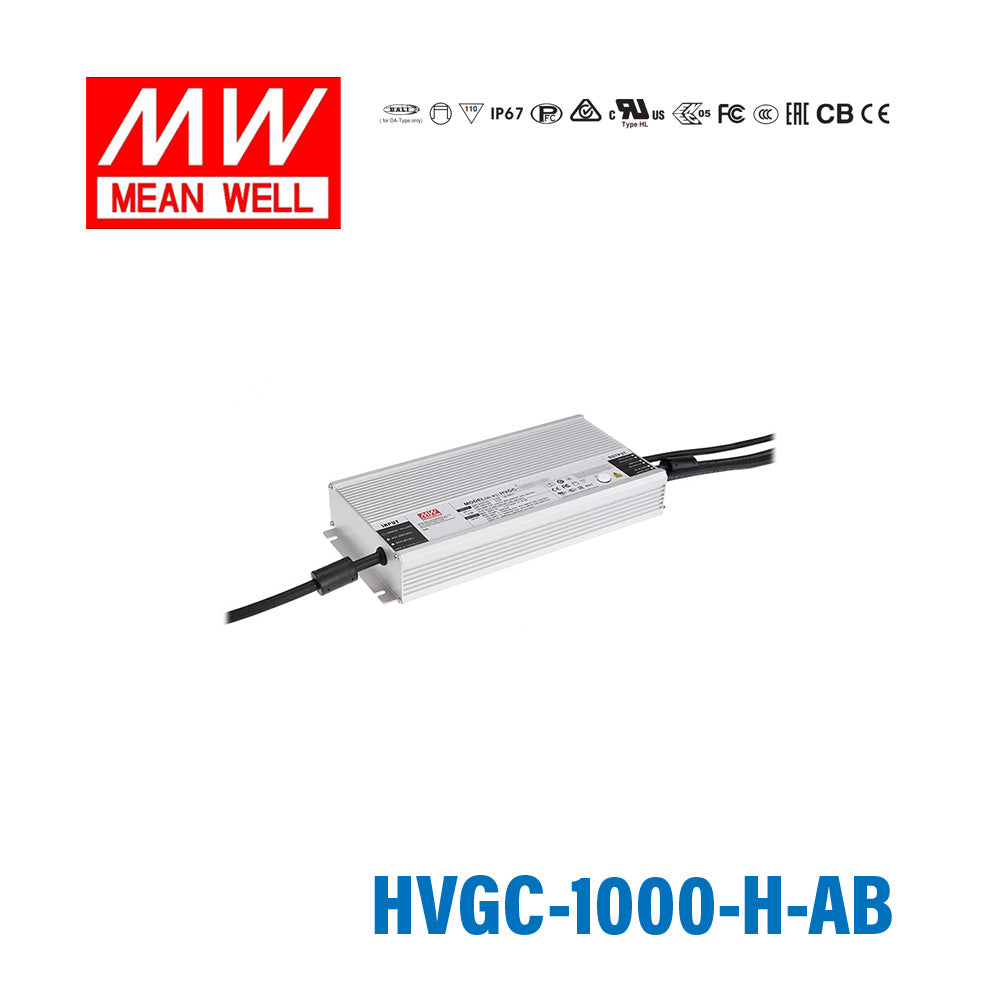

Mean Well HVGC-1000-H-AB Power Supply 1000W 5600mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-1000-H-AB Power Supply 1000W 5600mA - Adjustable and...
The HVGC-1000-H is a 1000W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating1008 Watt
-
Output Voltage190 Volt
-
Rated Current5.6 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,FCC,RCM,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length12.2 in
-
Width5.67 in
-
Height1.91 in
-
Weight9.26 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-1000-H-AB for large constant current LED downlight arrays?
Yes, this model provides 5600mA constant current and is intended for high-power LED loads that need a higher drive current. The total LED forward voltage still has to stay within the 70-180V constant current range and within the 1008W rating.
Is this driver suitable for high-power signage module assemblies?
It can be suitable for signage module assemblies only when the modules are built for constant current operation at 5600mA. It is not a constant voltage power supply, so it should not be used for modules that require a fixed voltage output.
Can the HVGC-1000-H-AB run a high-output small LED array outdoors?
Yes, if the array is designed for 5600mA constant current and its total forward voltage falls within 70-180V. The IP67 waterproof rating and -40°C to +90°C operating range support use in demanding indoor or outdoor conditions.
How do I size LED compatibility for this 5600mA driver?
The LED load must be specified for constant current at 5600mA, and the full forward voltage of the array must stay within the 70-180V CC range. The number of LEDs depends on the forward voltage of each LED, so compatibility must be checked by voltage rather than by a fixed LED count.
How does the HVGC-1000-H-AB compare with the other 1000W HVGC versions?
The HVGC-1000-H-AB is rated at 5600mA with a 70-180V CC range and 1008W. The HVGC-1000-M-AB is rated at 4200mA with a 95-240V CC range and 1008W, while the HVGC-1000-L-AB is rated at 2800mA with a 150-380V CC range and 1003.2W.
