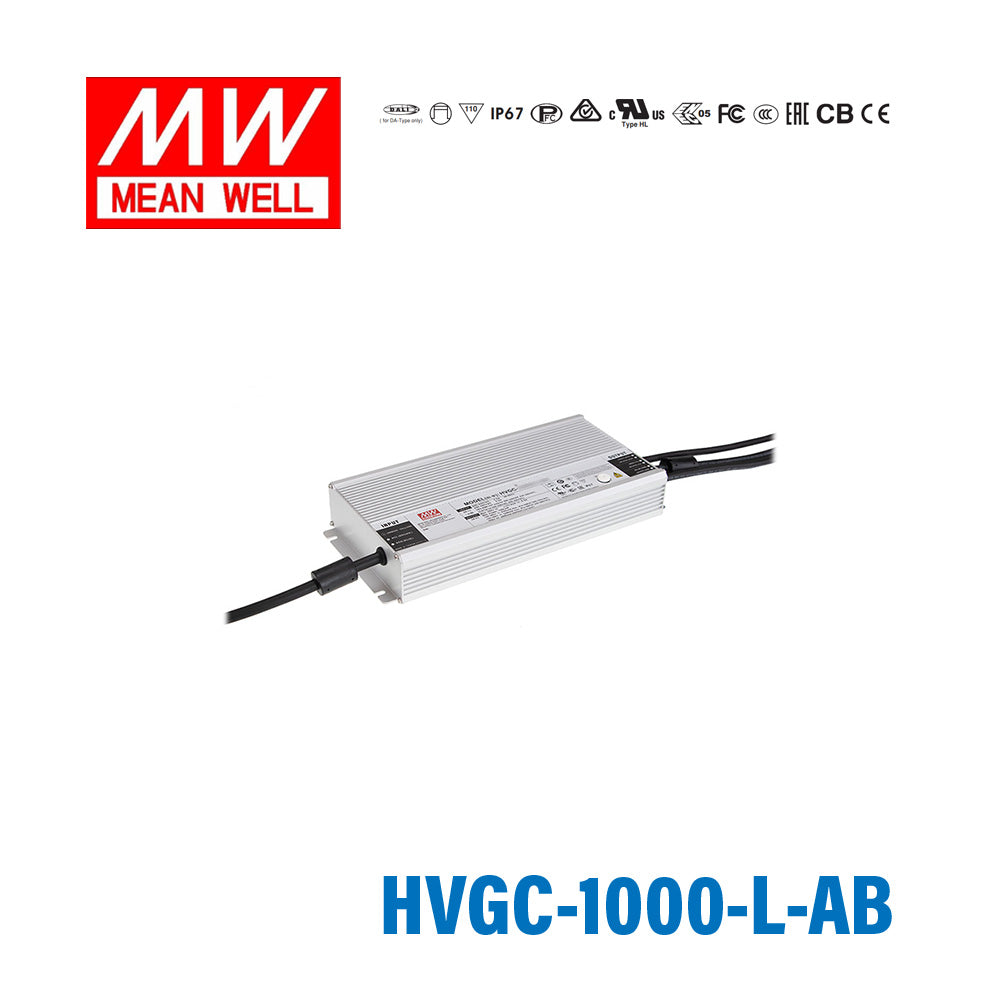

Mean Well HVGC-1000-L-AB Power Supply 1000W 2800mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-1000-L-AB Power Supply 1000W 2800mA - Adjustable and...
The HVGC-1000-L is a 1003.2W Mean Well AC-DC constant current LED driver (input: 180~528VAC, output: 400V, operating temperature: -40~+90°C).
Key Features
- ✓ Input voltage: 180~528VAC
- ✓ Output voltage (max): 400V
- ✓ Rated output current: 2800mA
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+90°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, FCC, RCM, TÜV, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating1003.2 Watt
-
Output Voltage400 Volt
-
Rated Current2.8 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,FCC,RCM,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length12.2 in
-
Width5.67 in
-
Height1.91 in
-
Weight9.26 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-1000-L-AB for high-voltage constant current LED downlight systems?
Yes, this model is intended for constant current LED loads at 2800mA and supports a high 150-380V constant current range. That makes it a fit for LED downlight systems that need higher series voltage while staying within the 1003.2W rating.
Is this driver appropriate for signage modules built as high-voltage constant current strings?
It can be, provided the signage modules are designed for 2800mA constant current operation. It should not be used in place of a constant voltage supply for signage modules that require a fixed voltage output.
Can the HVGC-1000-L-AB run a small LED array with a high total forward voltage?
Yes, this driver is the highest-voltage version of the 1000W group here, with a 150-380V CC range. It is suitable for a small LED array only when the array is rated for 2800mA constant current and its total forward voltage stays inside that range.
How do I check whether my LEDs are compatible with this driver?
Your LEDs must be designed for constant current at 2800mA, and the complete load must fall within the 150-380V constant current range. The actual number of LEDs depends on the forward voltage of each LED, so compatibility cannot be determined from LED count alone.
Is the HVGC-1000-L-AB suitable for wet or harsh environments?
Yes, it carries an IP67 waterproof rating and operates from -40°C to +90°C. Its aluminium casing is also intended for durable use in demanding environments.
