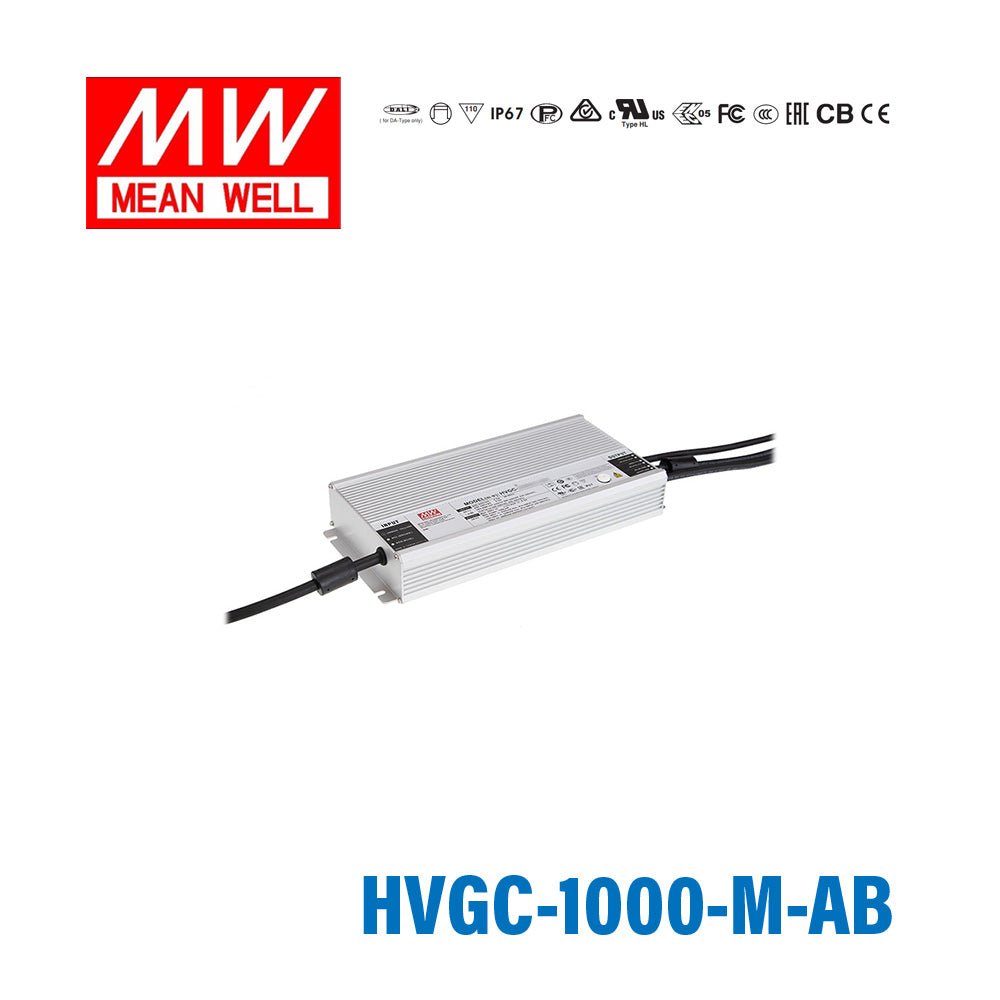

Mean Well HVGC-1000-M-AB Power Supply 1000W 4200mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-1000-M-AB Power Supply 1000W 4200mA - Adjustable and...
The HVGC-1000-M is a 1000W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating1008 Watt
-
Output Voltage250 Volt
-
Rated Current4.2 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,FCC,RCM,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length12.2 in
-
Width5.67 in
-
Height1.91 in
-
Weight9.26 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-1000-M-AB for constant current LED downlight banks?
Yes, this driver supplies 4200mA constant current and is suitable for LED downlight banks that require that drive current. The connected load must also stay within the 95-240V CC range and the 1008W power rating.
Will this work with signage modules that need a constant current driver?
Yes, if the signage modules are specified for constant current operation at 4200mA. It is not a constant voltage power supply, so it is not the correct choice for modules designed around fixed-voltage input.
Can the HVGC-1000-M-AB power a medium-voltage small LED array outdoors?
Yes, as long as the LED array is designed for 4200mA constant current and its total forward voltage stays within 95-240V. The IP67 waterproof rating and -40°C to +90°C operating range support use in exposed conditions.
How should I judge LED compatibility with this 4200mA driver?
The LED load needs a constant current driver rated at 4200mA, and the total LED forward voltage must stay within the 95-240V CC output range. The number of LEDs depends on the forward voltage of each LED, so there is no single fixed LED count for this model.
How does the HVGC-1000-M-AB compare with the other 1000W HVGC models?
The HVGC-1000-M-AB is rated at 4200mA with a 95-240V CC range and 1008W. The HVGC-1000-H-AB is rated at 5600mA with a 70-180V CC range and 1008W, while the HVGC-1000-L-AB is rated at 2800mA with a 150-380V CC range and 1003.2W.
