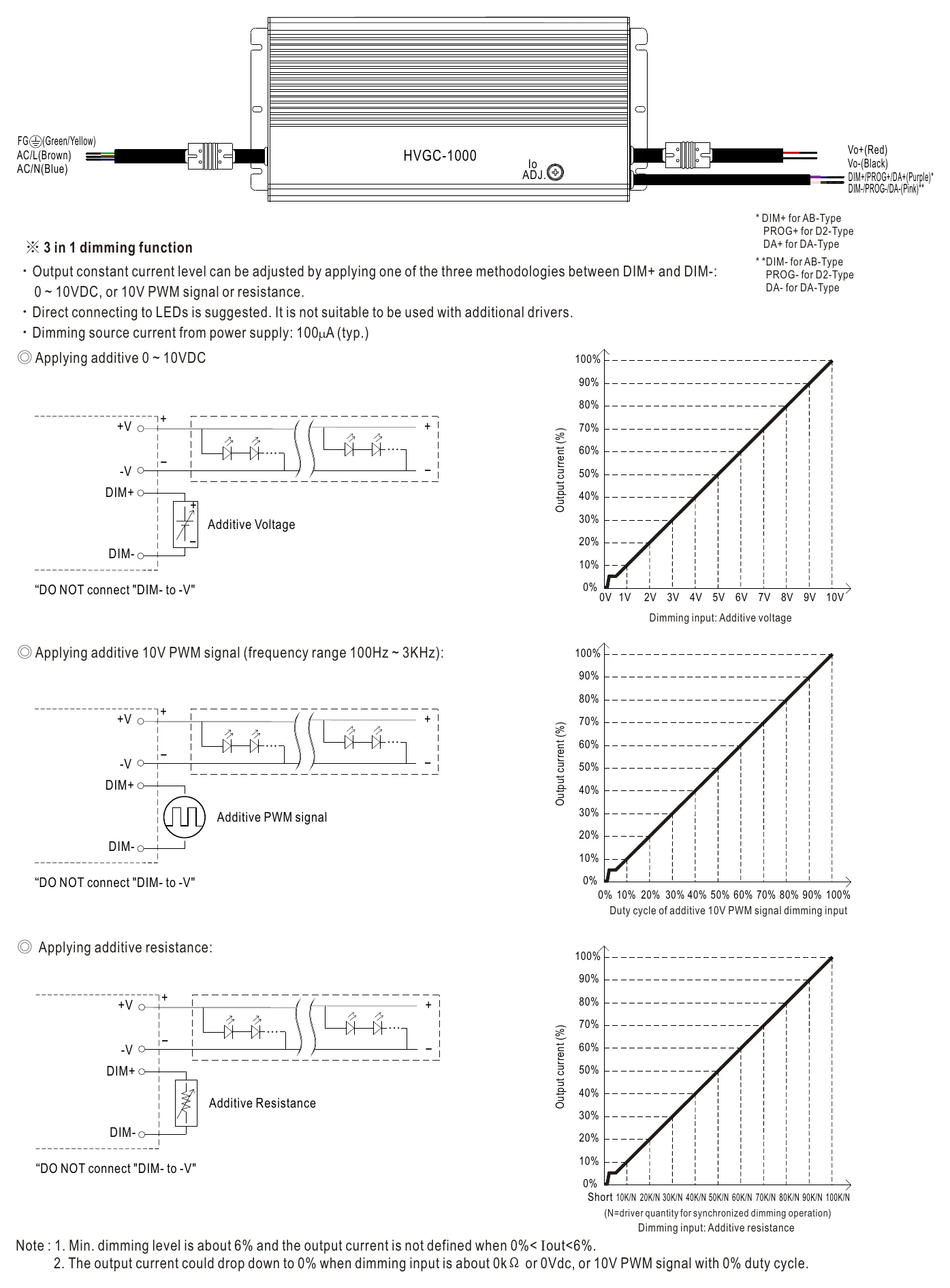

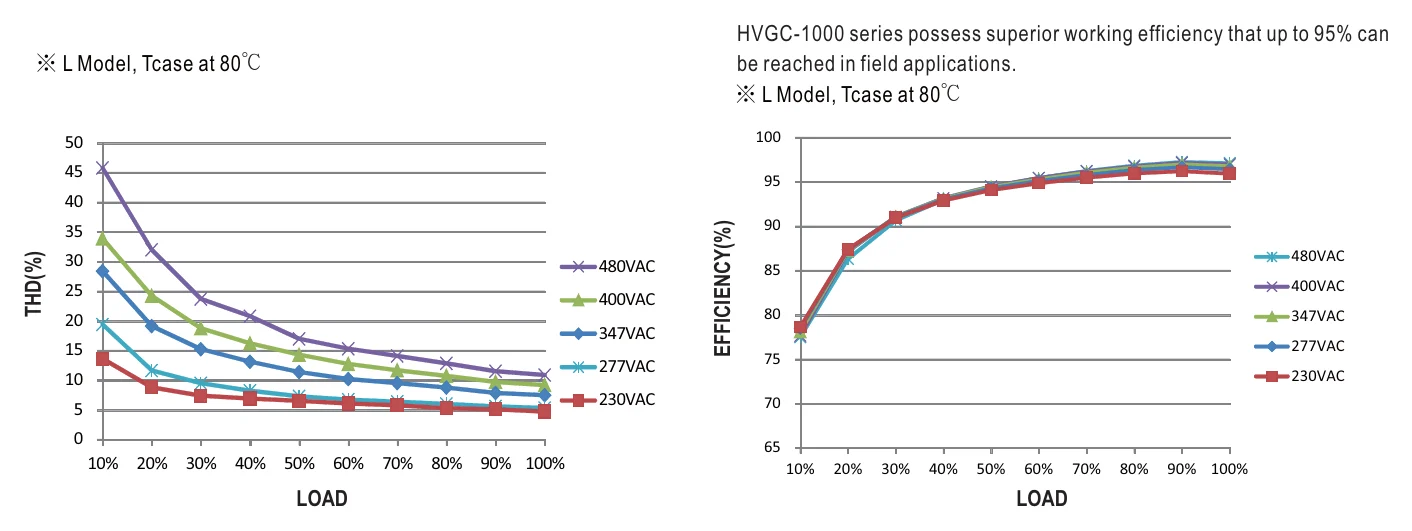

HVGC-1000-H-AB is the model of this series: rated current 5600mA, rated power 1008W, typical efficiency 96%. Type AB: Standard constant power output with 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) and built-in potentiometer (IP67).
HVGC-1000 series is a 1000W LED AC/DC driver featuring the constant power mode with wide output voltage range. HVGC-1000 operates from 180~528VAC and offers models with different rated current ranging between 1320mA and 7000mA. Thanks to the high efficiency up to 96%, with the fanless design, all models are able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications, such as horticulture lighting and stadium light. HVGC-1000 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Wide input range 180 ~ 528VAC
- Constant power mode output
- Metal housing with ClassⅠdesign
- Surge protection with 8KV/4KV
- Built-in active PFC function
- IP67 design for indoor or outdoor installation
- 3 in 1 dimming (dim to off and isolation)
- Support with auxiliary DC output 12V/500mA
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 5600mA
- RATED POWER
- 1008W
- CONSTANT CURRENT REGIONNote.2
- 70 ~ 180V
- FULL POWER CURRENT RANGE
- 5600~7000mA
- OPEN CIRCUIT VOLTAGE (max.)
- 190V
- CURRENT ADJ. RANGE
- 2800~7000mA
- CURRENT RIPPLE
- 3.0% max. @ rated current
- CURRENT TOLERANCE
- ±5%
- AUXILIARY POWER
- Nominal 12V (Tolerance: ±10%, R&N:150mVp-p)@500mA for HVGC-1000A only
- SET UP TIMENote.4
- 500ms/230VAC, 347VAC, 480VAC
INPUT
- VOLTAGE RANGENote.3

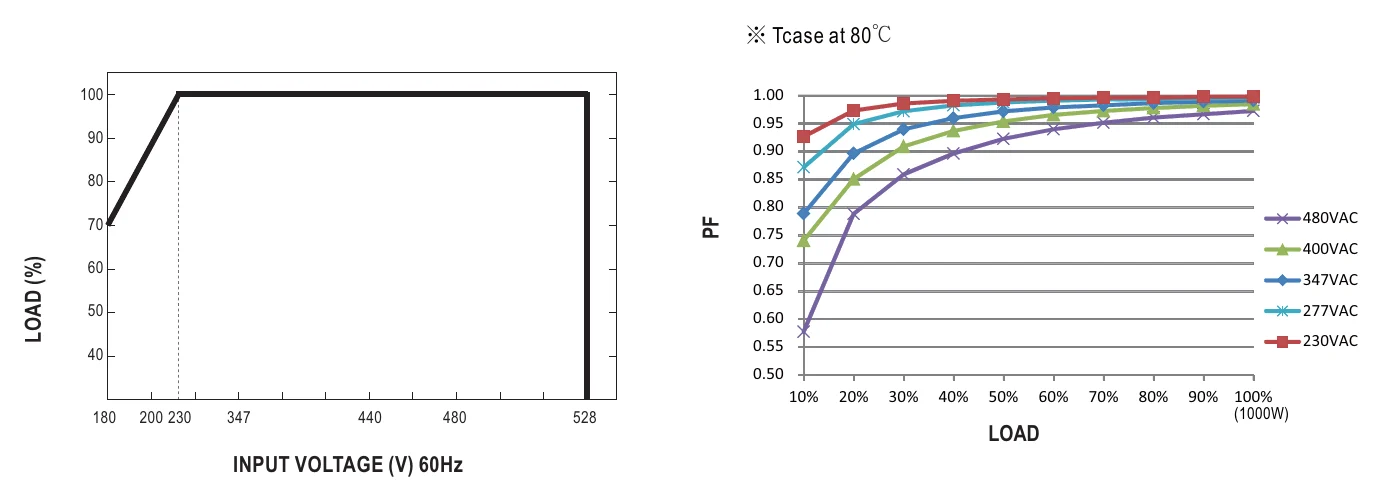

- 180 ~ 528VAC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98 / 230VAC, PF≧0.98 / 277VAC, PF≧0.97 / 347VAC, PF≧0.96 / 400VAC, PF≧0.95 / 480VAC at full load (Please refer to "Power Factor Characteristic" section)
- TOTAL HARMONIC DISTORTION
- THD< 10% @ 347VAC> 80% loading (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
- EFFICIENCY (Typ.)
- 96%
- AC CURRENT (Typ.)
- 3.15A / 347VAC 2.28A / 480VAC
- INRUSH CURRENT(Typ.)
- COLD START 40A(twidth=1850μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
- MAX. NO. of PSUs on CIRCUIT BREAKER
- 4 Unit for 30A type B circuit breaker / 8 unit for 30A type C circuit breaker at 480VAC
- LEAKAGE CURRENT
- <0.75mA / 480VAC
- STANDBY POWER CONSUMPTION
- Standby power consumption <2W for AB-Type(Dimming OFF)
PROTECTION
- SHORT CIRCUIT
- Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 190 ~ 205V Shut down output voltage, re-power on to recovery
- OVER TEMPERATURE
- Shut down output voltage, re-power on to recovery
ENVIRONMENT
- WORKING TEMP.

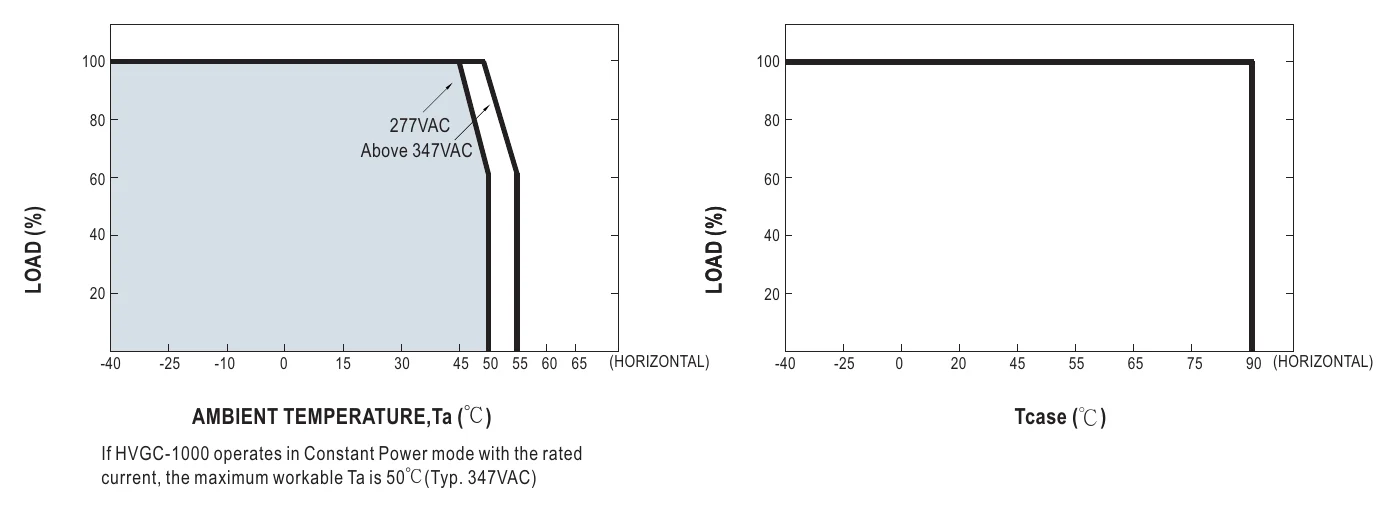

- Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CAN/CSA C22.2 NO. 250. 13-17, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; CCC GB/T19510.1,GB/T19510.213; EAC TP TC 004, IP67 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.8KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
FCC Part 15 class B, EAC TP TC 020
Parameter Standard Test Level Conducted BS EN/EN55015(CISPR15)/GB/T 17743 Radiated BS EN/EN55015(CISPR15)/GB/T 17743 Harmonic Current BS EN/EN61000-3-2/GB17625.1 Class C @load≥50% Voltage Flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN61547, CCC GB/T 17743 , GB17625.1
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact Radiated BS EN/EN61000-4-3 Level 2 EFT/Burst BS EN/EN61000-4-4 Level 3 Surge BS EN/EN61000-4-5 4KV/Line-Line 8KV/Line-Earth Conducted BS EN/EN61000-4-6 Level 2 Magnetic Field BS EN/EN61000-4-8 Level 4 Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS
- MTBF
- 682.8K hrs min. Telcordia SR-332(Bellcore) ; 68.4K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION

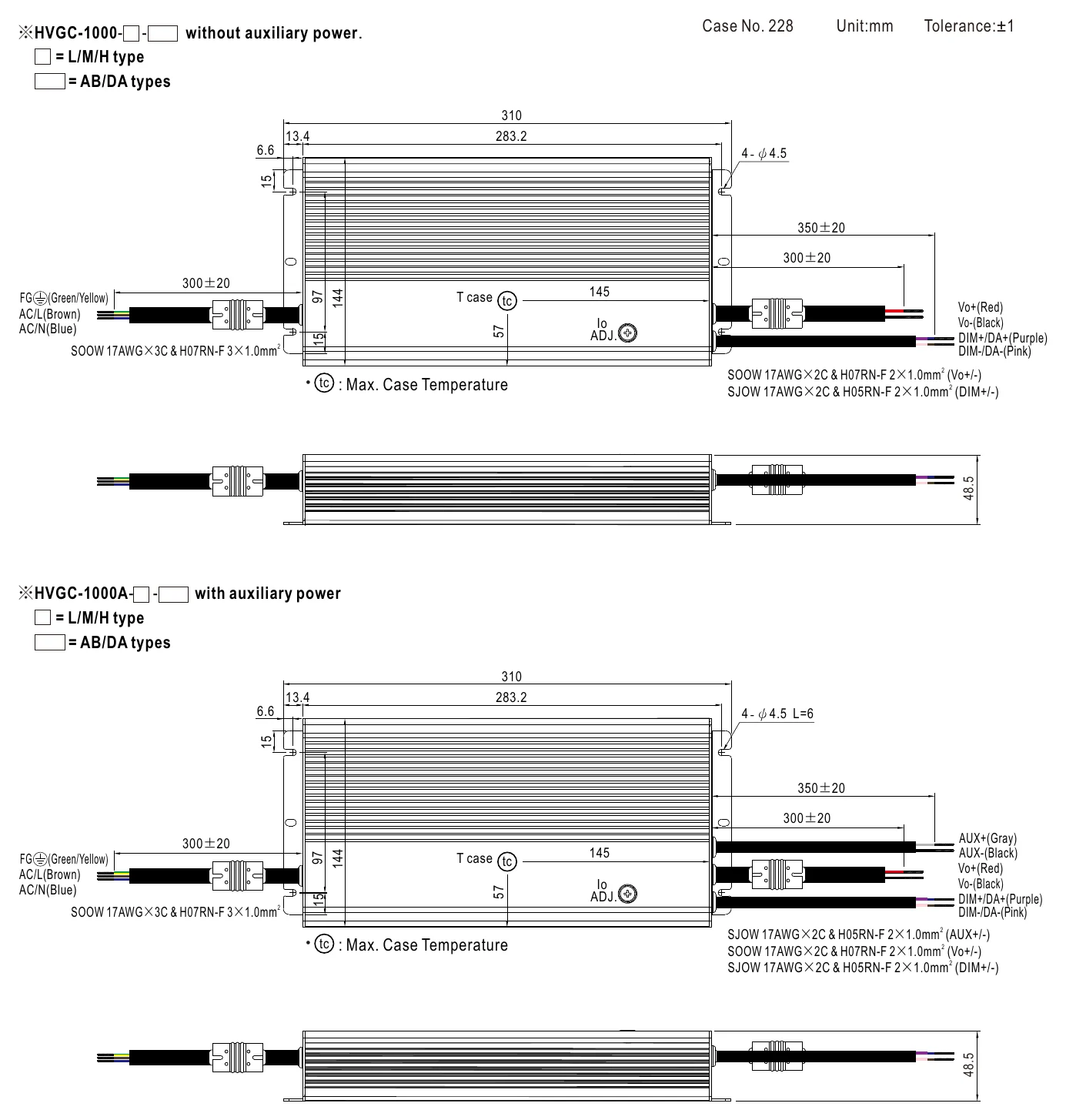

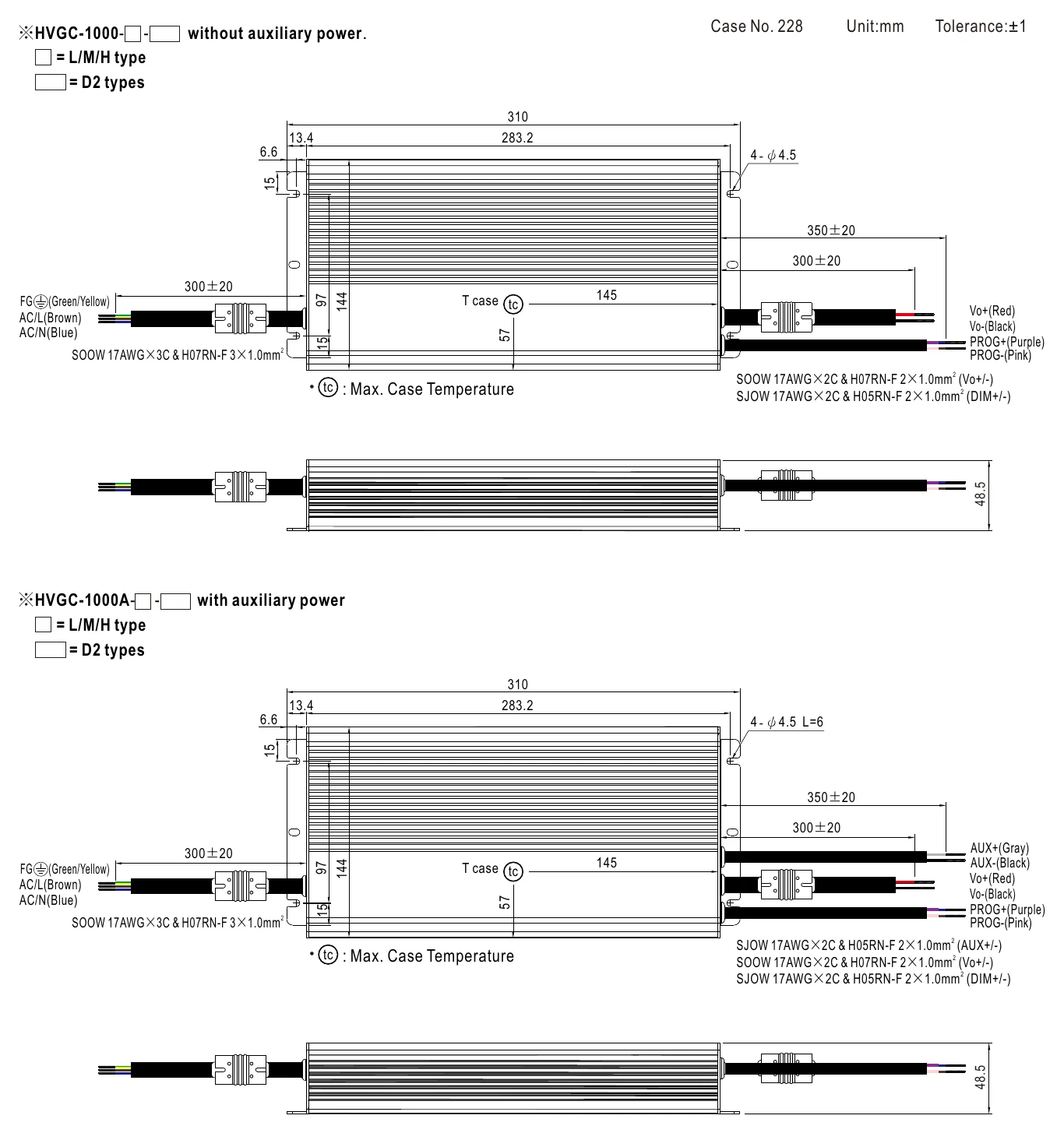

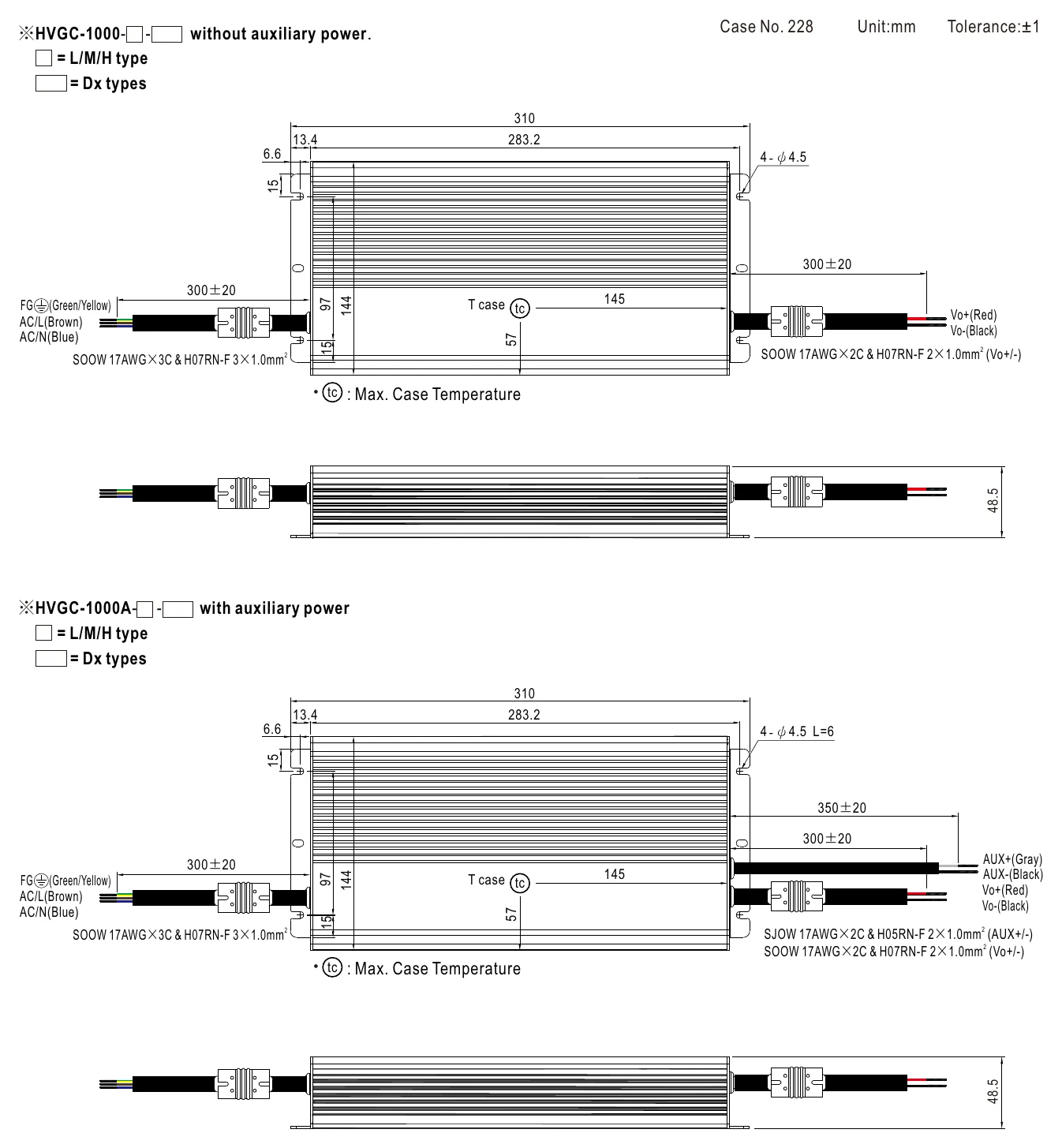

- 310*144*48.5mm (L*W*H)
- PACKING
- 4.4Kg;4pcs/18.75Kg/1.16CUFT
Certifications & ratings
- Type
- HL
MODEL ENCODING
- AB (this model)
- Standard constant power output with 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) and built-in potentiometer; IP67
- D2
- Built-in Smart timer dimming and programmable function; IP67
- DX

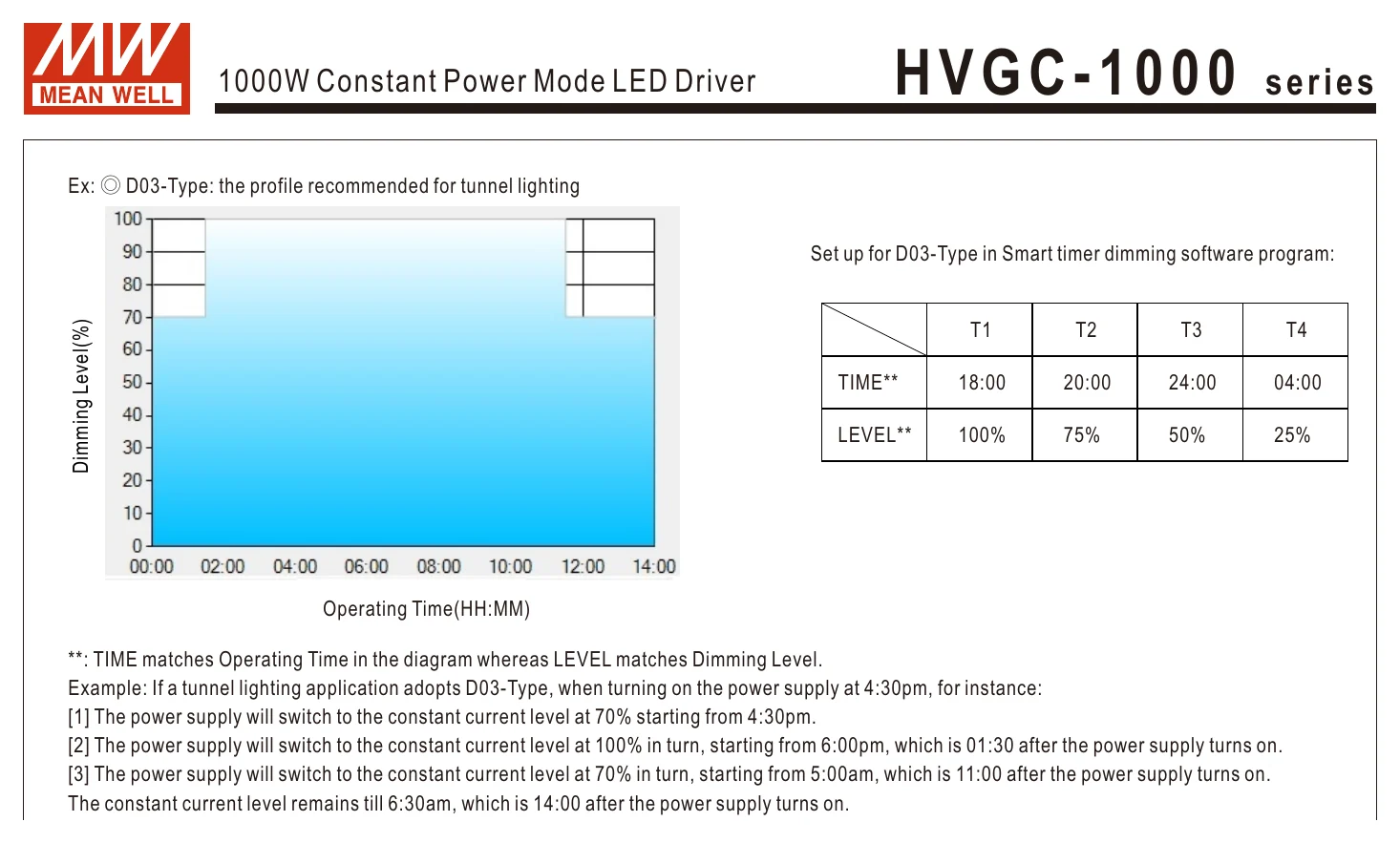

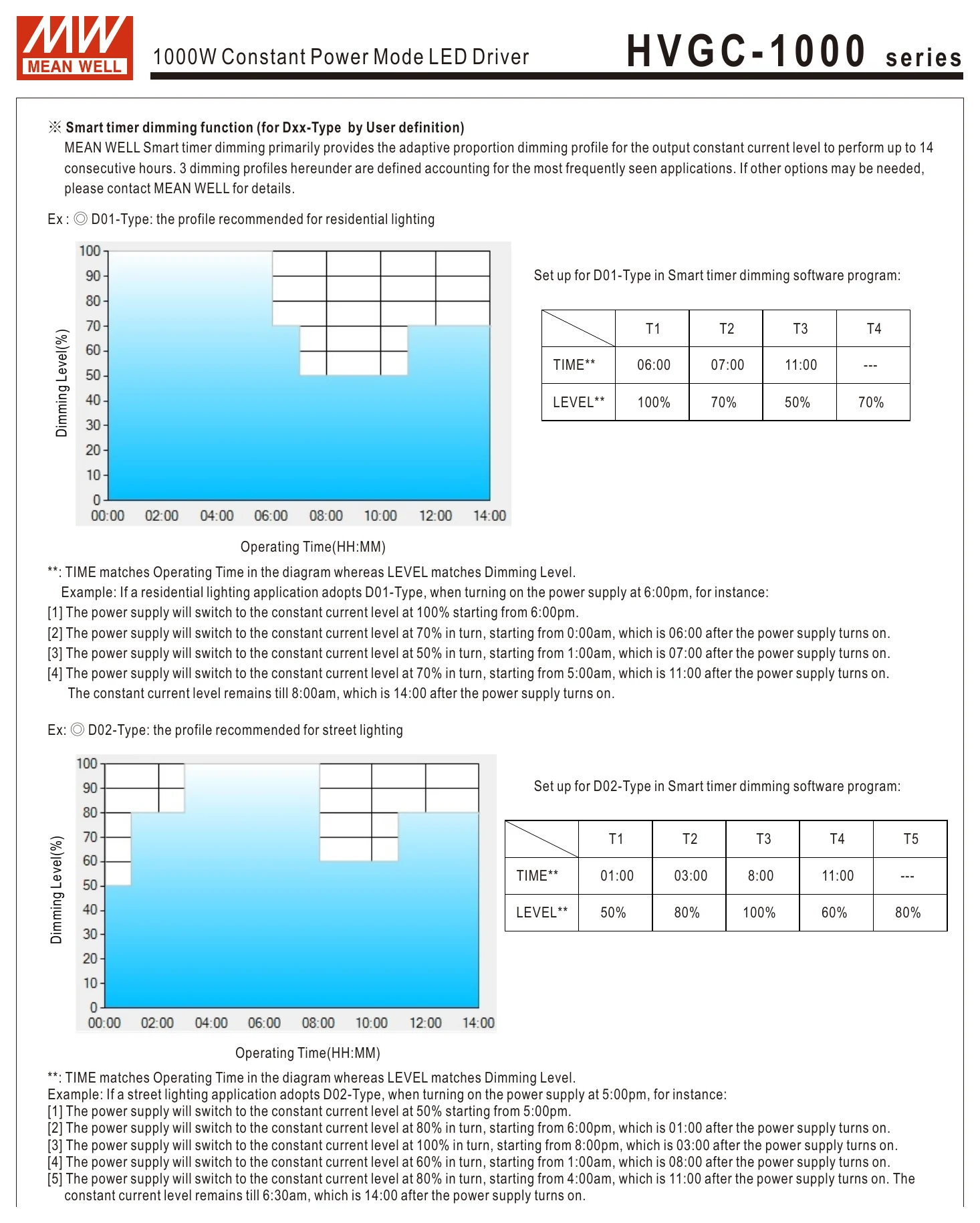

- Built-in Smart timer dimming function by user request; IP67
- DA
- DALI-2 control technology with lo Adjustable via built-in potentiometer; IP67
Test conditions and notes11
- 1. All parameters NOT specially mentioned are measured at 347VAC input, rated current and 25℃ of ambient temperature.

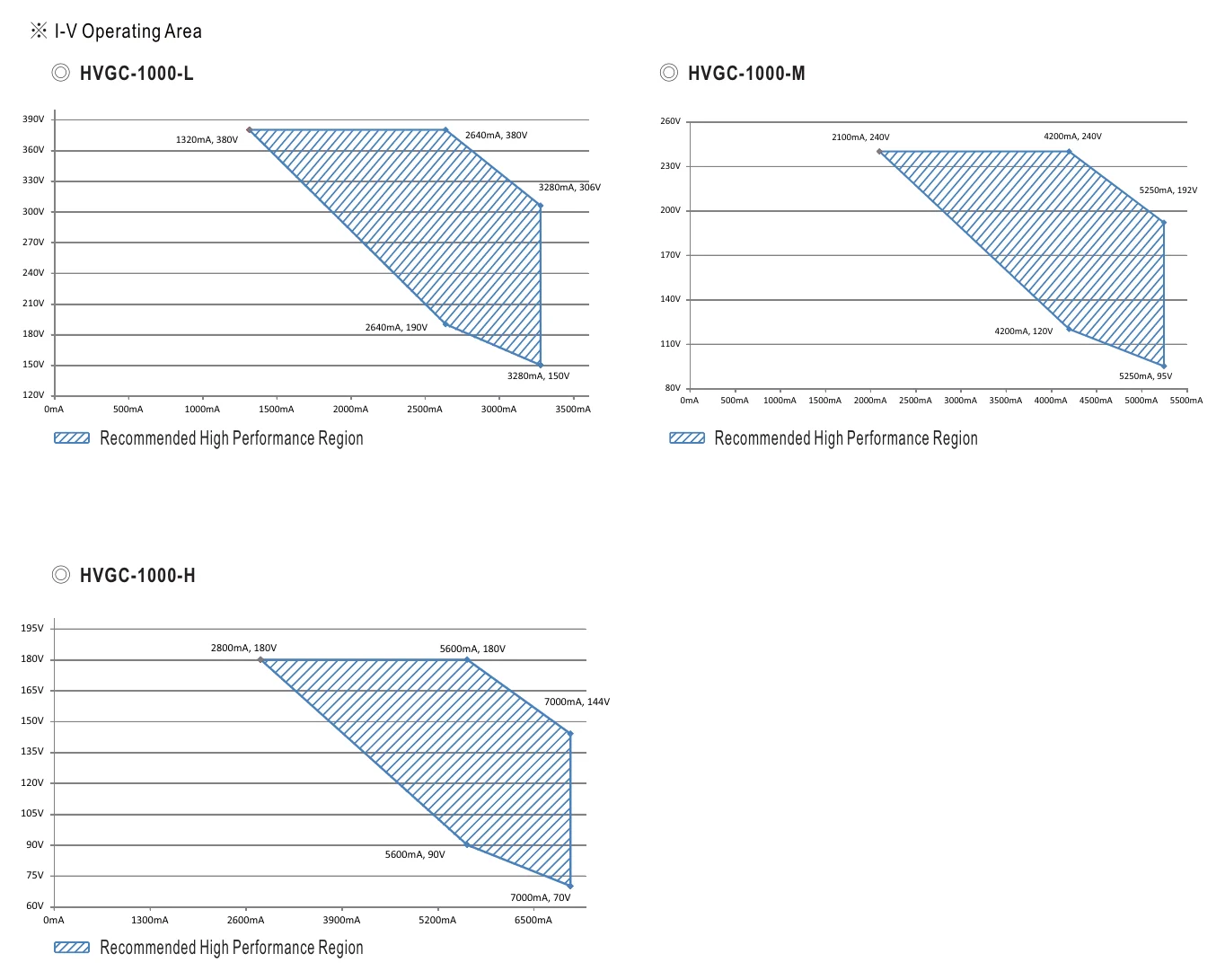

- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)

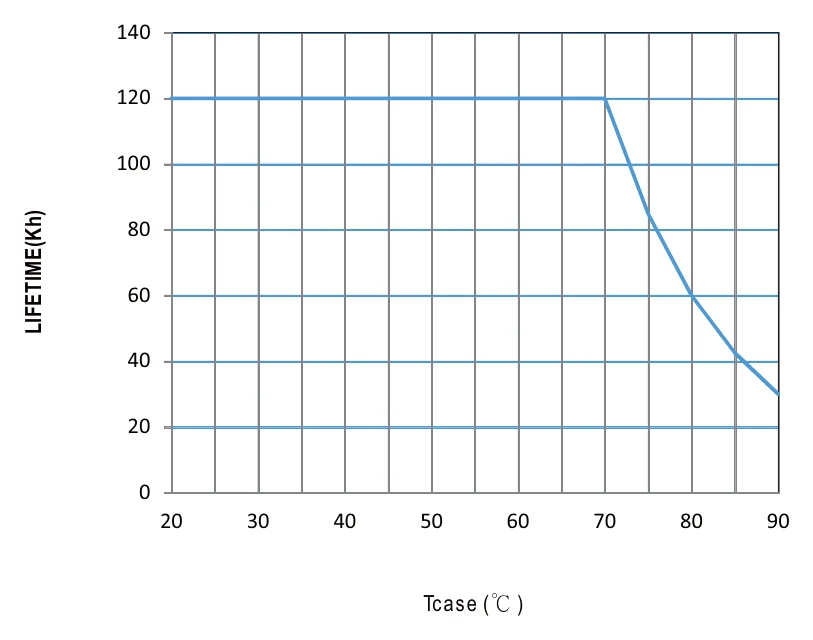

- 6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
- 7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 10. To prevent any Abnormal operation. Please install with two-way switch to AC input.
- 11. For A/AB type need to consider build in using to comply with Type HL application.

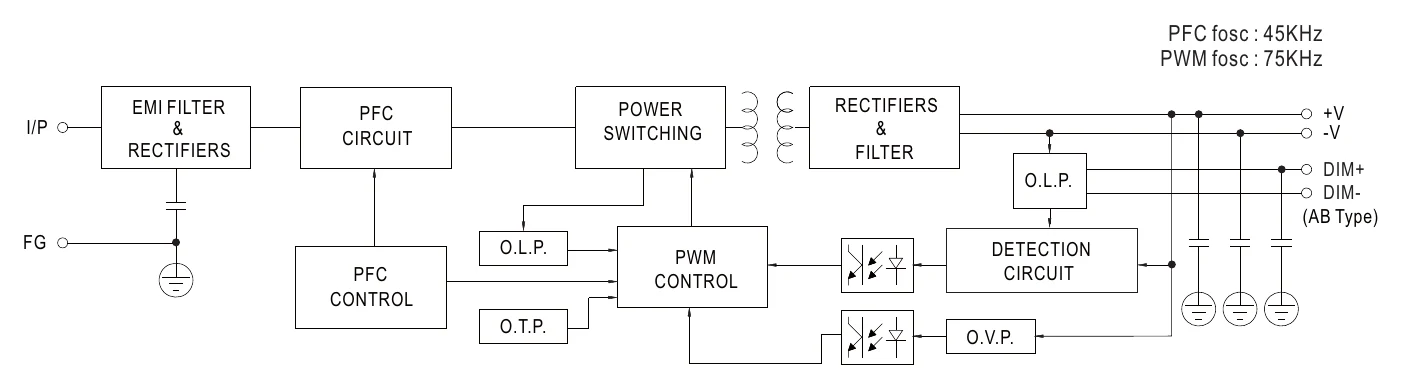

Technical drawings
Typical applications
- Harbor lighting
- High-bay lighting
- Flood lighting
- Fishing lamp
- Horticulture lighting
- Stadium lighting
- Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates7
Test reports1
Catalogues1
FAQ
Can I use the HVGC-1000A-H-AB for large constant current LED downlight arrays?
Yes, this model provides 5600mA constant current and is intended for high-power LED loads that need a higher drive current. The total LED forward voltage still has to stay within the 70-180V constant current range and within the 1008W rating.
Is this driver suitable for high-power signage module assemblies?
It can be suitable for signage module assemblies only when the modules are built for constant current operation at 5600mA. It is not a constant voltage power supply, so it should not be used for modules that require a fixed voltage output.
Can the HVGC-1000A-H-AB run a high-output small LED array outdoors?
Yes, if the array is designed for 5600mA constant current and its total forward voltage falls within 70-180V. The IP67 rating and a case temperature (Tcase) range of -40°C to +90°C, with load derating at higher temperatures, support use in demanding indoor or outdoor conditions.
How do I size LED compatibility for this 5600mA driver?
The LED load must be specified for constant current at 5600mA, and the full forward voltage of the array must stay within the 70-180V CC range. The number of LEDs depends on the forward voltage of each LED, so compatibility must be checked by voltage rather than by a fixed LED count.
How does the HVGC-1000A-H-AB compare with the other 1000W HVGC versions?
The HVGC-1000A-H-AB is rated at 5600mA with a 70-180V CC range and 1008W. The HVGC-1000A-M-AB is rated at 4200mA with a 95-240V CC range and 1008W, while the HVGC-1000A-L-AB is rated at 2800mA with a 150-380V CC range and 1003.2W.
