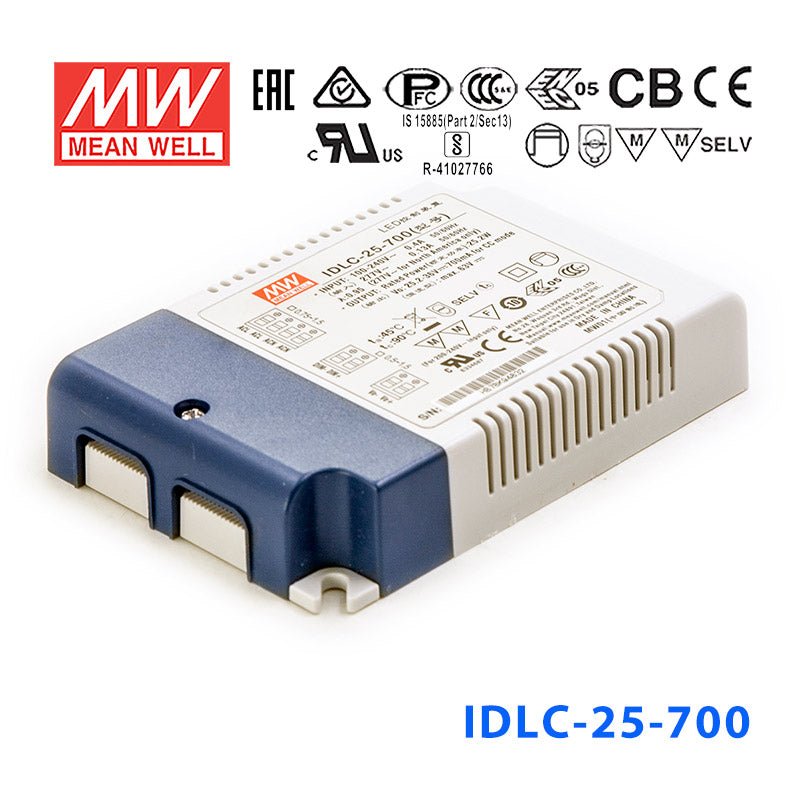

Mean Well IDLC-25-700 Power Supply 25W 700mA, Dimmable

$17.97 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Constant Current mode output
Flicker-free design
Plastic housing with class II design
Built-in active PFC function
No load power consumption<0.5W(Blank-Type)
Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output
3 years warranty

General Specification

Short circuit Hiccup mode recovers automatically after the fault condition is removed
Withstand voltage I/P-O/P:3.75KVAC
Working temperature

T case=-20~+90°C (Please refer to OUTPUT LOAD vs TEMPERATURE section)

Safety standards UL8750,CSA C22.2 NO.250.13-12;ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1, GB19510.14 approved
EMC standards Compliance to EN55015, EN61000-3-2 Class C (load) ; EN61000-3-3, GB17743, GB17625.1
Dimension (LxWxH)(mm) 110 x 75 x 22 mm

Specifications

  • Brand
    Mean Well
  • Series
    IDLC Series
  • Power Rating
    25.2 Watt
  • Output Voltage
    36 Volt
  • Rated Current
    0.7 Ampere
  • Input Voltage
    90V~295V
  • No of Output
    1
  • Dimming Control
    0-10V,10V PWM
  • Standards Met
    BSI,CB,CCC,CE,EAC,ENEC,RCM,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -20°C~90°C
  • Warranty
    3 Year
  • Length
    4.33 in
  • Width
    2.95 in
  • Height
    0.87 in
  • Weight
    0.43 lb

File Downloads

::specification::
