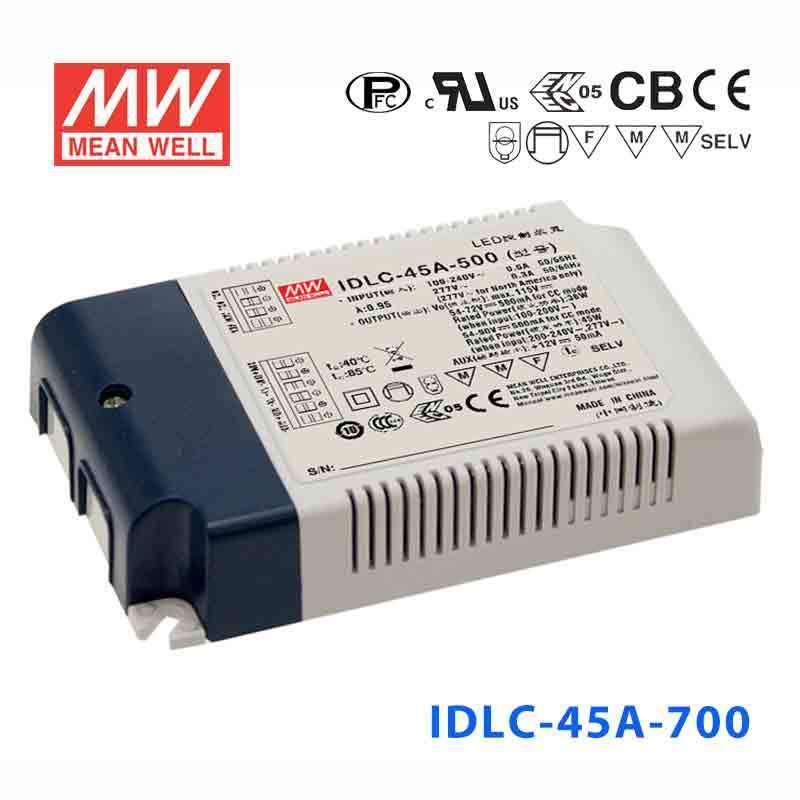

Mean Well IDLC-45A-700 Power Supply 45W 700mA (Auxiliary DC output)
T case=-20 ~ +85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section)
Key Features
- ✓Constant Current mode output
- ✓Flicker free design
- ✓Plastic housing with class II design
- ✓Built-in active PFC function
- ✓No load power consumption<0.5W(Blank-Type)
- ✓Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output
- ✓3 years warranty
-
BrandMean Well
-
SeriesIDLC Series
-
Power Rating44.8 Watt
-
Output Voltage64 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.72 in
-
Width2.95 in
-
Height0.98 in
-
Weight0.49 lb
::specification::
Frequently Asked Questions
Can the IDLC-45A-700 power LED downlights that use a higher forward-voltage light engine?
Yes, if the downlight is built for constant current operation at 700mA and its LED load runs within the 38-64V CC range. The higher voltage range makes it better suited to light engines that need more series LED forward voltage than a lower-voltage 700mA driver.
Is this a good fit for small architectural LED arrays?
It can be a fit when the array requires 700mA constant current and the total forward voltage lands between 38V and 64V. The driver provides up to 44.8W, so the array needs to stay within that output capability.
Can I use this driver with signage modules?
Only with signage modules that are designed for constant current at 700mA and whose combined LED forward voltage is within 38-64V. It is not intended for constant voltage LED modules that expect a fixed DC output.
Would this work for a linear or panel-style LED engine with multiple series LEDs?
Yes, if that LED engine is specified for 700mA constant current and operates in the 38-64V range. The actual number of LEDs depends on the forward voltage of each LED, so the electrical match has to be checked by total forward voltage.
How should I check compatibility with an LED module before choosing this driver?
Confirm that the module calls for constant current at 700mA and that its operating voltage fits inside the 38-64V CC range. The LED quantity cannot be estimated from the driver alone because it depends on each LED's forward voltage.
What is the difference between the IDLC-45A-700 and the other 45W current options in this series?
The IDLC-45A-700 outputs 700mA across 38-64V with 44.8W available. Other 45W versions are 1400mA at 19-32V and 44.8W, 1050mA at 26-43V and 45.15W, 500mA at 54-90V and 45W, and 350mA at 57-95V with about 33.2-33.25W.
