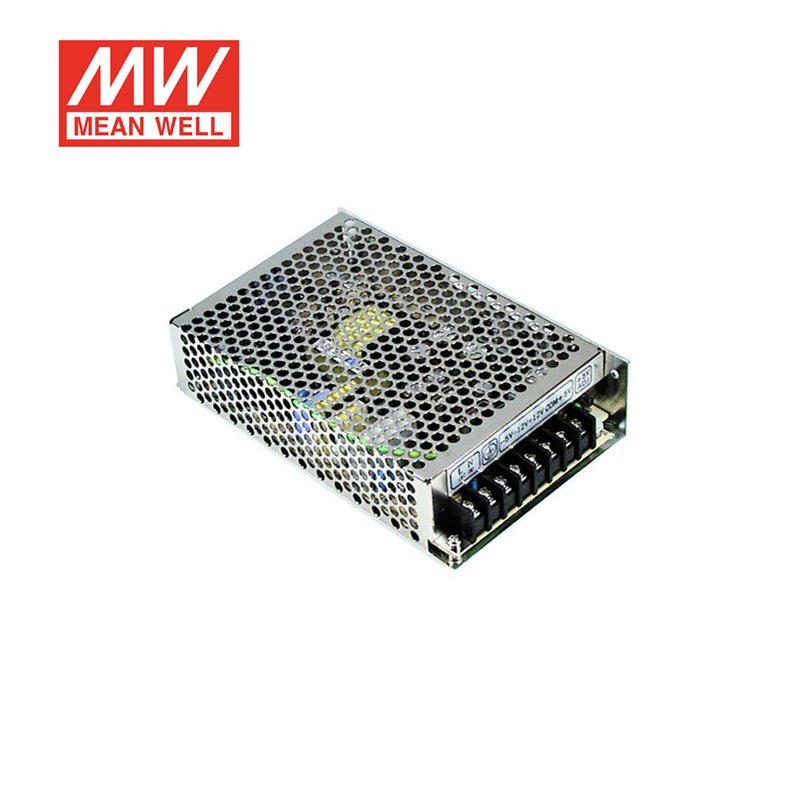

Mean Well IQ-60D Switching Power Supply 3A
Overview
IQ-60D is the 5V 12V -12V 24V output model of this series: rated current 3A 0.5A 0.5A 1.3A, rated power 58.2W, typical efficiency 76%.
Features
- Isolated output & GND for CH1,CH2 & CH3,CH4
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage
- LED indicator for power on
- 100% full load burn-in test
- Fixed switching frequency at 67KHz
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 5V 12V -12V 24V
- RATED CURRENT
- 3A 0.5A 0.5A 1.3A
- CURRENT RANGE
- 0.5 ~ 3A 0.1 ~ 1A 0.1 ~ 1A 0.2 ~ 2A
- RATED POWER
- 58.2W
- PEAK LOAD (3sec.)Note.4
- 70W
- RIPPLE & NOISE (max.)Note.2
- 80mVp-p 120mVp-p 120mVp-p 240mVp-p
- VOLTAGE ADJ. RANGE
- CH1 : 4.75 ~ 5.5V
- VOLTAGE TOLERANCENote.3
- ±3.0% ±8.0% ±8.0% ±8.0%
- LINE REGULATION
- ±1.0% ±2.0% ±2.0% ±2.0%
- LOAD REGULATION
- ±2.0% ±5.0% ±5.0% ±5.0%
- SETUP, RISE TIME
- 300ms, 20ms/230VAC 800ms, 20ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 80ms/230VAC 18ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 76%
- AC CURRENT (Typ.)
- 1.8A/115VAC 0.9A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 20A/115VAC 40A/230VAC
- LEAKAGE CURRENT
- <1mA / 240VAC
PROTECTION
- OVERLOAD
- 70 ~ 90W rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 5V: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.

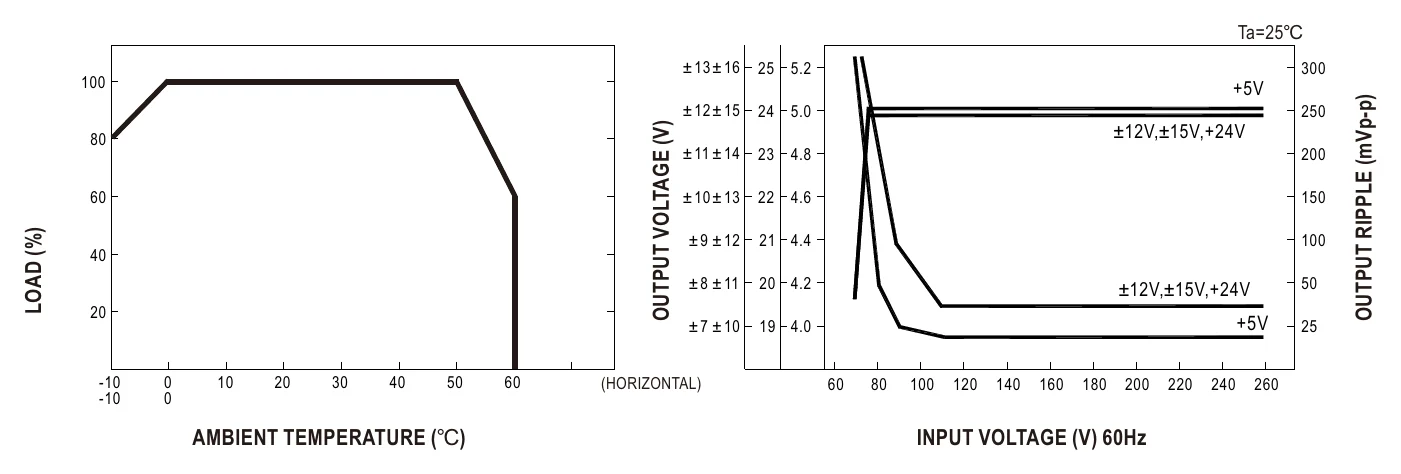

- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)on +5V output
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY
- SAFETY STANDARDS
- UL60950-1, TUV EN60950-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
OTHERS
- MTBF
- 313K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 159*97*38mm (L*W*H)
- PACKING
- 0.55Kg; 24pcs/14.2Kg/0.75CUFT
Test conditions and notes4
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. 5% Duty cycle maximum within every 1min. Average output power should not exceed the rated power.

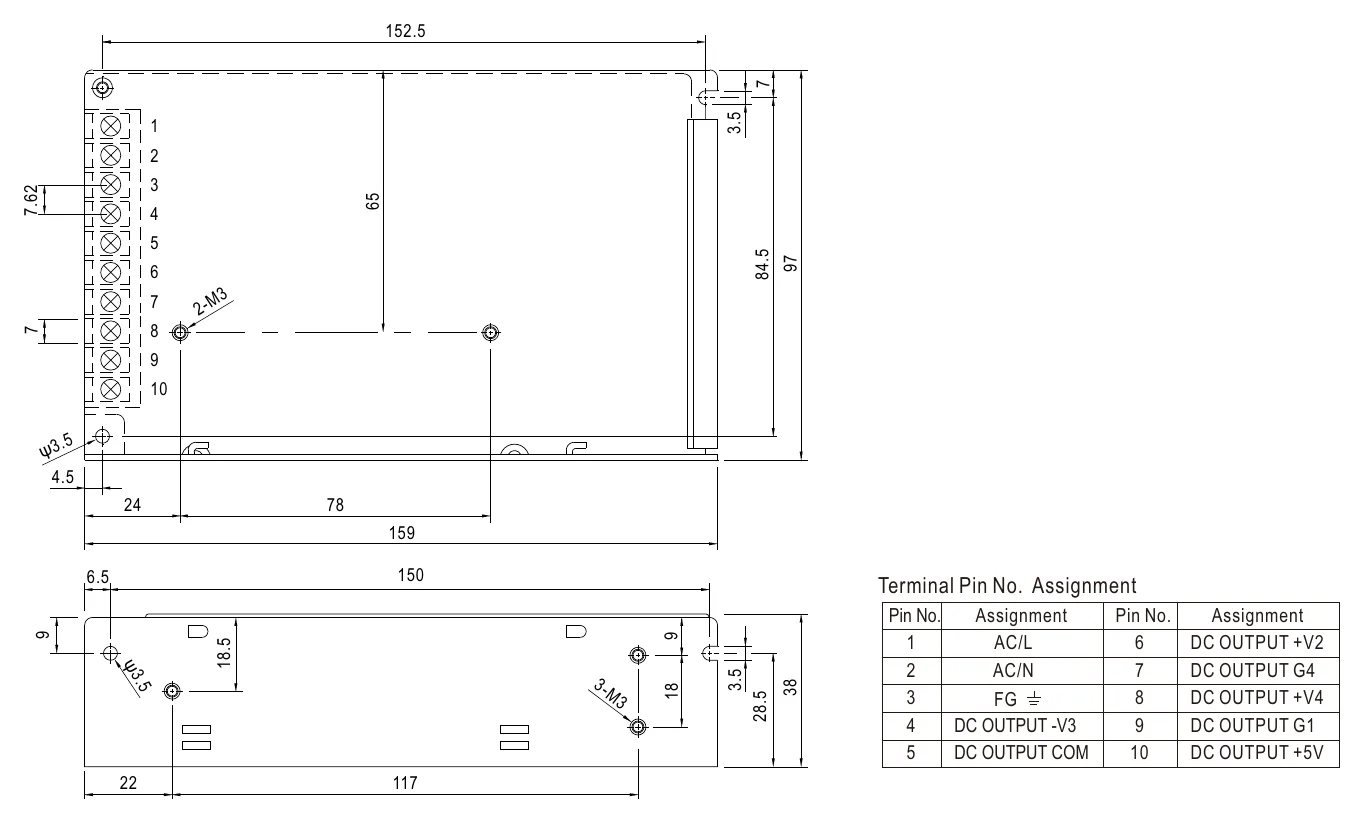

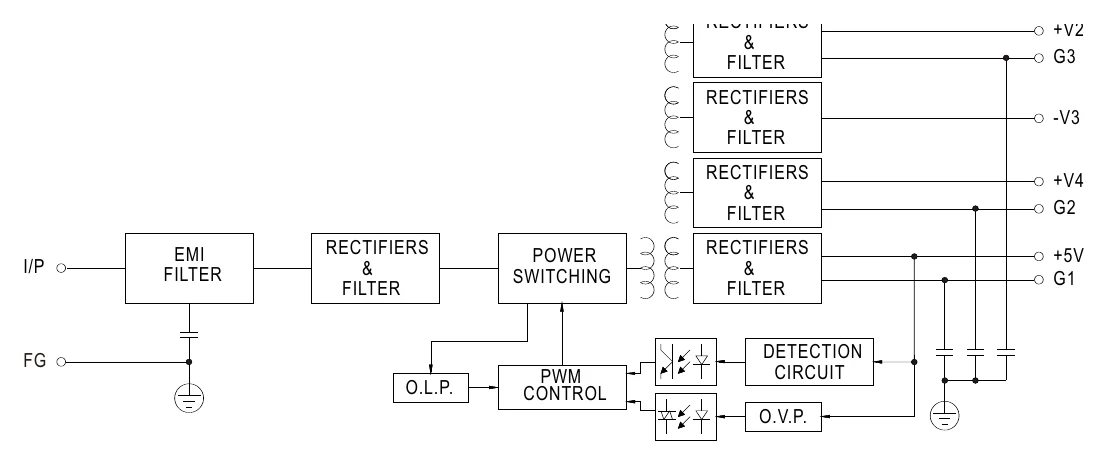

Technical drawings
Downloads
Datasheet1
