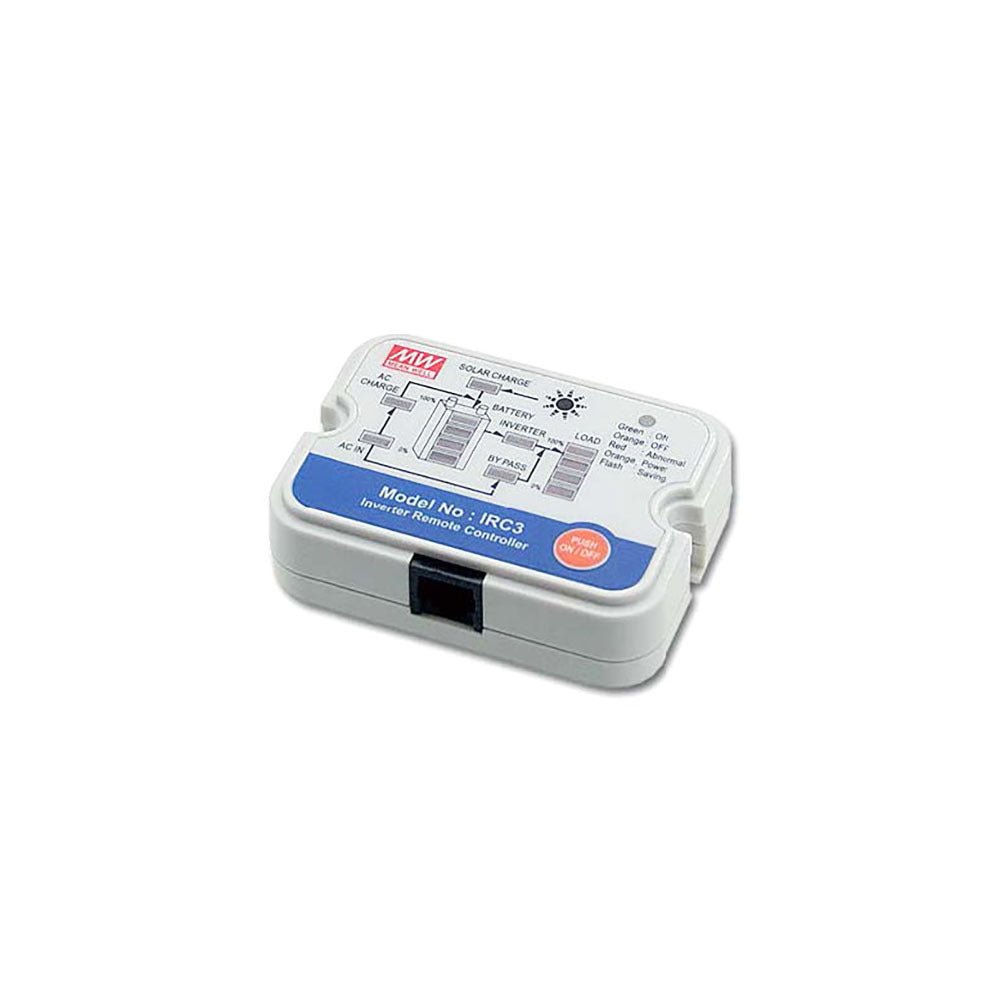

Mean Well IRC3 Power Inverter Remote Control
Overview
IRC1 / IRC2 / IRC3 is the monitoring and control unit used for the inverter series. It can decode the RS-232 signal sent by inverter series and display through digital meters. IRC1 / IRC2 / IRC3 can also turn ON/OFF of inverter remotely that make the basic control more easily.
Features
- Wall-mount and control panel acceptable
- Built-in ON/OFF button
- Digital meters for battery level, output load level, and operating status on remote control panel
- LED indicators for remote ON/OFF, abnormal and power saving mode
- Remote panel with 10FT cable length, optional for 25FT or 50FT
- Connect directly to the remote socket of inverter, no power supply needed
- 3 years warranty
Specifications
OUTPUT
- DIGITAL METER
- Display the battery level, output load level, and operating status of inverter unit
- CONTROL OUTPUT
- Remote ON/OFF for inverter unit
- LED INDICATOR
- Remote turn ON(Green) ; Remote turn Off(Orange) ; Abnormal (Red) ; Saving mode (Orange flash)
FUNCTION
- REMOTE ON/OFF CONTROL
- The controlled inverter unit can be turned ON/OFF on the remote control panel for IRC1 / IRC2 / IRC3
- POWER SAVING CONTROL
- Power saving enable / disable activation
- SUITABLE SERIES
- TN-1500 / 3000 NTS-750 / 1200 / 1700 / 2200 / 3200 NTU-1200 / 1700 / 2200 / 3200
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +50℃
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
EMC
- EMC EMISSION
- Compliance to BS EN/EN55032 class A, BS EN/EN61000-3-2,3, FCC PART 15 class A
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035
OTHERS
- MTBF
- 4352.7 / 858.7 / 632.9K hrs min. Telcordia SR-332 (Bellcore) ; 807.1 / 746.6 / 722.5K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 75*55*21mm (L*W*H)
- PACKING
- 0.26Kg; 24pcs/7.3Kg/1.75CUFT
Certifications & ratings
- Certification marks
- FCC, CE, UKCA
Test conditions and notes2
- 1. The remote control can not re-power on for inverter at abnormal status.
- 2. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
What does the Meanwell IRC3 remote control do?
The Meanwell IRC3 is a monitoring and control panel for supported inverter series. It lets you remotely turn the inverter on or off and view key operating information on the panel. The display and indicators show battery level, output load level, and operating status.
What information can the IRC3 display?
The IRC3 includes digital meters for battery level, output load level, and operating status. It also has LED indicators for remote ON/OFF, abnormal condition, and power saving mode. This makes it a practical option when users want quick status visibility without checking the inverter directly.
Is the IRC3 suitable for panel or wall mounting?
The datasheet's mechanical drawing shows a chassis cut-out ('hole in chassis') for installing the IRC3 in a control panel; wall mounting is not specified. Panel installation suits commercial and industrial power systems where remote access is useful.
What operating environment is the IRC3 rated for?
The listed operating temperature range is -20°C to 50°C. This makes the IRC3 suitable for a wide range of indoor or protected equipment environments, provided the overall system is designed within those limits.
