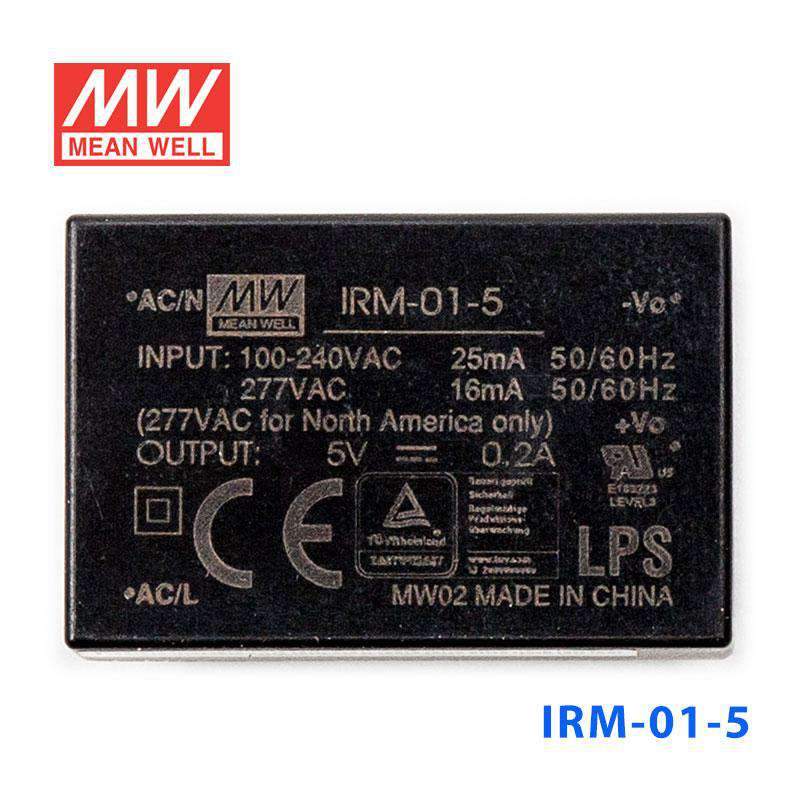

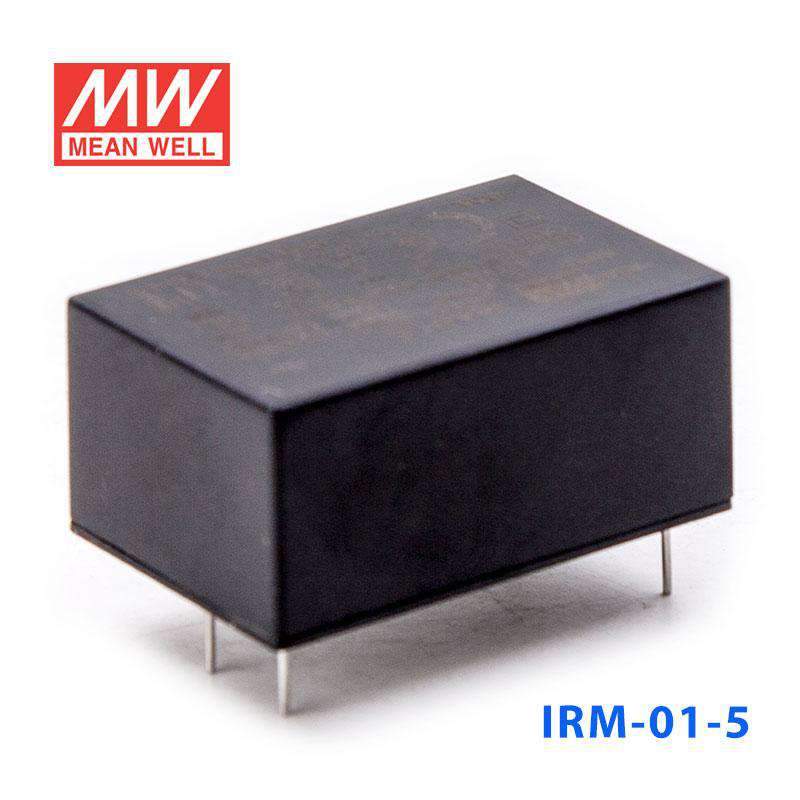

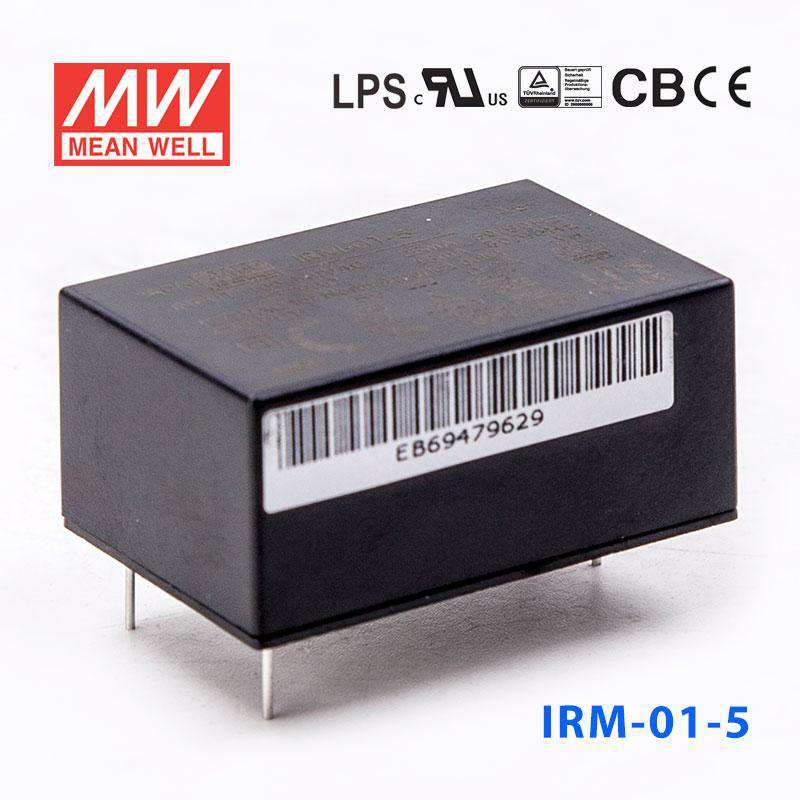

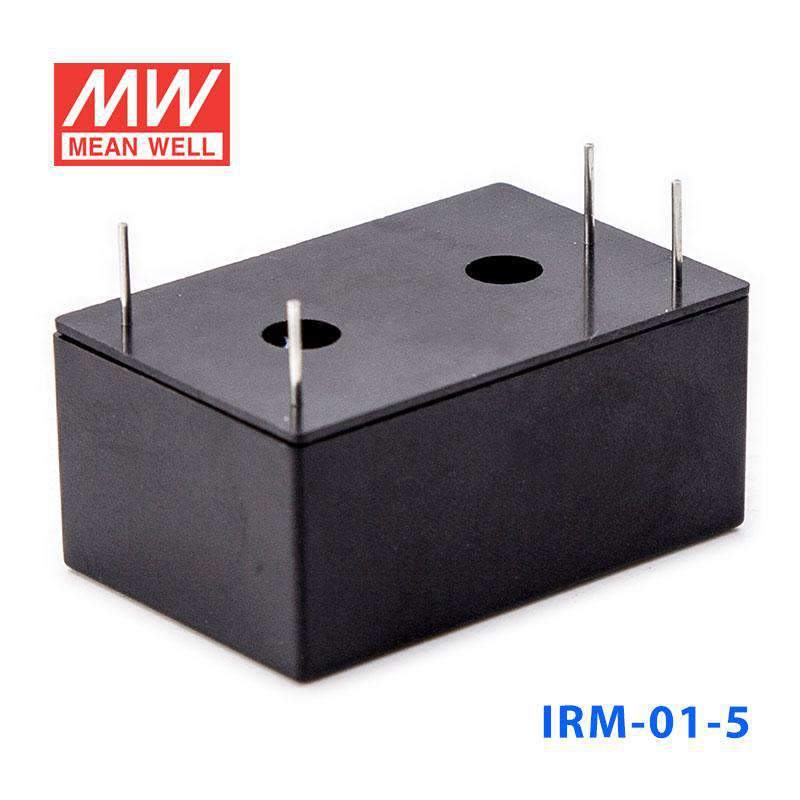

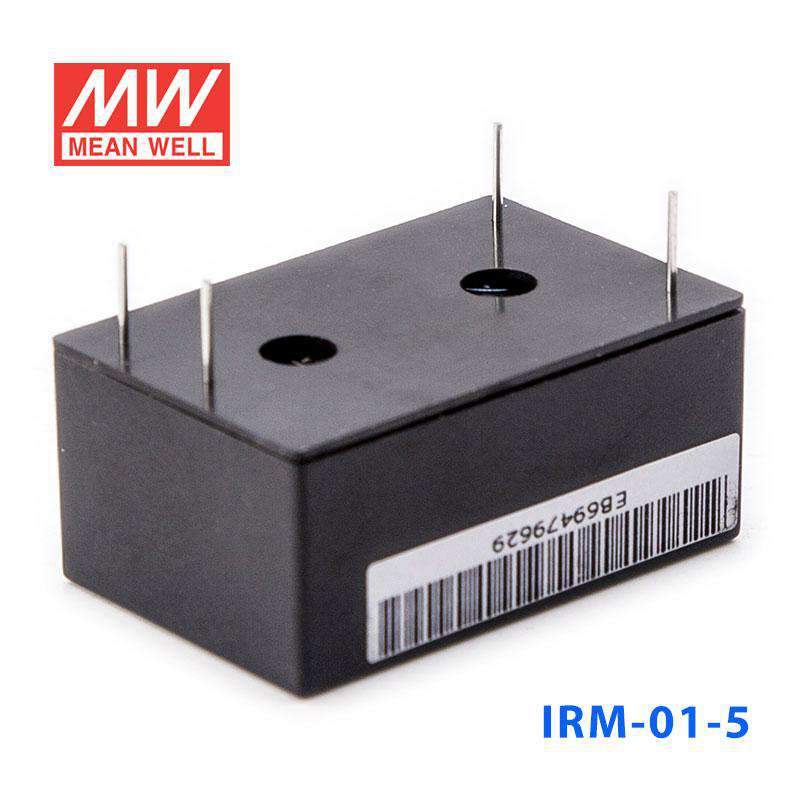

Mean Well IRM-01-5 Switching Power Supply 1W 5V 200mA - Encapsulated
The IRM-01 is a 1W Mean Well power converter (input range: 85~305VAC).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating1 Watt
-
Output Voltage5 Volt
-
Rated Current0.2 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length1.33 in
-
Width0.87 in
-
Height0.59 in
-
Weight0.05 lb
::specification::
Frequently Asked Questions
Can I use the IRM-01-5 for a small 5V embedded controller or logic board?
Yes, if the 5V load is a low-power circuit and stays within the 1W rating. This constant voltage model is suited to compact embedded or automation electronics that need a regulated 5V rail from an 85-305VAC input.
Is the IRM-01-5 appropriate for a low-power industrial interface or monitoring module?
It can be, provided the module is designed for 5V DC and does not exceed 1W. That makes it a better match for small monitoring, logic, or communications sections than for heavier 5V equipment.
Can this 5V model be used on a PCB for compact automation electronics?
Yes, the 33.7 × 22.2 × 15.0 mm size and miniature encapsulated PCB mounting style support compact board-level designs. The 5V constant voltage output is intended for onboard low-power electronics rather than larger 5V subsystems.
Is the IRM-01-5 meant for outdoor use or only protected indoor enclosures?
The unit is rated for -30°C to +85°C operation, so temperature range is broad. No IP rating is provided, so it should be considered for protected internal use instead of exposed outdoor or washdown environments.
How does the IRM-01-5 compare to nearby IRM voltage options?
At the 1W level, the IRM-01 family includes 3.3V 300A, 5V 200A, 9V 111A, 12V 0.08A, 15V 0.07A, and 24V 0.04A outputs, with several standard and S variants. If 1W is not enough, the IRM line continues through 2W, 3W, 5W, 10W, 15W, 20W, 30W, 45W, 60W, and 90W classes, with outputs extending up to 48V.
