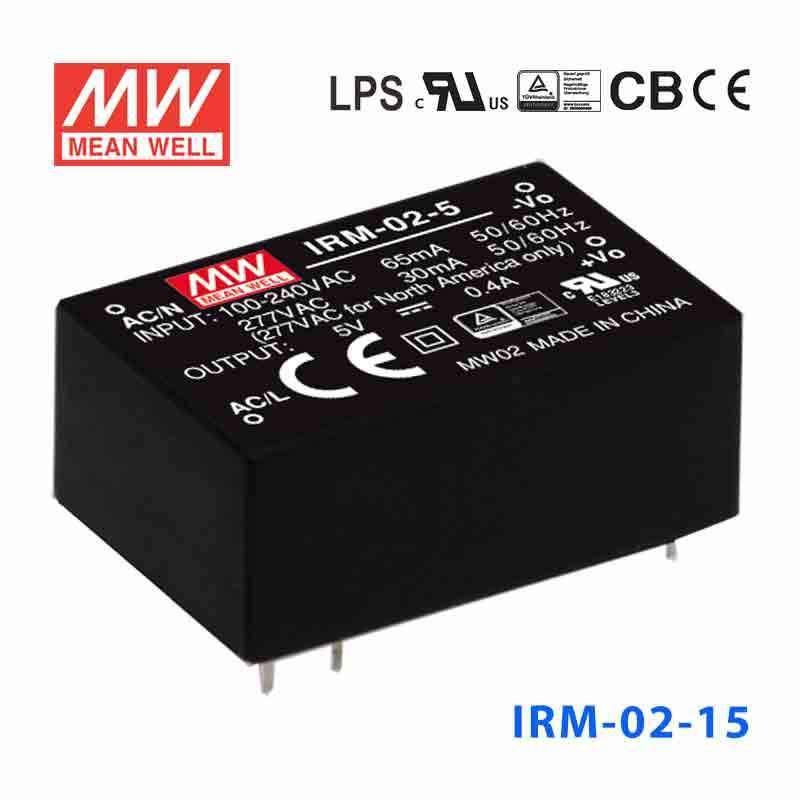

Mean Well IRM-02-15 Switching Power Supply 2W 15V 133mA - Encapsulated
The IRM-02 is a 2W Mean Well power converter (input range: 85~305VAC).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating2 Watt
-
Output Voltage15 Volt
-
Rated Current0.13 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length1.33 in
-
Width0.87 in
-
Height0.59 in
-
Weight0.05 lb
::specification::
Frequently Asked Questions
Can I use the IRM-02-15 for a small 15V analog or instrumentation circuit?
It can fit low-power 15V constant-voltage circuits when total load stays within 2W and 133mA. That makes it appropriate for small internal instrumentation sections rather than higher-draw 15V devices.
Is the IRM-02-15 suitable for embedded industrial electronics that need 15V?
Yes, for embedded 15V electronics with modest current demand up to 133mA. Its miniature encapsulated construction and 33.7 × 22.2 × 15.0 mm size suit compact PCB-based equipment.
Can this model power a low-power 15V automation or signal interface module from universal AC input?
It is specified for 85-305VAC input, which supports a broad mains range. The connected load still needs to fit within the 15V, 133mA, and 2W output rating.
Is the IRM-02-15 appropriate for outdoor environments?
The stated operating temperature range is -30°C to +85°C, so it can handle a wide temperature span inside equipment. The provided specs do not show an IP rating, so it should be used in protected indoor enclosures rather than exposed outdoor locations.
How does the IRM-02-15 compare with other 15V IRM models?
For 15V outputs, the range includes 1W models at 0.07A, 2W models at 133mA, 3W models at 200mA, 4.95W at 0.33A, 10.05W at 0.67A, 15W at 1A, 21W at 1.4A, 30W at 2A, 45W at 3A, 60W at 4A, and 85.05W at 5.67A. IRM-02-15 is the 2W, 15V PCB mounting style option in that progression.
